Replacement Parts for GReddy Oil Cooler Block Adapter(s) Type E / B / F / I / G

USE THE PULL-DOWN MENU ABOVE TO SELECT ITEM, THEN ADD TO CART ^

 (If not in stock, email us at shop@greddy.com to special order.)

** Optional GReddy Direct M18xP1.5 O-ring fittings - 1240215X

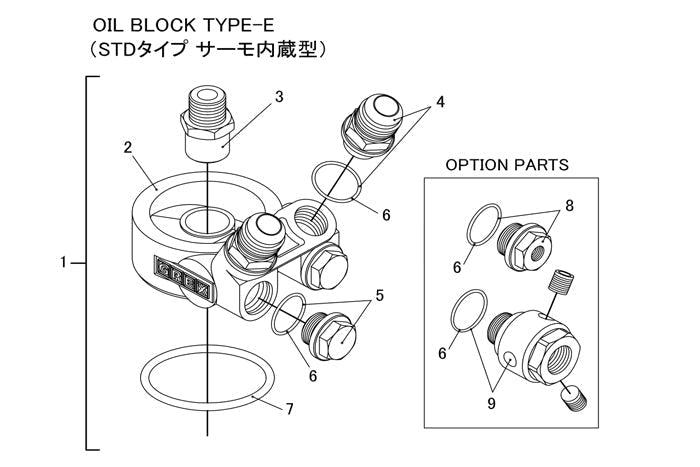

 Oil Block Type-E (STD Female) - AN

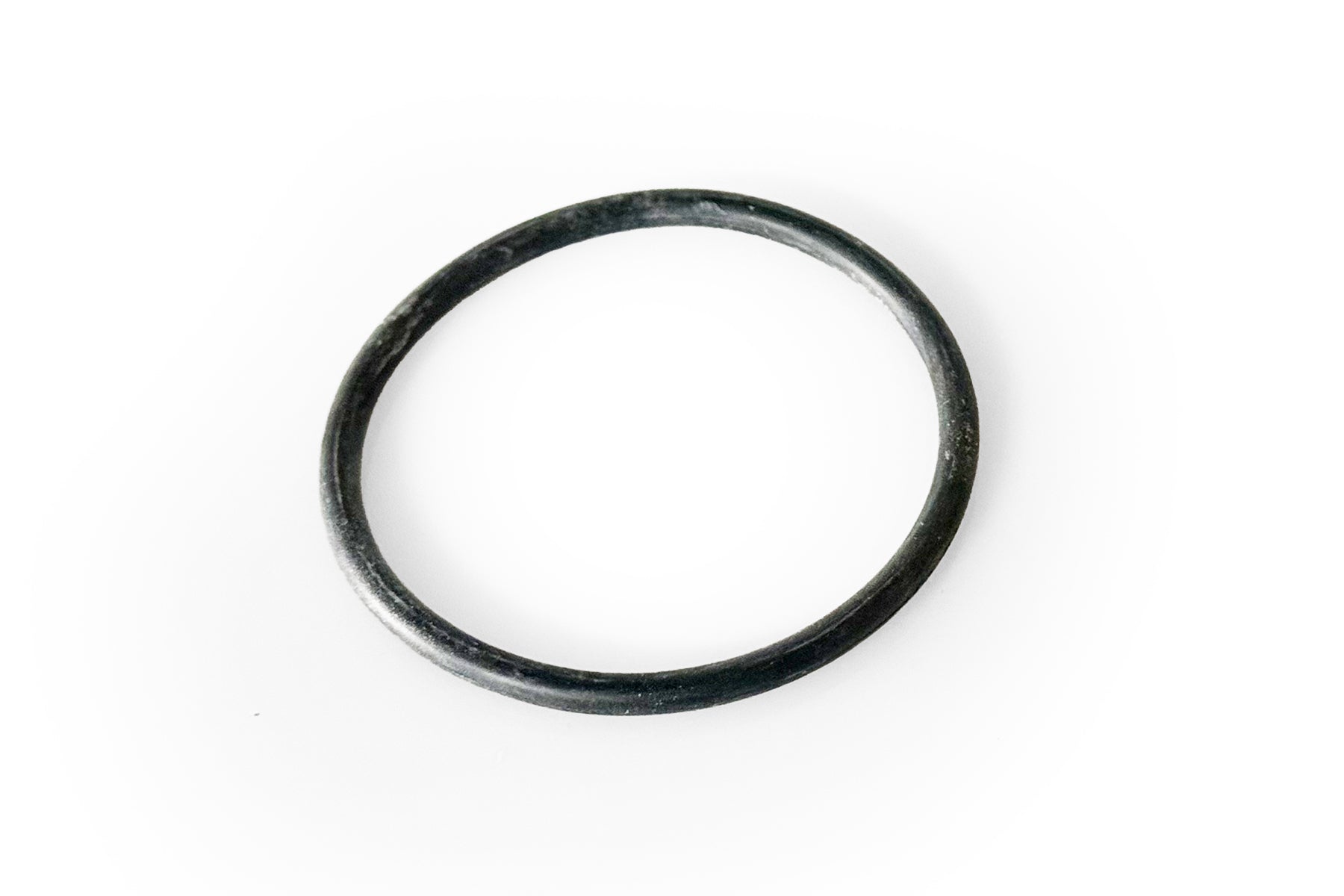

Large O-ring - Dia. 57mm   -   12401103

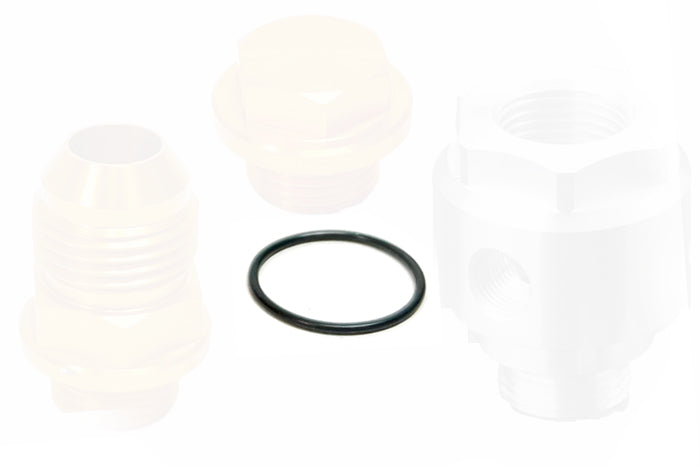

Small Fitting O-ring - Dia. 22mm   -   12401101

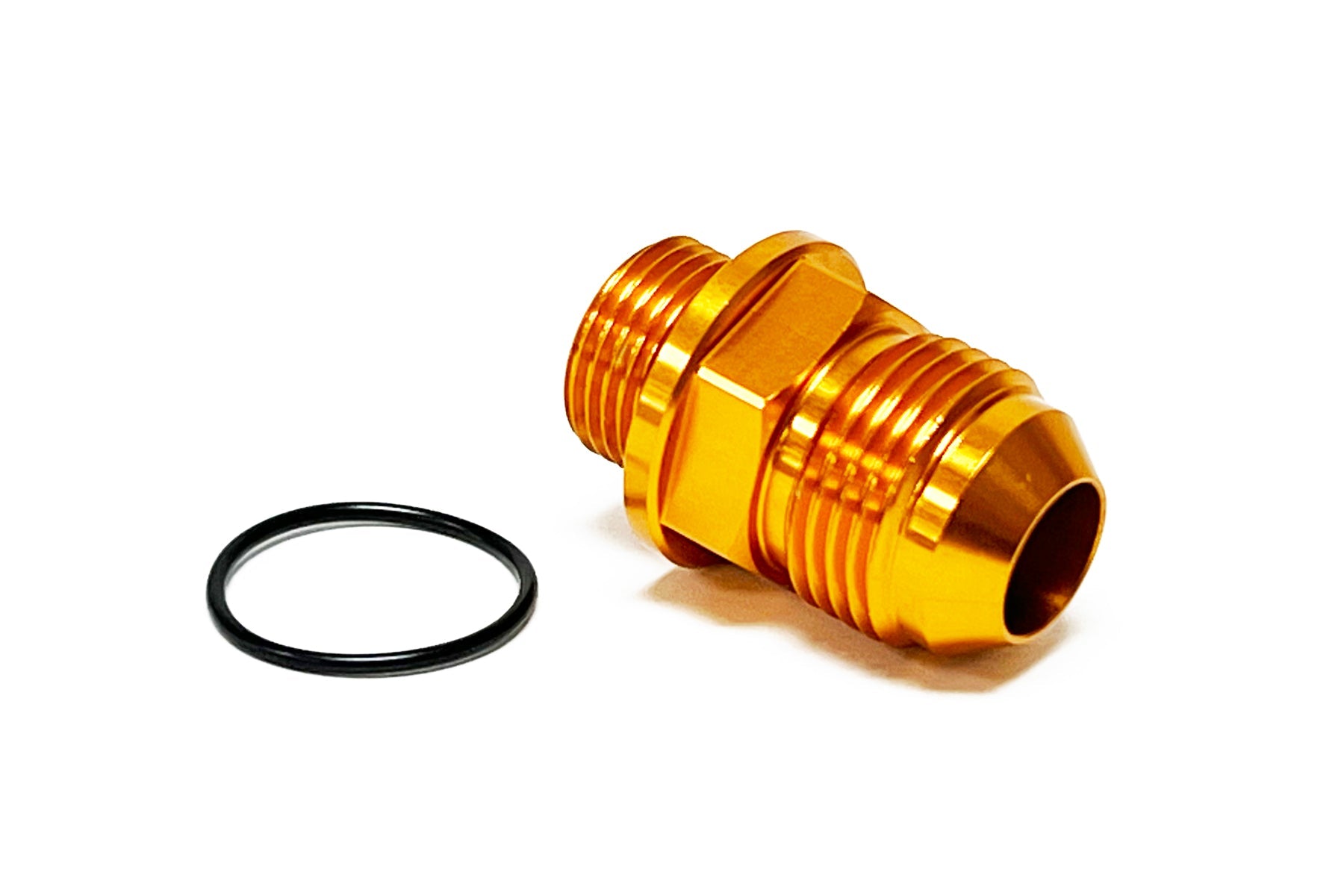

GReddy M18xP1.5 gold -10AN Fitting with O-ring - 12005103

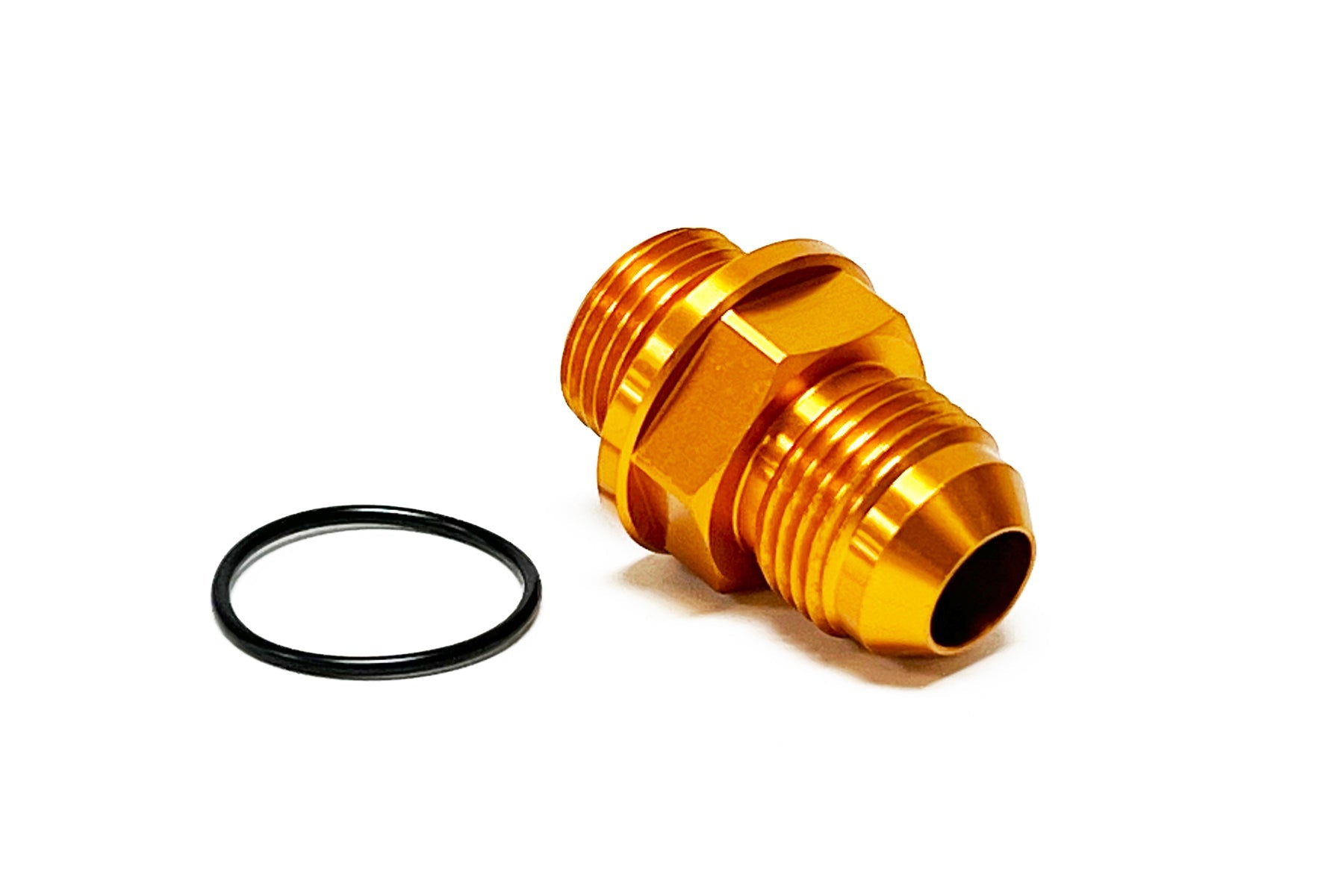

* Optional M18xP1.5 gold -08AN Fitting with O-ring - 12005110

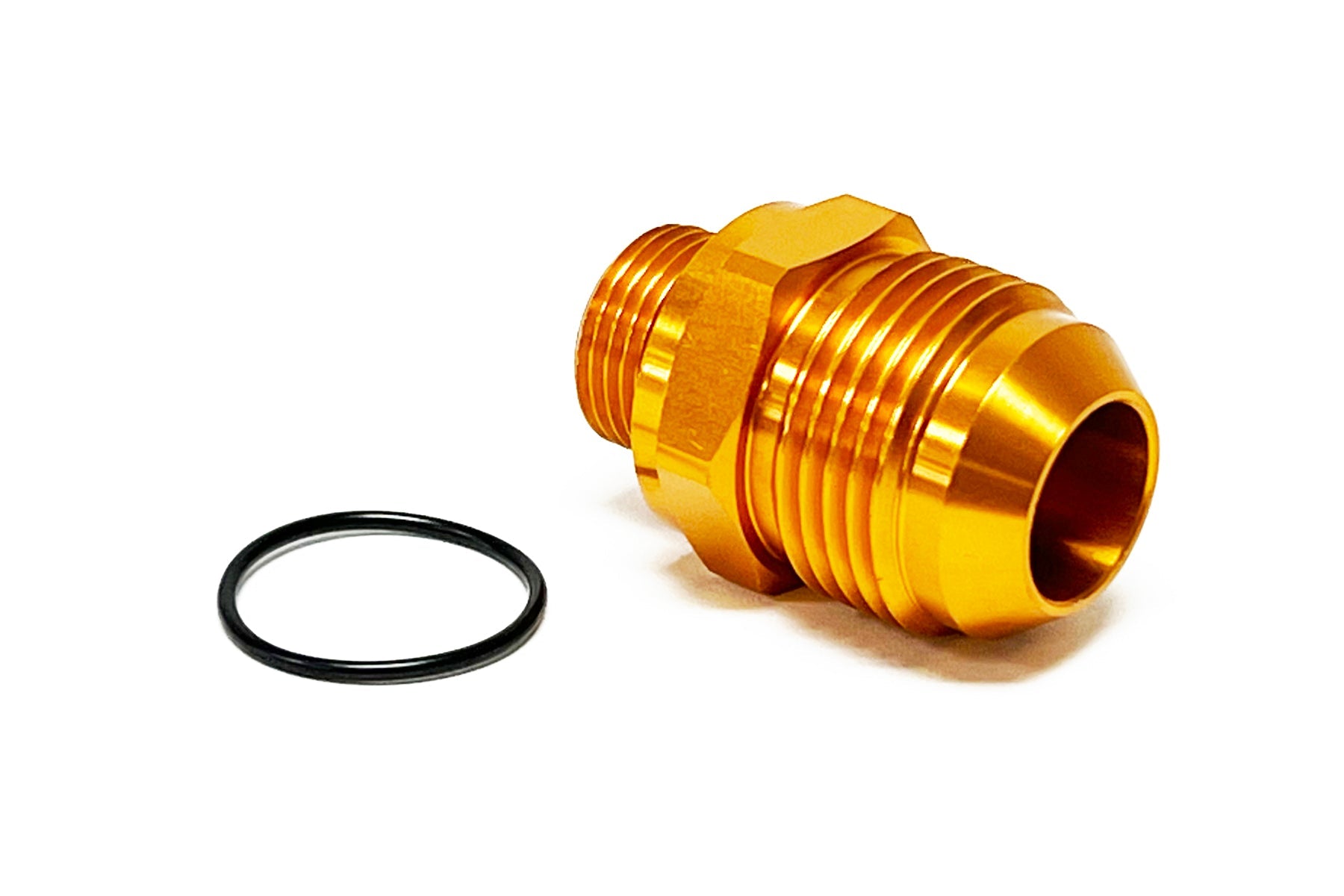

* Optional M18xP1.5 gold -12AN Fitting with O-ring - 12005112

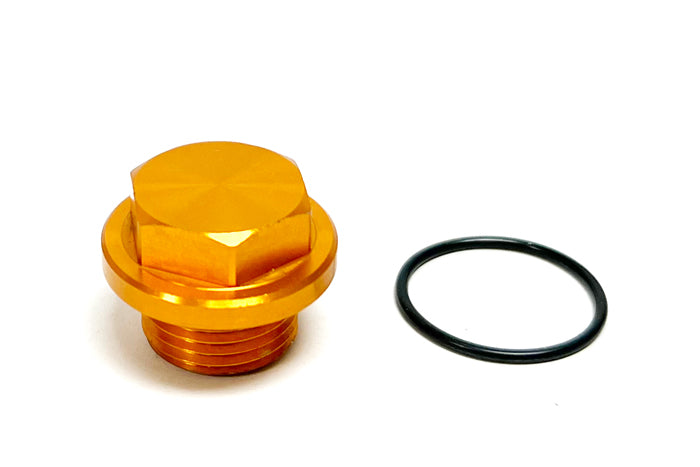

GReddy M18xP1.5 gold Plug Fitting with O-ring - 12401121
      *Optional M18xP1.5 Sensor adapter fittings (here)

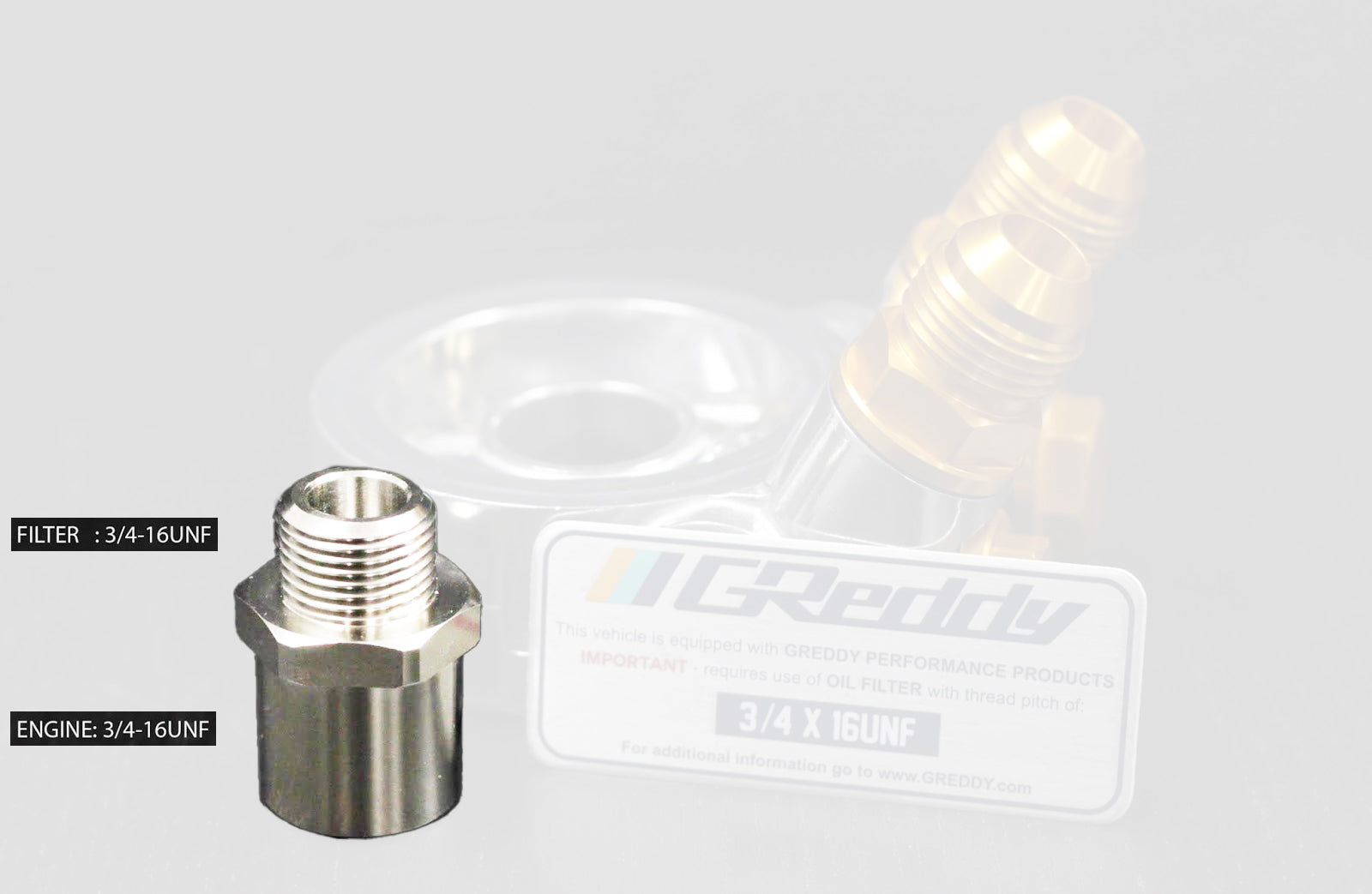

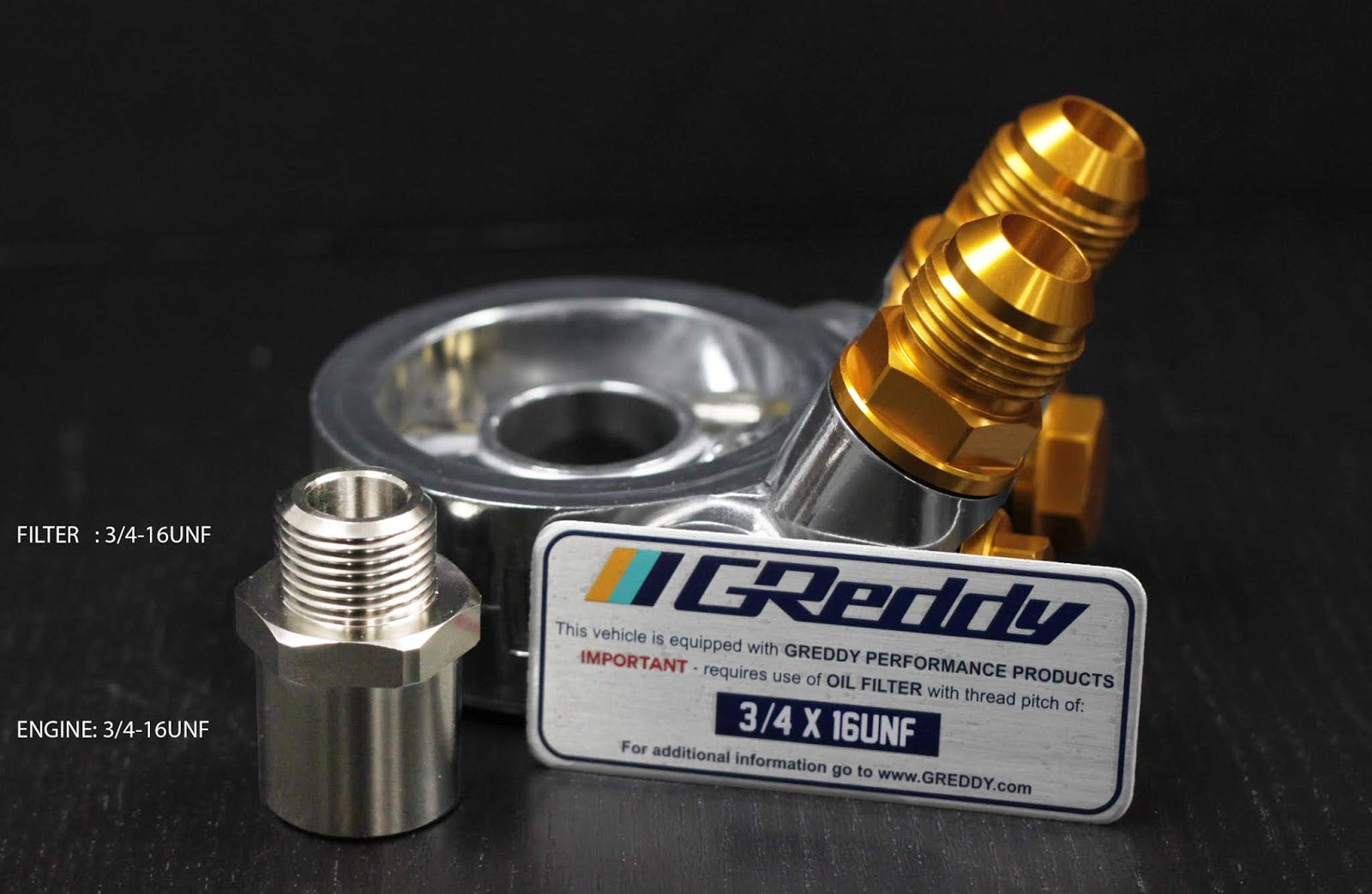

Oil Block Center Bolt 3/4 x 16UNF / 3/4 x 16UNF  -  12002812

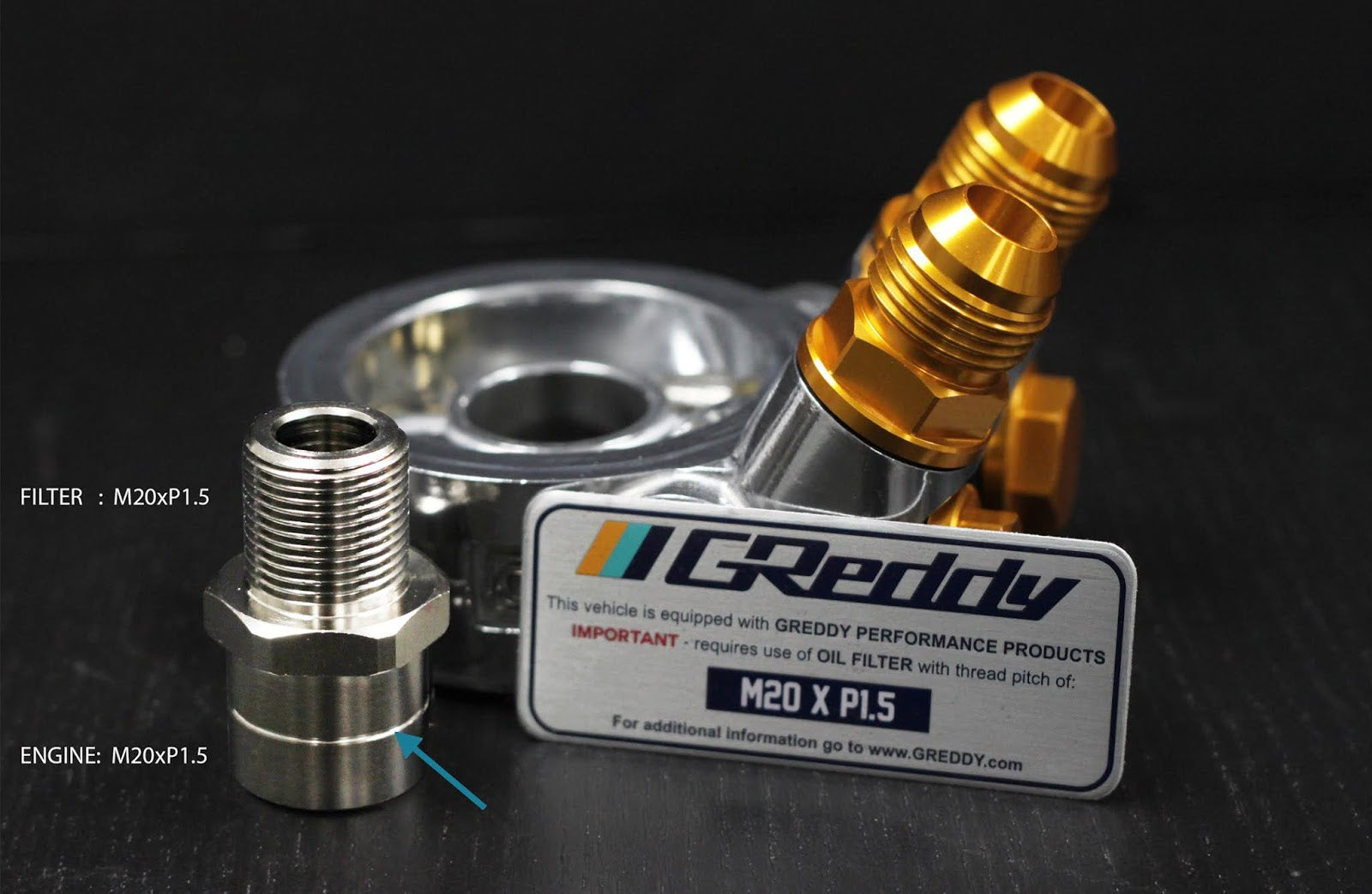

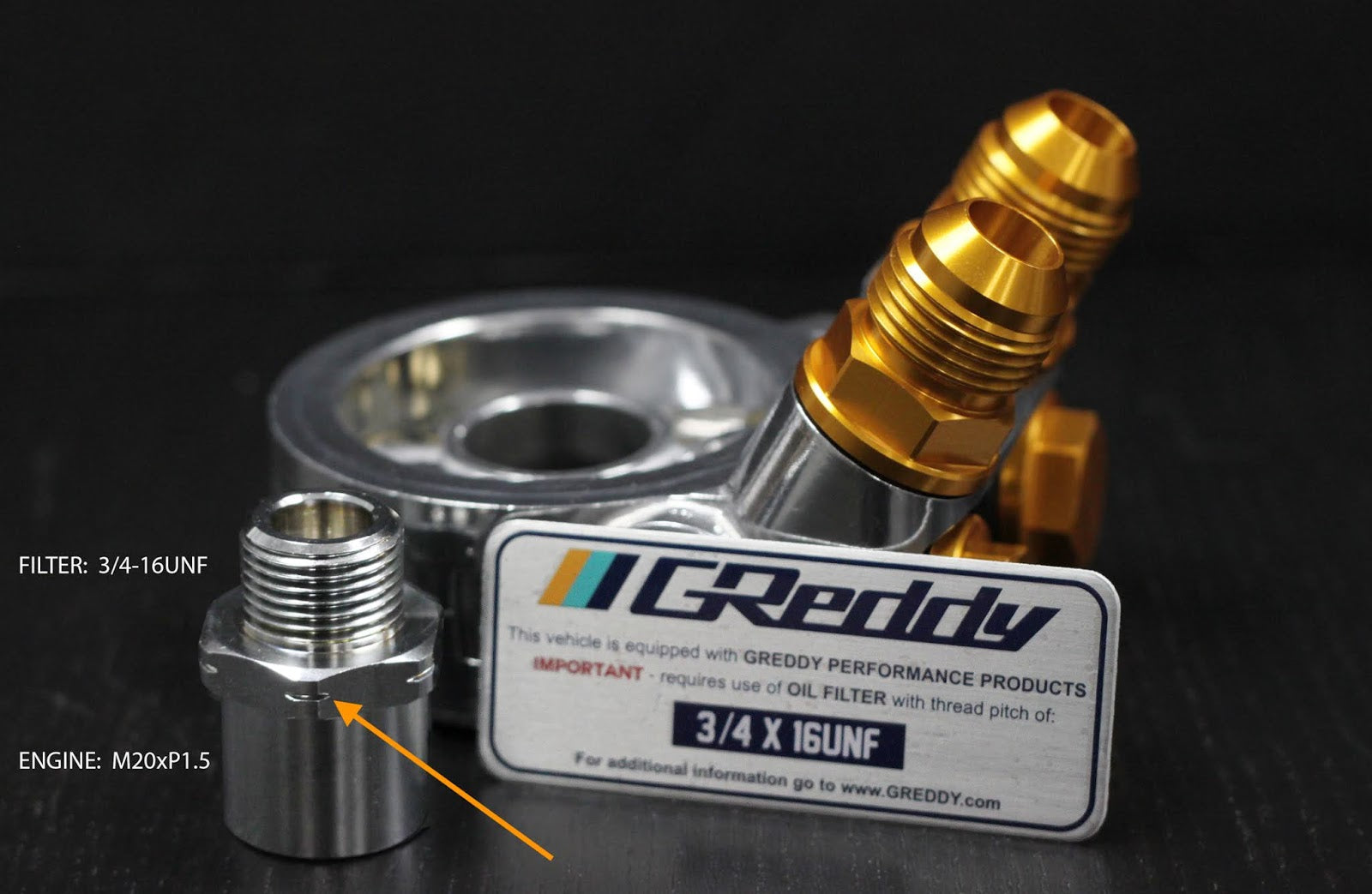

Oil Block Center Bolt M20xP1.5 / 3/4 x 16UNF  -  12401152
Oil Block Center Bolt M20xP1.5 / M20xP1.5 -  12002813

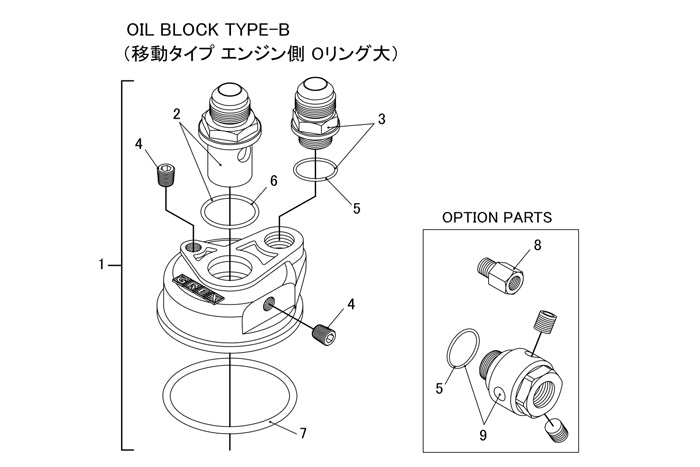

 Oil Block Type-B (Reloc. Filter Female) - Larger O-ring - AN

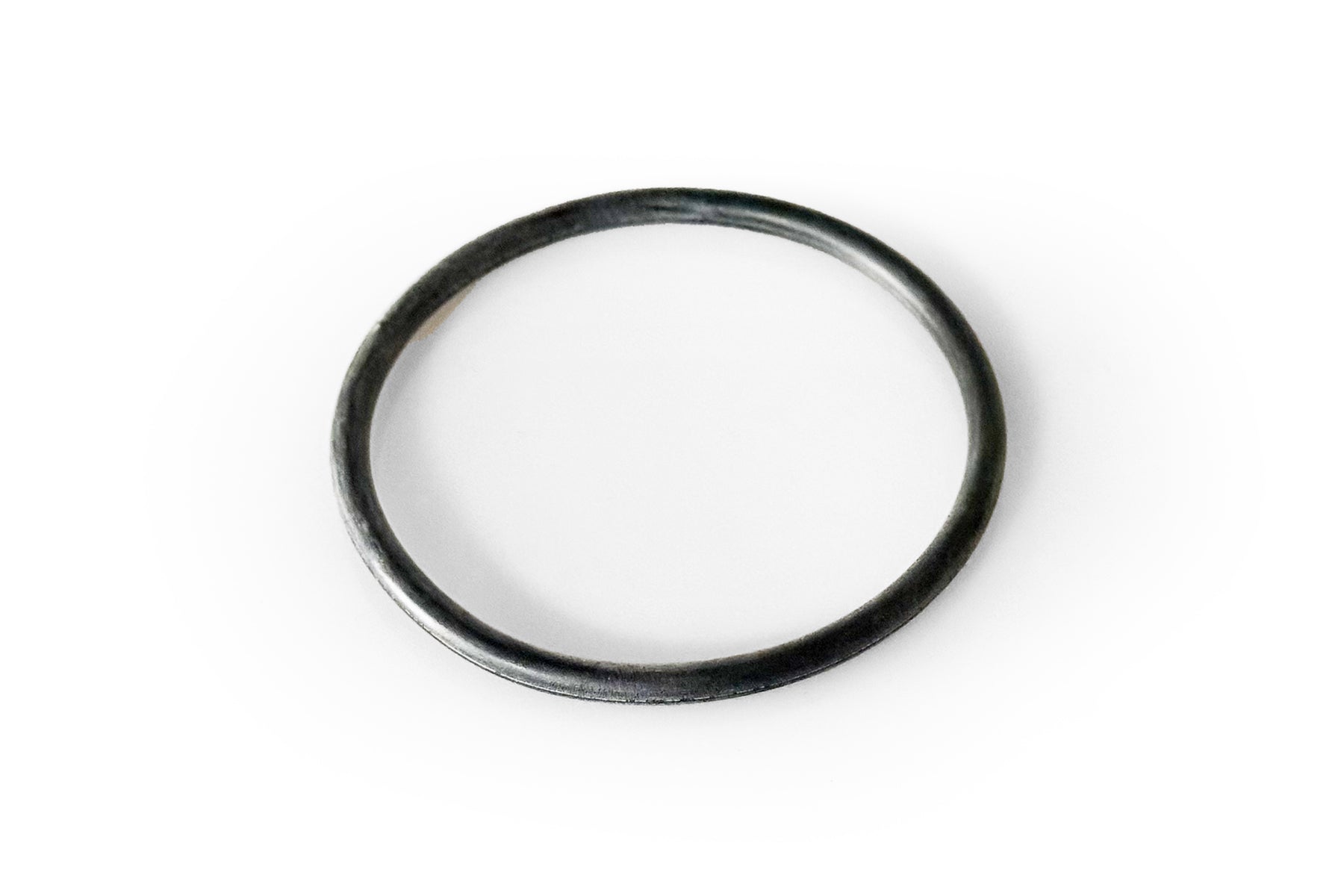

Large O-ring - Dia. 62mm   -   12401104
Center Fitting O-ring - Dia. 28mm   -   12401102
Small Fitting O-ring - Dia. 22mm   -   12401101

GReddy M18xP1.5 gold -10AN Fitting with O-ring - 12005103

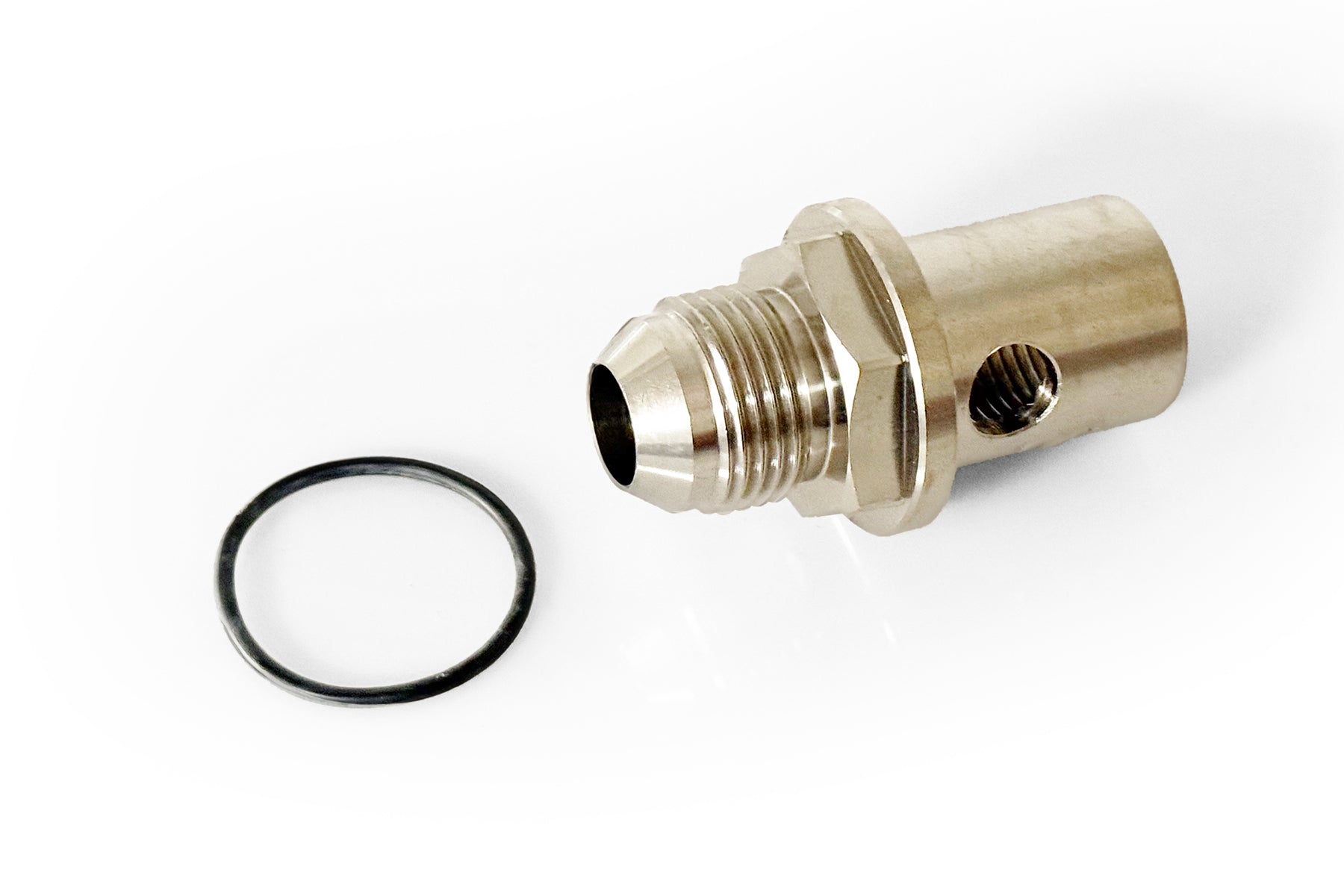

Oil Reloc. Block Center Fitting (Female 3/4x16UNF / -10AN)  -  12401145

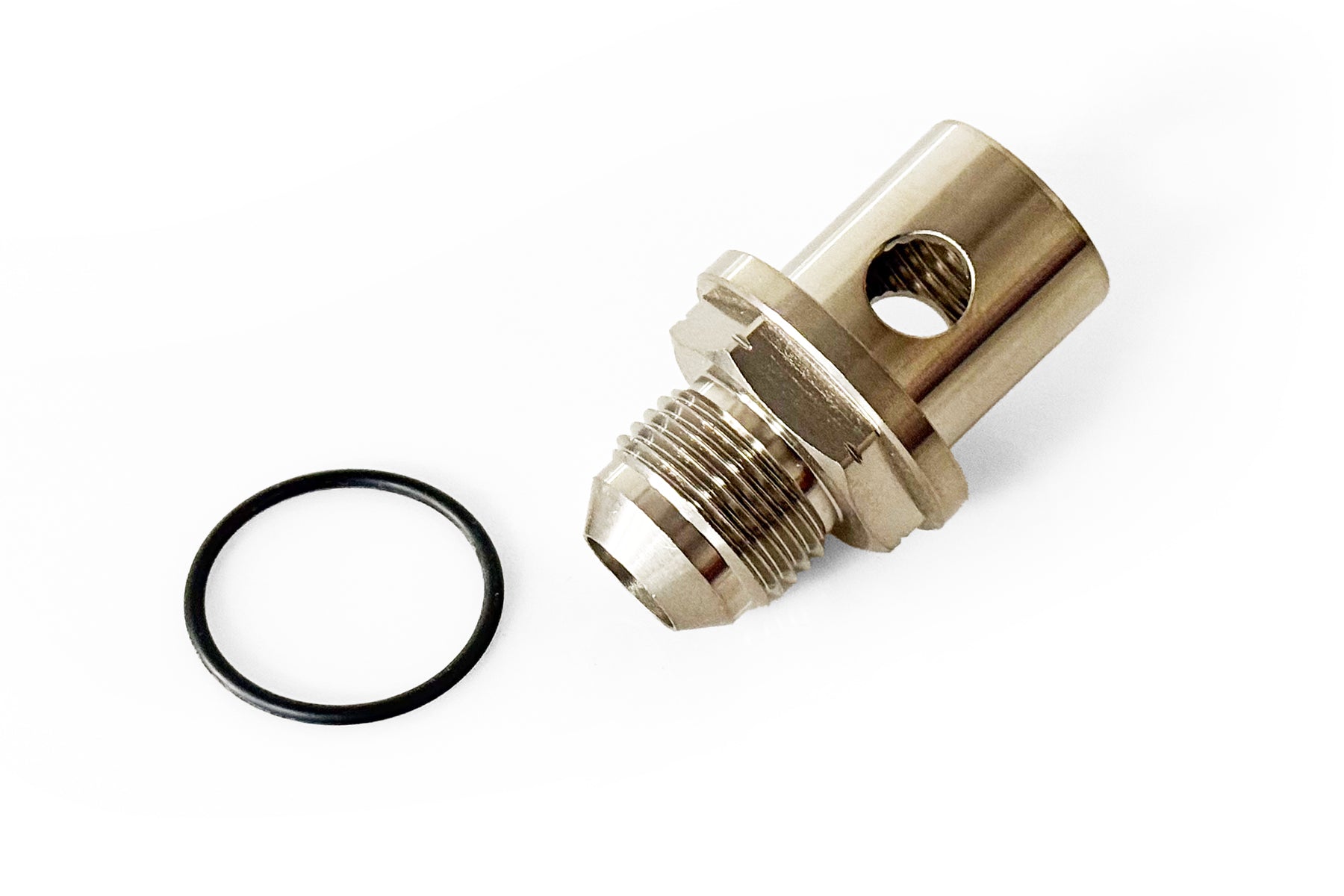

Oil Reloc. Block Center Fitting (Female M20xP1.5 / -10AN)  -  12401149

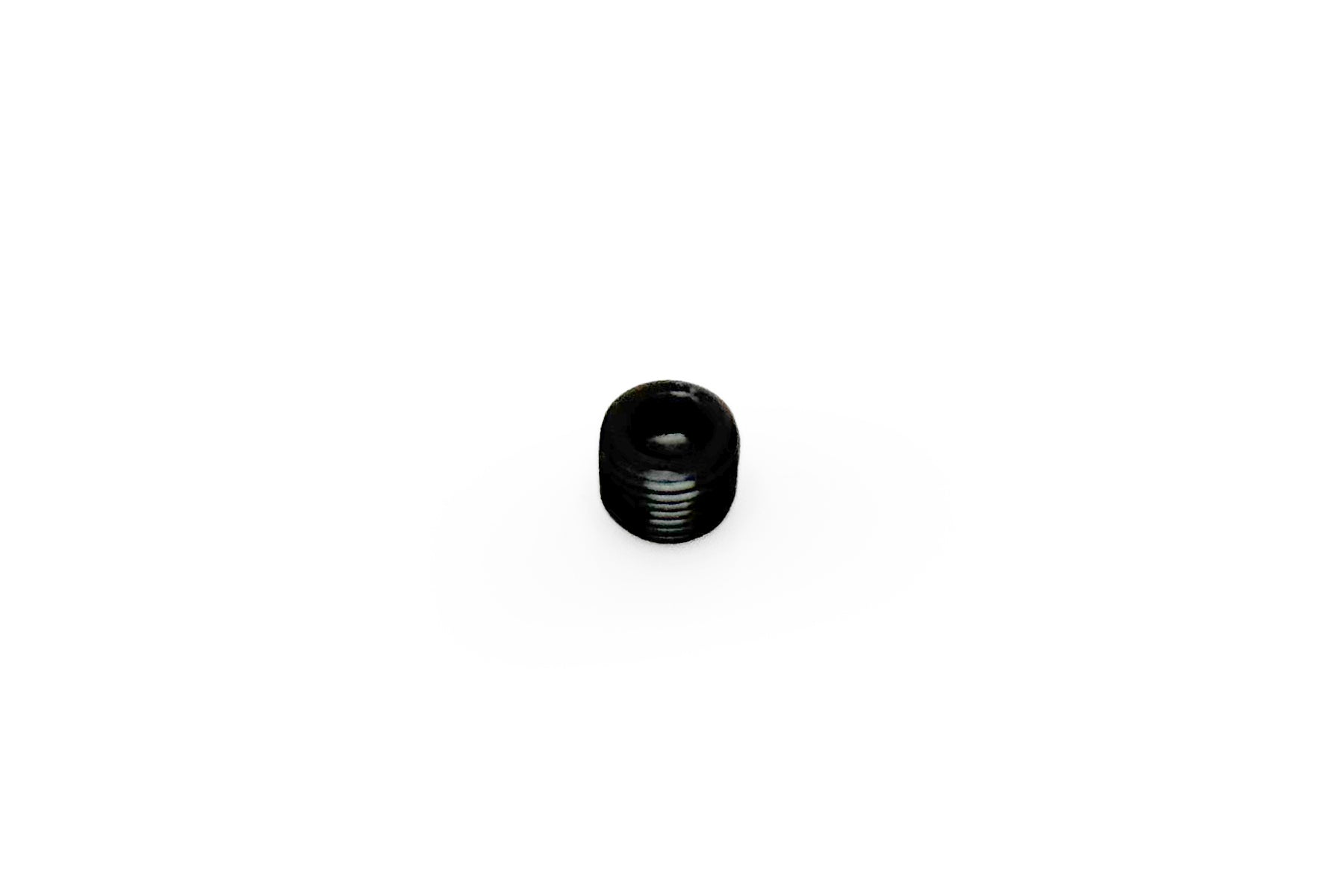

1/8 BSP (JDM 1/8PT) plug (black) - 11900672

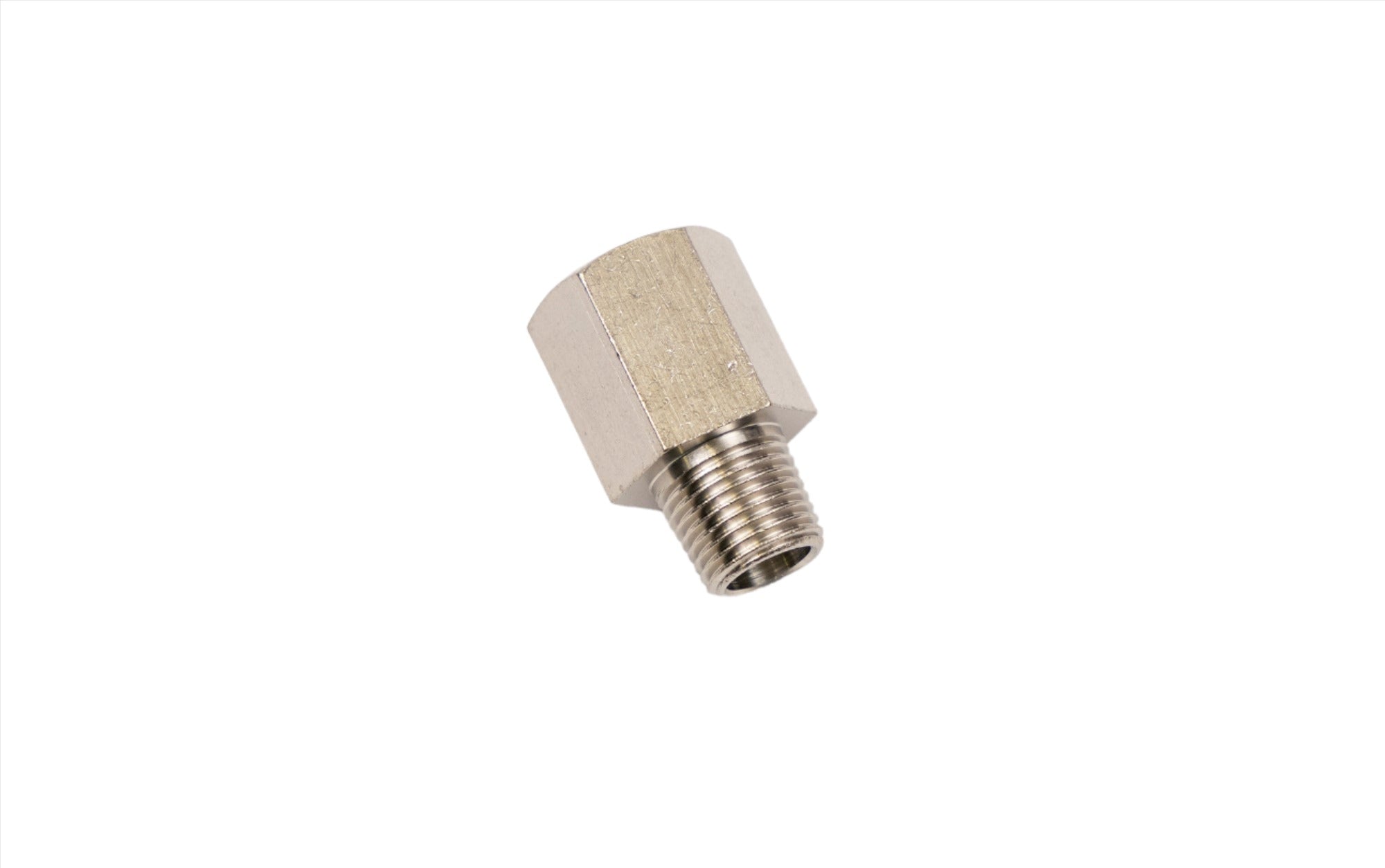

      *Optional 1/8BSP  Sensor extension adapter fittings - 12401105

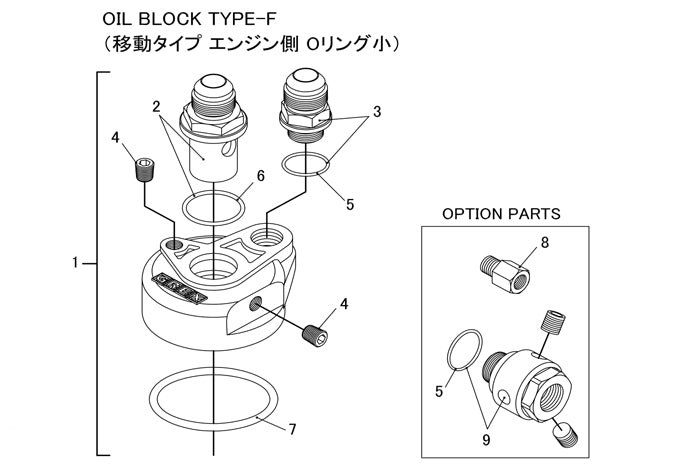

Oil Block Type-F  (Reloc Filter F) - Smaller O-ring - AN

Large O-ring - Dia. 57mm   -   12401103
Center Fitting O-ring - Dia. 28mm   -   12401102
Small Fitting O-ring - Dia. 22mm   -   12401101

GReddy M18xP1.5 gold -10AN Fitting with O-ring - 12005103

Oil Reloc. Block Center Fitting (Female 3/4x16UNF / -10AN)  -  12401145
Oil Reloc. Block Center Fitting (Female M20xP1.5 / -10AN)  -  12401149

1/8 BSP (JDM 1/8PT) plug (black) - 11900672
      *Optional 1/8BSP  Sensor extension adapter fittings - 12401105

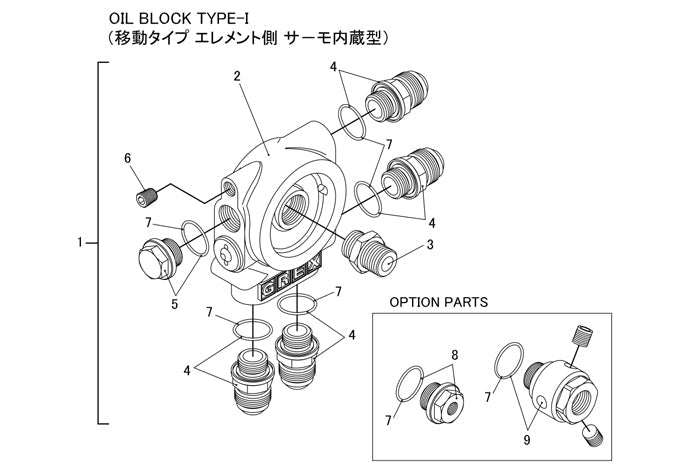

 Oil Block Type-I (External Filter M) - AN

Small Fitting O-ring - Dia. 22mm   -   12401101

GReddy M18xP1.5 gold -10AN Fitting with O-ring - 12005103
GReddy M18xP1.5 gold Plug Fitting with O-ring - 12401121
      *Optional M18xP1.5 Sensor adapter fittings (here)

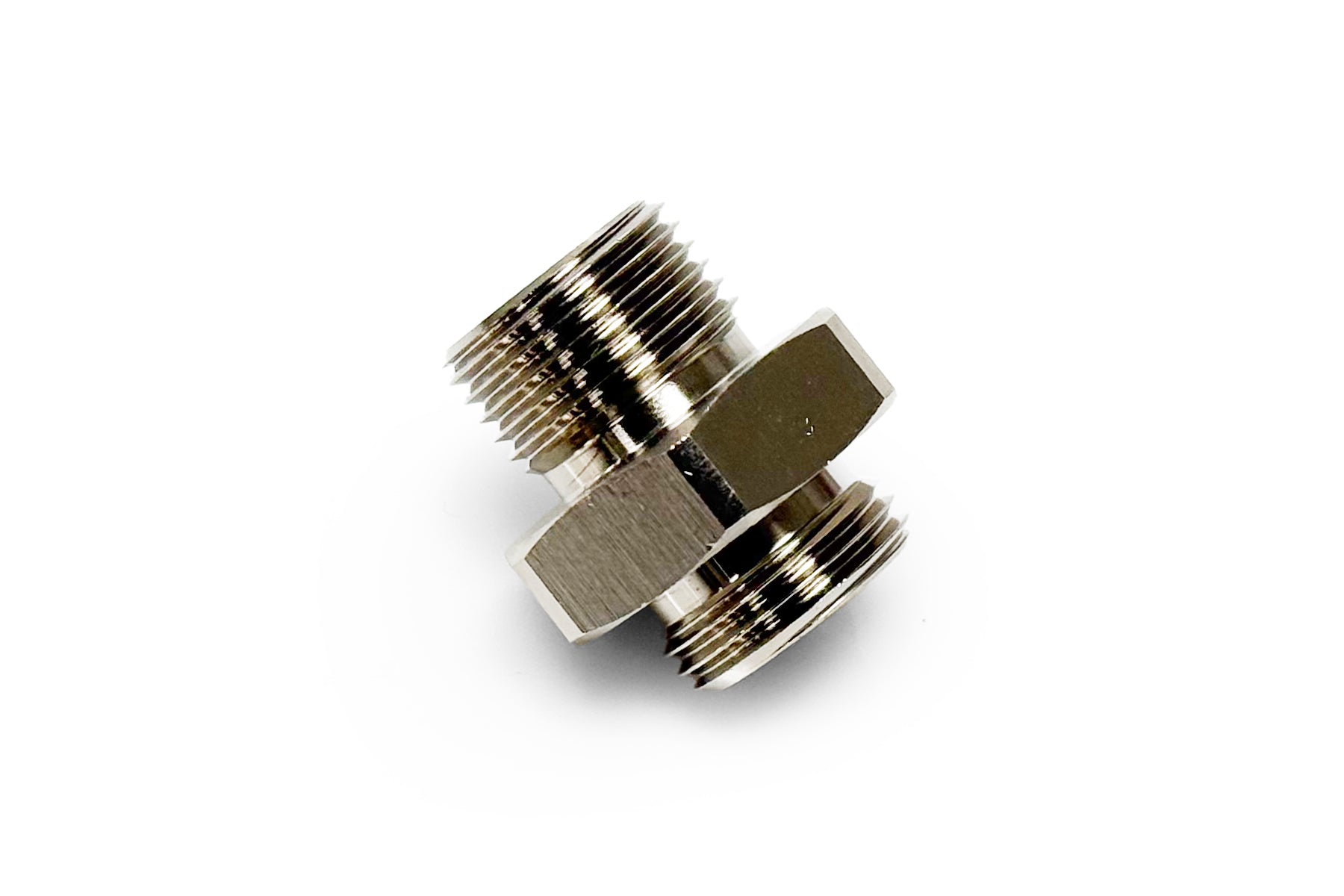

Oil Filter Block Center Fitting (Male / 3/4x16UNF)  -  12401116

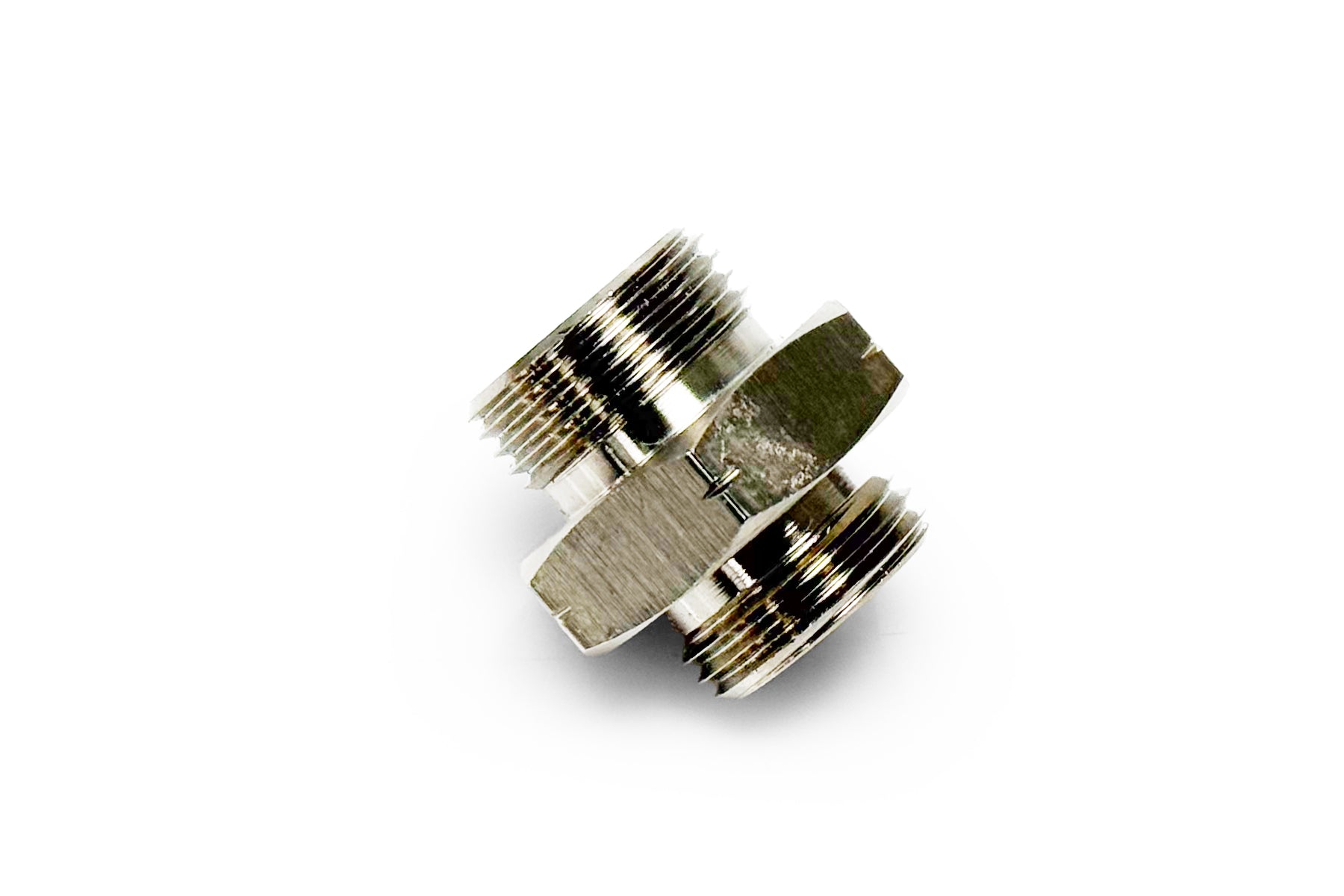

Oil Filter Block Center Fitting (Male / M20 x P1.5))  -  12401182CB

1/8 BSP (JDM 1/8PT) plug (black) - 11900672

 Oil Block Type-G (Filter Relocation M) - AN

Center Fitting O-ring - Dia. 28mm   -   12401102
Small Fitting O-ring - Dia. 22mm   -   12401101

GReddy M18xP1.5 gold -10AN Fitting with O-ring - 12005103
      *Optional M18xP1.5 Sensor adapter fittings (here)

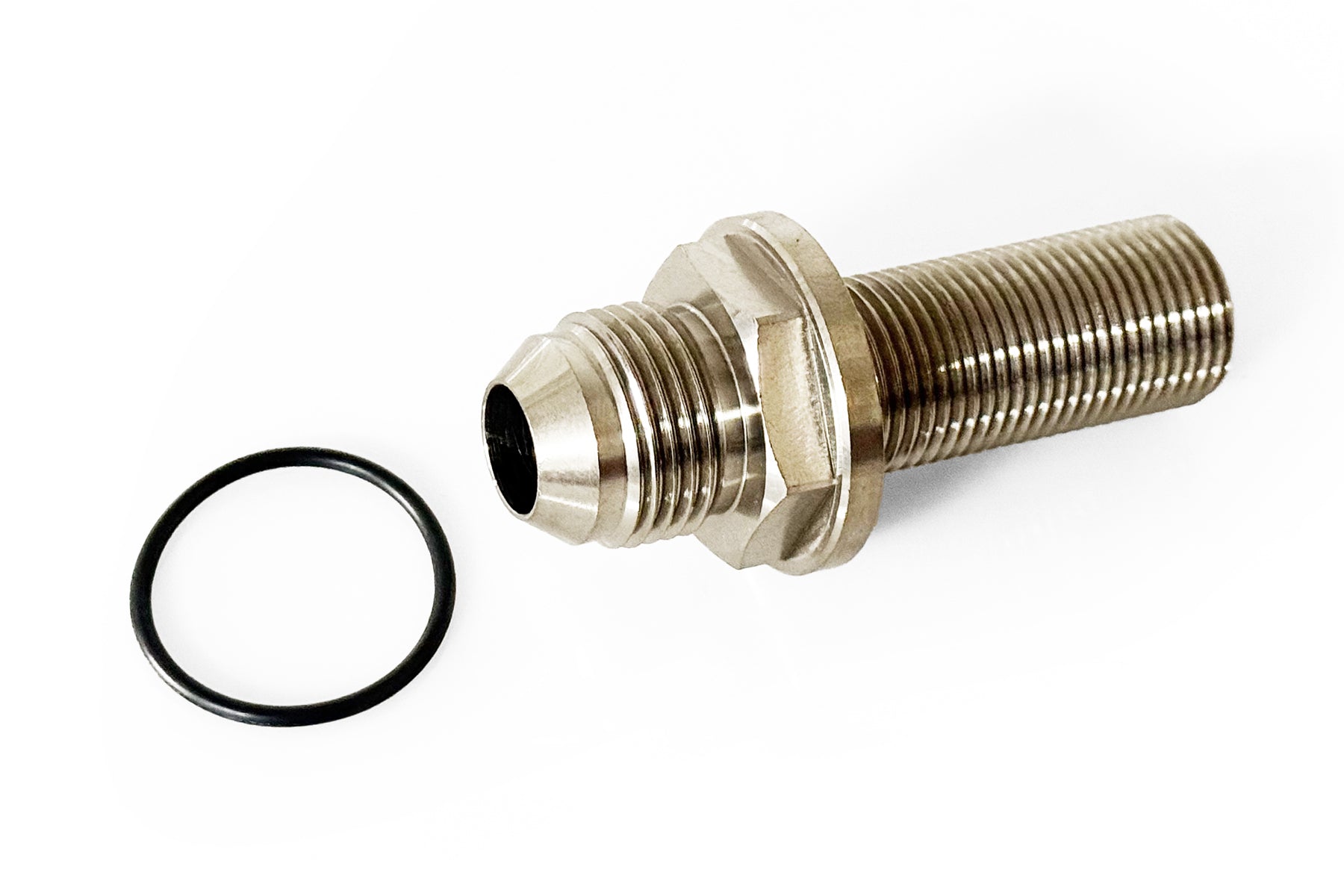

Oil Reloc. Block Center Fitting (Male 3/4x16UNF / -10AN)  -  12401142

1/8 BSP (JDM 1/8PT) plug (black) - 11900672

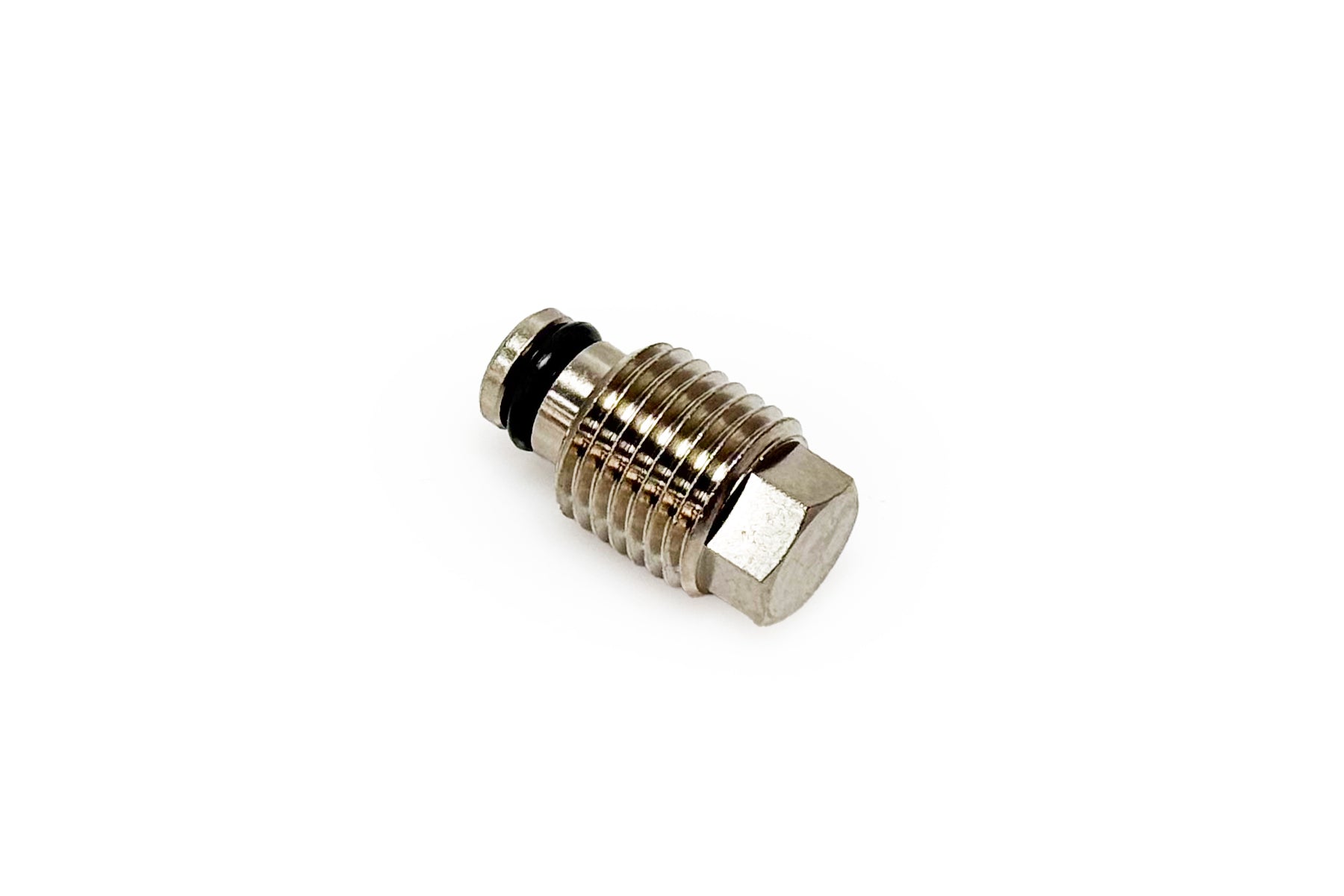

M14 plug union w/ 6mm o-ring  - 12401100
