GReddy FA Oil Baffle Plate(s) - GR86 86 FRS BRZ

Sale price$9.00

ENGINE & CHASSIS: * 13515901-WS - Replacement Silicon Washers

ENGINE & CHASSIS

* Replacement Silicon Washers for GReddy Baffle Plates - 13515901-WS

--- - ---

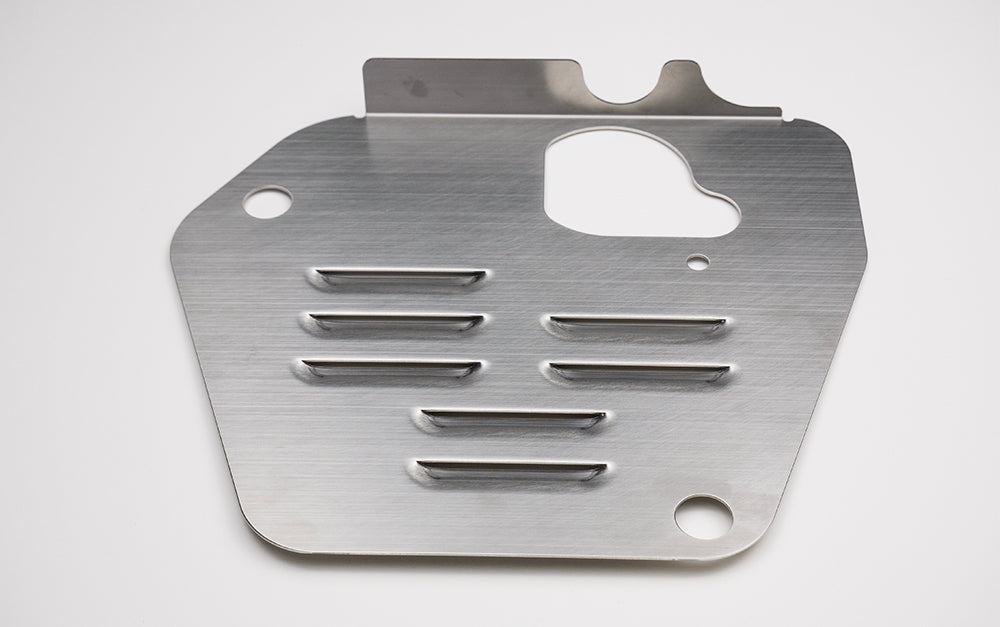

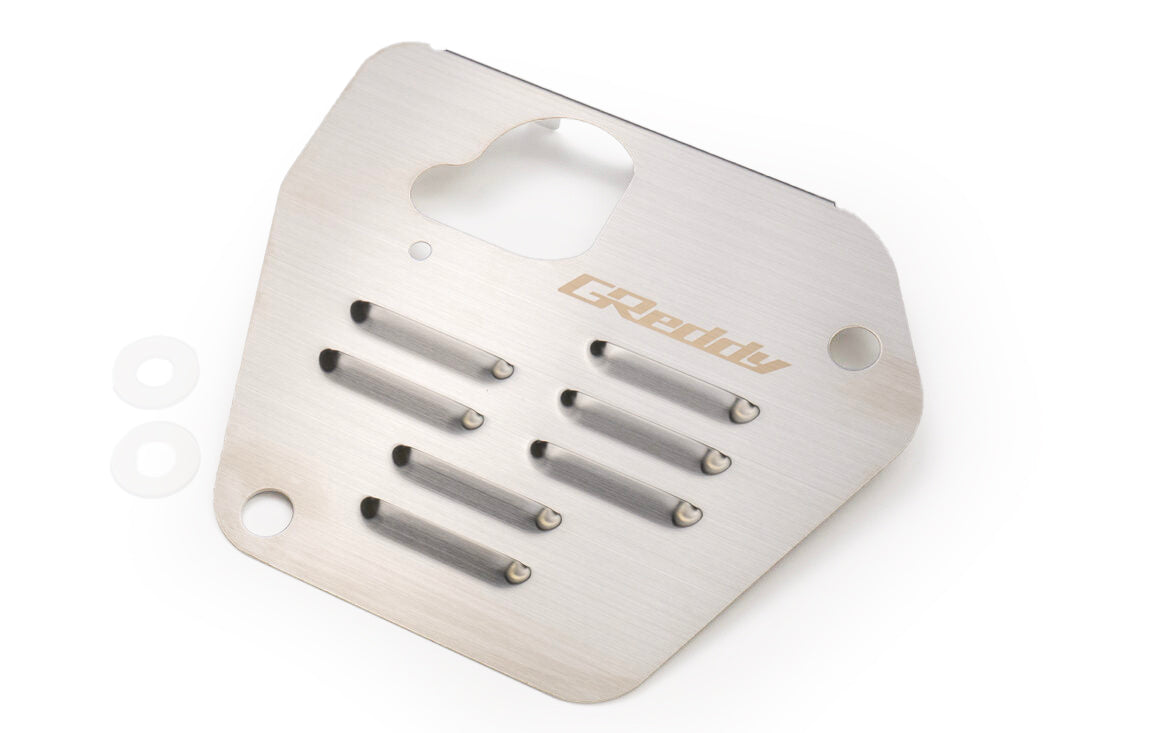

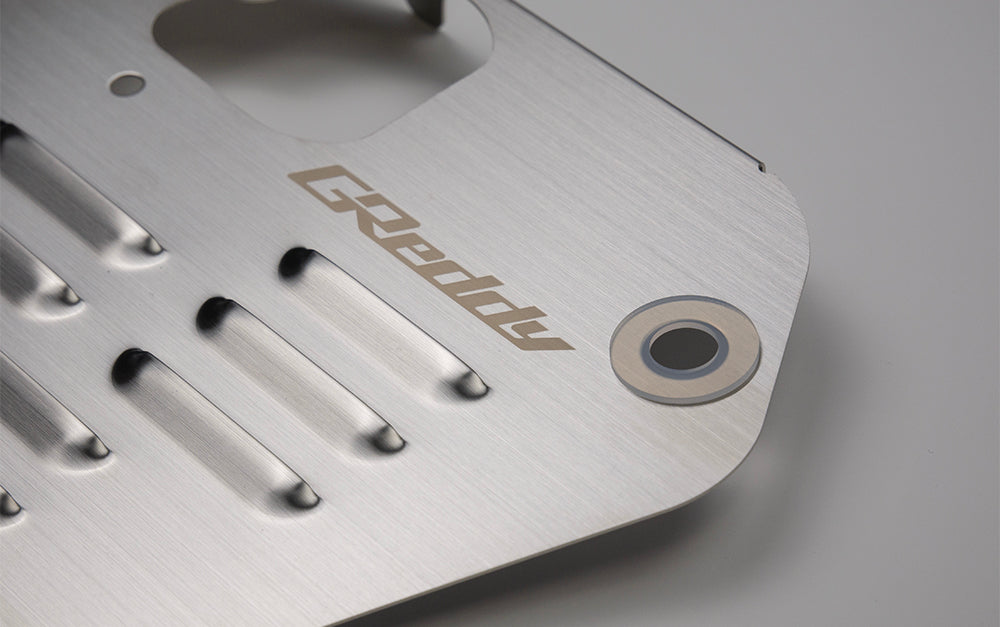

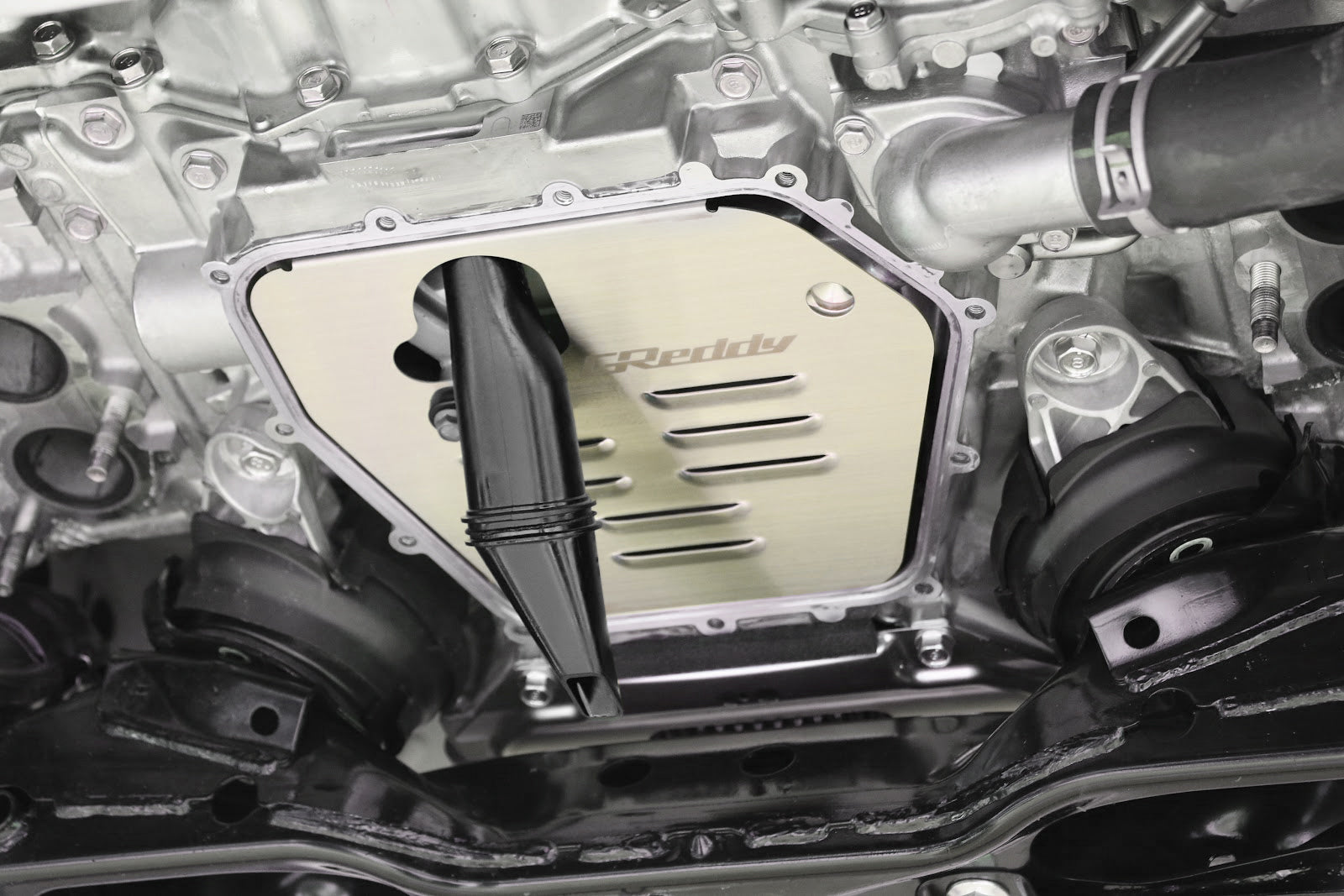

13515902 (BLUE) > SUPERSEDED TO GOLD FINISH 13515903

Engine:  FA24 - ZN8 GR86 / ZD8 BRZ

Aluminum baffle plate with a shark duct that balances engine oil to prevent oil pick up problems.
Smooth oil directing to oil pick up. Increase stability for oil pressure.
Ideal for high G-loads. Both cornering and acel / decel situations.

●The FA20/FA24 engine has a structure in which a large amount of engine oil accumulated in the oil pan flows into the front chain cover due to intense braking G when driving on a circuit. The oil pressure will drop, and in the worst case, the engine may blow.

●The GReddy oil pan baffle plate prevents the engine oil from becoming uneven during acceleration/deceleration and cornering. Designed to go back.

compatible for N/A or GReddy turbo applications.

Stainless-steel - anodized clear/gold, with GReddy logo.

--- - ---

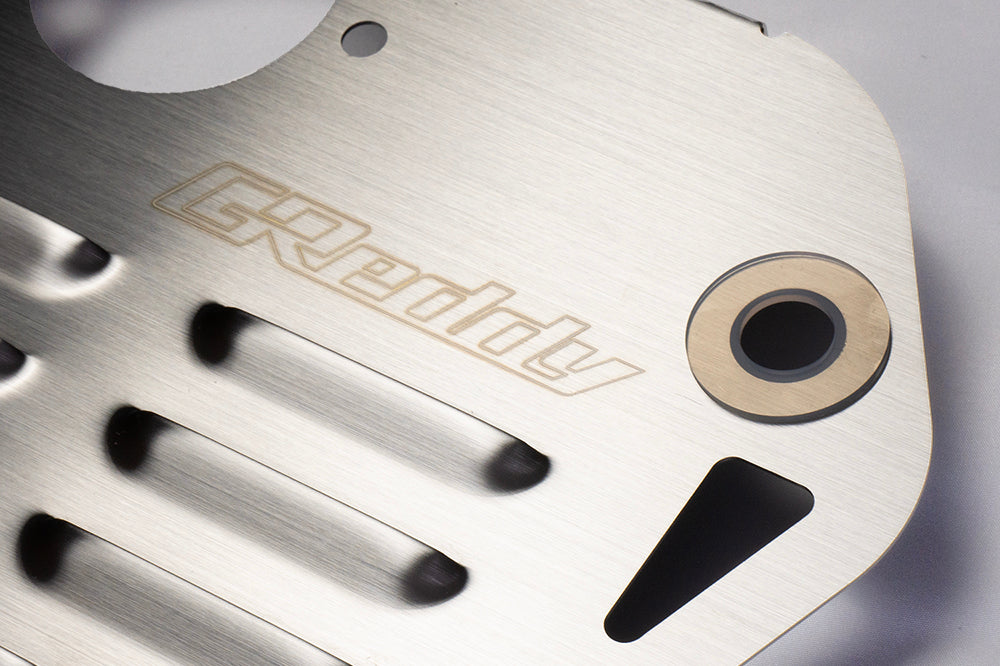

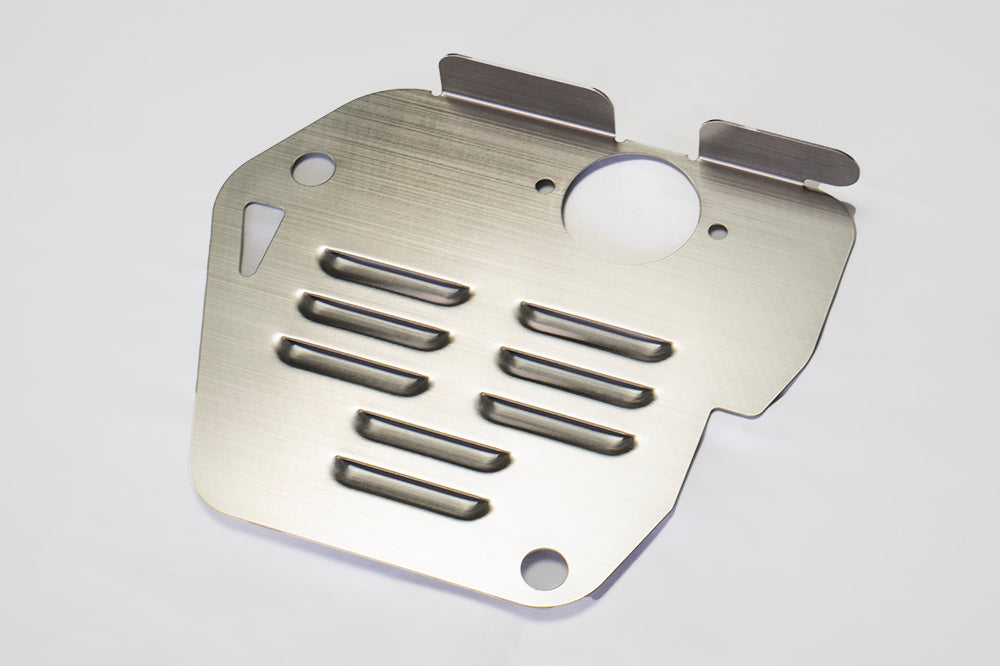

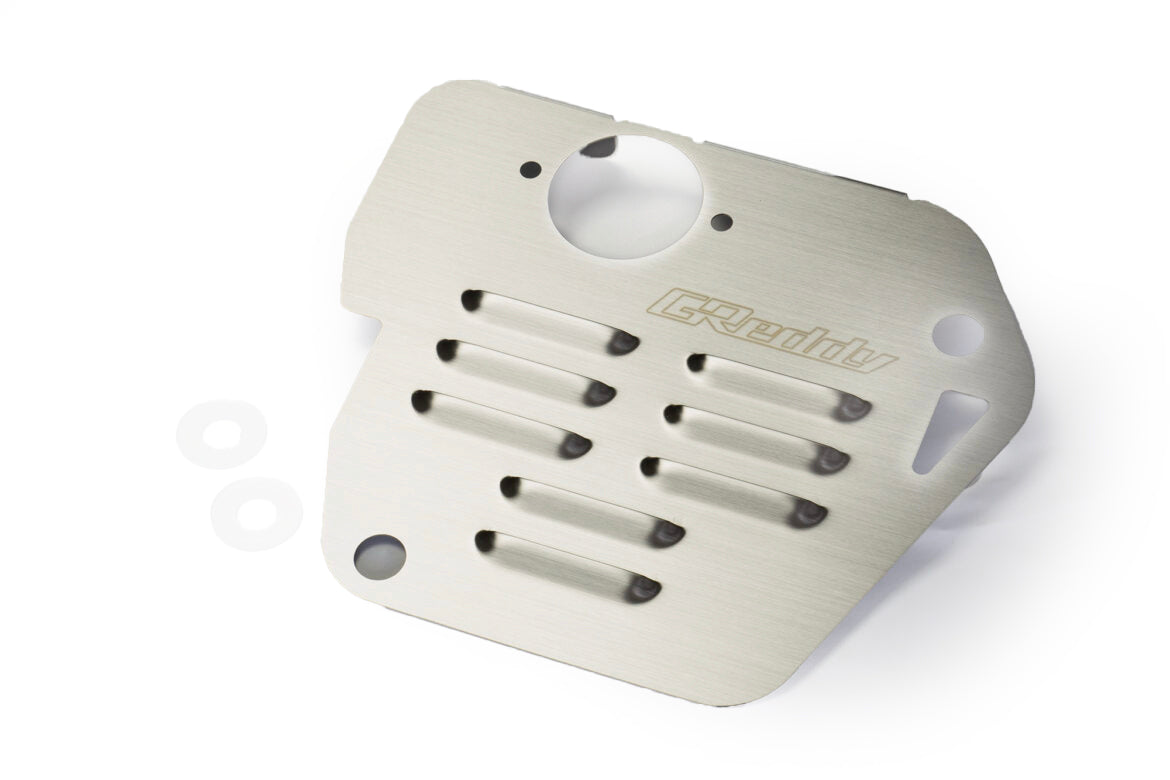

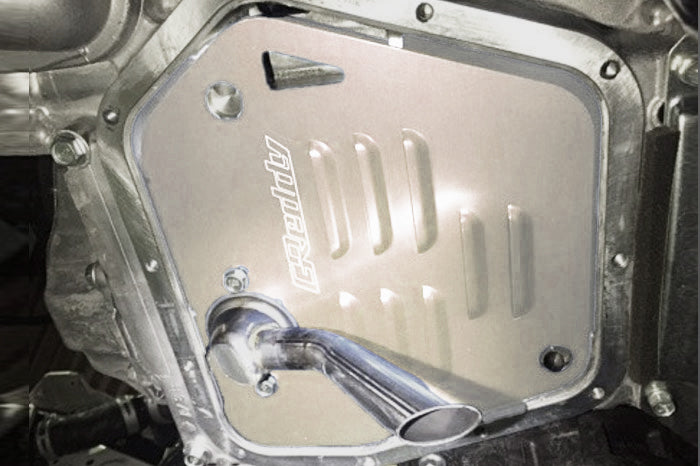

13515901 (BLUE) > SUPERSEDED TO GOLD FINISH 13515904

Engine:  FA20 - ZN6 FRS 86 / ZC6 BRZ

Aluminum baffle plate with a shark duct that balances engine oil to prevent oil pick up problems.
Smooth oil directing to oil pick up. Increase stability for oil pressure.
Ideal for high G-loads. Both cornering and acel / decel situations.

●The FA20 engine has a structure in which a large amount of engine oil accumulated in the oil pan flows into the front chain cover due to intense braking G when driving on a circuit. The oil pressure will drop, and in the worst case, the engine may blow.

●The GReddy oil pan baffle plate prevents the engine oil from becoming uneven during acceleration/deceleration and cornering. Designed to go back.

compatible for N/A or GReddy turbo applications.

Stainless-steel - anodized clear/gold, with GReddy logo.
