Universal RS-Ti Oval Titanium Muffler(s) and Tip with V-Band
Universal RS-Ti Oval Muffler with removable Tip:
11003525 - 2.5" (63.5mm) inlet / 260x160xL300 Oval muffler / 105xL120mm tip
11003530 - 3.0" (76mm) inlet / 260x160xL300 Oval muffler / 105xL120mm tip
No Titanium Welding Necessary!

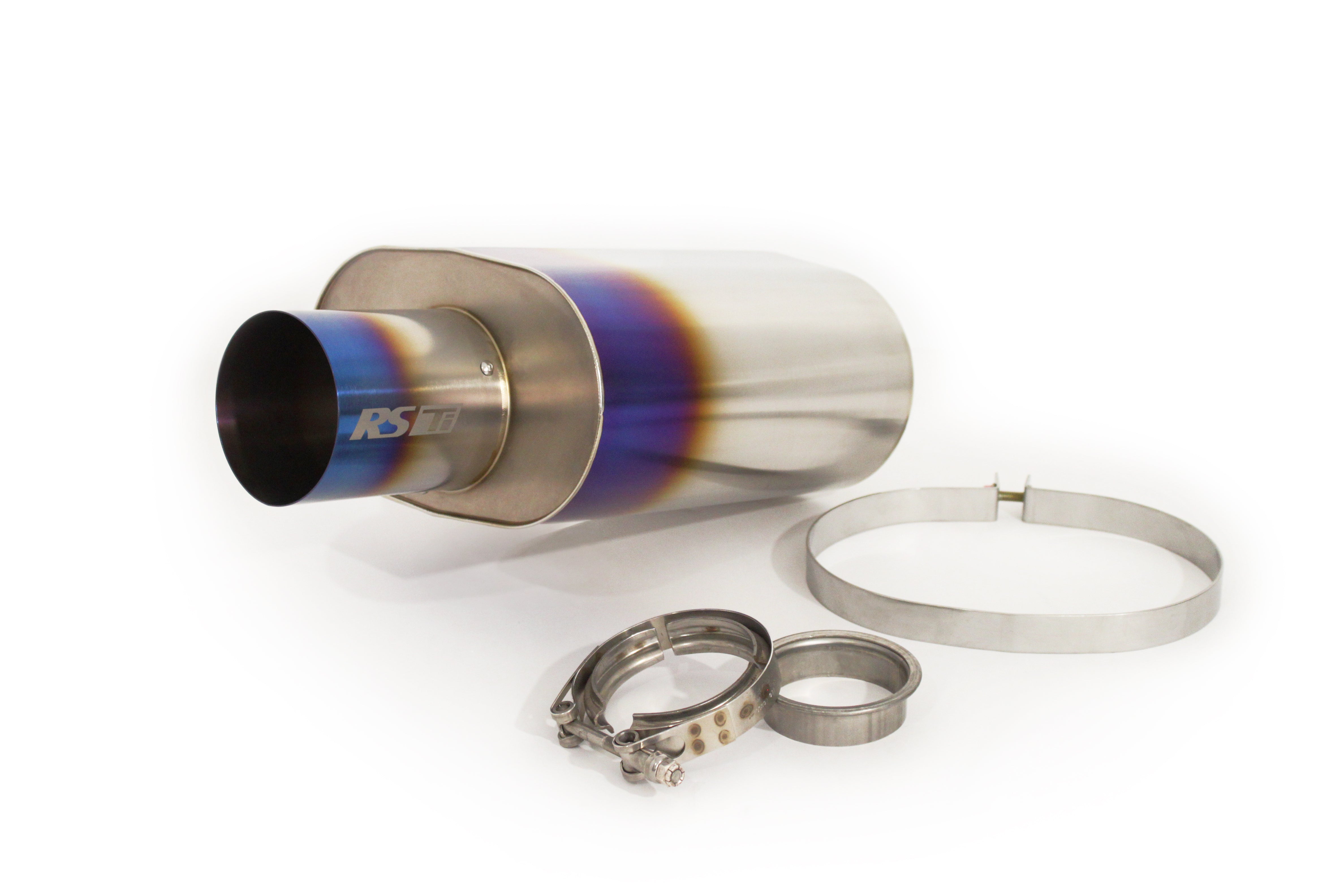

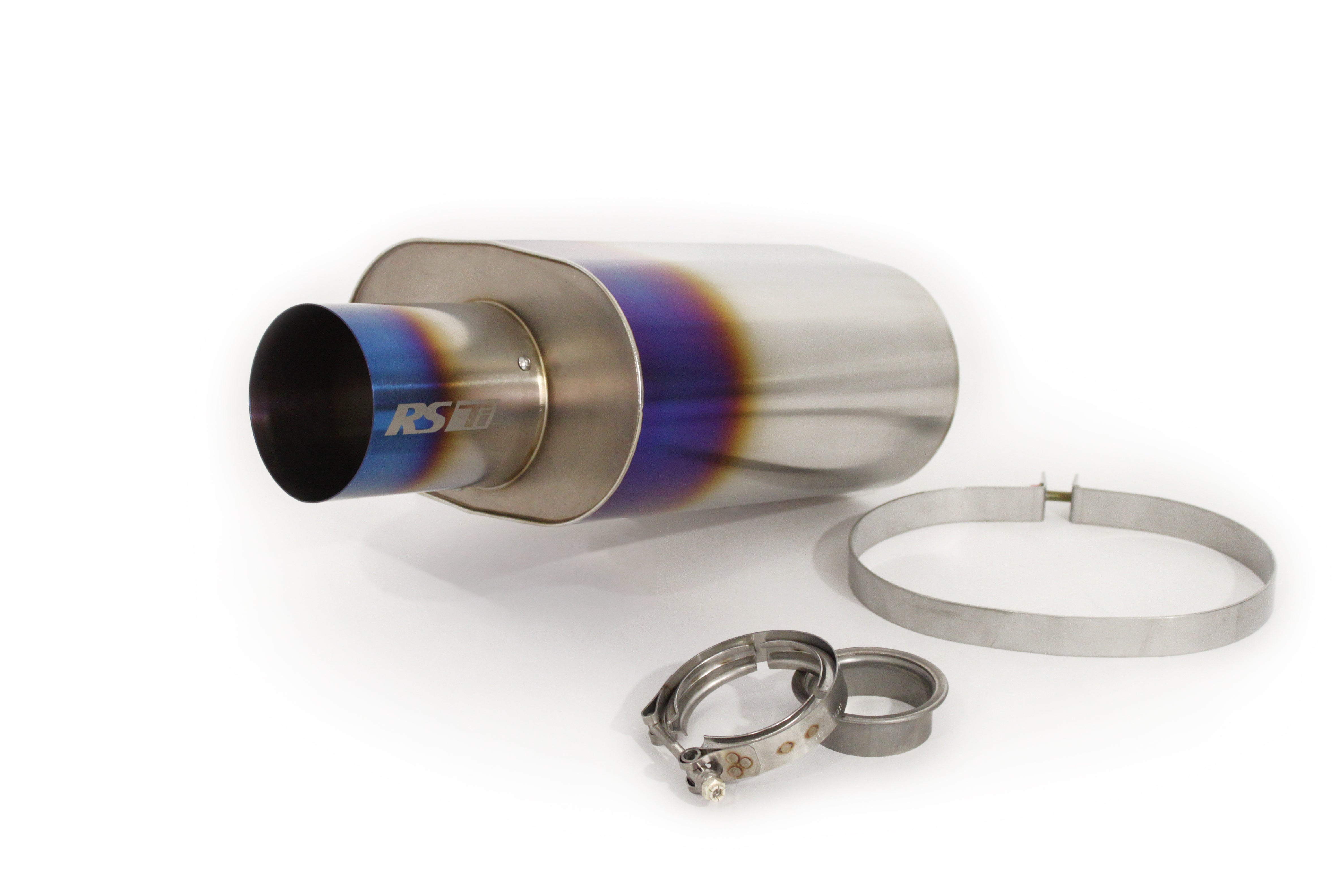

GPP Universal RS-Ti Titanium Muffler and Tip sets create new lightweight options for creating your own custom full Ti or hybrid Ti/steel exhaust system. In addition to the Titanium Oval Muffler canister and tip, each kit includes a stainless-steel oval muffler mounting-band (to weld on mounting hangers), pre-welded titanium inlet pipe and V-band flange, as well as a matching stainless-steel V-band flange and clamp (to adapt the kit to steel piping.) The kits are available in a 3.0” (76mm) and 2.5” (63.5mm) piping sizes. Our signature high quality, straight-through, universal muffler design offers exceptional flow with a clean, optimized exhaust note. And with the 105mm RS Tri-bolt removable Tip, optional 105mm RS inner tip silencers and tips can be purchased separately for even more customization.
With the included pre-welded Titanium V-band flange and additional stainless-steel flange and stainless-steel oval muffler canister mounting bracket, you do not have to be able to weld Titanium to have a custom Titanium muffler, exhaust system. Just weld onto the provided flange and canister mounting bracket.
2.5" Dia. Universal Titanium Oval Muffler and Tip set
Muffler Type: W260 x H160 x L300mm Oval Titanium (10.2"x6.3"x11.8")
Type: Straight-through
Inlet : Centered 63.5mm (2.5") V-band flange
Outlet : Center, Offset 20mm down 103mm (4") RS 3-bolt
Surface: brunt-Titanium brushed finish

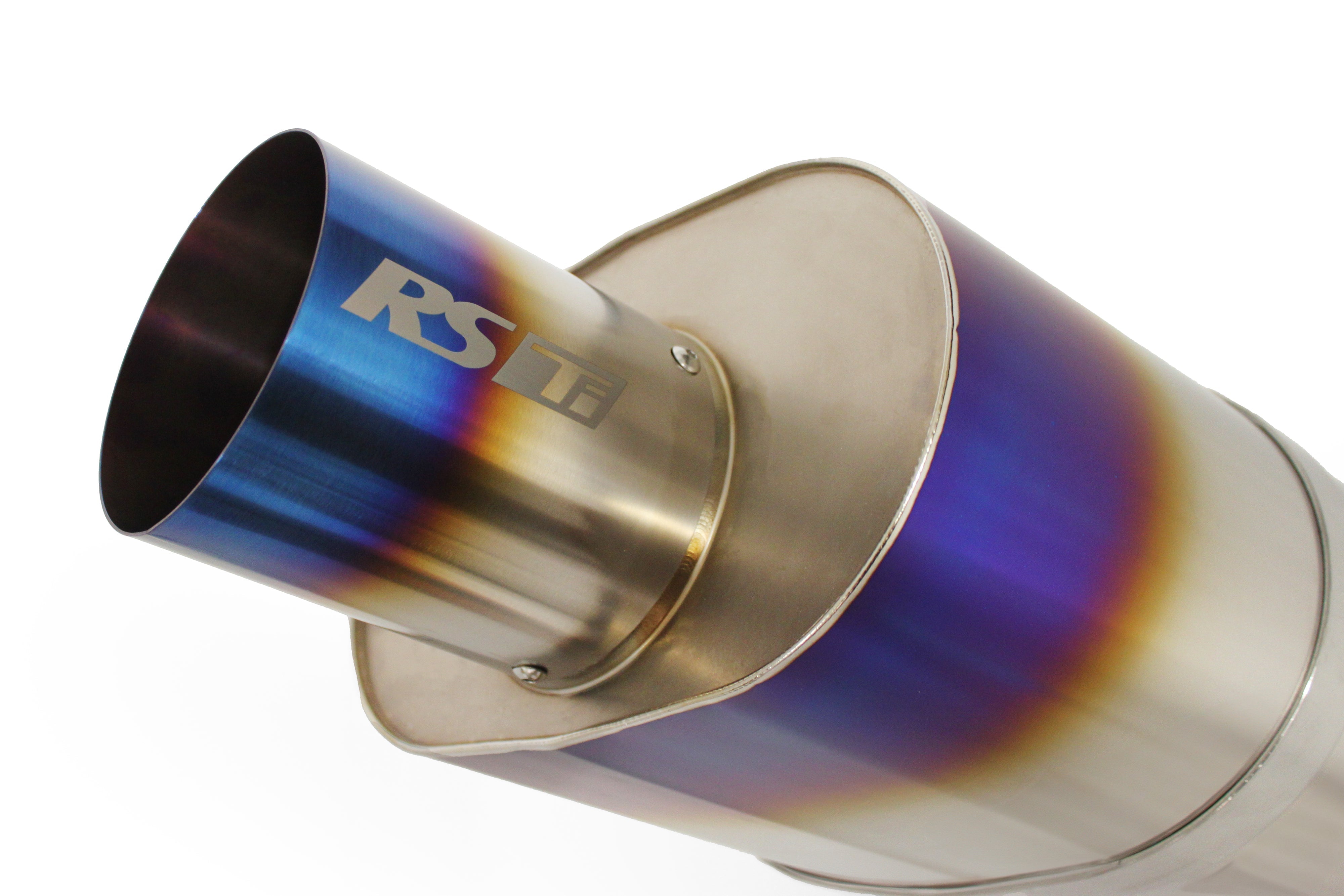

Tip Type: Removable Single-wall Titanium with RS-Ti Logo with Tri-bolt mounting
Dia.: 105mm (4.1")
Length: 120mm (4.7")
Surface: brunt-Titanium brushed finish, with laser-etched RS-Ti logo
3.0" Dia. Universal Titanium Oval Muffler and Tip set
Muffler Type: W260 x H160 x L300mm Oval Titanium (10.2"x6.3"x11.8")
Type: Straight-through
Inlet : Centered 76mm (3") V-band flange
Outlet : Center, Offset 20mm down 103mm (4") RS 3-bolt
Surface: brunt-Titanium brushed finish
Tip Type: Removable Single-wall Titanium with RS-Ti Logo with Tri-bolt mounting
Dia.: 105mm (4.1")
Length: 120mm (4.7")
Surface: brunt-Titanium brushed finish, with laser-etched RS-Ti logo
Piping Extension: L33mm (1.3")
+ Ti piping at the back of the muffler, with a matching pre-welded V-band Titanium flange
Additional Mounting Hardware included:

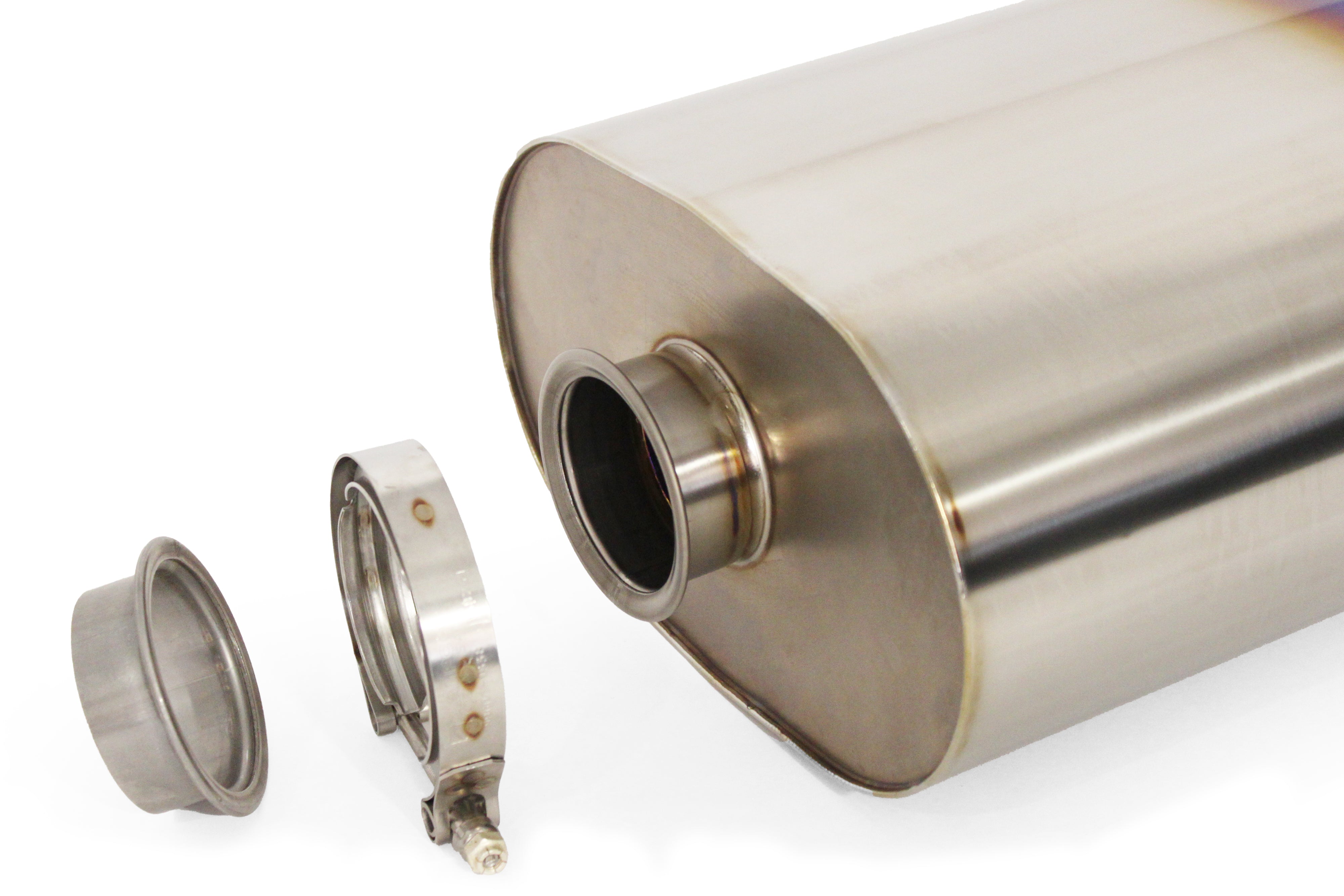

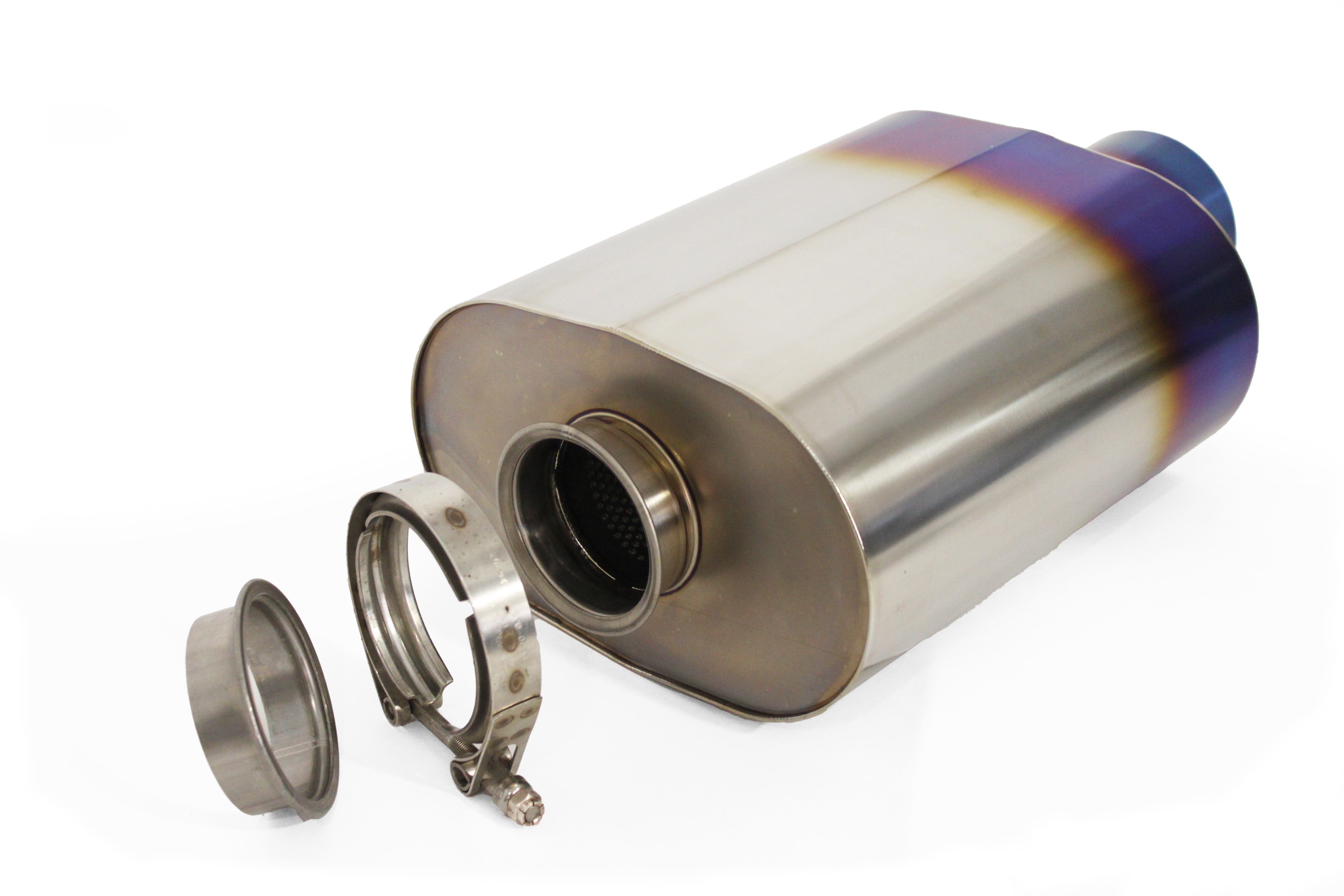

+ additional un-welded stainless-steel 2.5" V-band flange with extension piping
(to adapt to steel or stainless-steel piping)
+ one stainless steel V-band flange

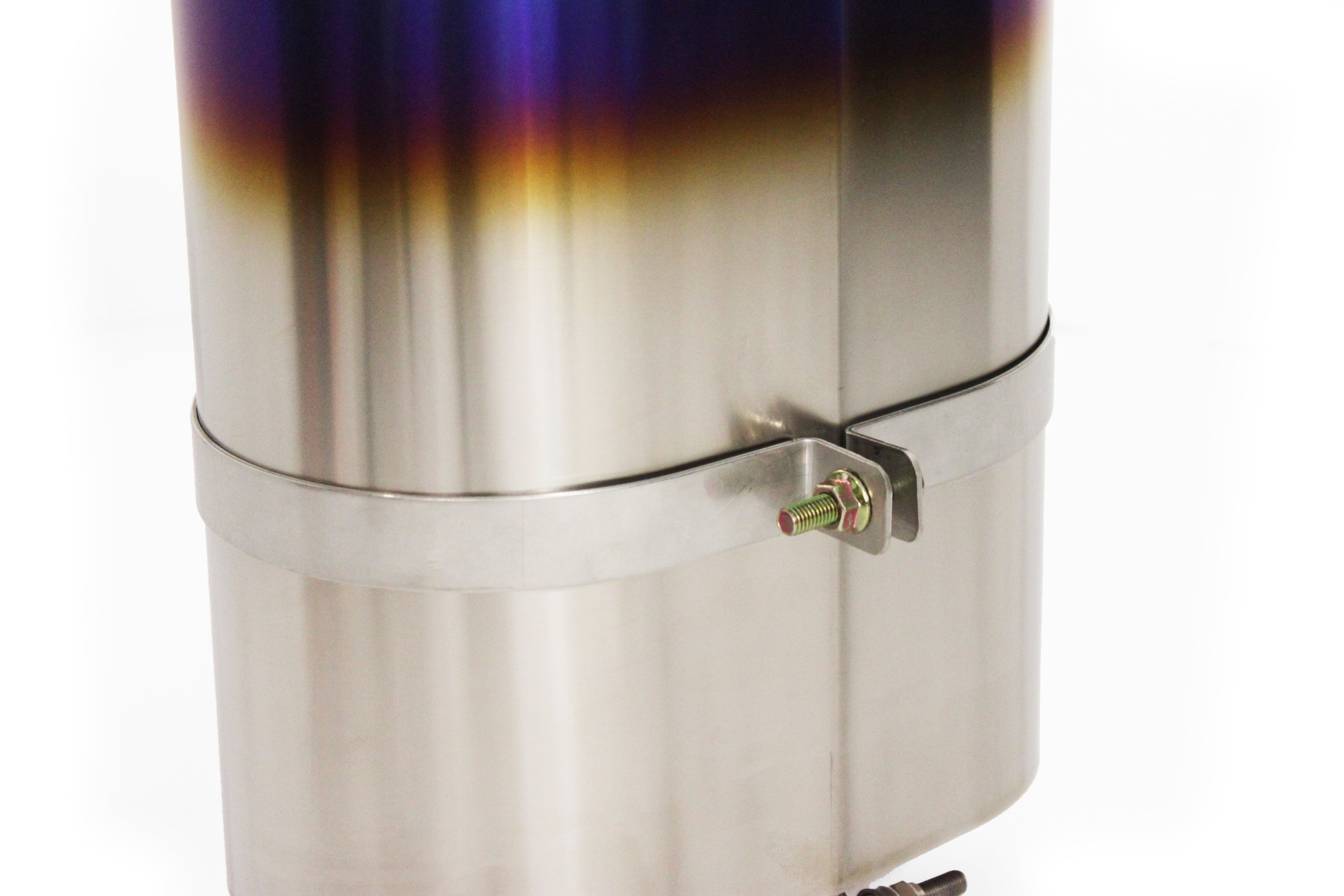

+ a stainless-steel oval muffler canister mounting band.
(to weld on steel or stainless-steel muffler mounting hangers)
Notes:
requires steel welding (and cutting) for mounting and attaching piping.
** Both 2.5" and 3.0" models are compatible with optional RS 105mm RS Tips and Silencers
