GReddy TW-R Aluminum Racing Radiator(s) - application specific

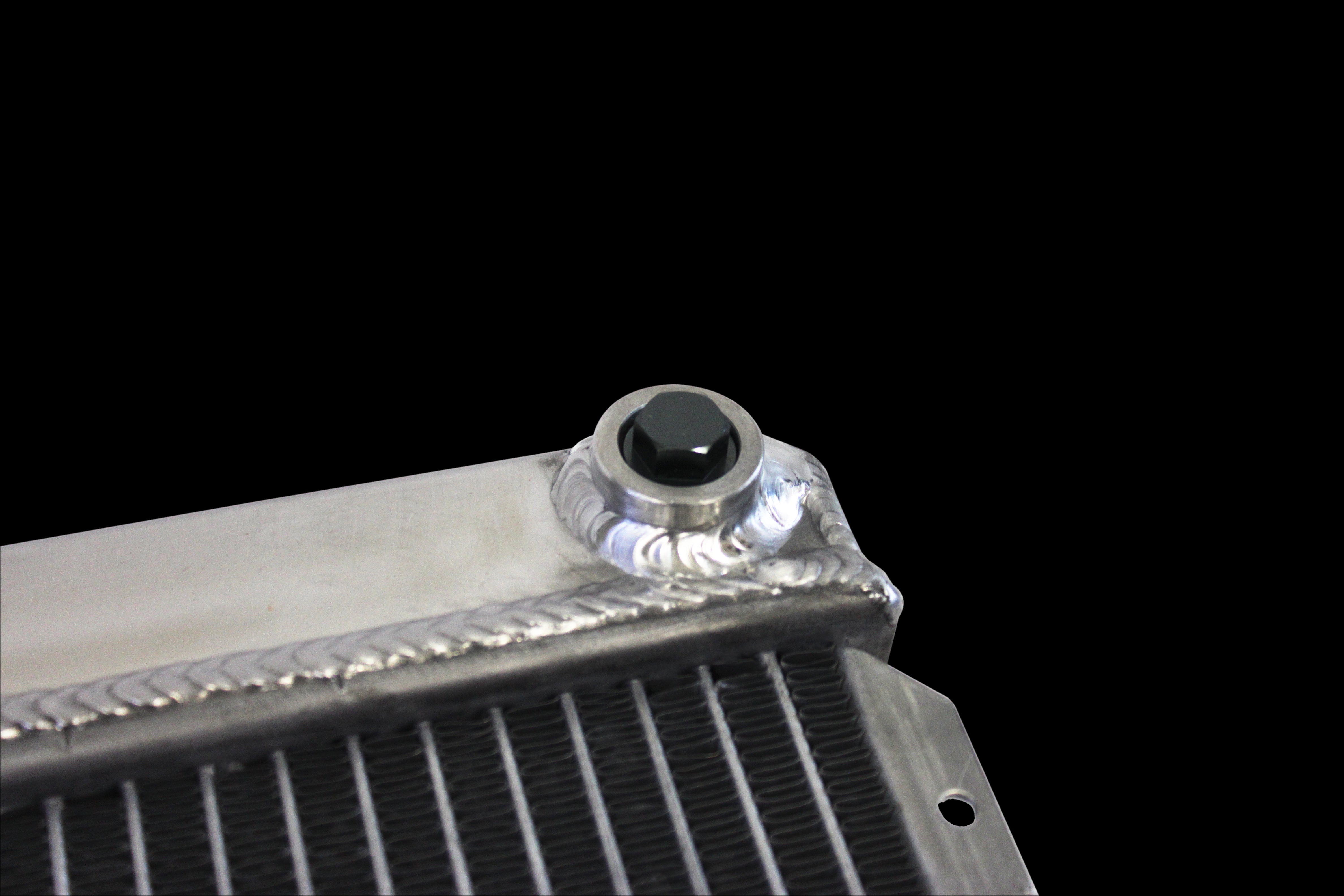

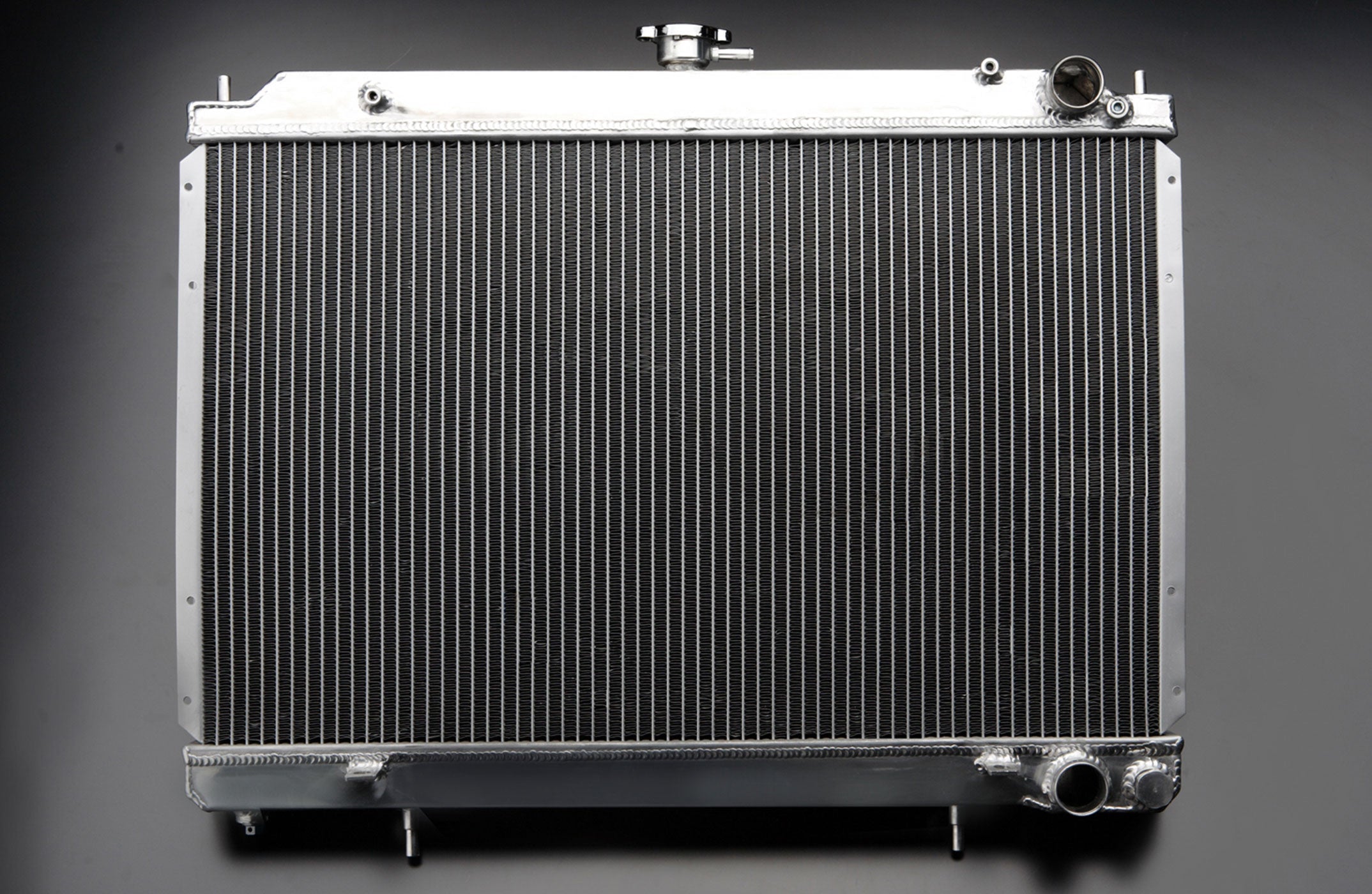

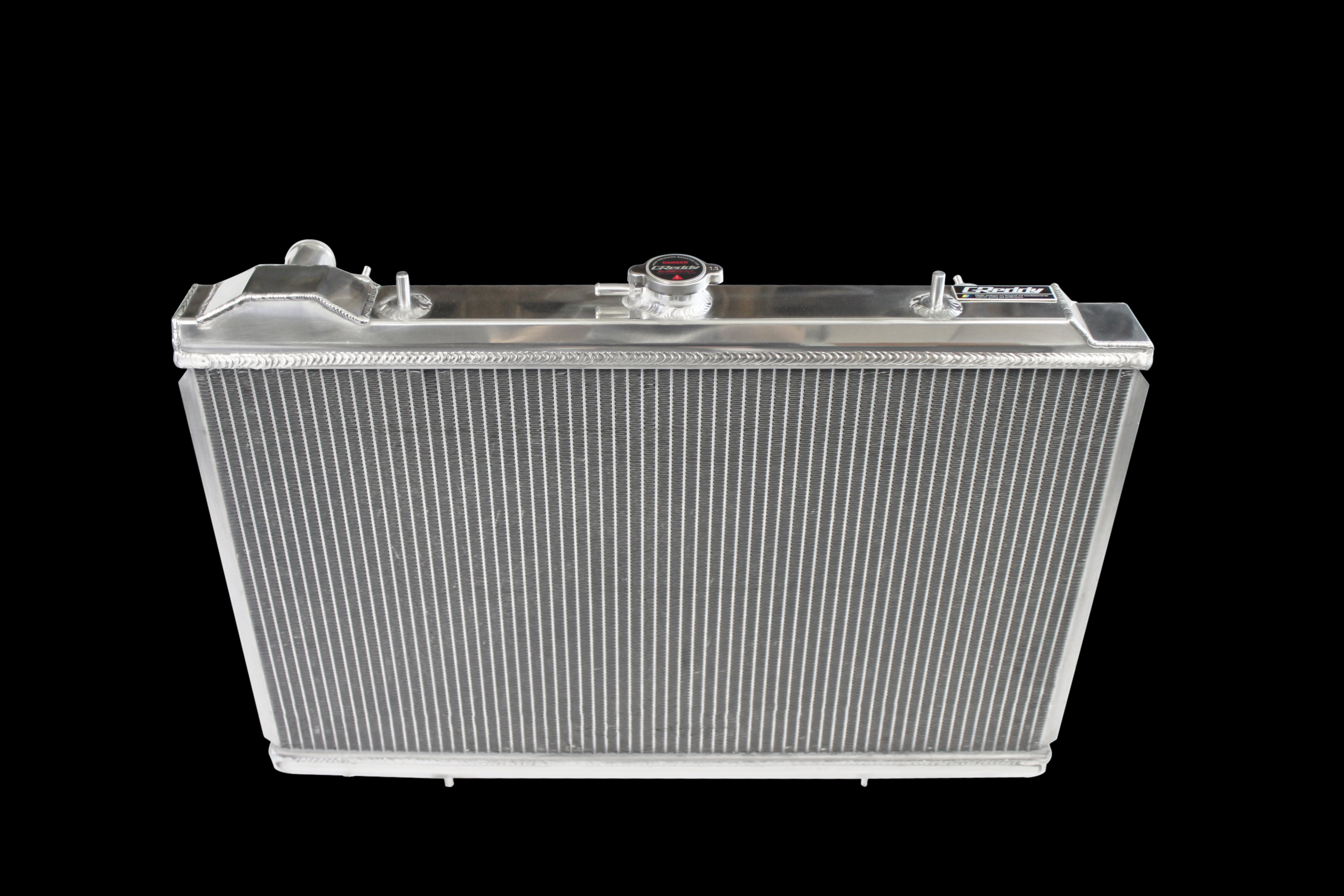

JDM-spec. GReddy Aluminum radiator TW-R BNR32/HCR32
| P/N | Chassis | Vehicle | Rad. Thickness |
| 12023802 |
BNR32 | Nissan Skyline GT-R | 50mm |
|
|
HCR32 | Nissan Skyline GTS-T |
|
|
|
A31 | Nissan Cefiro |
|
Product features:
By making the core thickness thicker than the normal radiator, the capacity of the cooling water is greatly secured.
Achieves improved cooling efficiency and reduced pressure loss. In addition, it is made of all-aluminum, reducing the increase in weight.
(Core thickness: 50 mm)
* Shroud mountable (A31 / HCR32)
* Shroud can be installed. Modification required (BNR32)
[Compatible models] JDM Nissan Cefiro / Skyline/GT-R
Vehicle type: A31 / HCR32 / BNR32
E/G model: RB20DET / RB26DETT
Year: 88.09 ~ 94.08/ 89.05 ~ 93.08/89.08 ~ 95.01
Remarks: AT vehicles not allowed

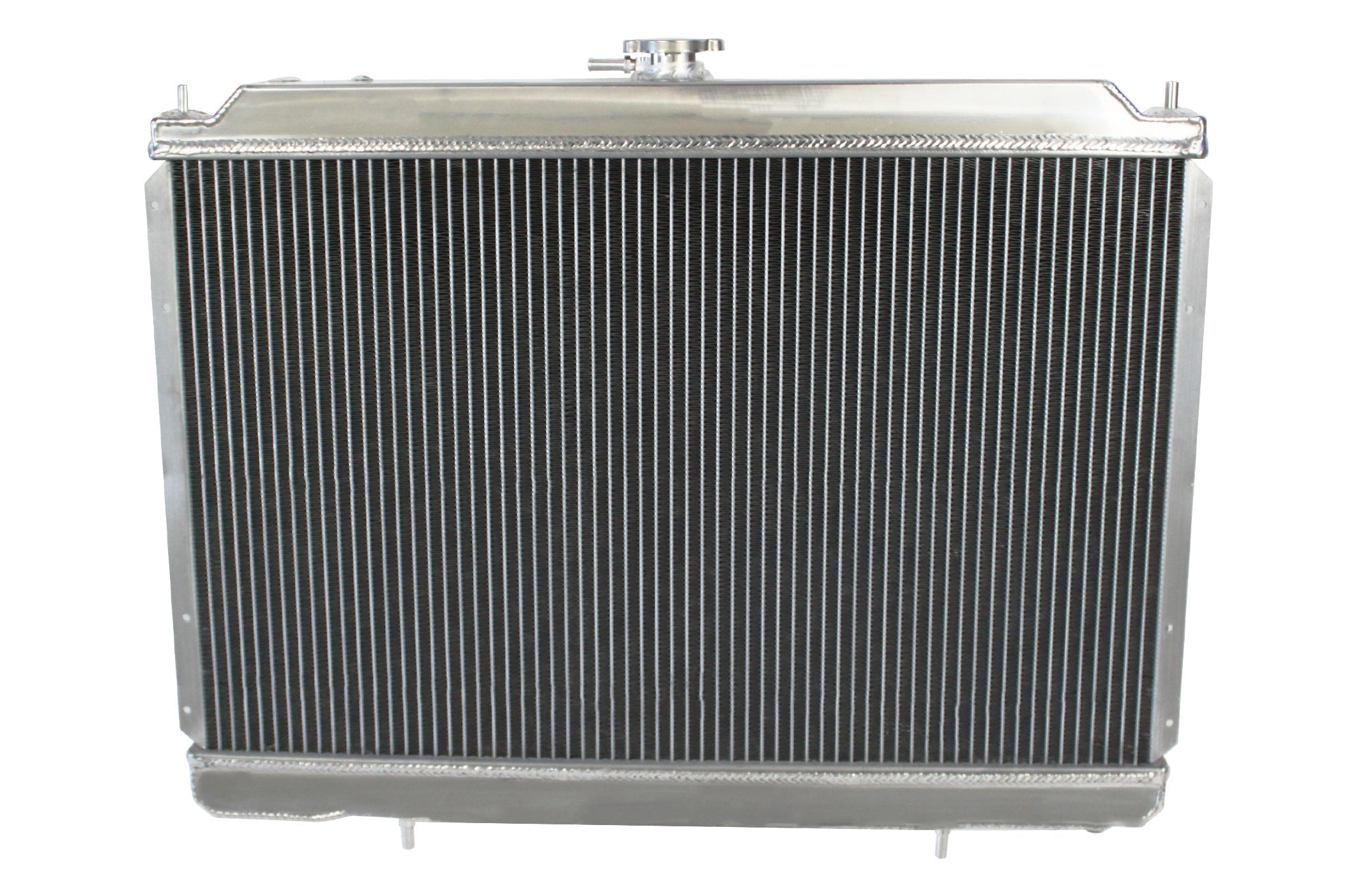

JDM-spec. GReddy Aluminum radiator TW-R WGNC34/ECR33/BCNR33/ER34
| P/N | Chassis | Vehicle | Rad. Thickness |
| 12023803 |
BCNR33 | Nissan Skyline GT-R | 50mm |
|
|
ECR33 |
|
50mm |
|
|
ER34 |
|
50mm |
Product features:
By making the core thickness thicker than the normal radiator, the capacity of the cooling water is greatly secured.
Achieves improved cooling efficiency and reduced pressure loss. In addition, it is made of all-aluminum, reducing the increase in weight.
(Core thickness: 50 mm)
* Includes 1.3K GReddy Radiator Cap
* Shroud mountable (WGNC34/ECR33/ER34)
* Shroud can be installed. Machining required (BCNR33)
* Cannot be installed with radiator pipe (ECR33/BCNR33/ER34)
* Cannot install air cleaner duct (ECR33/BCNR33/ER34)
[Compatible models] JDM Nissan Stagea/Skyline/GT-R
Vehicle type: WGNC34/ECR33/BCNR33/ER34
E/G model: RB25DET/RB26DETT
Year: 96.09 ~ 01.10/ 93.08 ~ 98.05/98.05 ~ 01.08/95.01 ~ 99.01
Remarks: AT vehicles not allowed

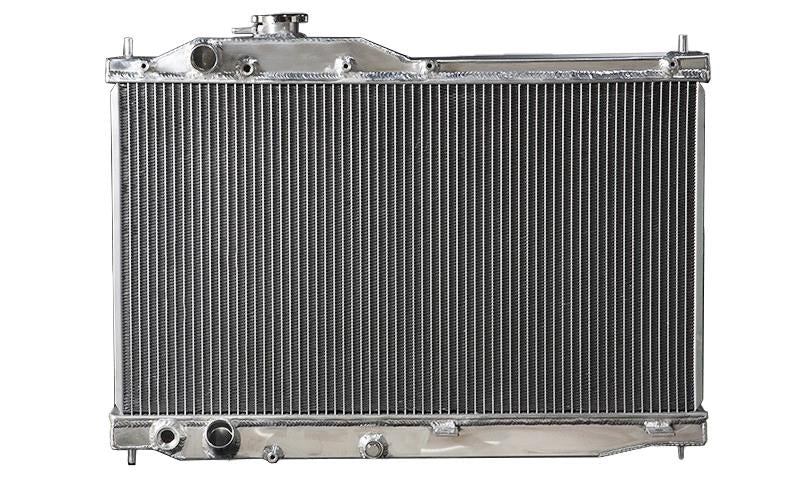

JDM-spec. GReddy Aluminum radiator TW-R AP1 / AP2
| P/N | Chassis | Vehicle | Rad. Thickness |
| 12053801 |
AP1 |
Honda S2000 | 50mm |
|
|
|
|
50mm |
Product features:
By making the core thickness thicker than the normal radiator, the capacity of the cooling water is greatly secured.
Achieves improved cooling efficiency and reduced pressure loss. In addition, it is made of all-aluminum, reducing the increase in weight.
Radiator Inlet / Outlet 32mm Dia.
(Core thickness: 50 mm)
* Includes 1.3K GReddy Radiator Cap
* Shroud mountable
* AP2 uses included Temp Sensor adapter
[Compatible model] Honda S2000
Vehicle type: AP1/AP2
E/G model: F20C/F22C
Year: 99.04 ~ 05.10/05.11 ~ 09.09

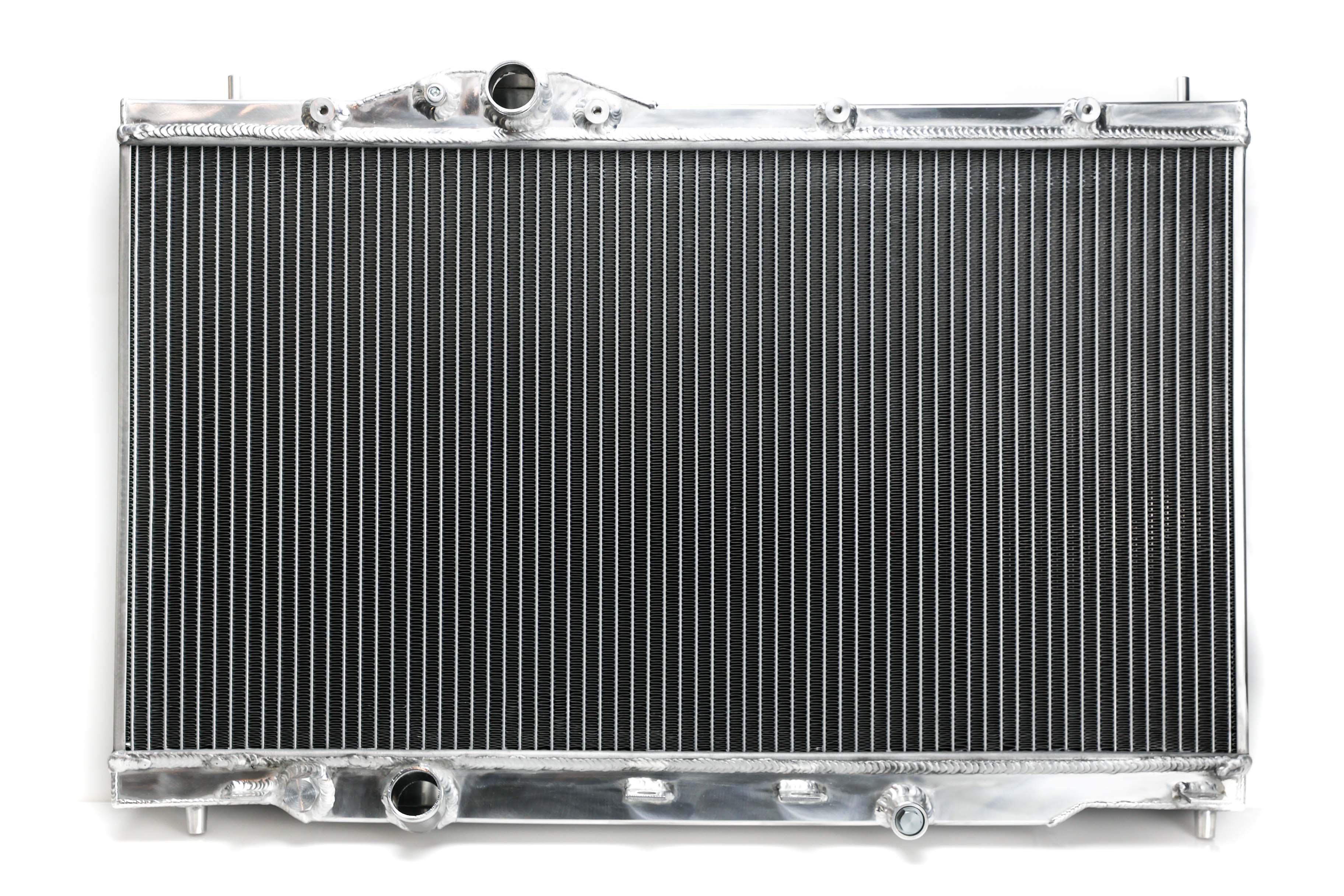

12053803 - 2017-2019 FK8 Civic Type R
- FK9 GReddy TWR Aluminum Radiator
JDM-spec. GReddy Aluminum radiator TW-R FK8
Product features:
By making the core thickness thicker than the normal radiator, the capacity of the cooling water is greatly secured.
Achieves improved cooling efficiency and reduced pressure loss. In addition, it is made of all-aluminum, reducing the increase in weight.
(Core thickness: 50 mm)
・Aluminum machined drain bolt included
・With 1/8PT sensor boss
*Shroud cannot be installed
[Compatible model] JDM Honda Civic
Model: FK8
Year: 2017-20

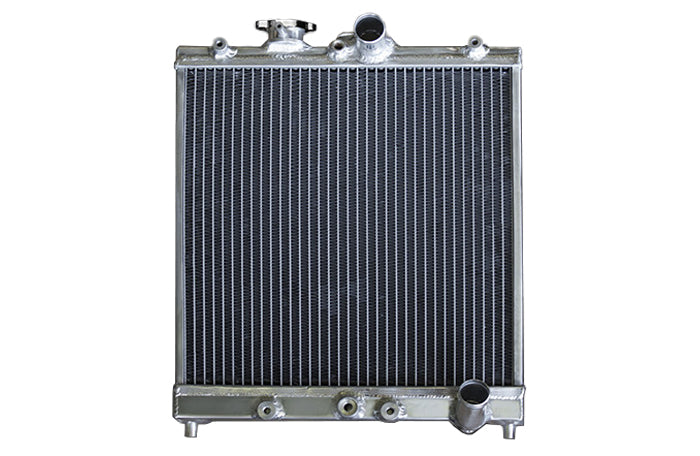

JDM-spec. GReddy Aluminum radiator TW-R EK4 / EK9 / EG6
| P/N | Chassis | Vehicle | Rad. Thickness |
| 12053802 |
EK4 |
Honda Civic | 40mm |
|
|
|
|
40mm |
| 12053802 | EG6 | Honda Civic | 40mm |
Product features:
By making the core thickness thicker than the normal radiator, the capacity of the cooling water is greatly secured.
Achieves improved cooling efficiency and reduced pressure loss. In addition, it is made of all-aluminum, reducing the increase in weight.
Radiator Inlet / Outlet 32mm Dia.
(Core thickness: 40 mm)
* Includes 1.3K GReddy Radiator Cap
・Valve opening pressure 1.3KPa radiator cap included
・Aluminum machined drain bolt included
・With 1/8PT sensor boss
*Shroud cannot be installed
[Compatible model] JDM Honda Civic
Model: EK4 / EK9 / EG6
Year: EK4 / EK9 95.09 ~ 00.08
EG6 91.09 ~ 95.08

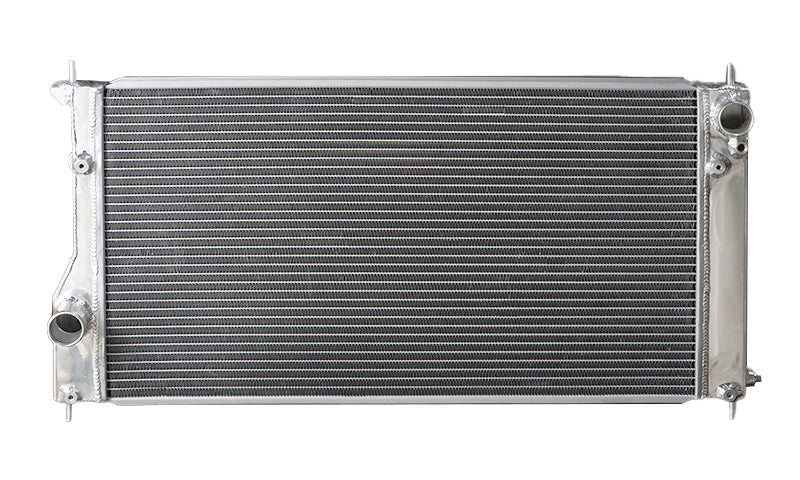

JDM-spec. GReddy Aluminum radiator TW-R ZN6/ZC6
| P/N | Chassis | Vehicle | Rad. Thickness |
| 12013803 | ZN6 / ZN8 | Scion FR-S/86/BRZ / GR86 | 36mm |
Product features:
By making the core thickness thicker than the normal radiator, the capacity of the cooling water is greatly secured.
Achieves improved cooling efficiency and reduced pressure loss. In addition, it is made of all-aluminum, reducing the increase in weight.
(Core thickness: 36 mm)
* Without radiator cap
[Compatible models] JDM Toyota 86/Subaru BRZ
Vehicle type: ZN6/ZC6
E/G model: FA20
Year: 12.04 ~
Remark: MT/AT common

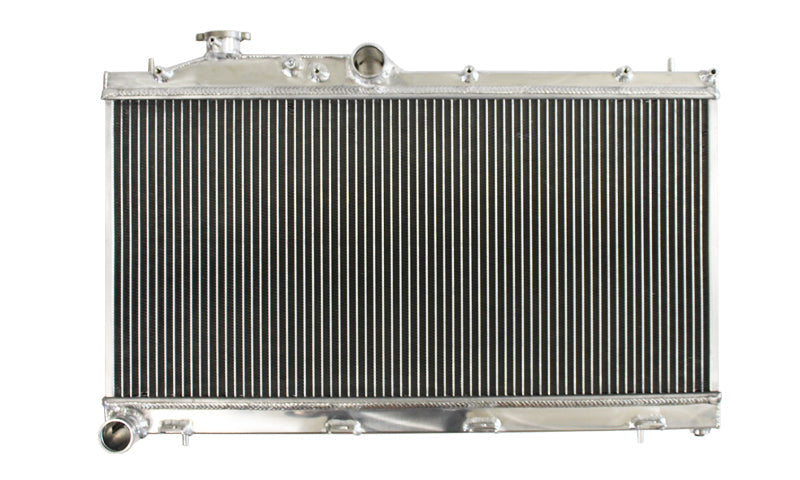

JDM-spec. GReddy Aluminum radiator TW-R ZN6/ZC6
| P/N | Chassis | Vehicle | Rad. Thickness |
| 120163801 | GRB |
Subaru WRX/STI | 50mm |
| 120163801 | GVB | Subaru WRX/STI | 50mm |
| 120163801 | VAB | Subaru WRX/STI | 50mm |
Product features:
By making the core thickness thicker than the normal radiator, the capacity of the cooling water is greatly secured.
Achieves improved cooling efficiency and reduced pressure loss. In addition, it is made of all-aluminum, reducing the increase in weight.
(Core thickness: 50 mm)
[Compatible models] JDM Subaru WRX/STI
Vehicle type: GRB/GVB/VAB
E/G model: EJ20
Year: 07.04 ~
Remark: MT/AT commo
--- --- ---
JDM GReddy Aluminum radiator TW-R
Sports radiator with 2-layer wide tube core made of all aluminum.
-
By adopting a 2-layer wide tube, a capacity equivalent to many similar 3-layer structures.
-
Achieves more than double the cooling water capacity of the genuine product with reduces pressure loss.
-
In addition, by adopting all aluminum products, it reduces the weight increase and supports from street to circuit.

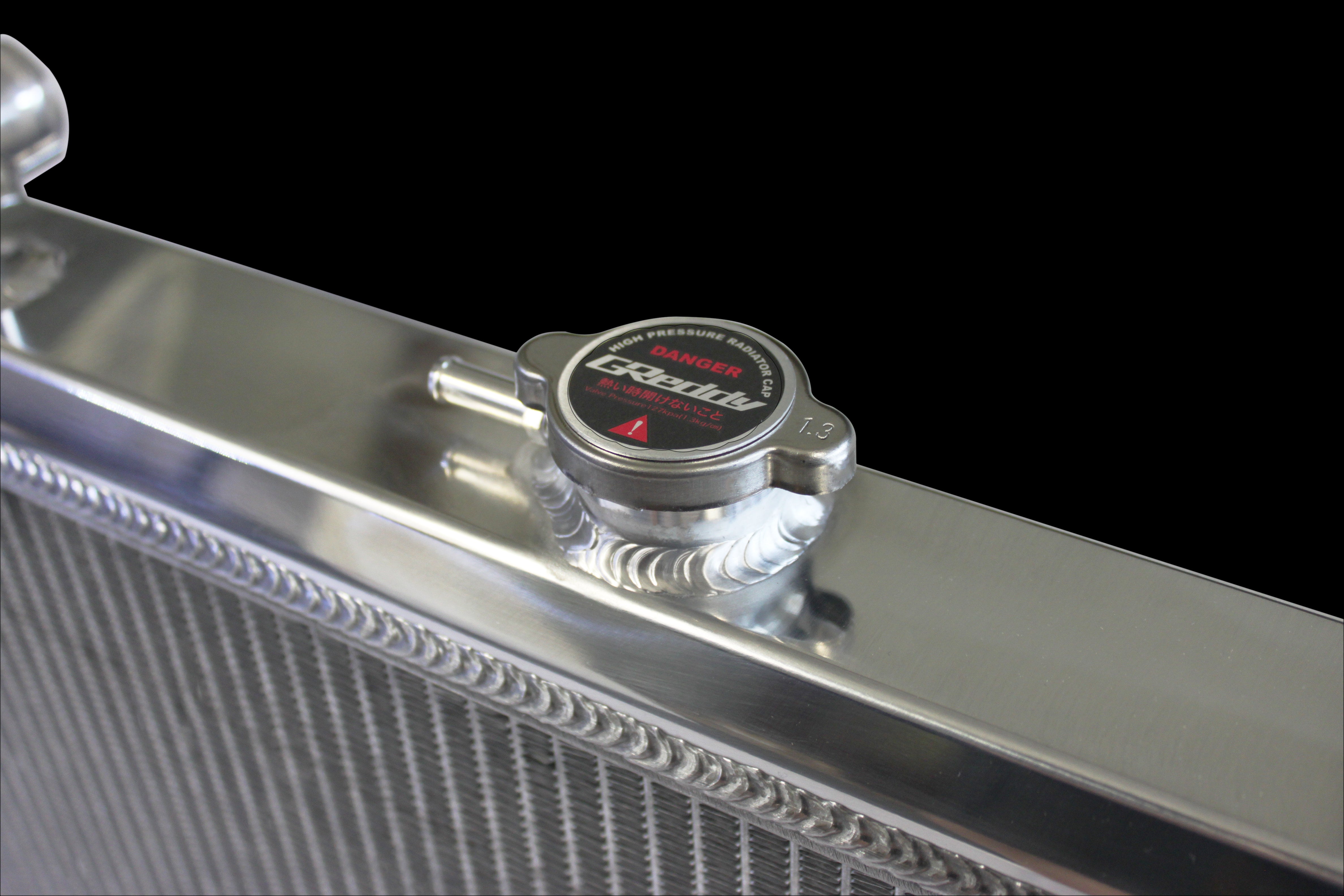

All models utilize our TYPE-S size radiator cap. Some applications will also include our high pressure GReddy Radiator Cap with a valve opening pressure of 127 kPa (1.3 kg/cm2).
Made of polished aluminum
The use of aluminum improves strength and corrosion resistance. The end-tanks are polished to dress up the engine bay.
