GReddy Cast Aluminum Elbow(s)
GReddy Cast Aluminum Elbow(s)

GReddy Cast Aluminum Elbow(s)

Sale price$58.50
Size and Angle: 12400001 - NO.1 Cast Aluminum Elbow 90deg 5R 45MM

Size and Angle

Part #: 124000xx

Use the pull-down menu above to select the diameter and size, then add to cart.

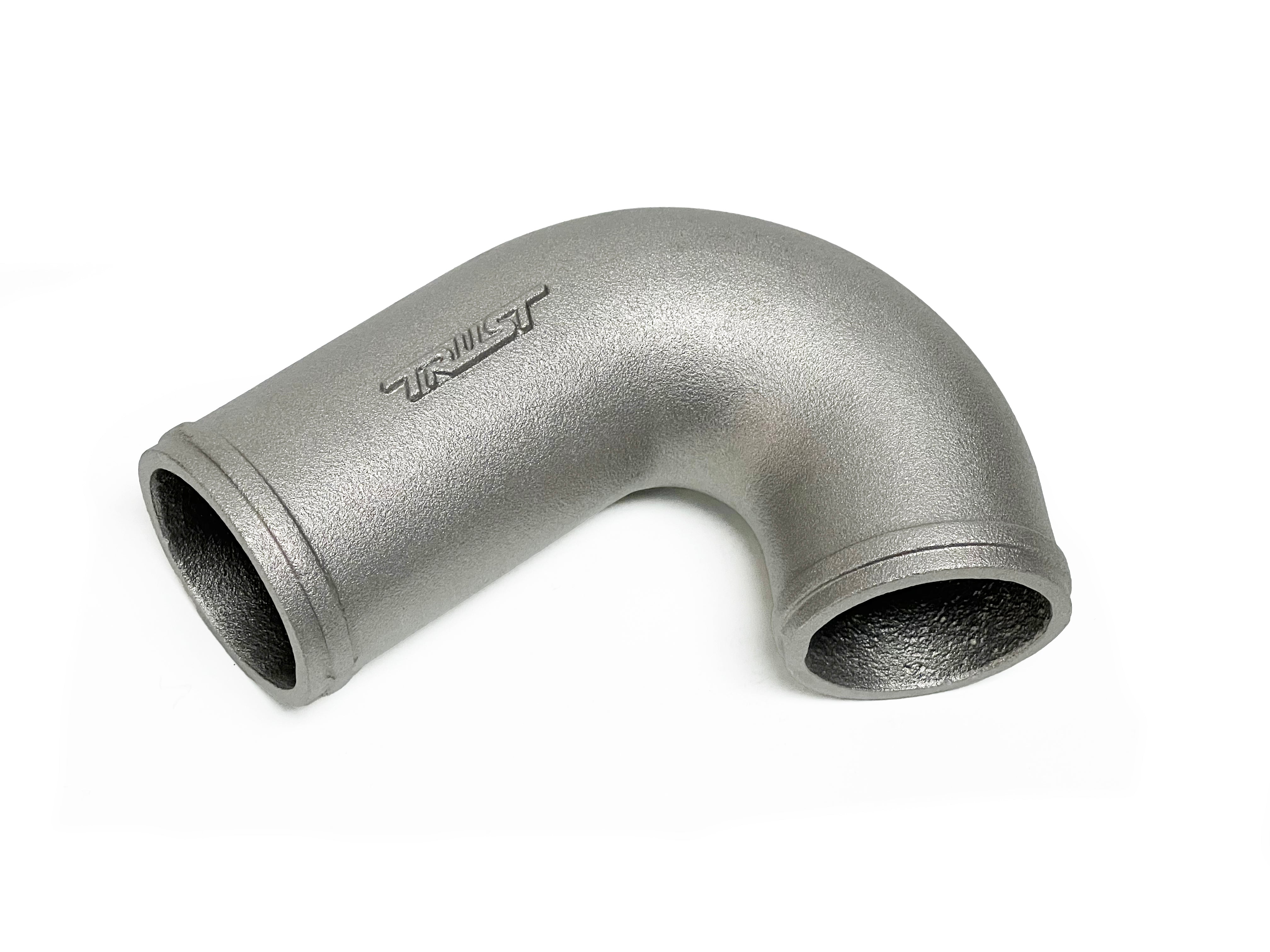

Aluminum elbow (cast)

These are cast pipes with bends and radii that cannot be made with a bender. Use them when building custom piping or replacing existing kits.

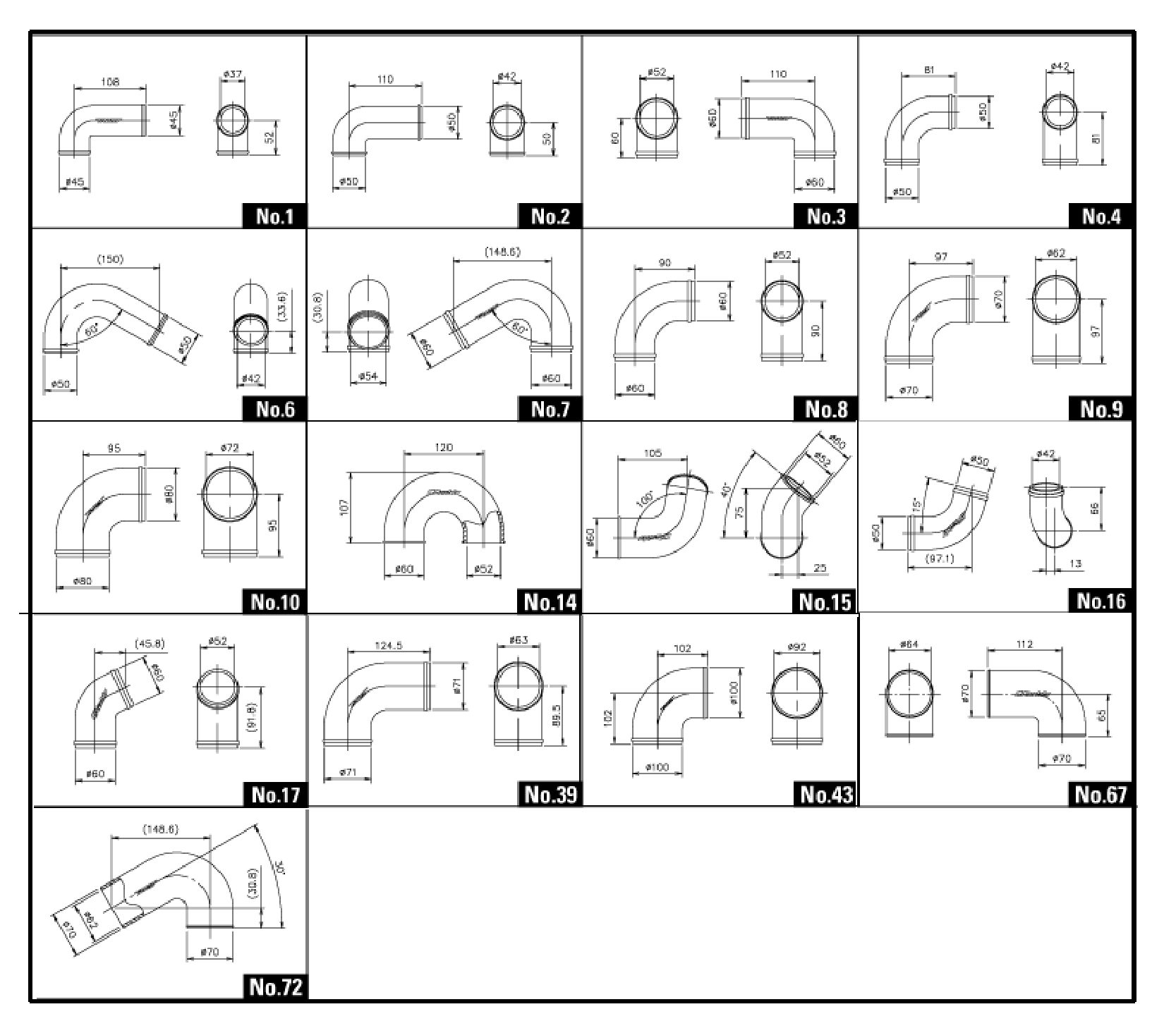

GReddy Aluminum Elbows

*The bend value is indicated by the inner radius.

Shape Angle Radius Outer Dia. P/N Notes
No.1 90° 5R 45φ 12400001
No.2 90° 5R 50φ 12400002
No.3 90° 5R 60φ 12400003
No.4 90° 25R 50φ 12400004
No.6 120° 30R 50φ 12400006
No.7 120° 20R 60φ 12400007
No.8 90° 35R 60φ 12400008
No.9 90° 35R 70φ 12400009
No.10 90° 25R 80φ 12400010
No.13 40° short 80φ 12400013 discontinued
No.14 180° 30R 60φ 12400014 discontinued
No.15 70° compound R 60φ 12400015
No.17 75° 10R 60φ 12400017
No.39 90° 25R 70φ 12400039
No.43 90° 20R 100φ 12400043
No.67 90° 10R 70φ 12400067
No.72 120° 15R 70φ 12400072
