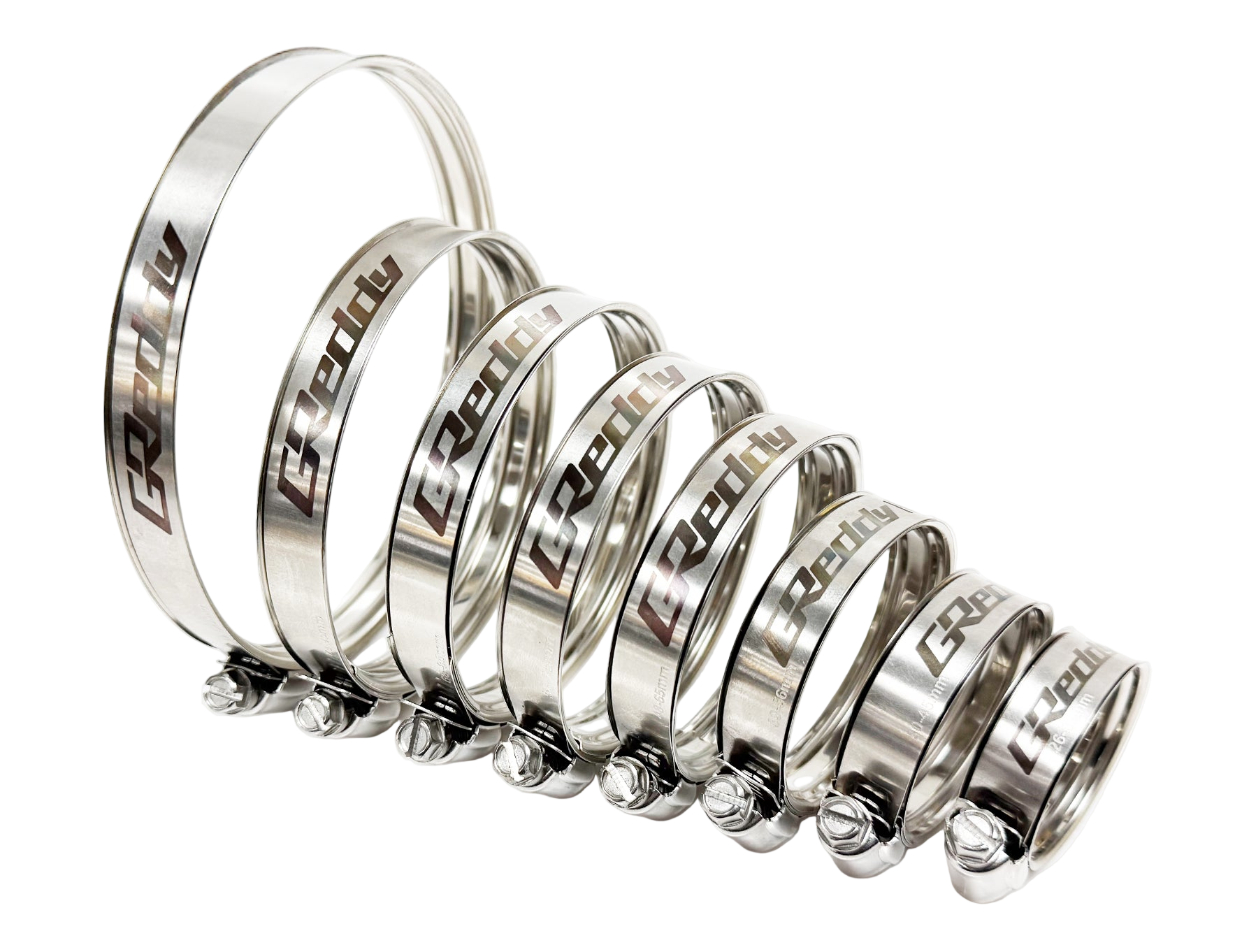

GReddy Dual-Bead Boost Clamps - Stainless
Part #: 22410039S – 22410120S (see size list below)

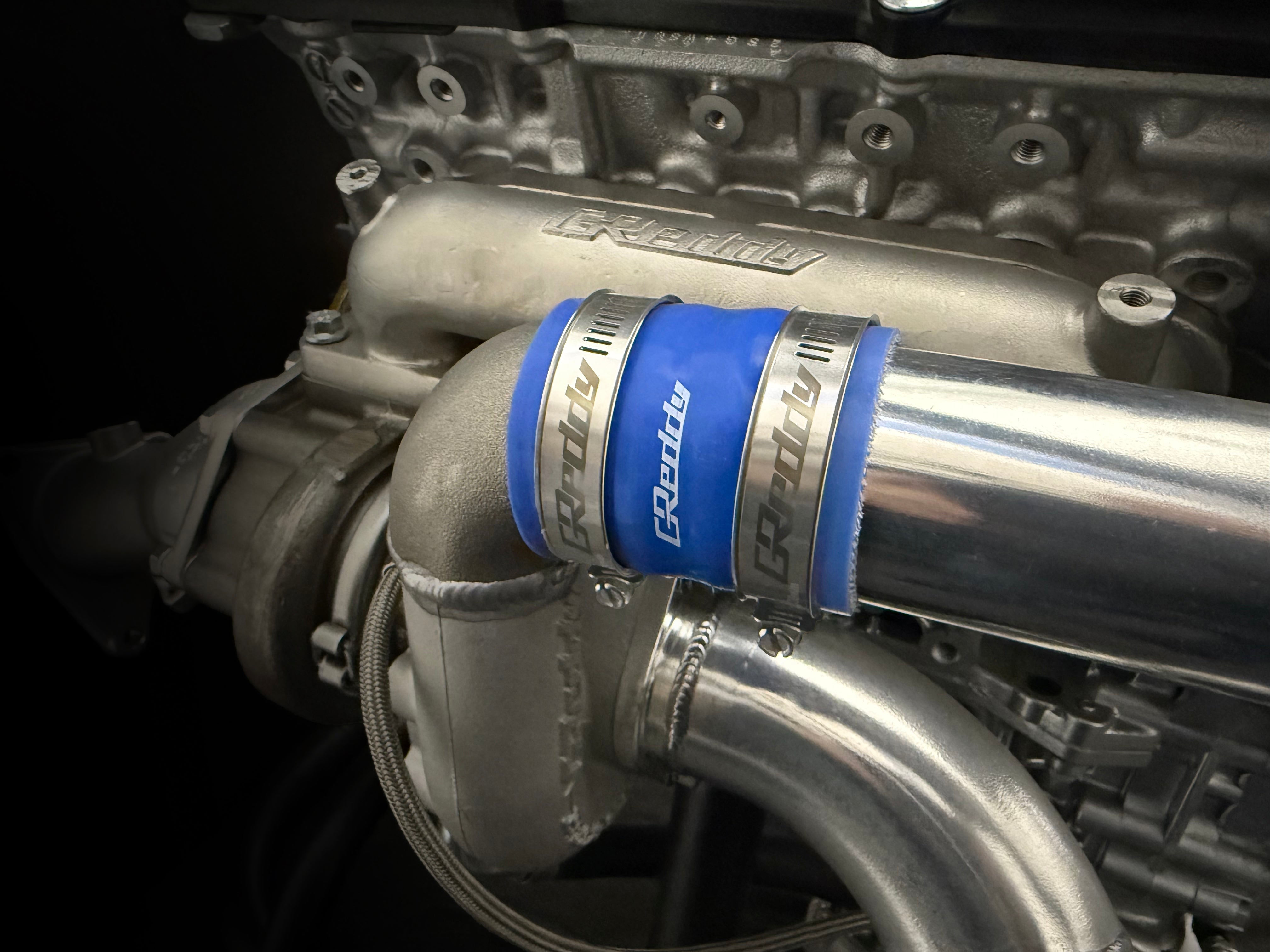

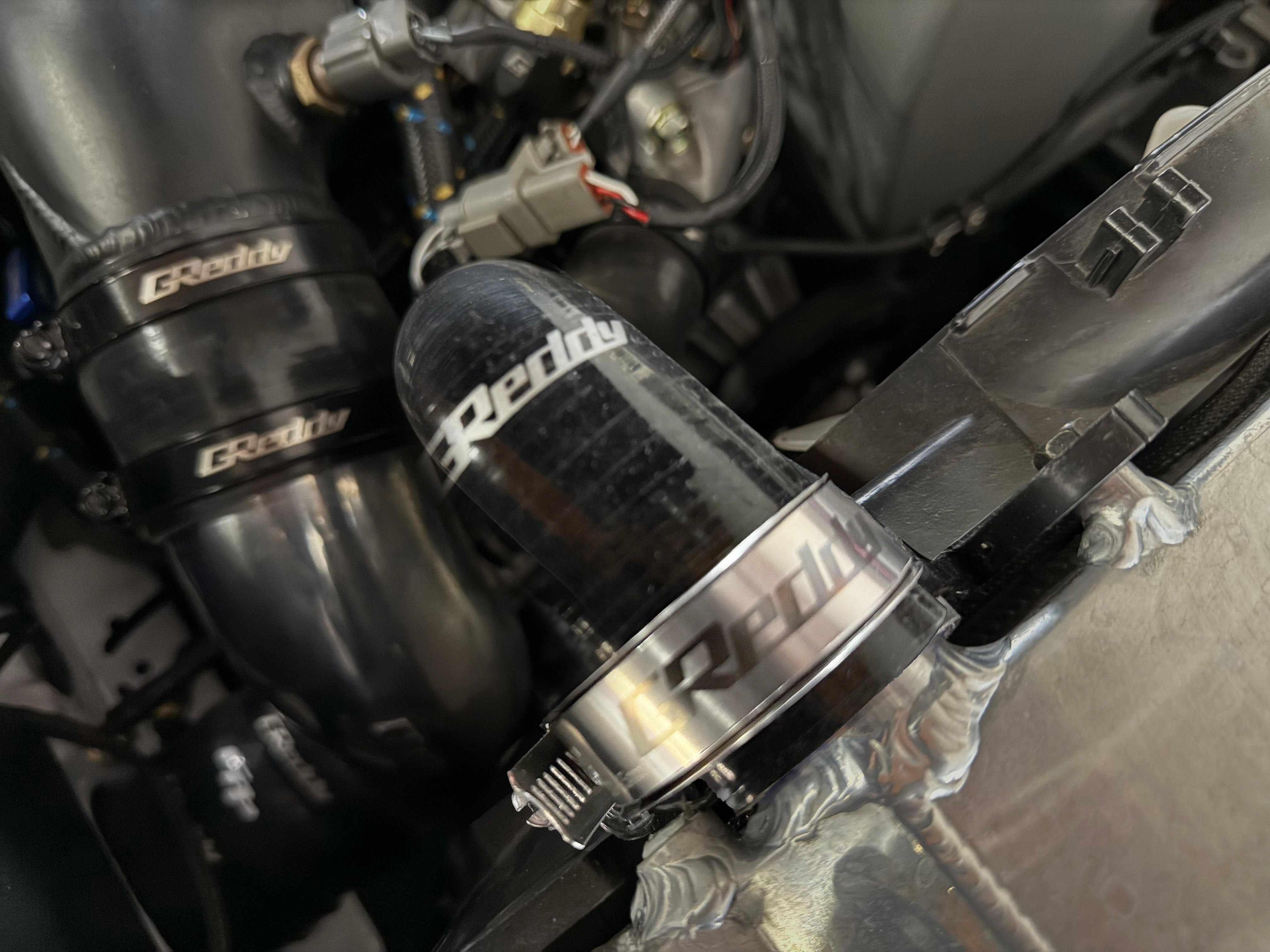

The GReddy Dual-Bead Boost Clamp(s) in raw Stainless are a cost-effective way to add secure clamps for use in both air-to-air and coolant applications. The inner shield offers excellent sealing capabilities and is gentle on all soft hoses. Its unique design ensures a secure fit without causing any damage to hose or tubing.
* also see GReddy Black Dual-bead Hose Clamps
* For easy GReddy hose clamp replacements, see the GReddy instruction manual(s) and reference the parts list, with the description of the hose clamp size, e.g., No. 28 (see below)
| Black DB Clamp P/N | SUS DB Clamp P/N | Adjustment Range | Std. Dia. Hoses | Metric Dia. Hoses | Clamp Type | Clamp Name |

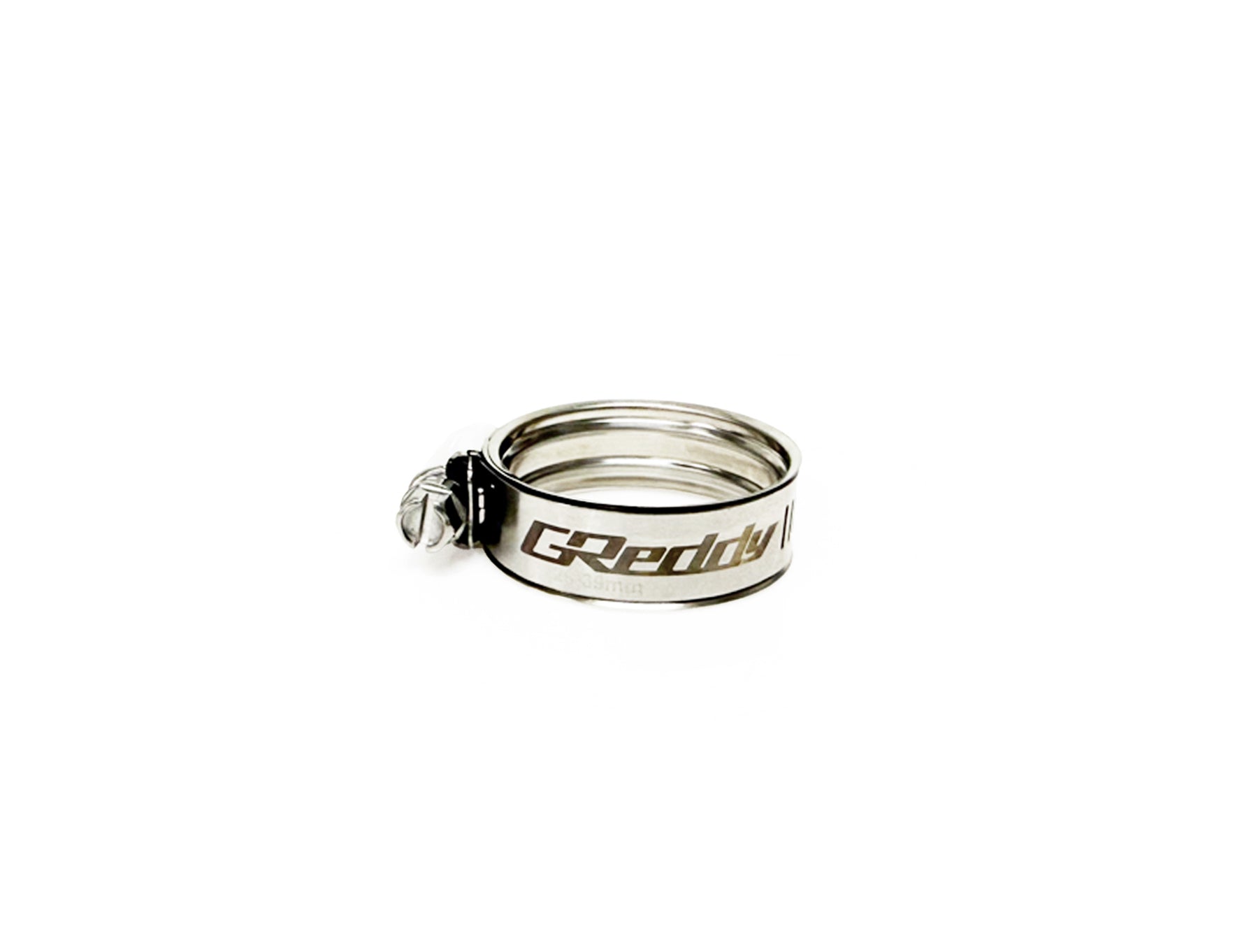

| 22400039 | 22410039S | 26-39mm | 1.0"-1.5" | 32mm | No. 16 | DB-1 |

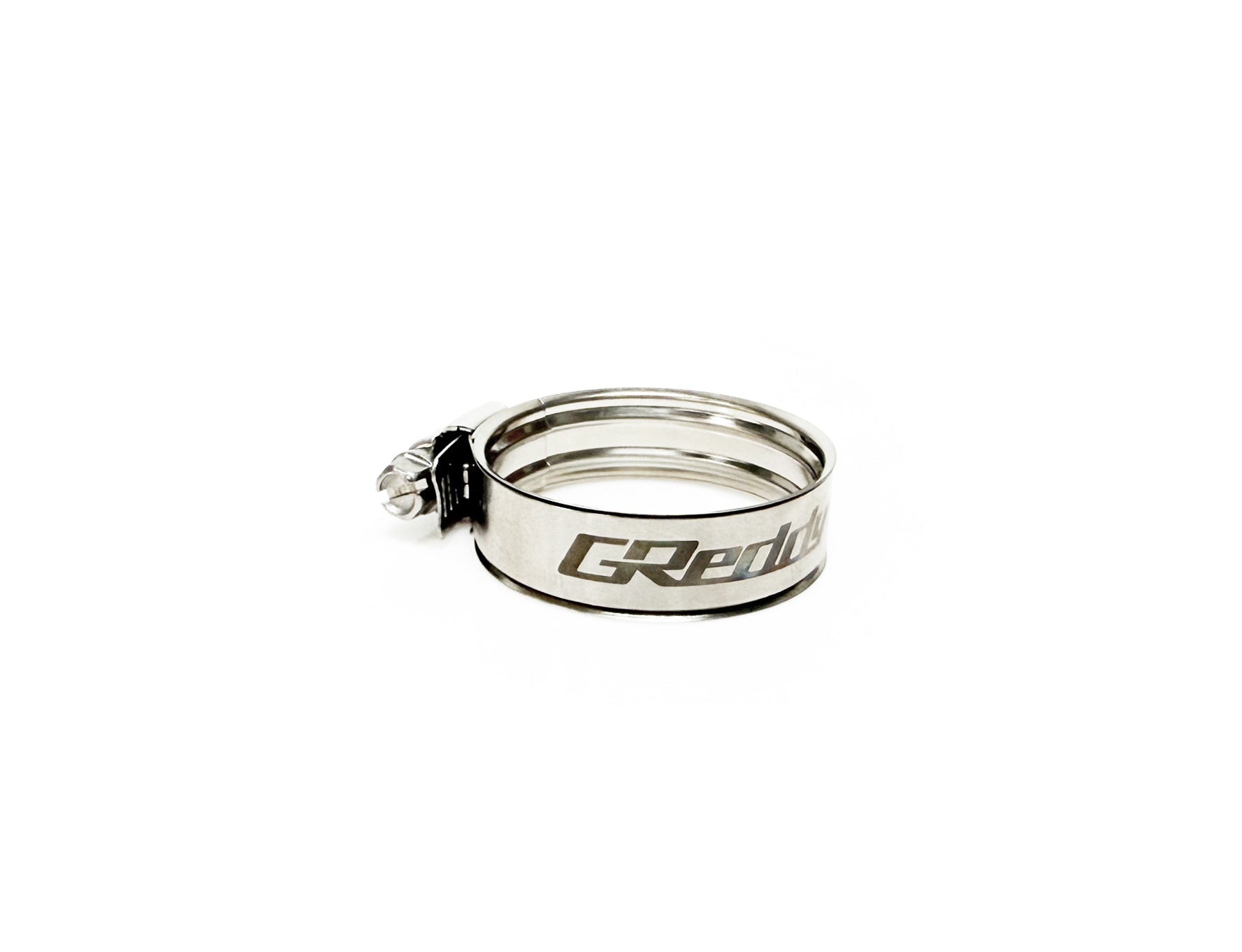

| 22400045 | 22410045S | 30-45mm | 1.25"-1.75" | 32-34mm | No. 24 | DB-2 |
| 22400056 | 22410056S | 40-56mm | 1.75"-2.0" | 34-42-45-50mm | No. 28 | DB-3 |

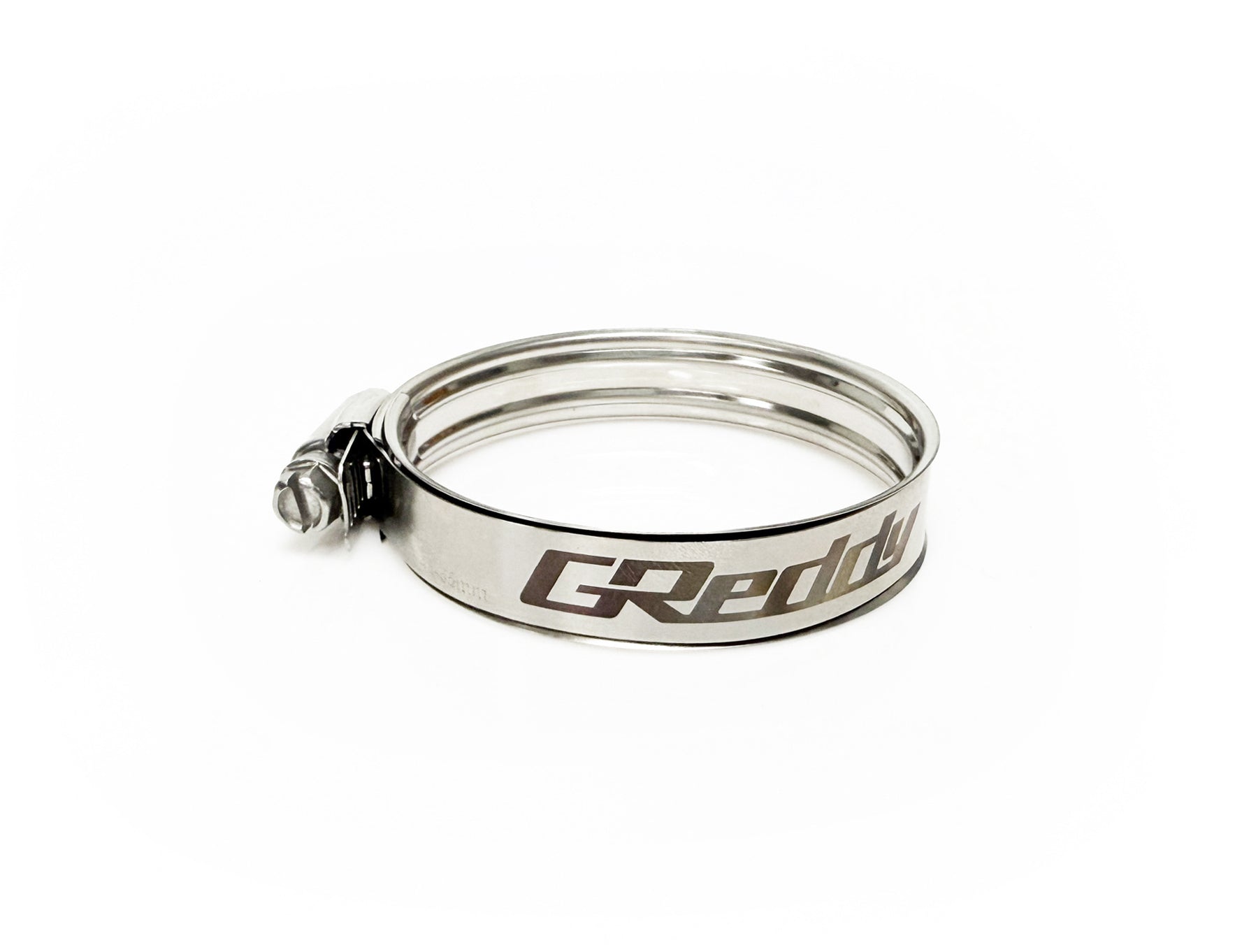

| 22400065 | 22410065S | 48-65mm | 2.0"-2.25"-2.5" | 45-50-54-60mm | No. 36 | DB-4 |

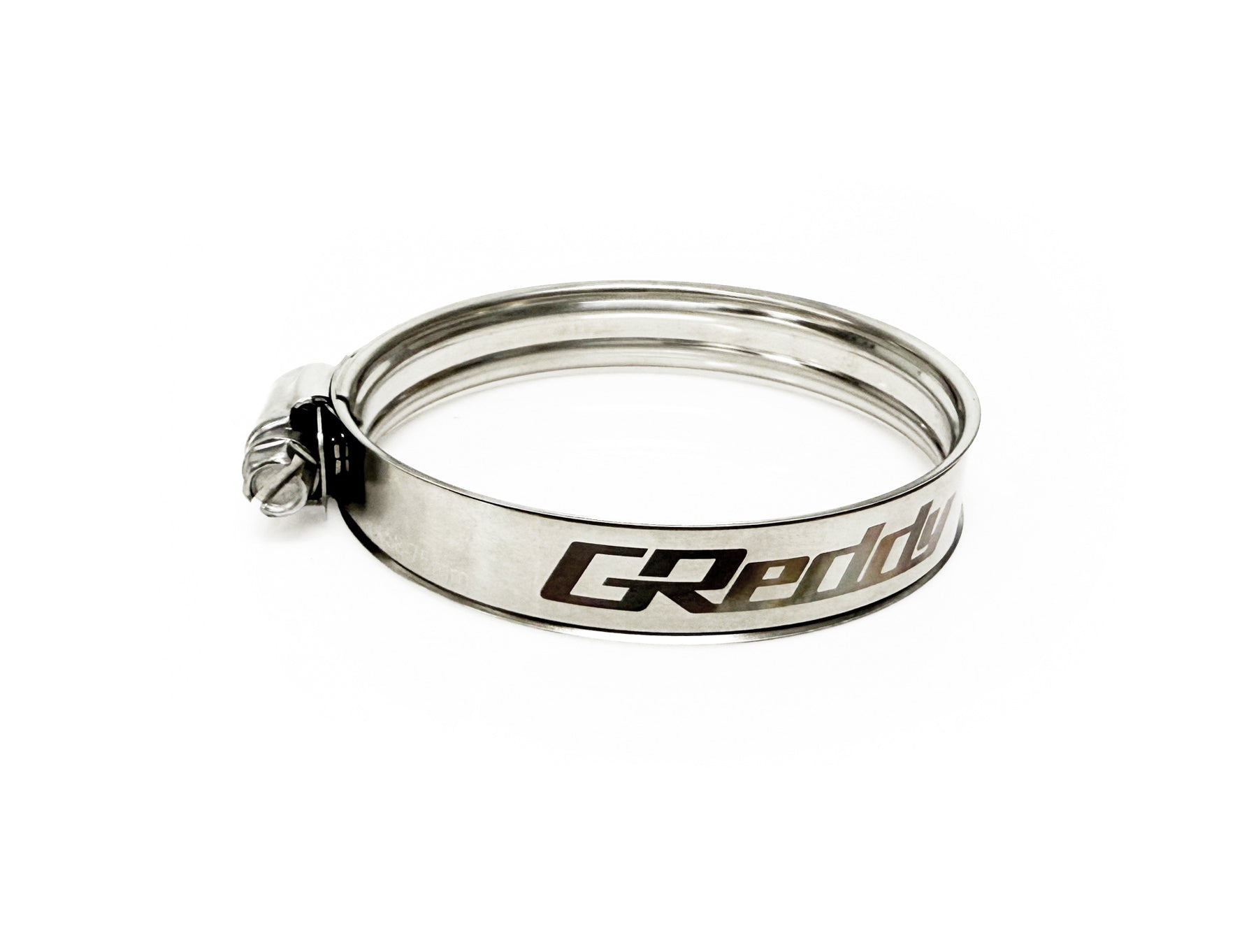

| 22400075 | 22410075S | 58-75mm | 2.5"-2.75" | 54-60mm | No. 40 | DB-5 |
| 22400085 | 22410085S | 68-85mm | 2.75"-3.0" | 60-65-70-78-80mm | No. 44 / 48 | DB-6 |
| 22400095 | 22410095S | 78-95mm | 3.0"-3.5" | 80-90mm | No. 56 | DB-7 |
| 22400120 | 22410120S | 100-120mm | 4.0"-4.5" | 100mm | No. 72 | DB-8 |

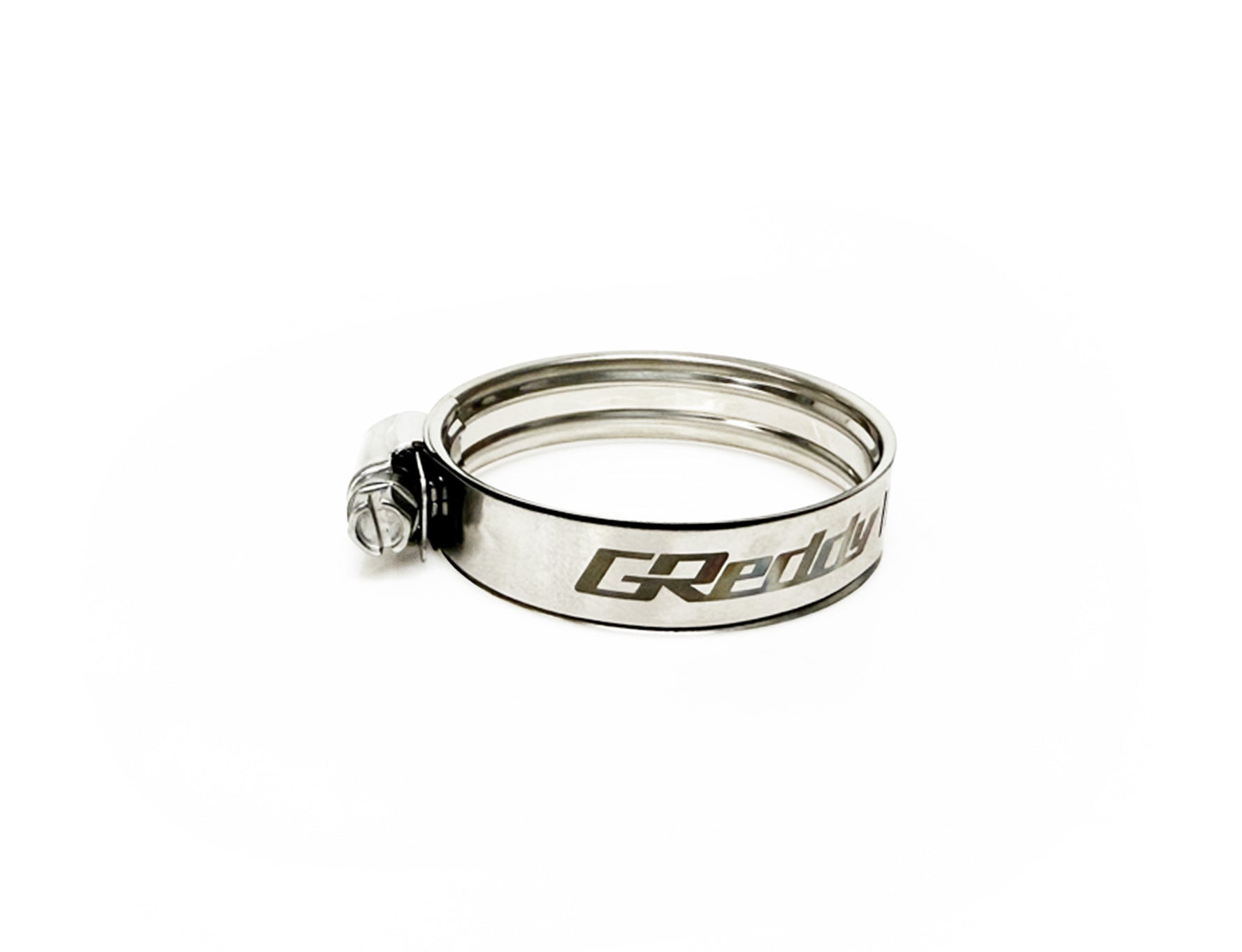

- Raw Stainless-steel hose clamps

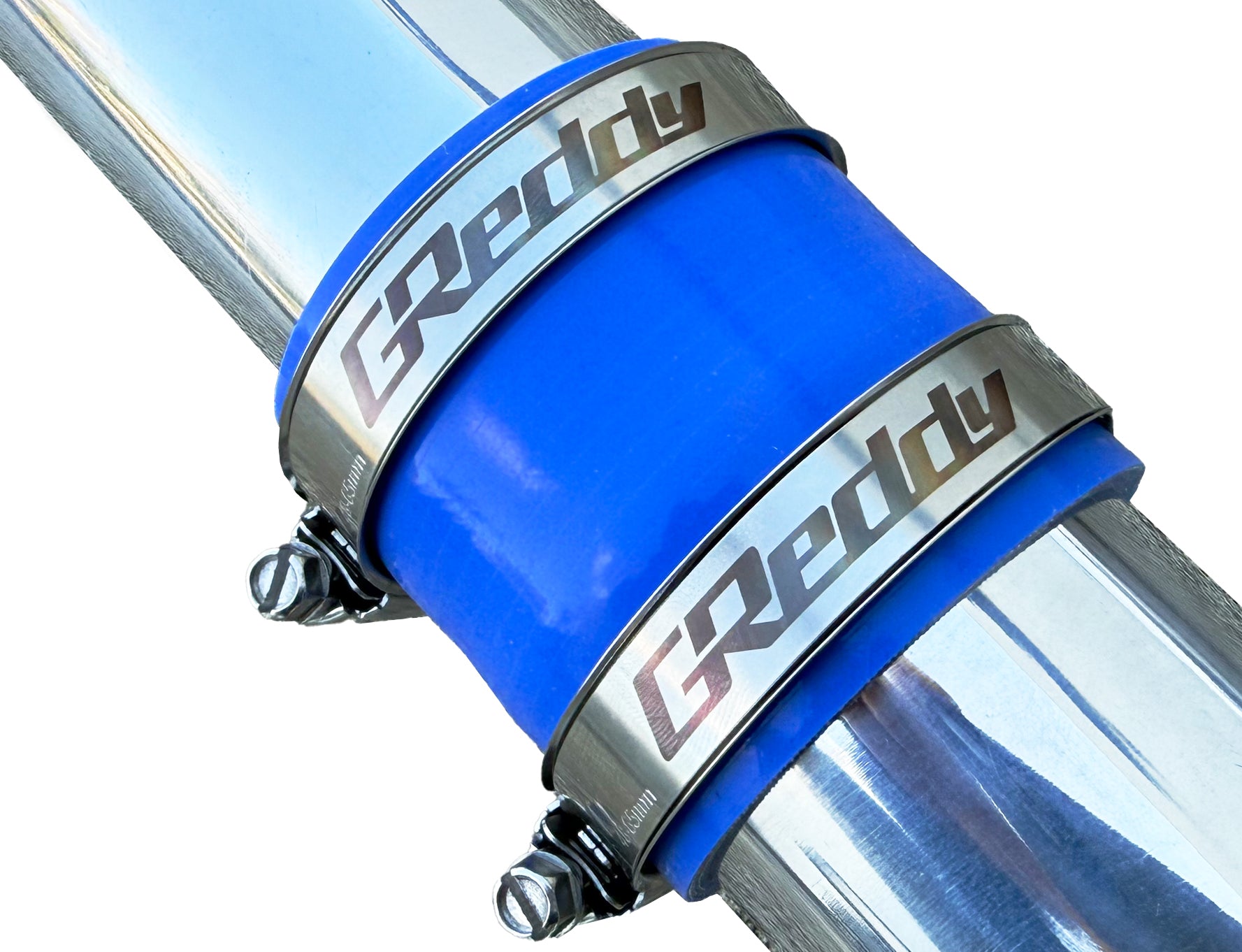

- The design helps prevent turbo hoses from blowing off.
- Flanged edges protect soft hoses, such as silicone or rubber, from damage.
- Ideal upgrade for improved looks with laser engraved logo on each clamp.

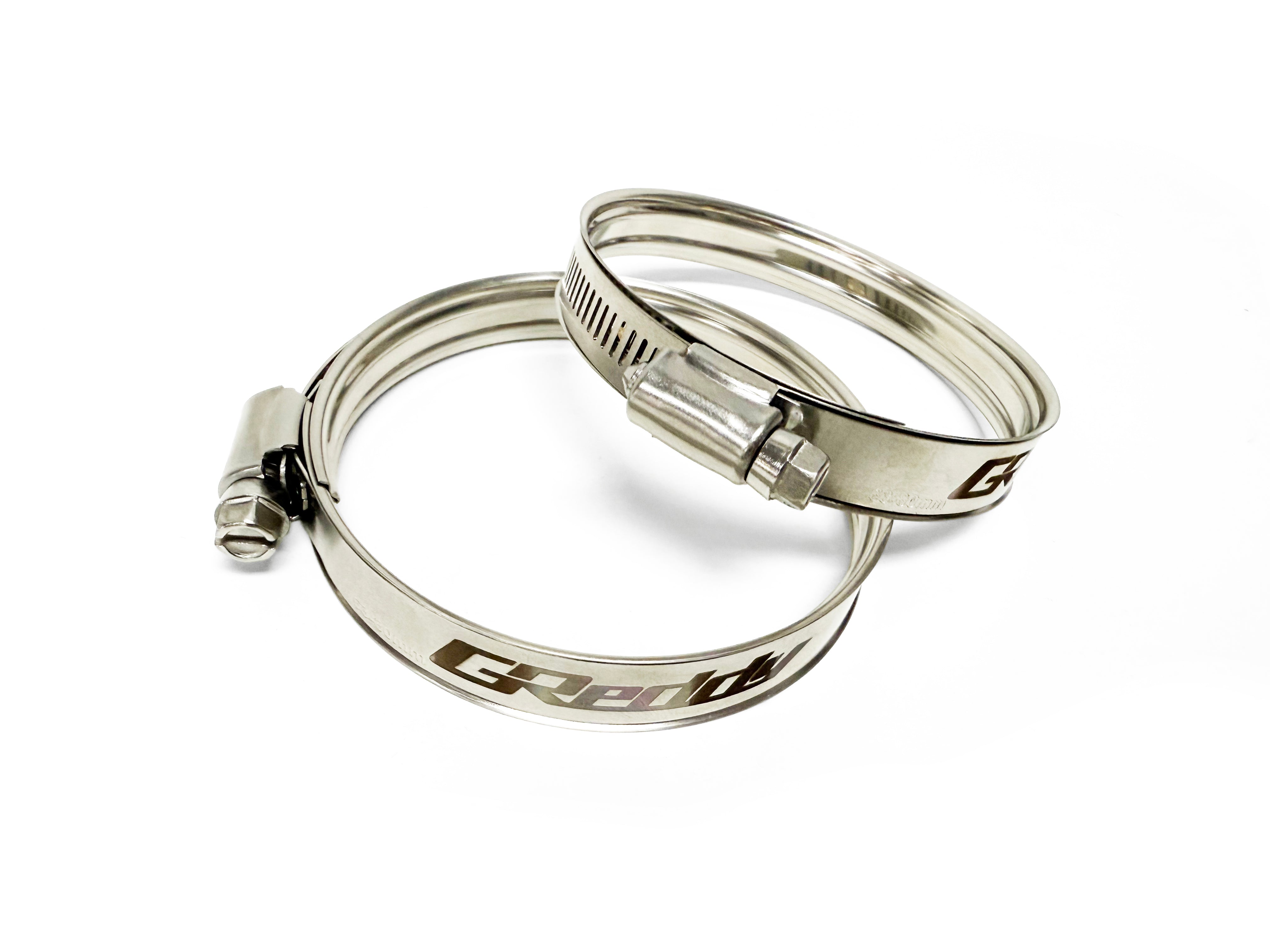

- 8mm Hex / Flathead adjustment head

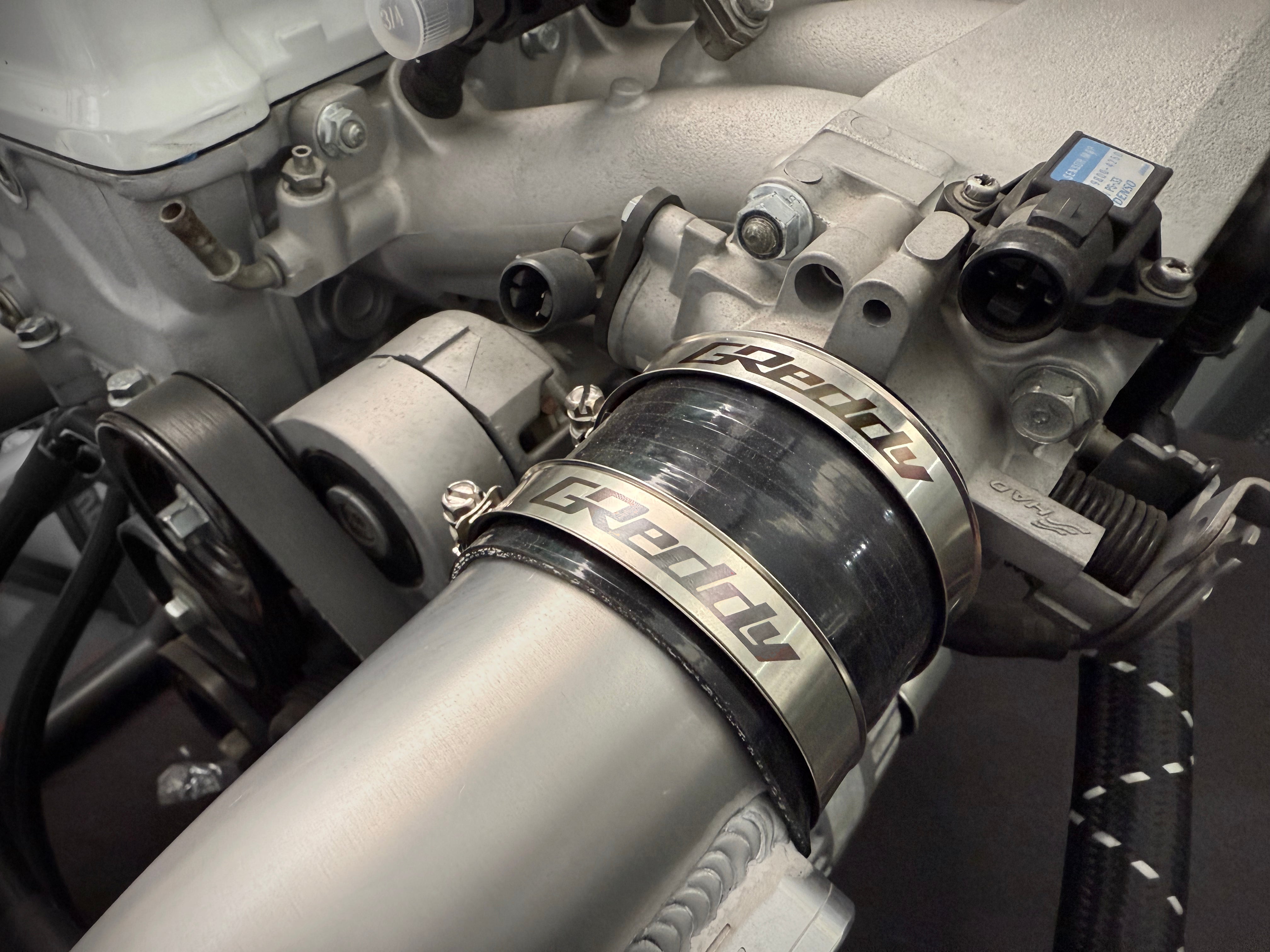

- Six adjustable sizes to fit most air intake and boost applications. (DB-3 to DB-8)

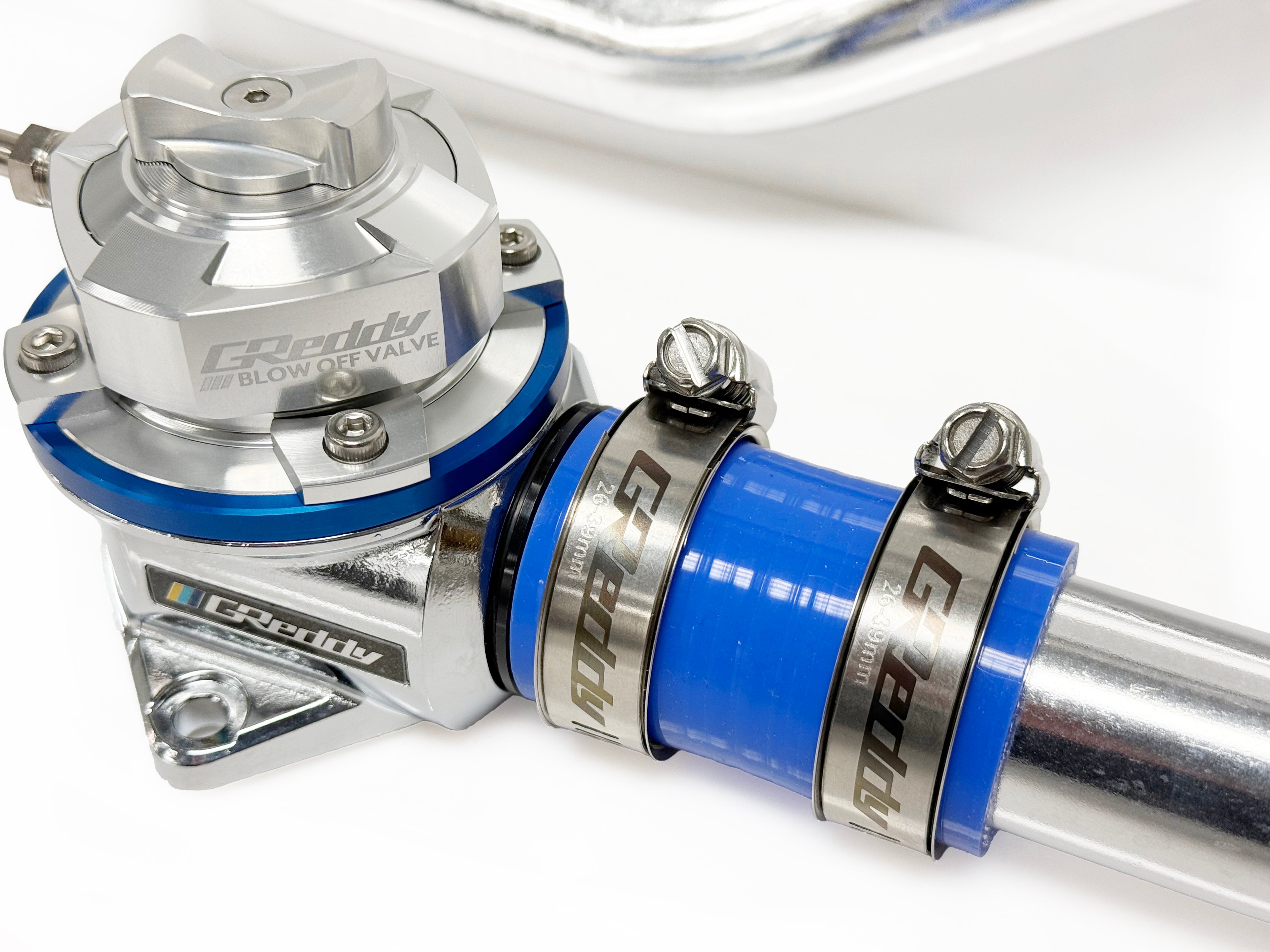

- Plus two sizes for blow-off valve discharge or radiator hoses (DB-1 to DB-2)
