2JZ-GTE SURGE TANK - PRO KIT w/ 90mm THROTTLE BODY & FUEL RAIL - (13512303)

13512303 – 2JZ Pro Intake Plenum with 90mm Throttle Body

     * 13512303-AN - optional additional AN8 O-ring fitting

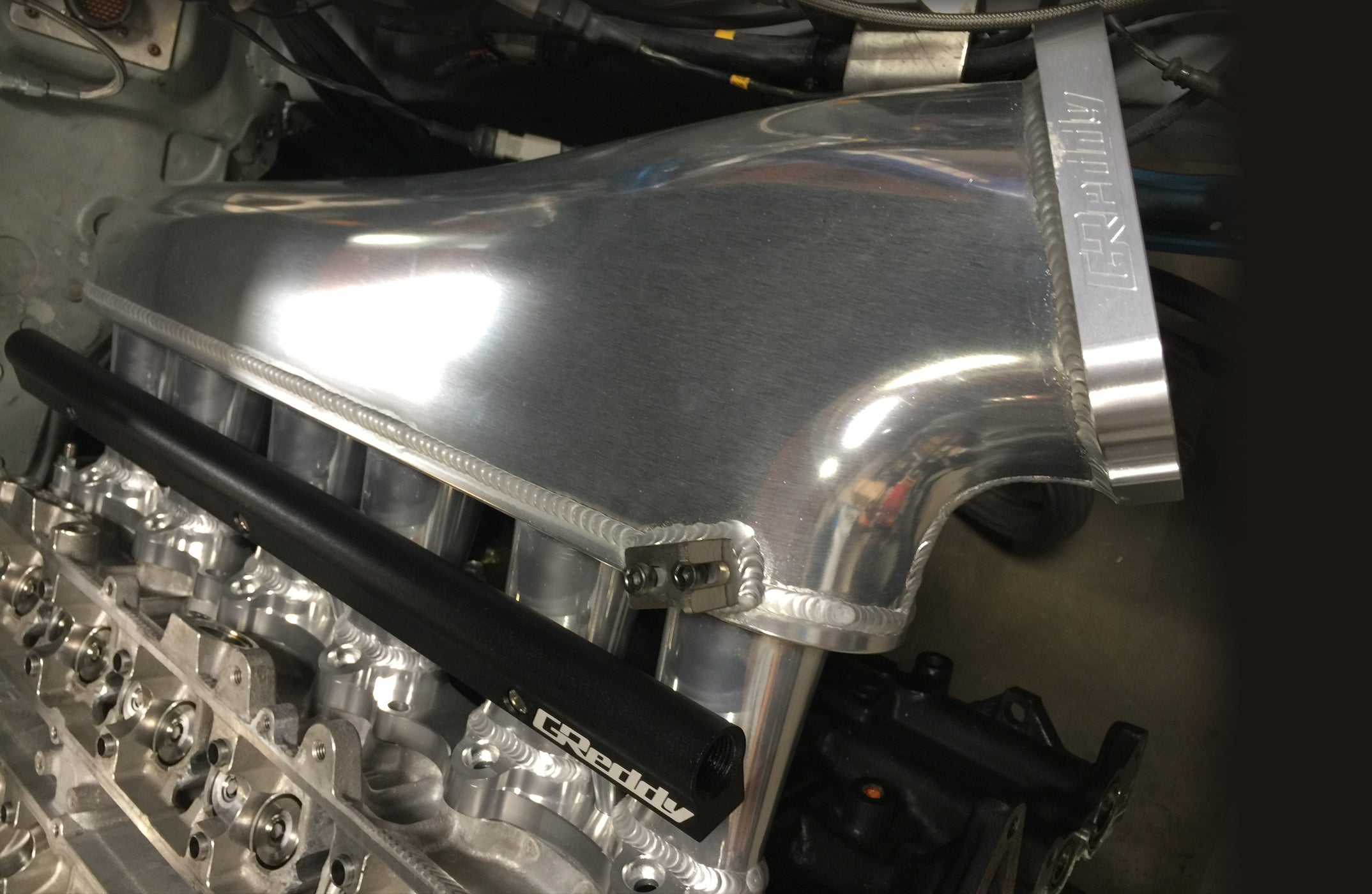

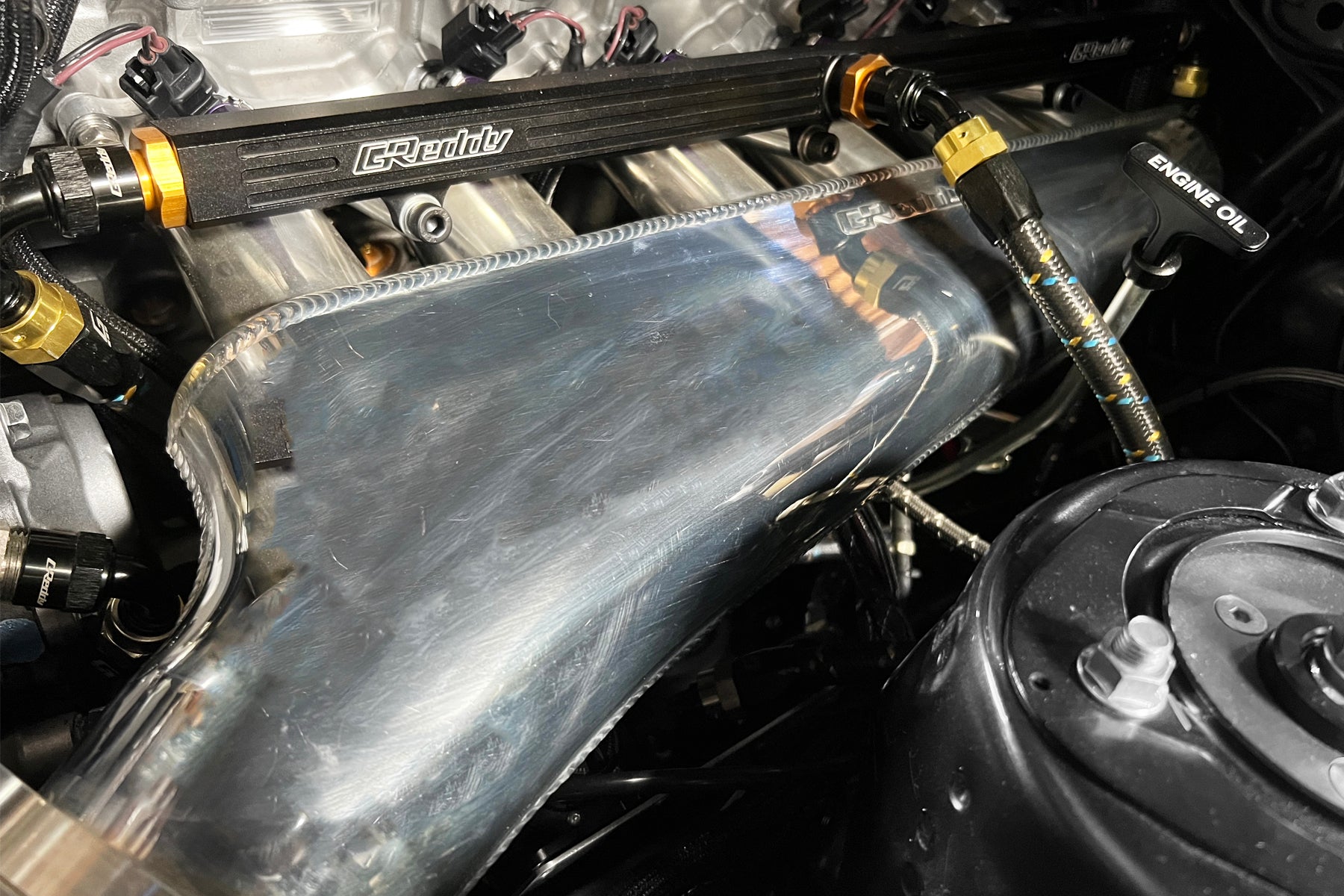

Designed specifically for custom applications with 2JZ engine transplants (but also great with a JZA80 Supra), the GReddy 2JZ Pro Surge Tank Kit offers the versatility to best match the throttle-body inlet angle and vacuum / air ports for your engine bay. This Pro kit includes 4.0l tank capacity with a large 90mm throttle-body, and top feed GReddy fuel rail, and necessary weld-on flanges. For additional rigidity during high boost applications, it uses thick 3mm formed metal tank that is welded to a precision machined, grooved base, with six individual, internal velocity-stacks. Also pre-welded are the tuned primary runners and CNC machined, intake manifold flange with fuel injector ports. Another key feature is the unique, purpose-built fuel-resist, ring-type gaskets that seal the manifold to the head.

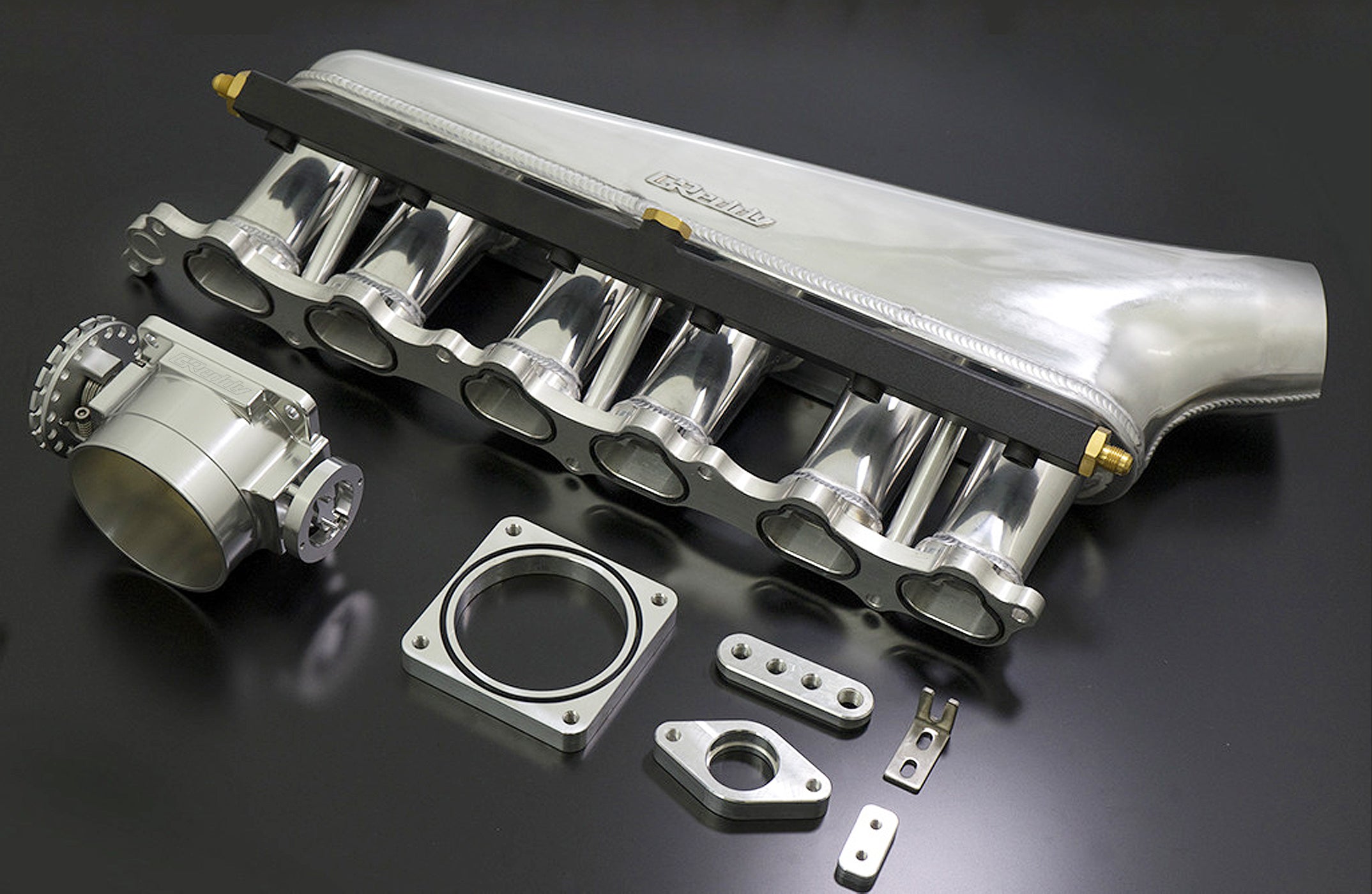

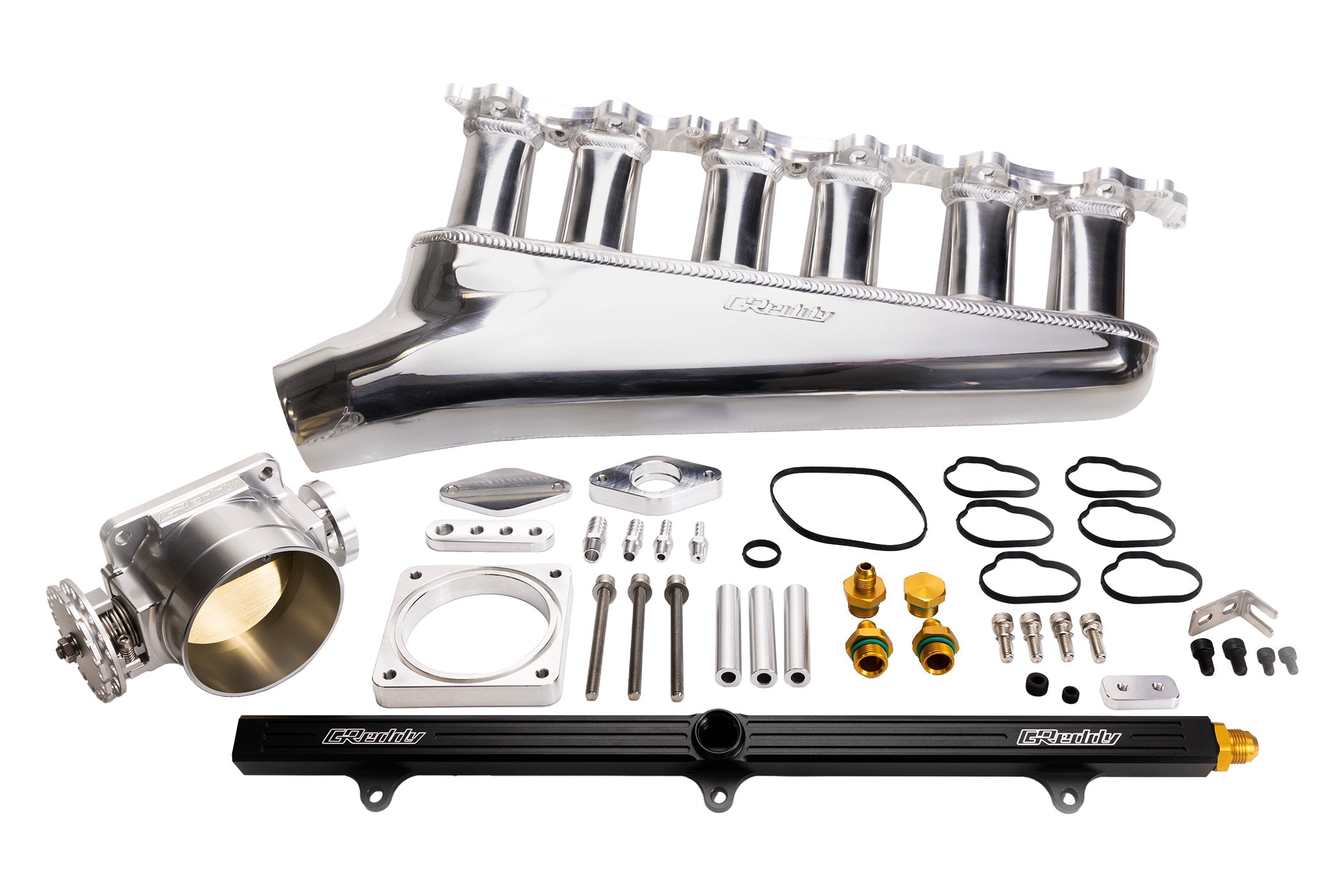

2JZ Pro Surge Tank Kit includes : SURGE TANK / THROTTLE BODY / THROTTLE FLANGE / FUEL DELIVERY TUBE & MOUNTS

Collector tank capacity 4.02 l (normal ratio 200%)

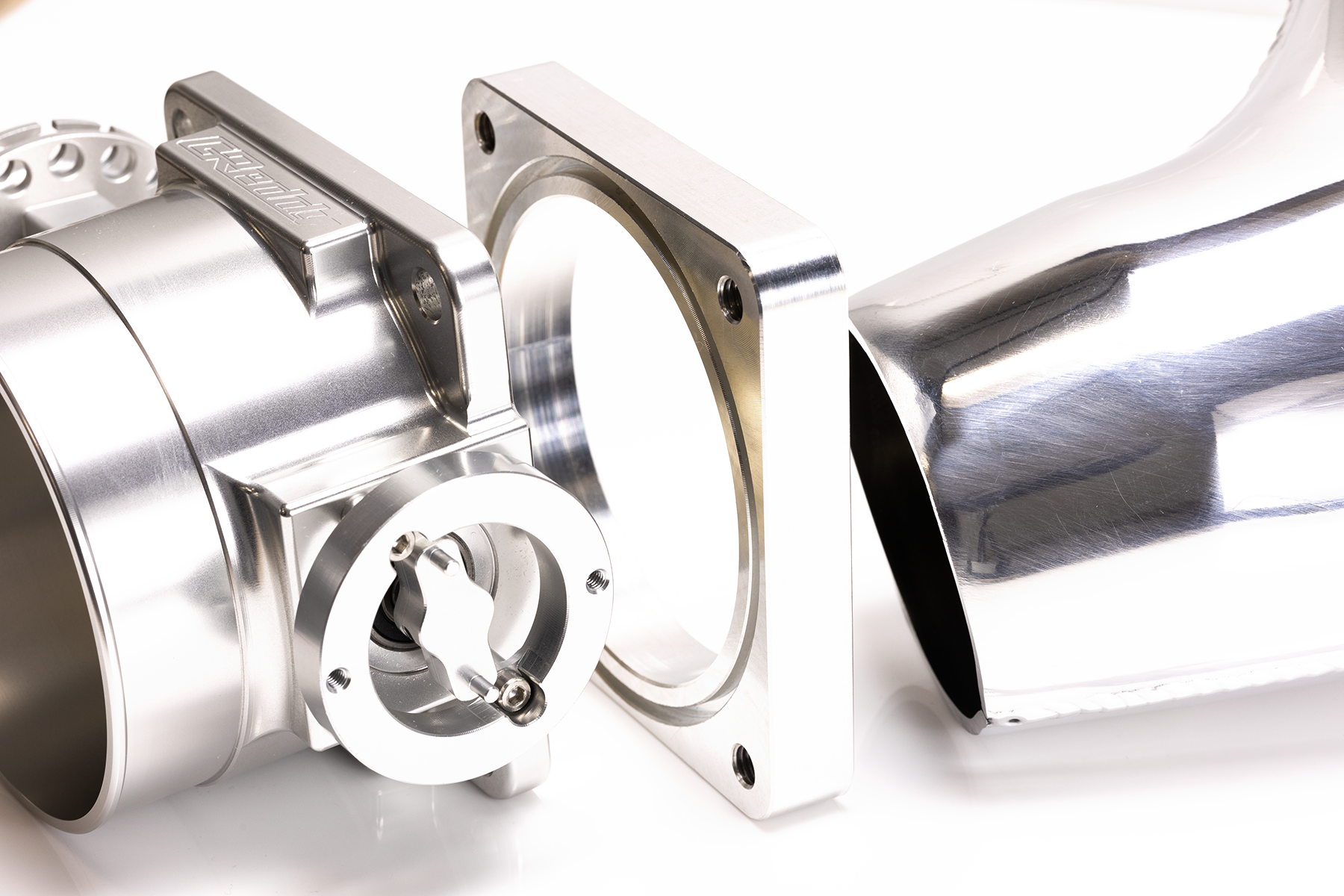

Welding required to attach throttle body flange, throttle cable mount and air-port flanges
Surge tank, base plate and runners pre-welded
Tuned internal velocity stacks on each runner
Primary runner length 13.0mm, OD 14.0mm, ID 13.0mm

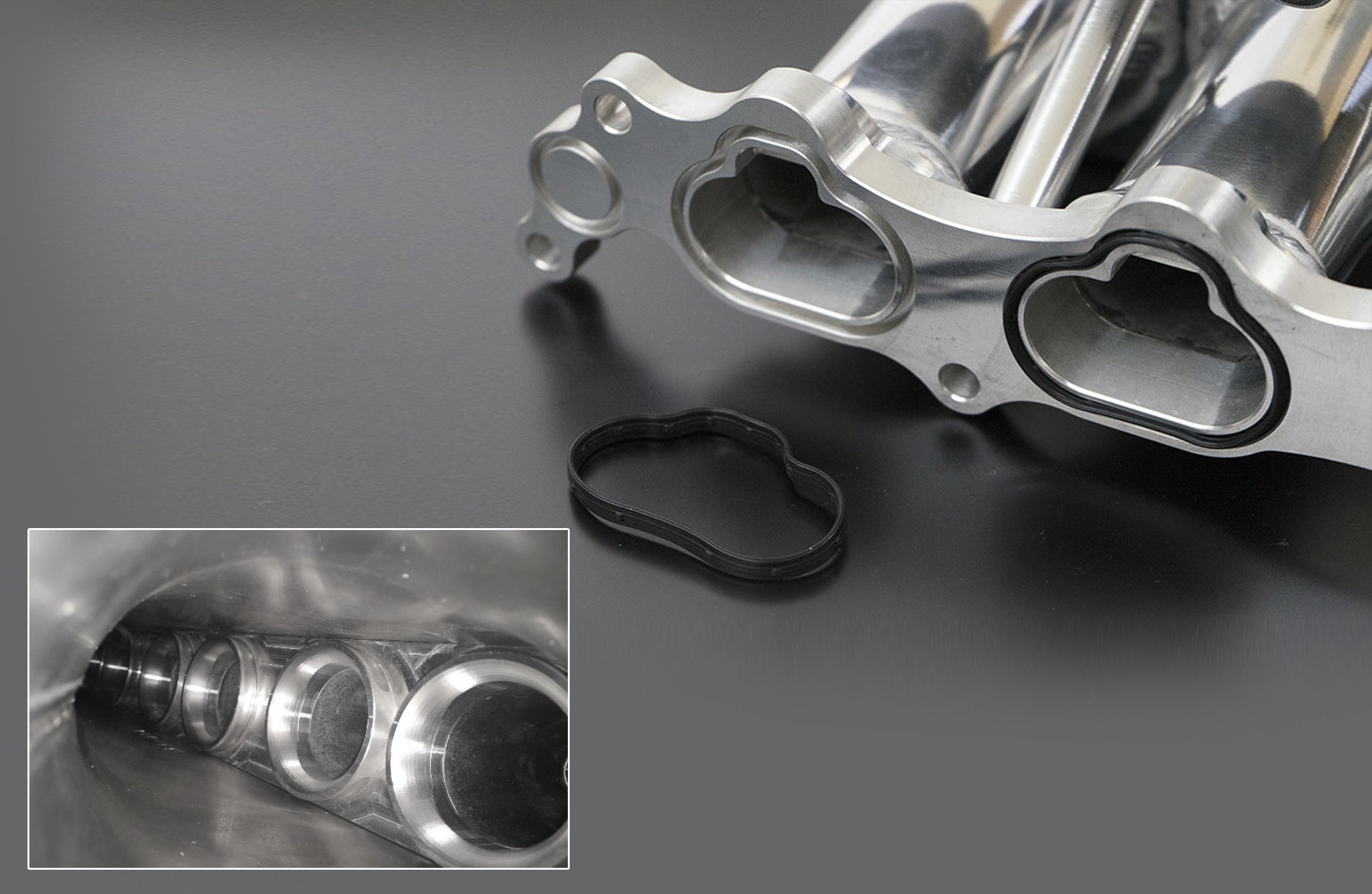

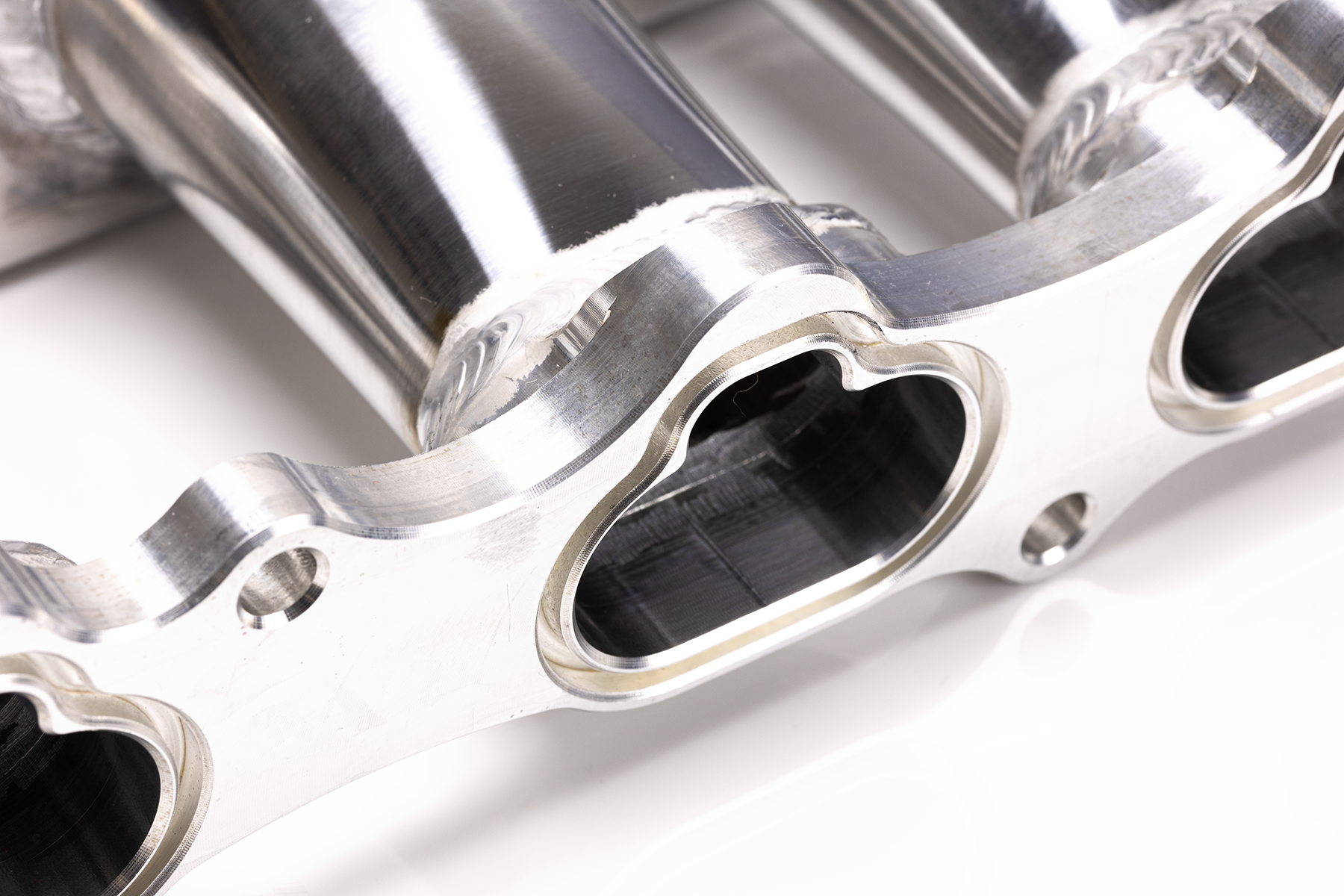

Specially designed and manufactured O-ring style gasket provide superior manifold to head sealing for each runner

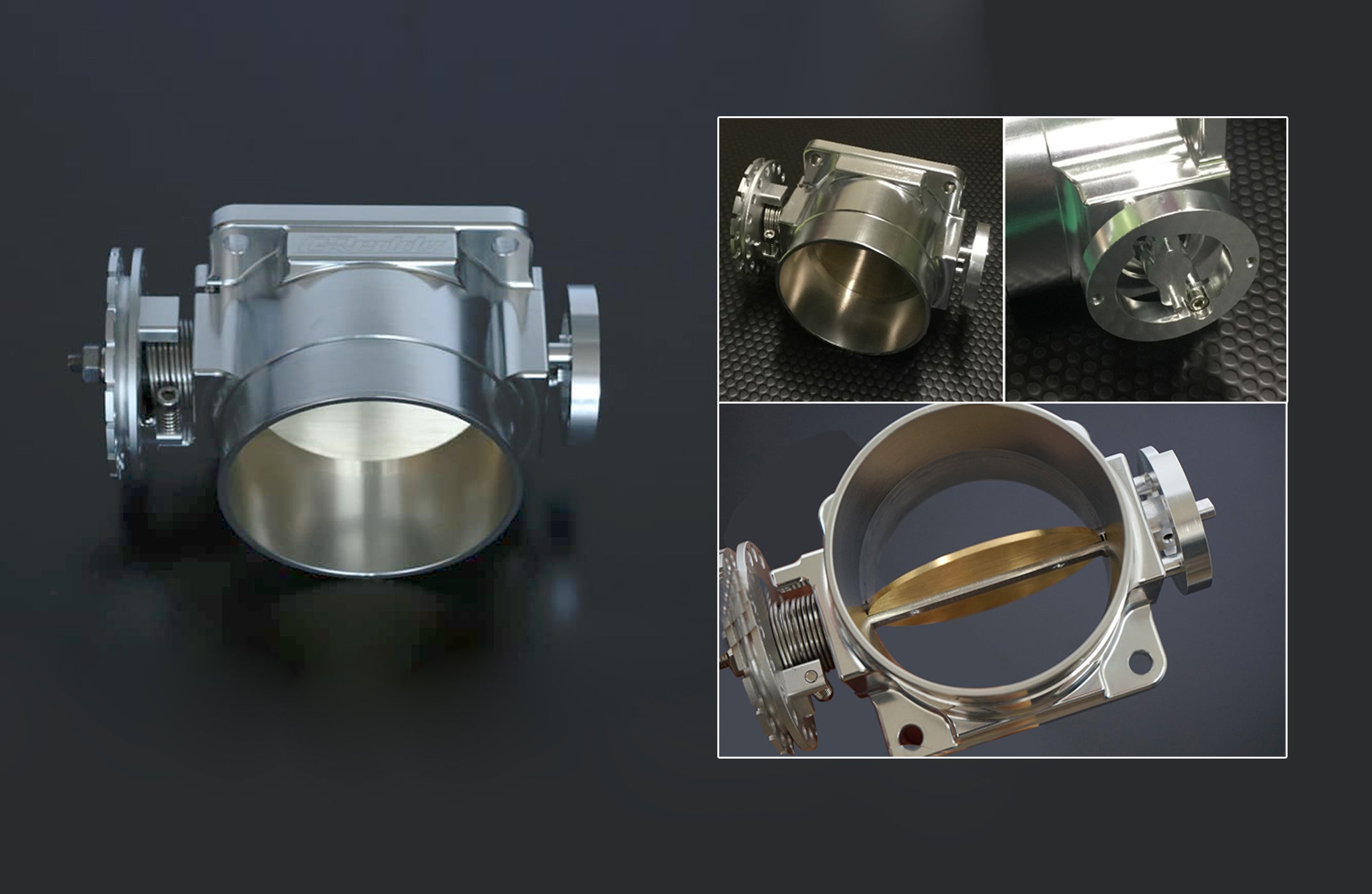

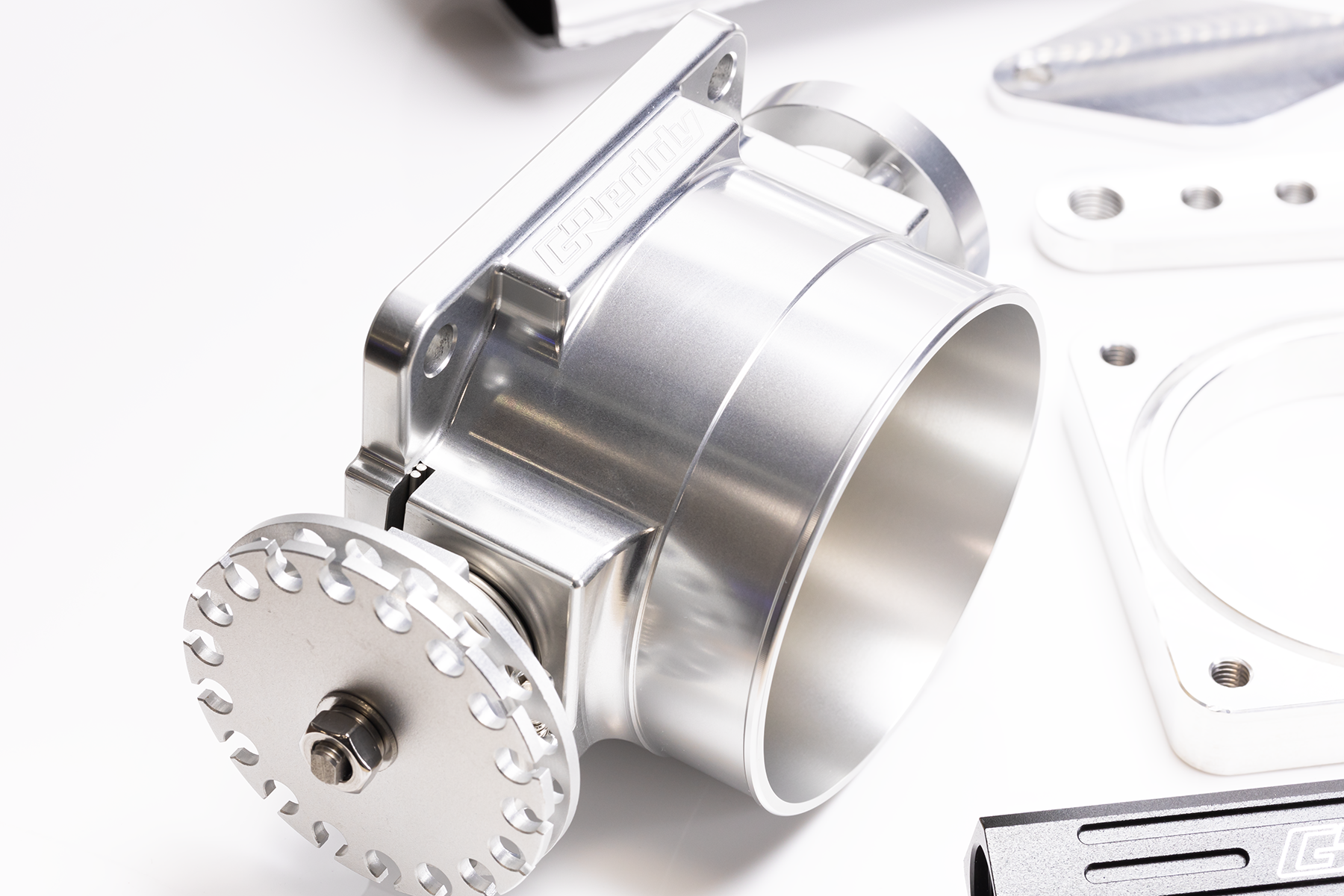

Throttle-body hose diameter 100mm, internal butterfly diameter 90mm with low-profile throttle shaft

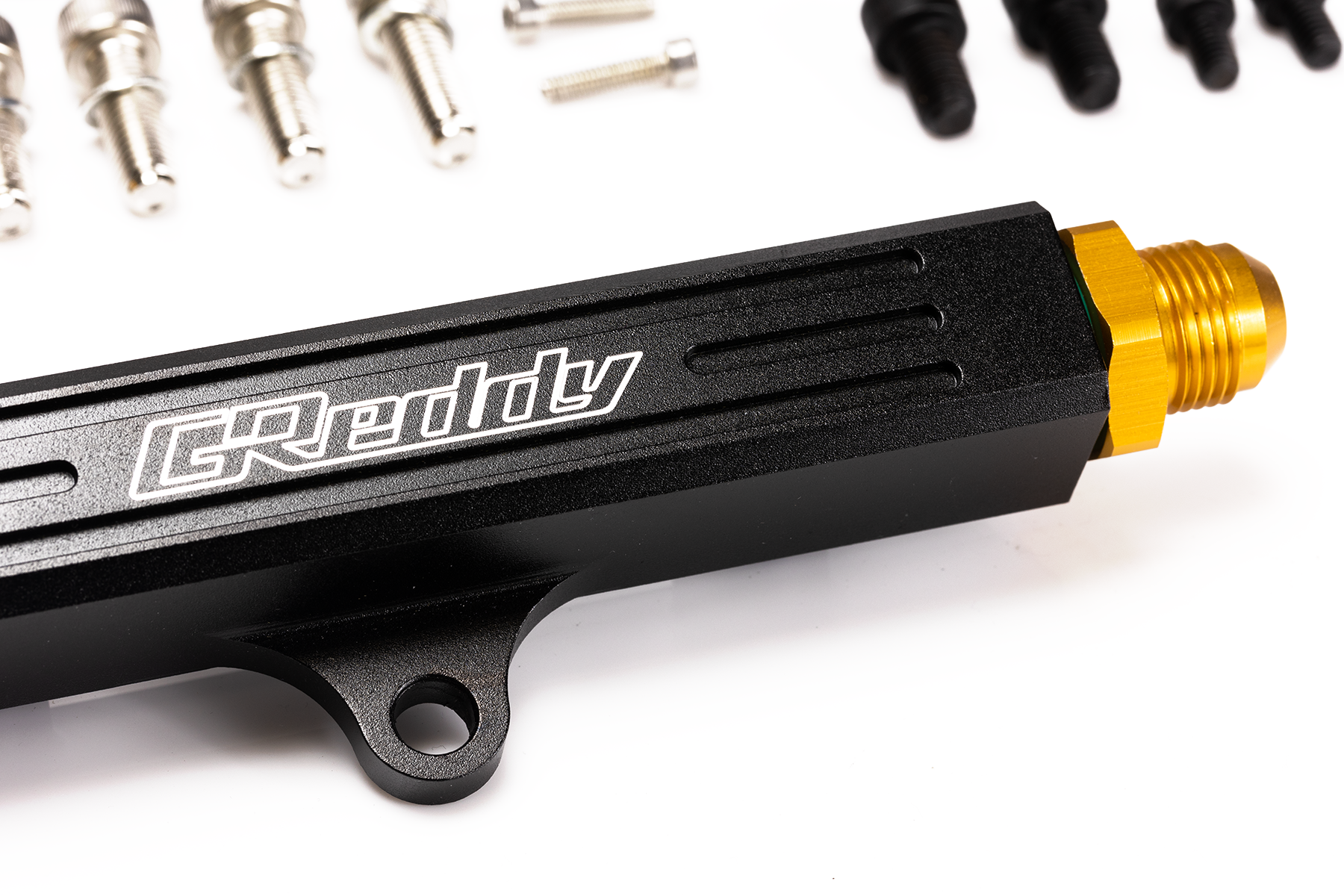

* Fuel Delivery tube for 14mm top feed injector (compatible with Nissan R35 VR38DETT factory injectors)
Compatible with OEM factory Idler Control Valve and TPS Throttle Position Sensor

*For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing.
**This product is illegal to be driven on public roads in the USA.
