Artec Nissan KA24 V-Band Turbo Exhaust Manifold (preorder)
|KA24-VBAND-EX / 58520015
With the (RWD) KA24DE and its high compression, larger capacity and flowing head, it's an ideal choice to turbocharge.
*For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing.

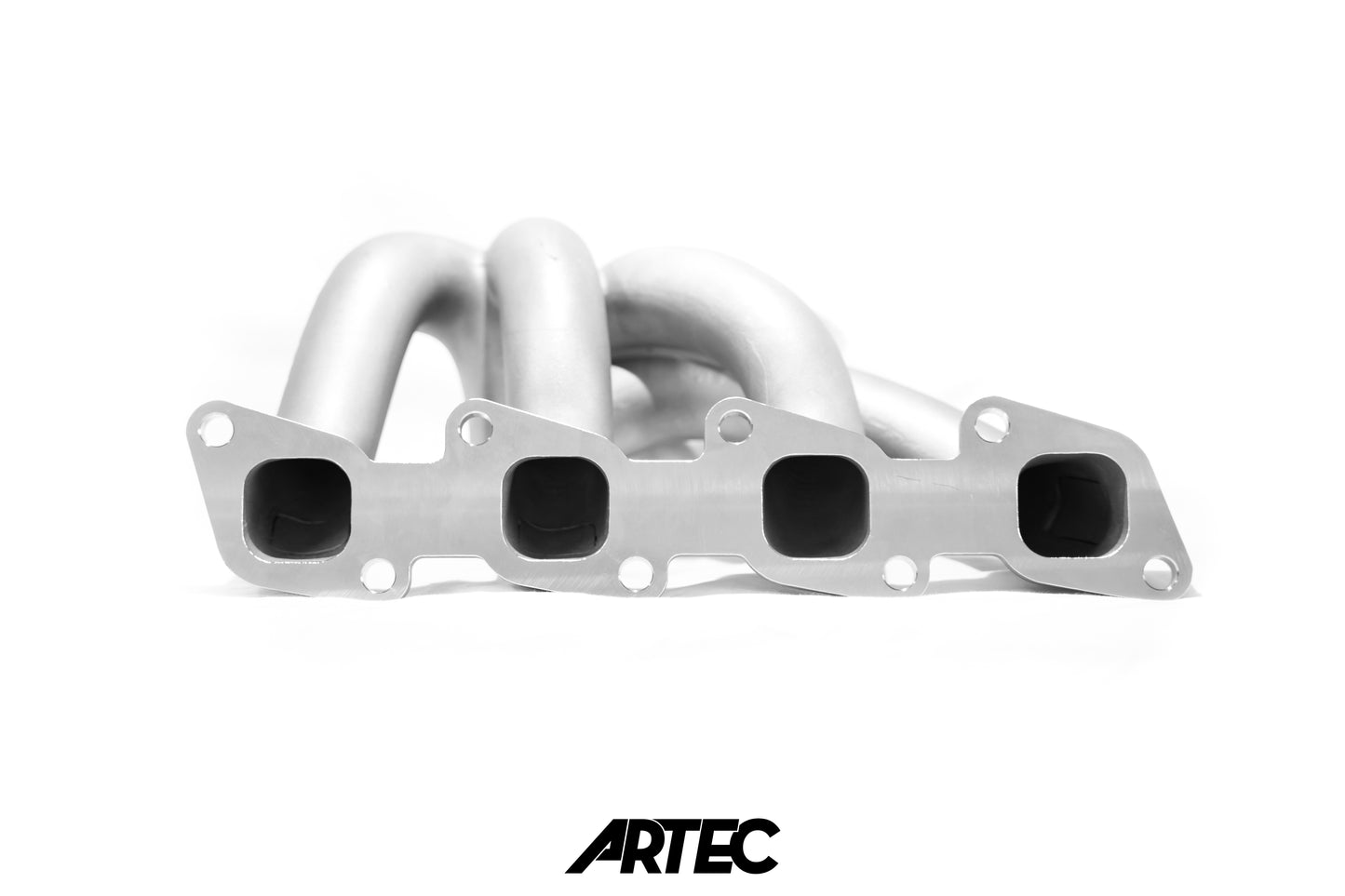

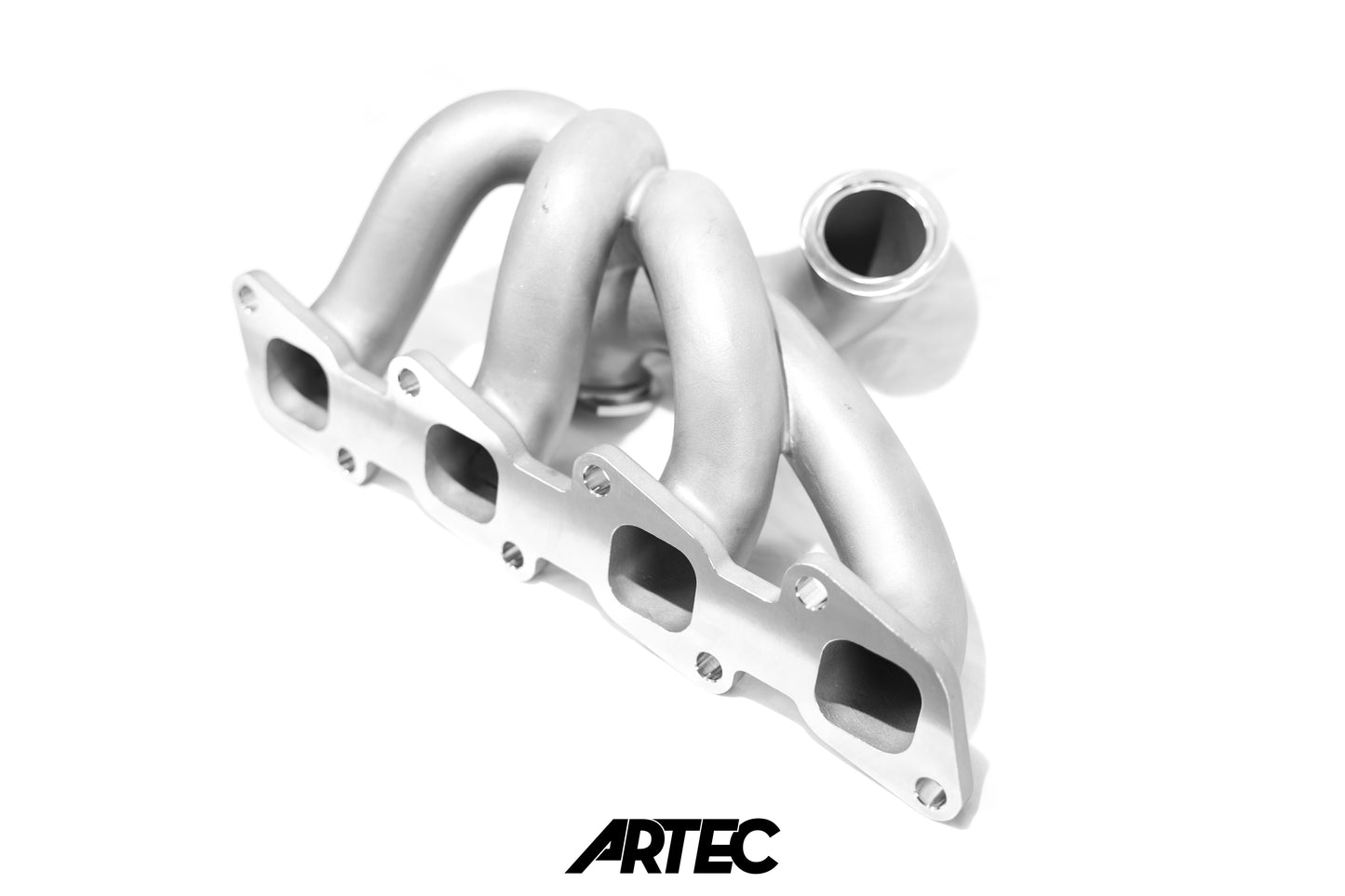

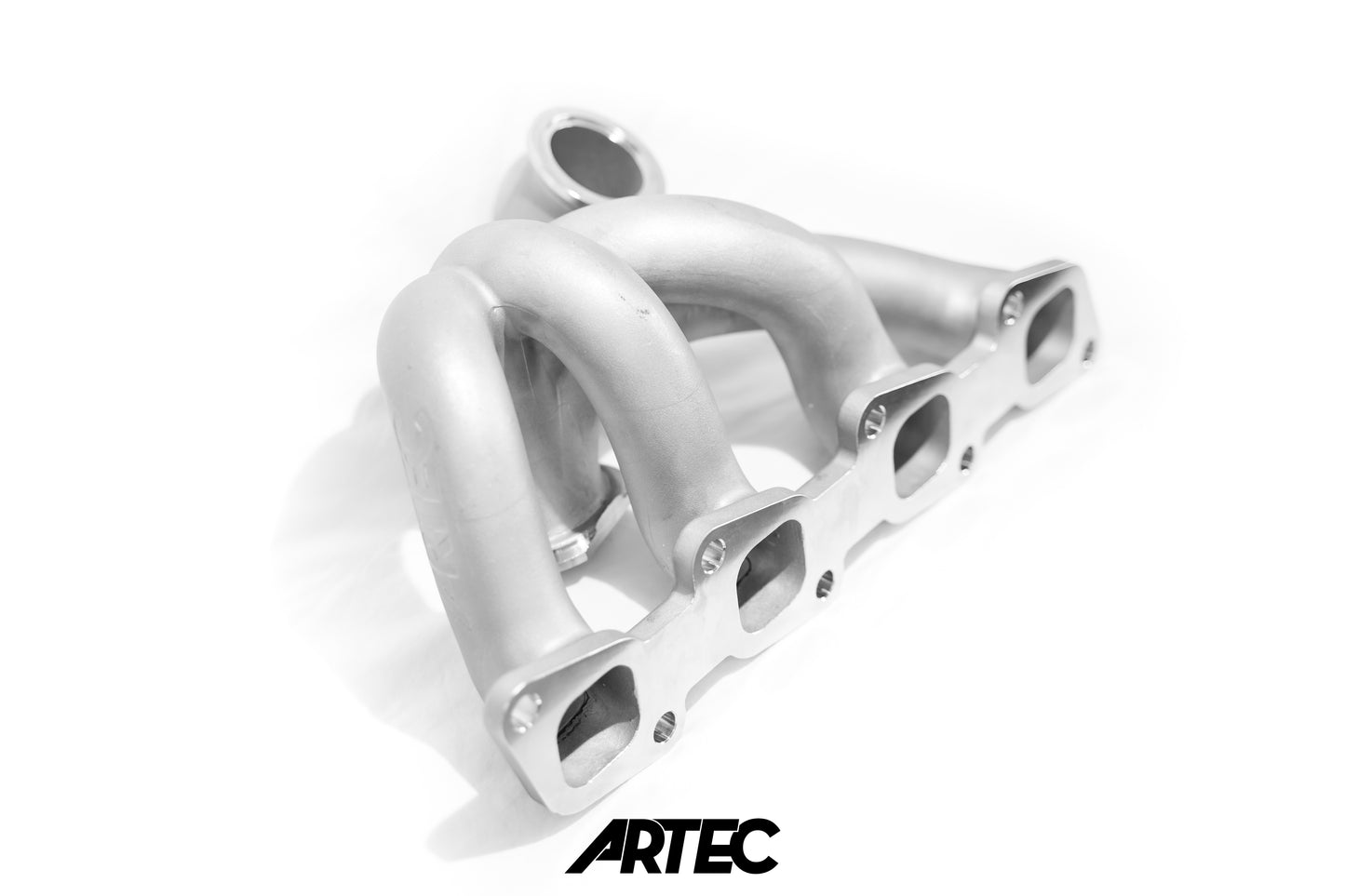

Artec have spent time optimizing the transitions from the OEM KA24 square port to the 36mm ID runners, (up from the 33mm runners on the SR20 and Evo designs.) This was due to the increased compression commonly seen on KA24 builds and the OE specs, as well as the 20% larger capacity per cylinder.
Some of the design features include correct design for LHD cars with proper clearance for a brake booster and the master cylinder lines, as well as the Hicas pump running off the power steering pump. The wastegate has also been placed in such a position that allows for easy plumbing back into the down pipe or just venting to air.

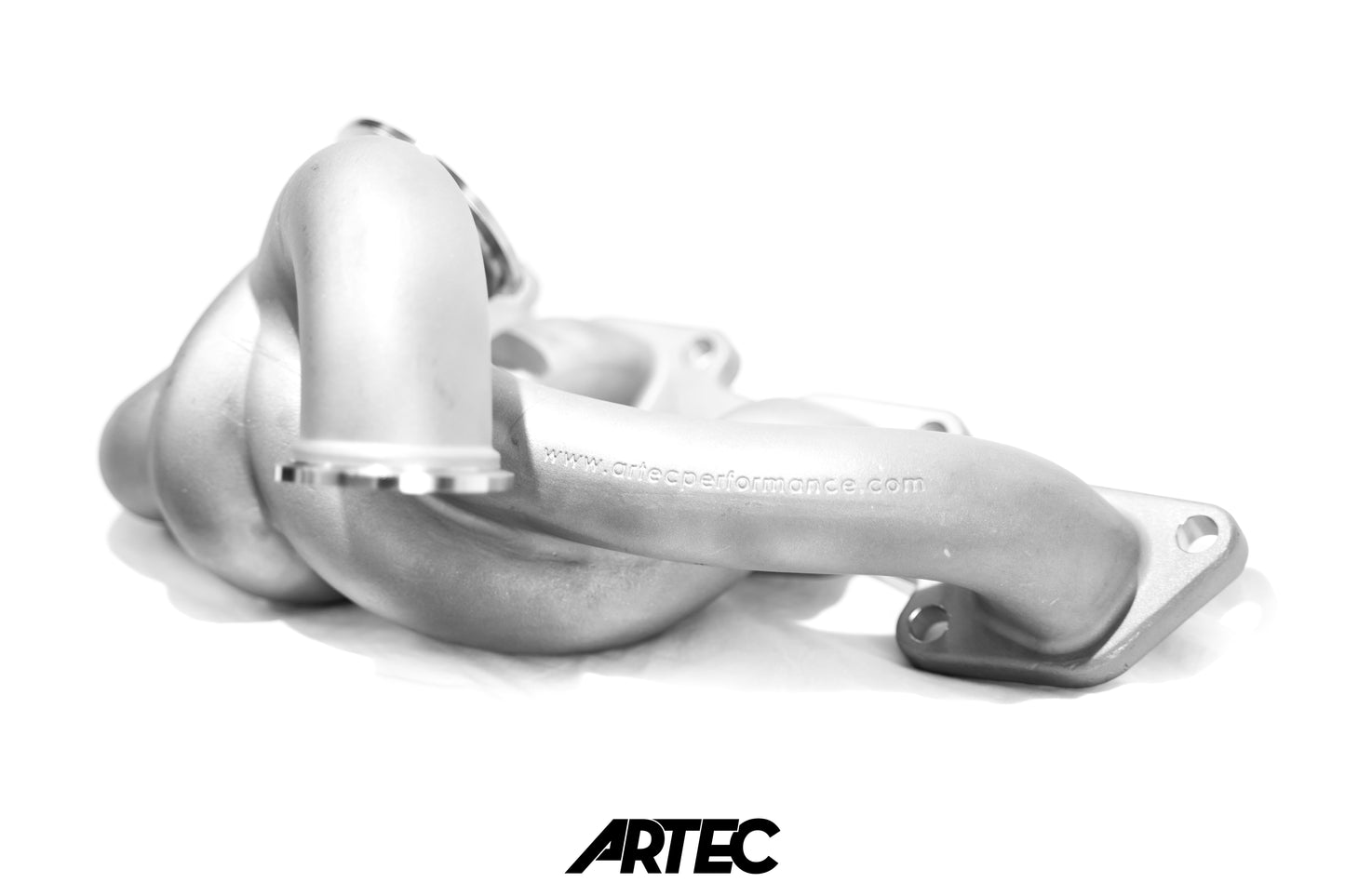

The KA24 manifold uses an unique V-Band system that will accept all 50-55mm V-band turbos and is designed to run standard rotation direction.
Easy fitment of smaller Precision units or Garrett G25's all the way up to a PTE 6870 or G35-1050.
The wastegate size suits any of the common 44/45/46mm wastegates from companies like Turbosmart, Tial and others that share that footprint.
ARTEC's revolutionary turbo manifolds with industry leading SUS347 stainless steel investment cast construction, are now available through GReddy Performance Products.
All Artec manifolds are engineered and designed from the ground up, CFD simulated and, most importantly, tested in the real world to achieve maximum flow and heat dispersion. The cast stainless construction allows us to maximise flow and efficiency by having smooth merging angles and eliminating any restrictions from tight radius bends or runners.
The result is a truly optimized manifold with consistent performance, resistant to heat pooling and cracking, plus a beautiful smooth exterior finish.
Designed and tested in Australia by Artec Performance
