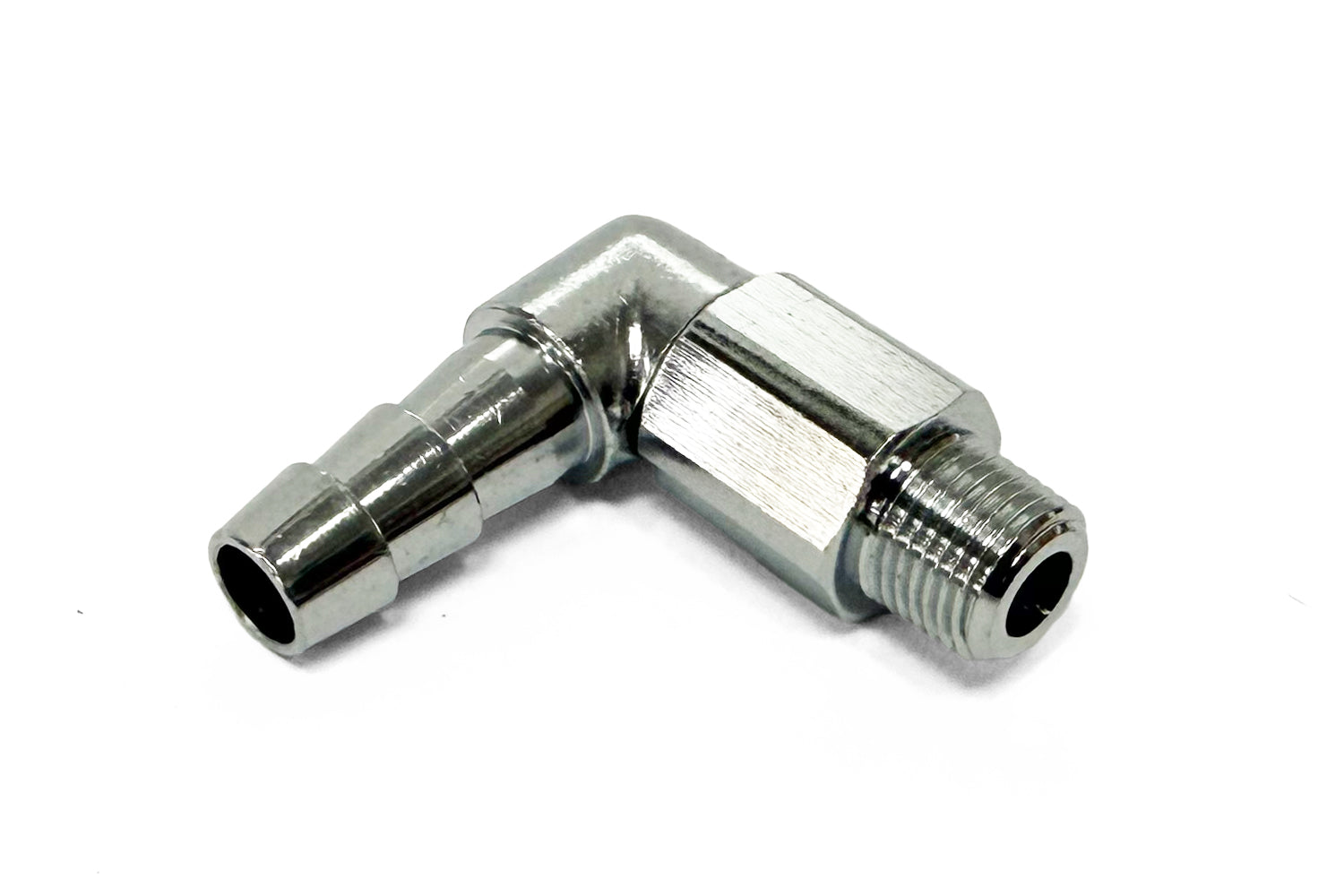

90 Degree Hose Union No. 4 8mm to 1/8 Swivel Barbed Nipple
Part #: 11900623
Fig. #4
A brass chrome-plated union used when air piping is bent at 90°.

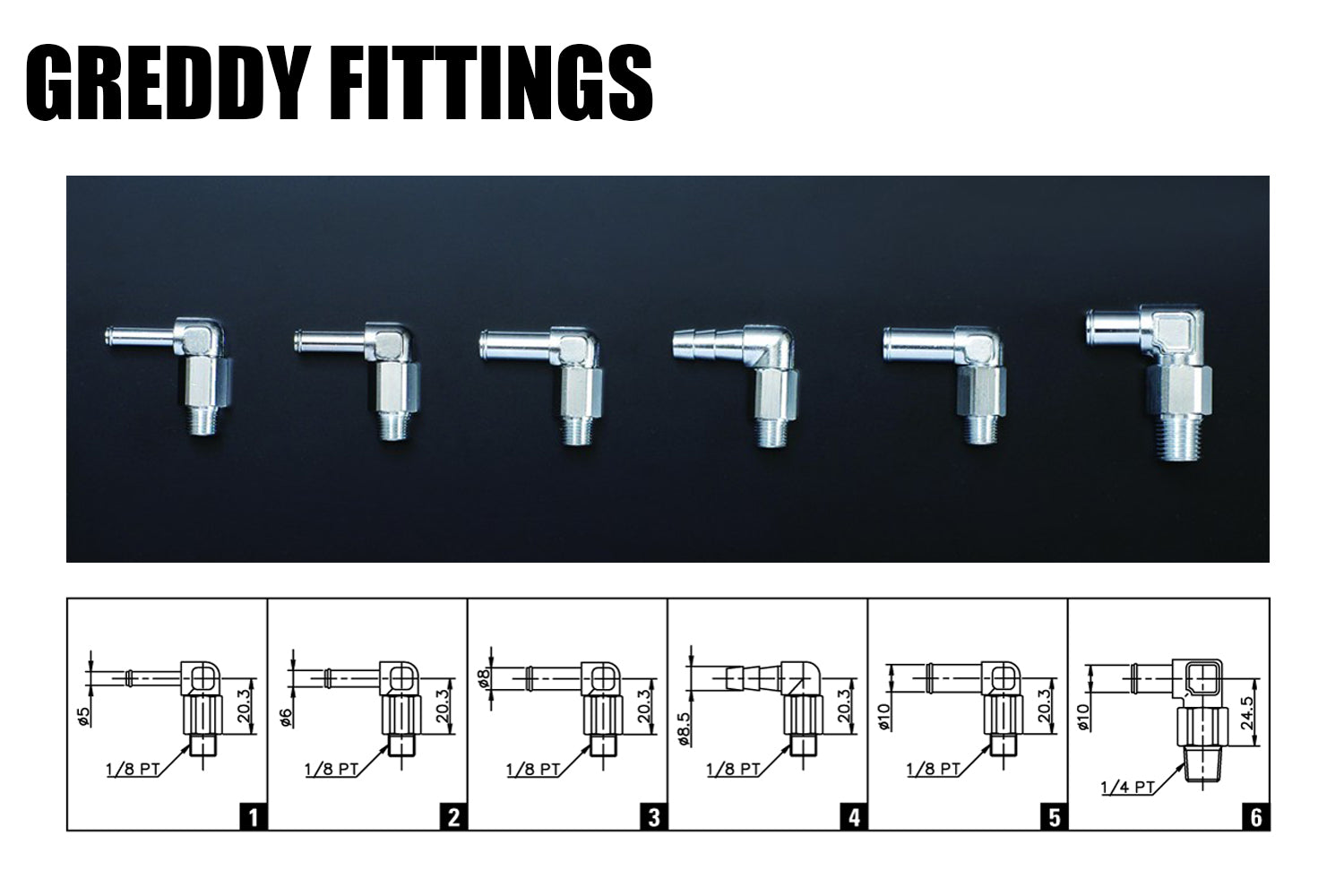

We have a lineup of 6 types to suit different applications.
| size | shape | specification | CODE | remarks |
|---|---|---|---|---|
| 5φ-1/8PT | 1 | 90° | 11900620 | Brass Cr plated |
| 6φ-1/8PT | 2 | 90° | 11900621 | Brass Cr plated |
| 8φ-1/8PT | 3 | 90° | 11900622 | Brass Cr plated |
| 8φ-1/8PT | 4 | 90° barbed | 11900623 | Brass Cr plated |
| 10φ-1/8PT | 5 | 90° | 11900624 | Brass Cr plated |
| 10φ-1/4PT | 6 | 90° | 11900625 | Brass Cr plated |
90 Degree Hose Union No. 4 8mm to 1/8 Swivel Barbed Nipple
Sale price$14.00
Regular price$0.00 (/)
