Evolution GT GT86 / BRZ 17-20

Part #: 10118301

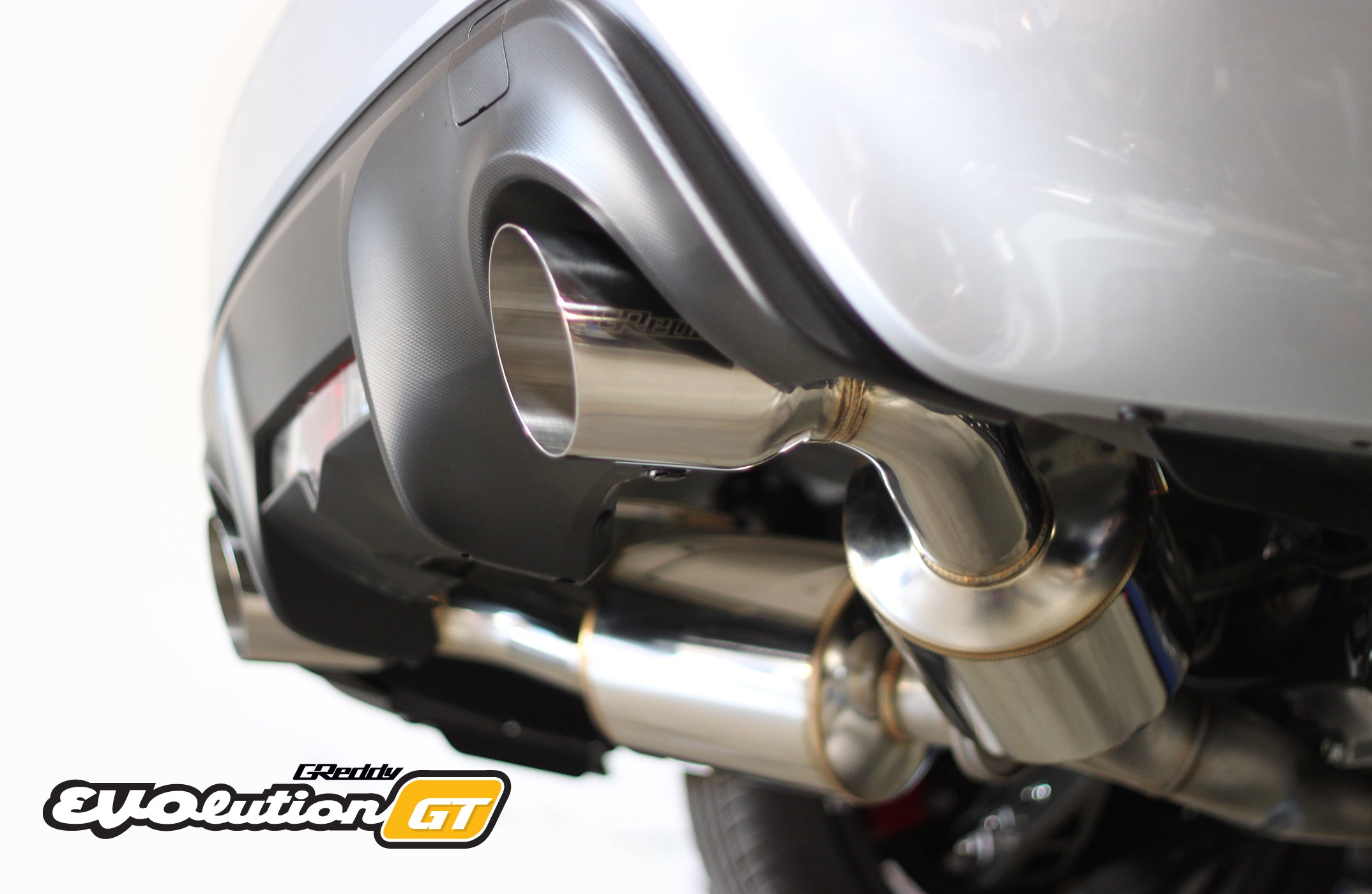

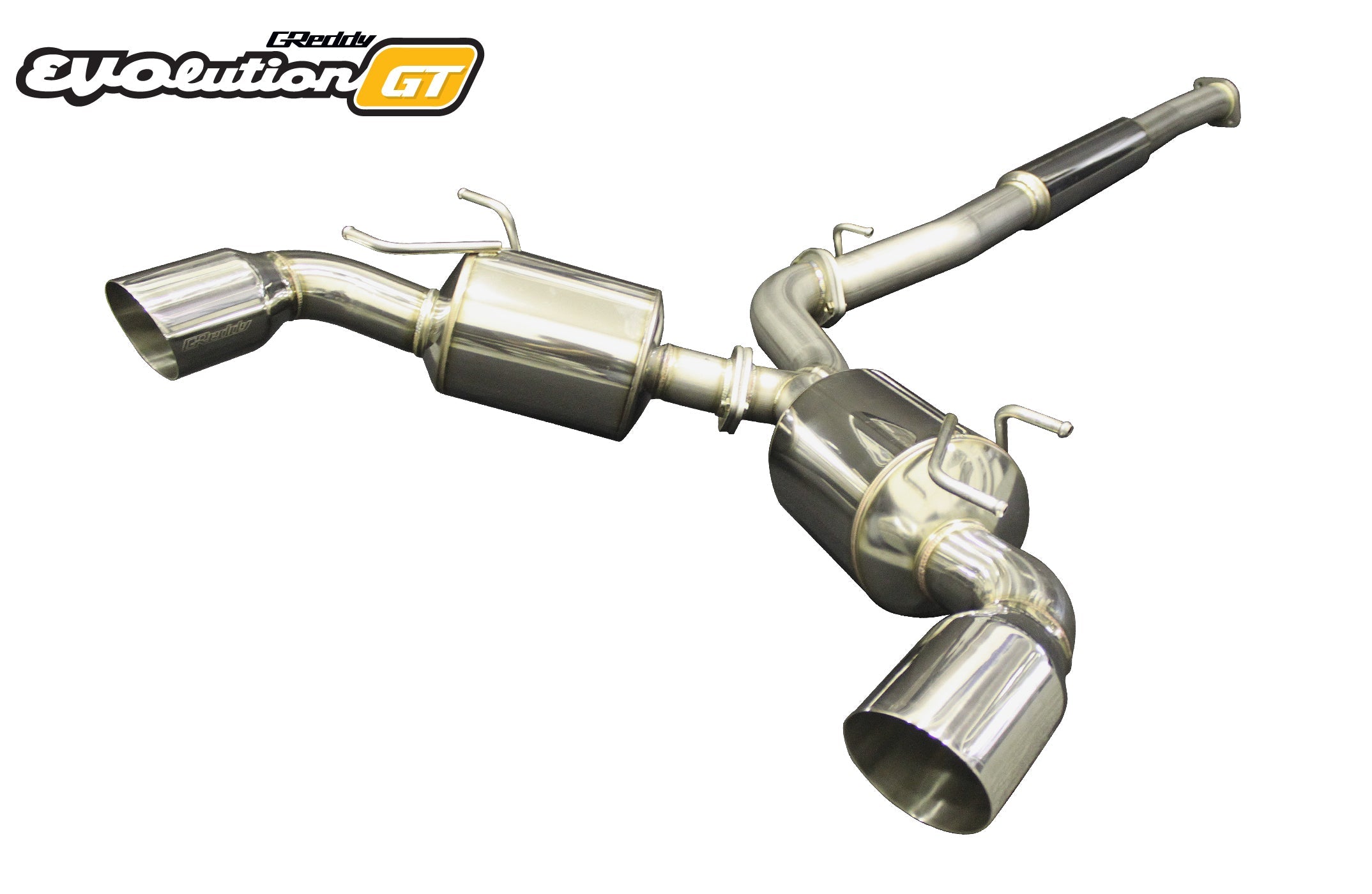

The EVOlution GT for the Scion FR-S & Subaru BRZ features dual angled Evo mufflers for a stylish and aggressive layout. Large 76mm (3”) piping is carefully routed through a large resonator in the mid-pipe and around the rear differential to a centralized Y-section for more even flow. This creates improved performance and sound for both turbocharged and normally aspirated applications. The system is finished off with highly polished piping and our classic Evo 115mm laser-engraved GReddy tip.

Compatible Models

Chassis: ZN6
Engine: 4U-GSE (FA20)

Specification

• Type: Cat-back system (dual angled mufflers, with extended tips)
• Number of pieces: 3
• Piping: 76 mm (3.0") - dual 76mm (3.0")
• Tip(s): 2x 115mm (4.5")
• Gasket(s): 3.0" oval (qty: 2 included) replacement (1x spl. composite gasket 11000331)
• Resonator: Yes
• Sound level: L94 / R93 dB(a) @4500RPM

Data collected on stock vehicle; retains catalytic converter and front pipe. Test results may vary from car to car.

Notes

• Specifically for the late-model 2017-on Toyota 86 / Subaru BRZ (updated mid-pipe)
• From 2017-on the Toyota 86 and Subaru BRZ came with a slight change in the factory front "over-pipe"; this change results in a need for a different position of the mid-pipe on many GReddy exhaust styles for the 2017-on "Kouki" models. To accommodate this change, GReddy now offers two models of each Evolution GT, Revolution GT, RS-RACE and RS-Ti system, one system for the 2012-2016 FRS/BRZ and another revised system for the 2017-on 86/BRZ.
• Replace factory doughnut-gasket and spring bolts for mid-pipe, with provided composite gasket and M8 nuts and bolts.
