GReddy Sirius Unify OBD Set - Turbo

Part #: 16001760

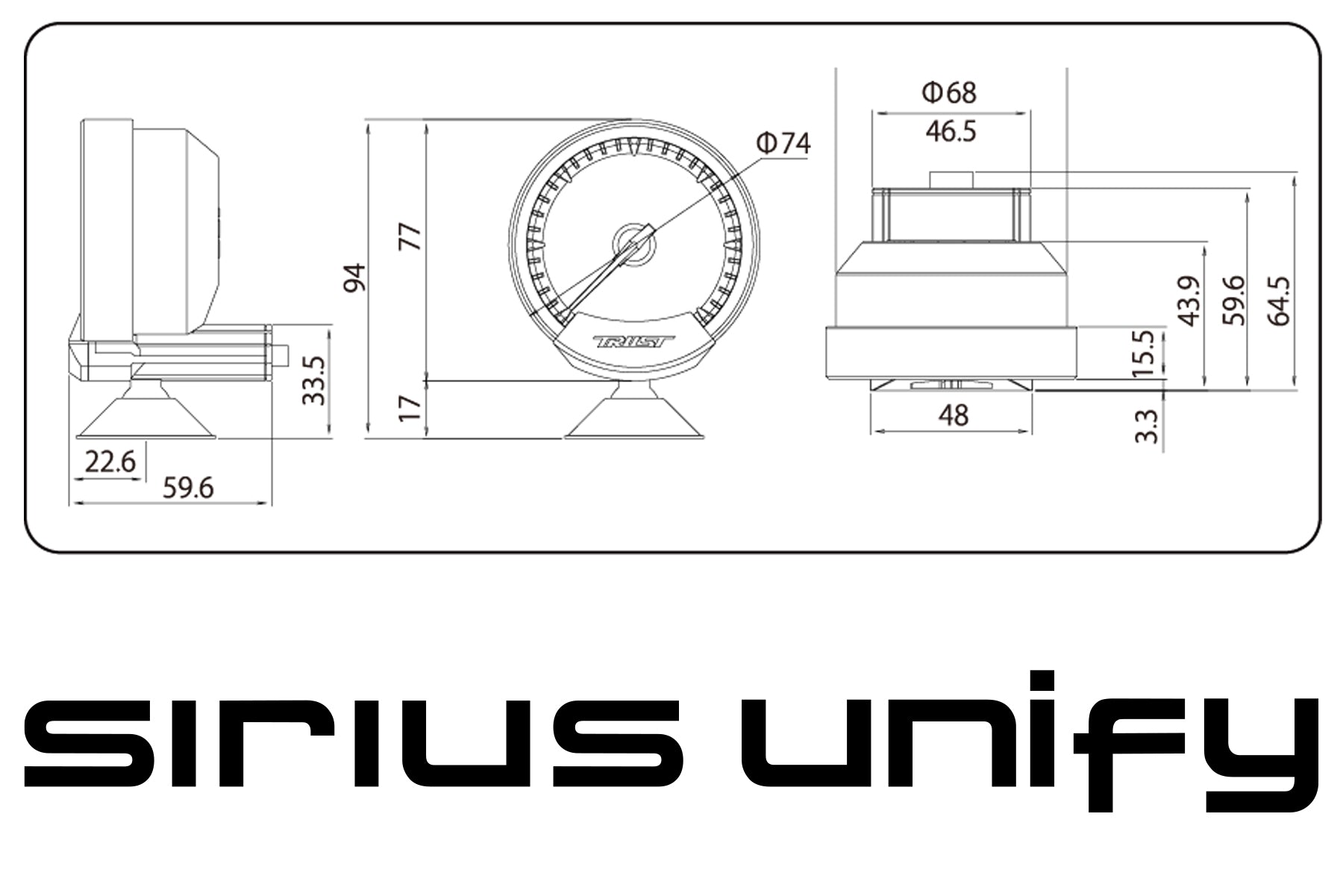

1x 74mm Sirius Analog Turbo Meter with integrated Sirius Vision display
(Range: -0.99～2.5 kPa)

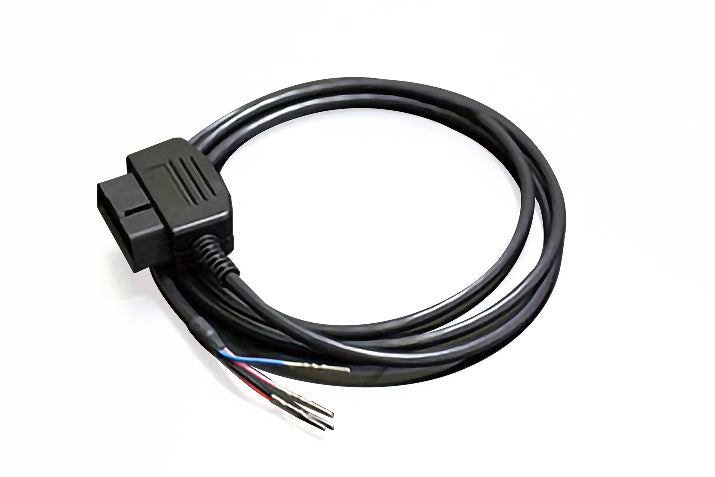

1x ISO CAN Communication Harness

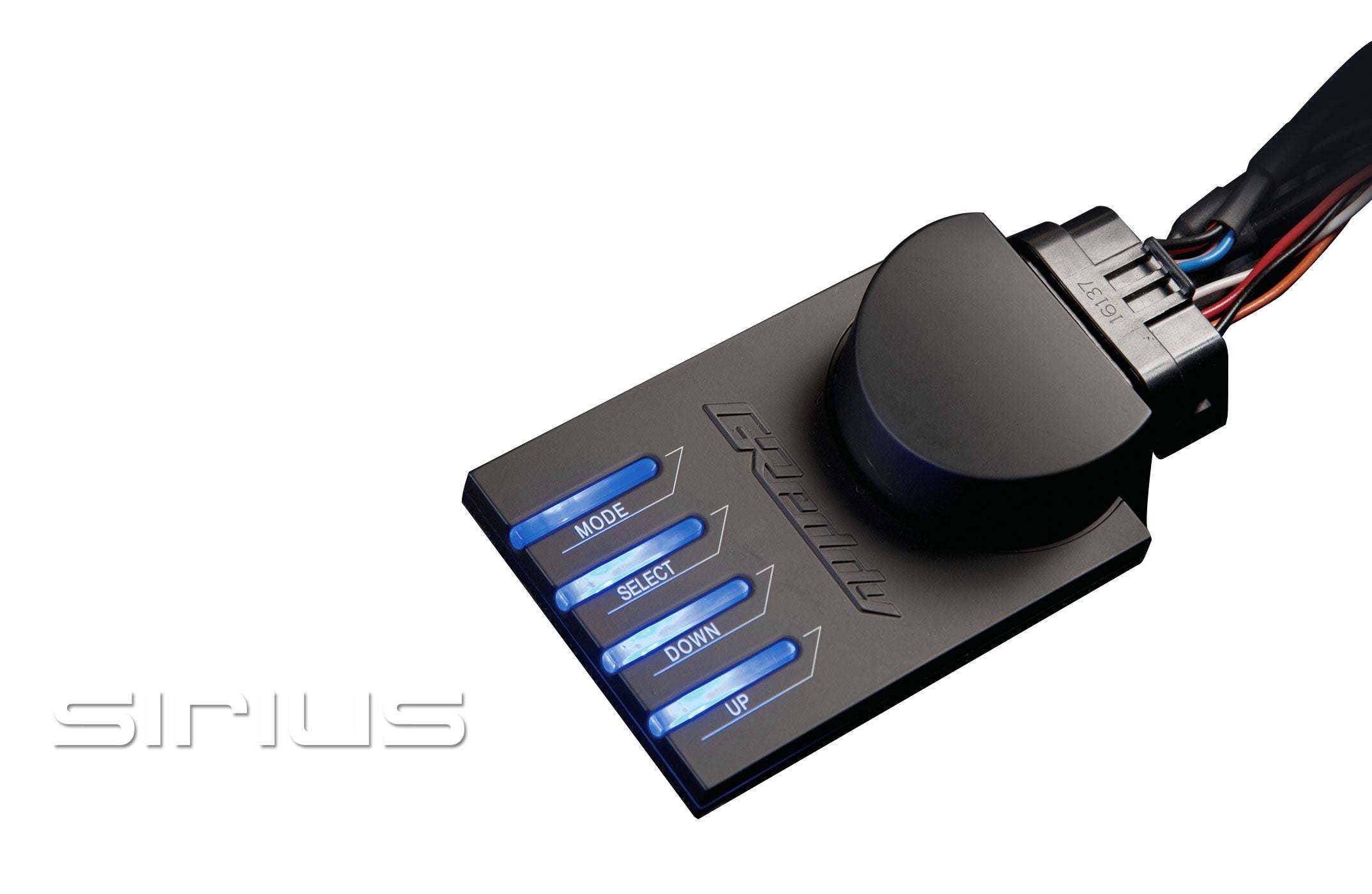

1x Sirius Control Unit

GReddy SIRIUS OBD
Easily connect GReddy SIRIUS with OBD

SIRIUS Optional Parts

• This harness allows one-touch connection of GReddy SIRIUS to the fault diagnosis connector (OBD-II) of ISO CAN communication vehicles (compatible car models only).
• When installing Sirius Vision and Unify, you can select from 6 patterns on the display: boost, water temperature, intake temperature, rotation speed, vehicle speed, and voltage.
• For the Sirius Meter (analog), only boost and water temperature are supported.
• If GReddy's boost sensor or water temperature sensor is already connected, the sensor data takes priority.
• Insert the four harness pins into the expansion port of the control unit.

* JDM Page | Compatibility Chart (pdf)

NOTE: Control Unit, Vision, and Unify units with a serial number earlier than GSI-8000 require updating (details to come).
