INTAKE PIPING KIT - (12020945 12020942)

Aluminum intake pipe set R35 GTR

Piping only

TRUST code: 12020942

Piping + blow-off valve

TRUST code: 12020945

Product features

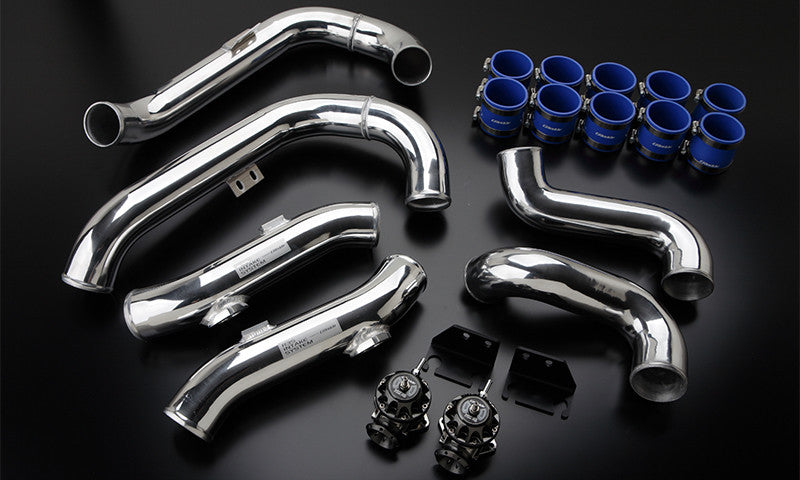

A set of 6 aluminum pipes (buffed) from the intake pipe at the turbine outlet to the intercooler inlet, and from the intercooler outlet to the throttle.
In order to support high boost, it has a special flange to which the GReddy blow-off valve can be attached. If the blow-off valve kit [for R35] has already been installed on the vehicle, the blow-off valve body can be installed as is.

*The genuine recirculation valve cannot be installed because the flange shape is different.

Type exclusively for vehicles equipped with GReddy suction kit 70φ/80φ

・Compatible with genuine and GReddy intercoolers, genuine turbines and GReddy turbine kits.

・There is also a kit setting that comes with a blow-off valve.

Product Specifications

・70φ aluminum pipe x 4

・70φ aluminum elbow x 2

・3PLY silicone hose

・Hose band

・Blow-off valve FV2 (2 types: with blow-off and without blow-off)

Compatible model: Nissan GT-R

■Vehicle model: R35
■Engine model: VR38DETT
■Year: 07.12~
