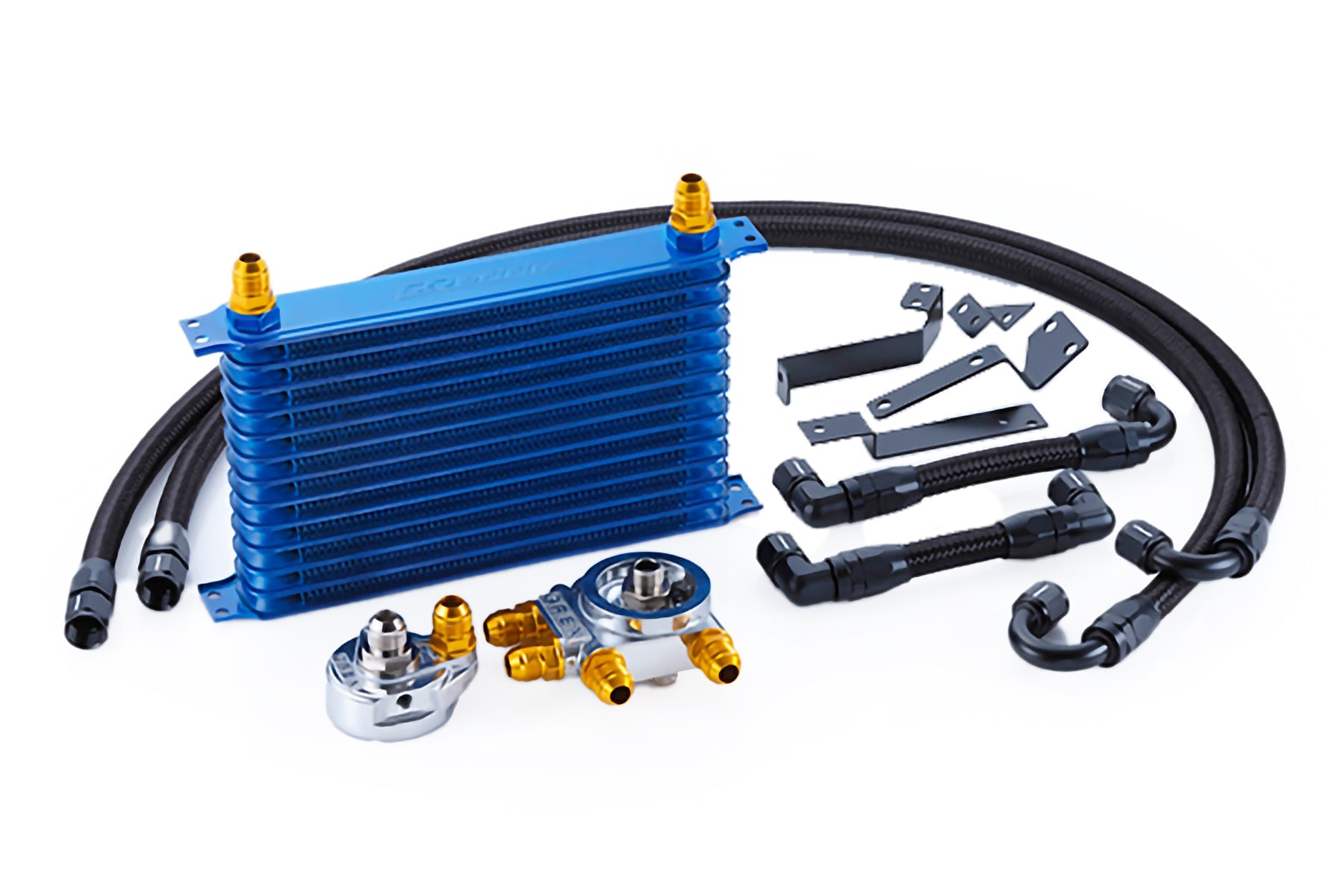

OIL COOLER KIT W/ FILTER RELOCATION JZX100 13-ROW - (12014416)

Oil cooler kit moving 13row for JZX100

Product Features

• An ideal oil cooler that uses a large-capacity core with offset fins in the core tube to increase heat dissipation and reduce pressure loss.
• A type of kit that can be installed on cars that do not have clearance near the oil filter.
• By moving the element, it is easier to replace the oil filter and improve maintenance.

Product Specifications

• Core type: NS1310G
• Thermostat: Built-in block
• Core installation position: Genuine I/C position
• Element installation location: Next to the air conditioner compressor
• Center bolt size: 3/4-16UNF

Compatible models: TOYOTA Mark II series

• Vehicle model: JZX100
• E/G model: 1JZ-GTE
• Year: 96.09~00.12
• CODE:12014416

Remarks

• For vehicles equipped with GReddy I/C KIT
• Cannot be installed on genuine I/C vehicles
• Under cover processing required
