OIL COOLER KIT STD 13-ROW CIRCUIT SPEC - BNR34 - (12024637)

GReddy oil cooler kit

Circuit spec movement/STD

Product features

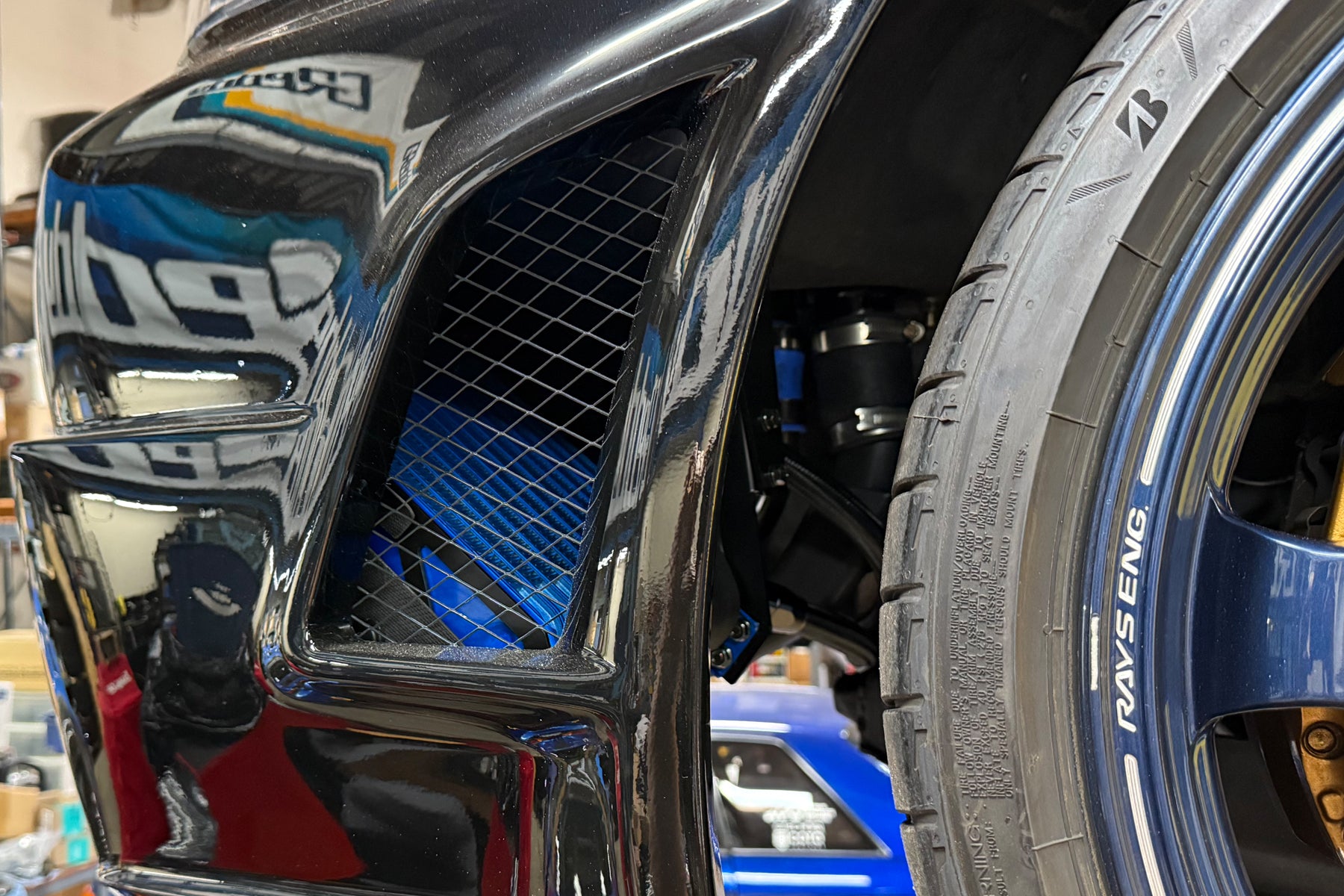

An oil cooler kit that matches the NISMO front bumper, which is a classic R34 GTR. Utilizing the air intake and outlet duct layout of the NISMO front bumper, the oil cooler core is mounted inside the left fender. Demonstrates high cooling effect. In order to achieve even higher cooling effects, we also offer a ``Circuit Spec'' model that comes with an FRP air duct.
■ The hose uses a flexible and lightweight nylon mesh hose.

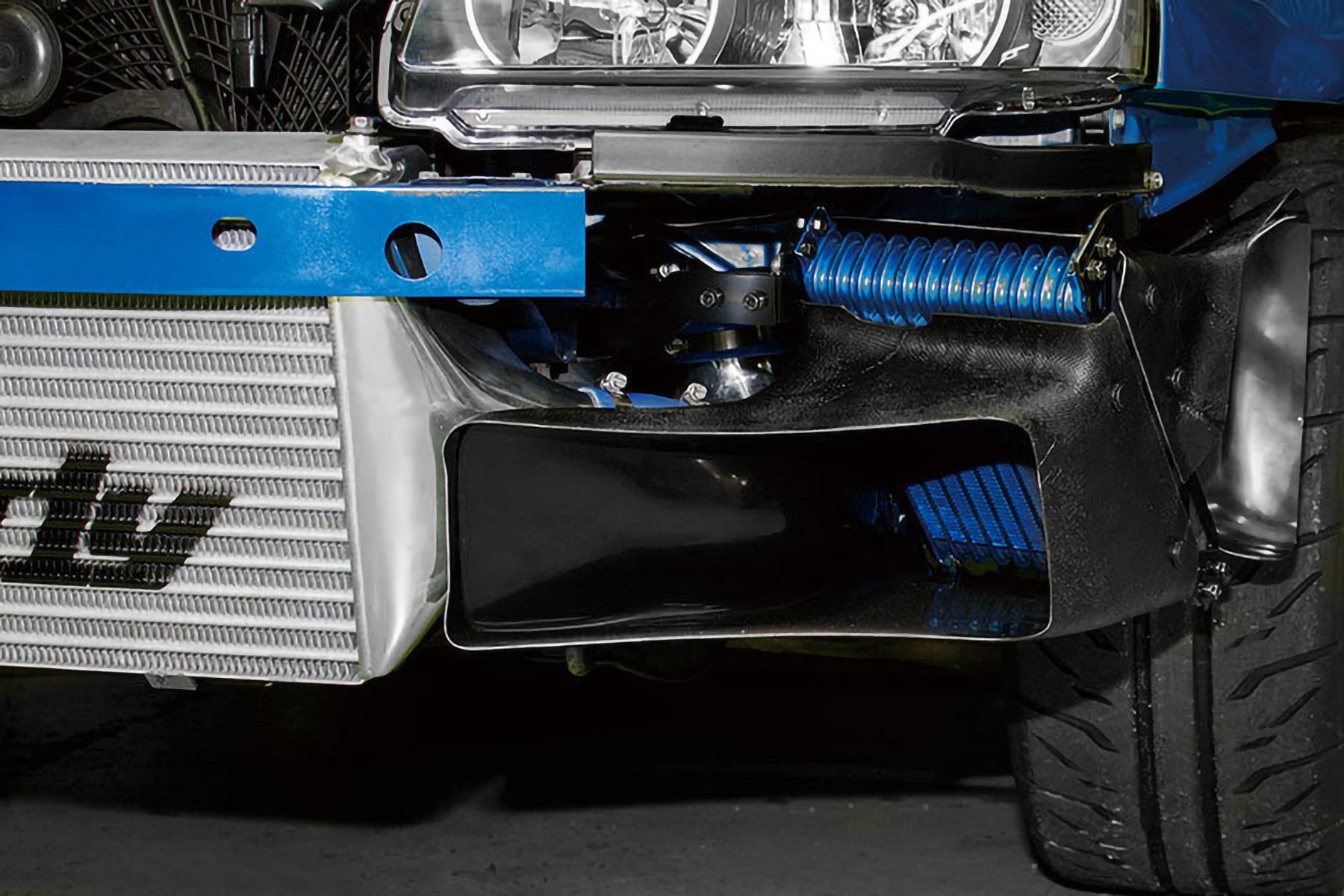

■ The circuit specs emphasize cooling efficiency, and a wind guide duct is included. *For Nismo bumper only. Cannot be installed on genuine bumper.

specification

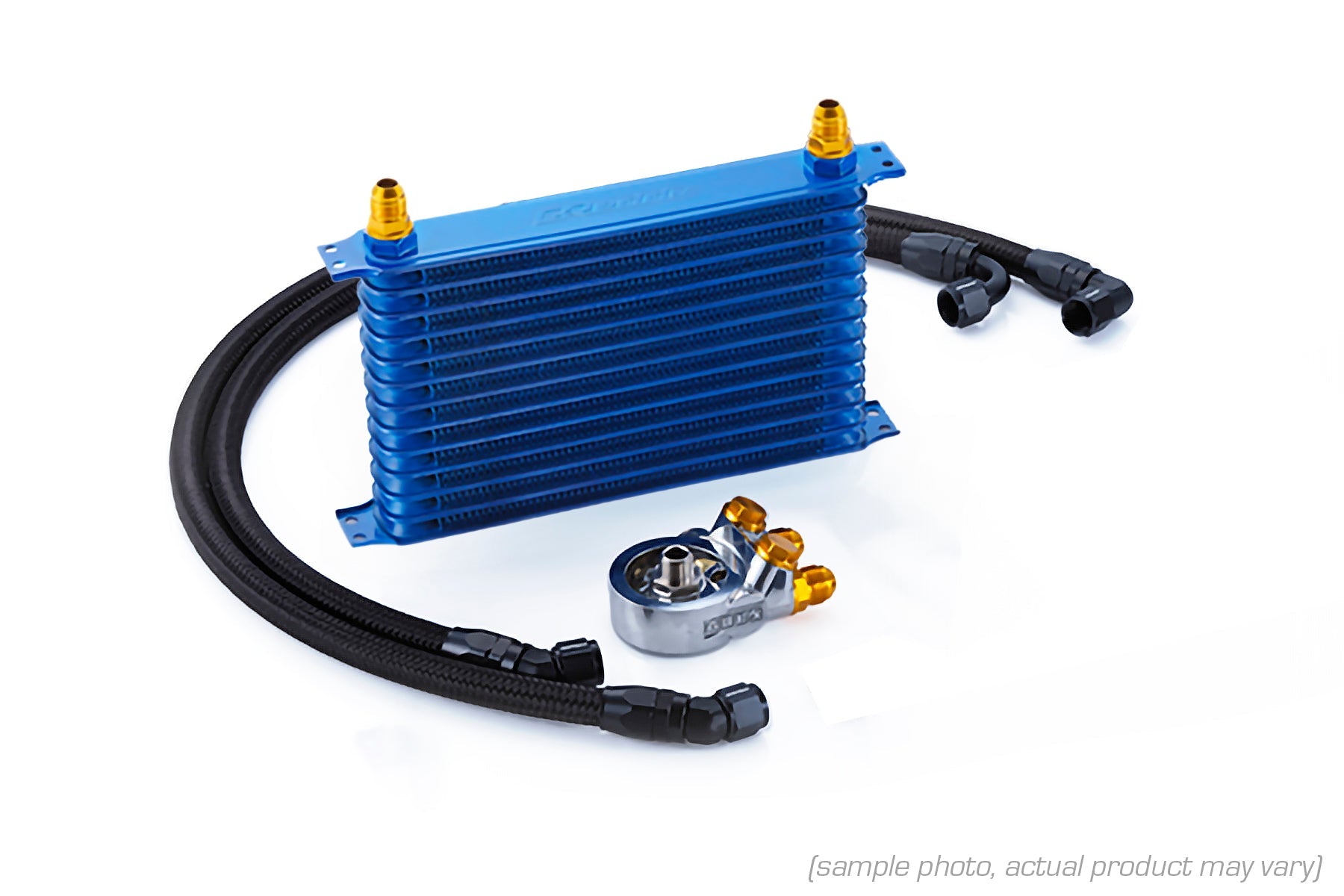

■ Oil cooler core 13 stages L299 x H185.4 x W50
■ Oil block with built-in thermostat Operating temperature 75℃~82℃±2℃

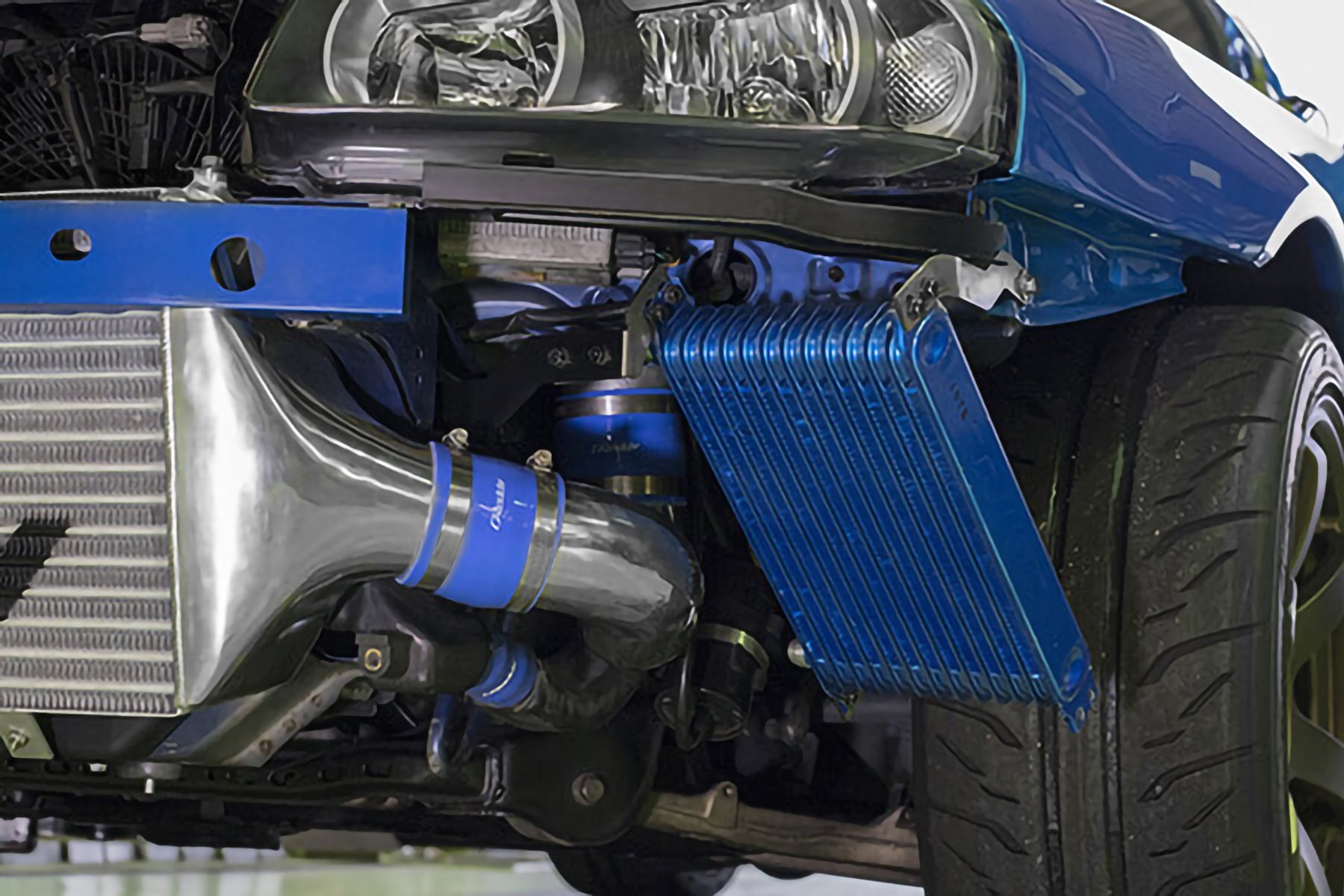

■ Installed inside LH front bumper

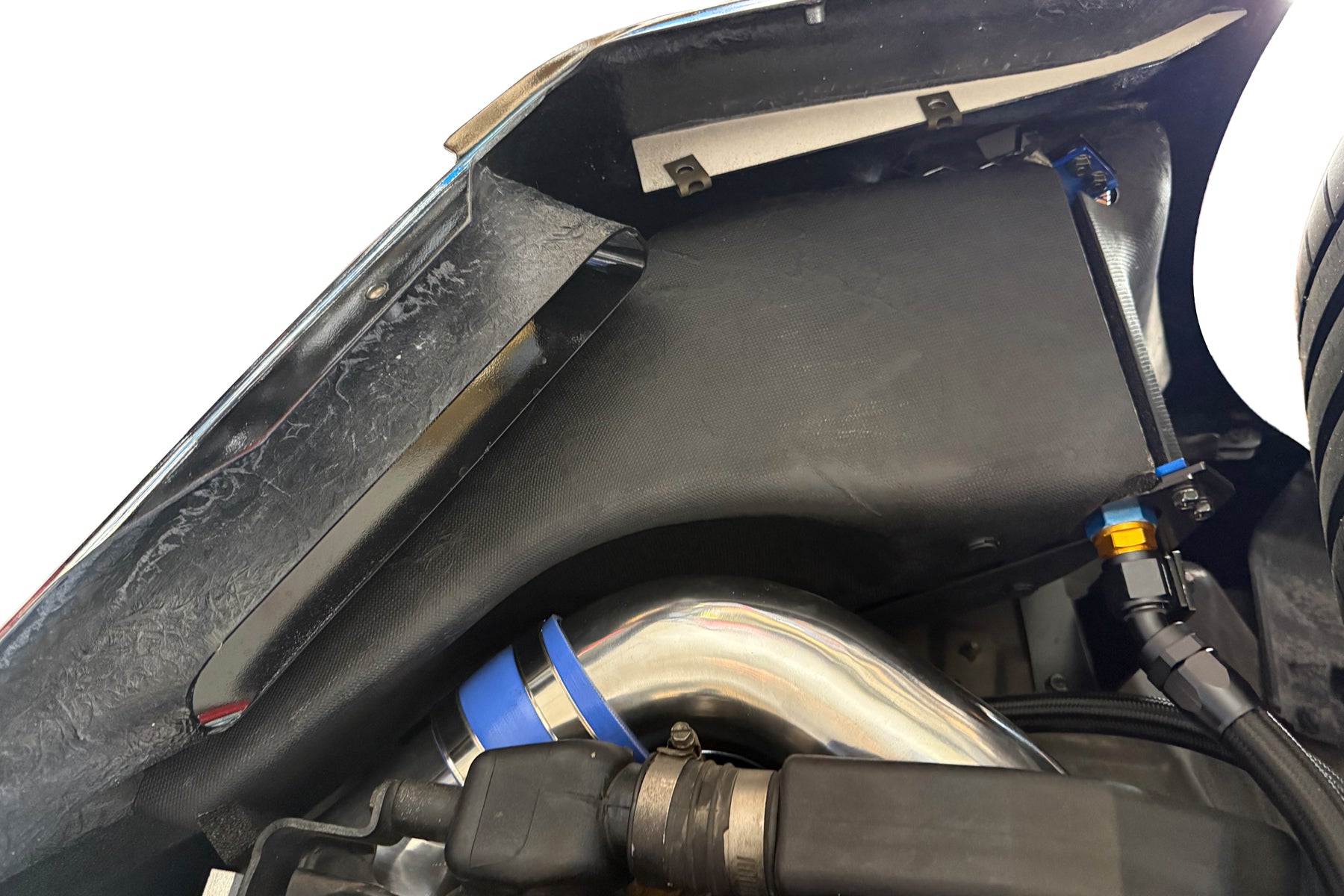

■ FRP air duct (for circuit spec)
■ #10 EARL'S PRO LITE 350 hose
■ Trust original fitting

Compatible model: Skyline GT-R

Vehicle model: BNR34
E/G Model: RB26 DETT
Year: 99.01~02.08

GReddy Oil Cooler Kit STD Circuit Spec BNR34 13 steps
CODE: 12024637
