Oil Cooler Kit NC1010G Civic Type R 2017-19

SPECIAL ORDER

Part #: 12058002

*Not compatible with 2020 model Type R

NS1010G - 10-row GReddy Oil Cooler with -10 XRP lines

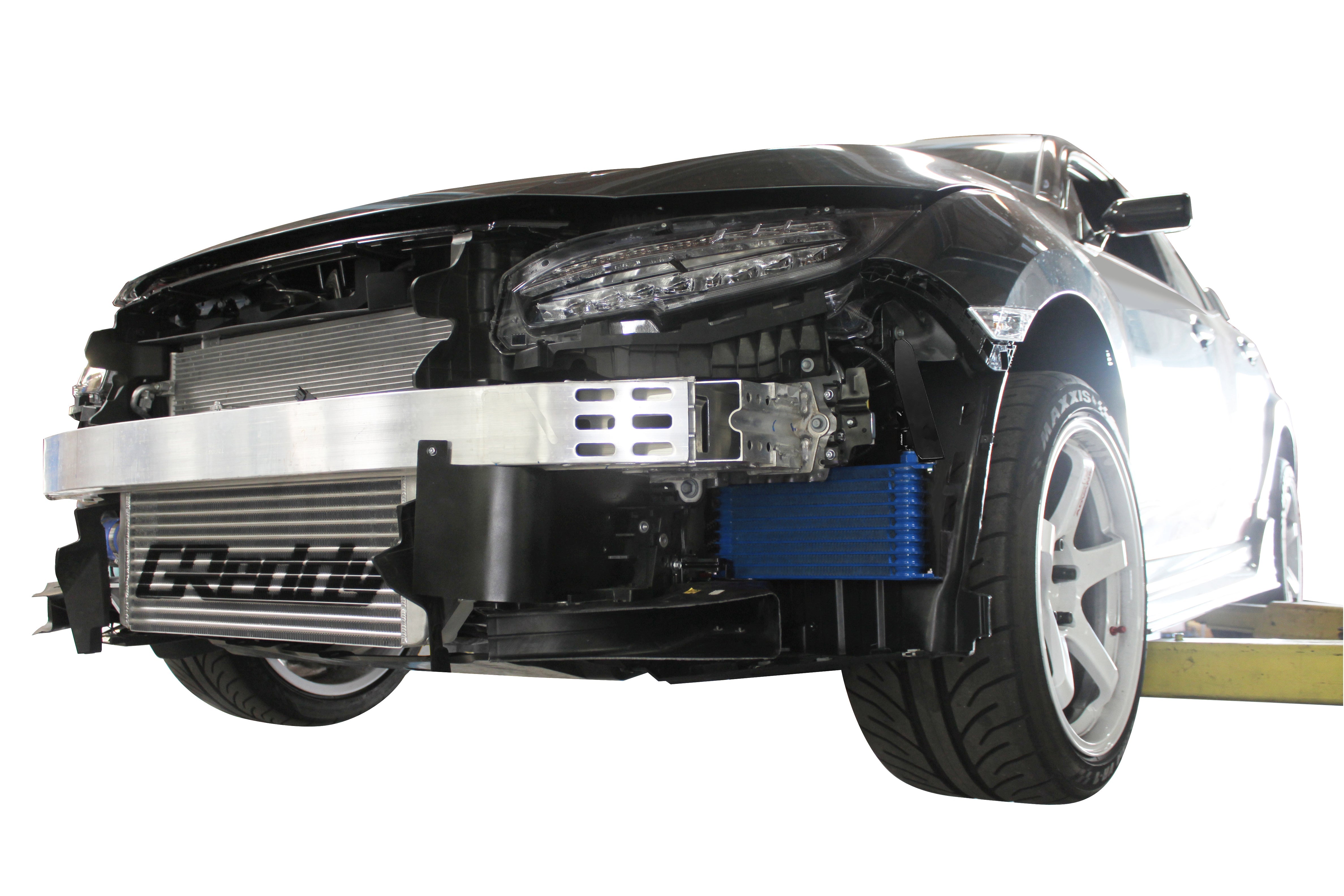

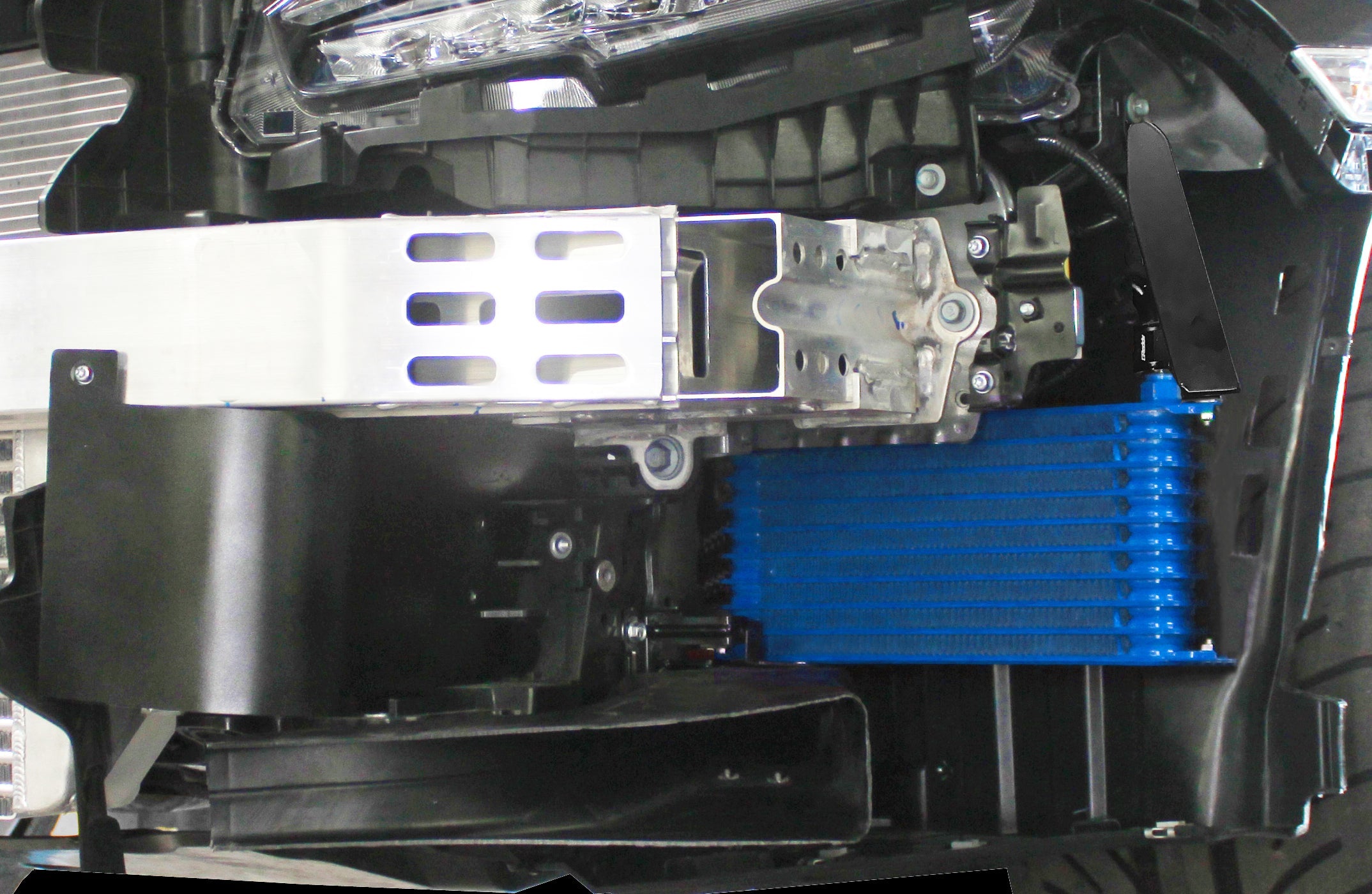

Mounts behind left side of the front bumper

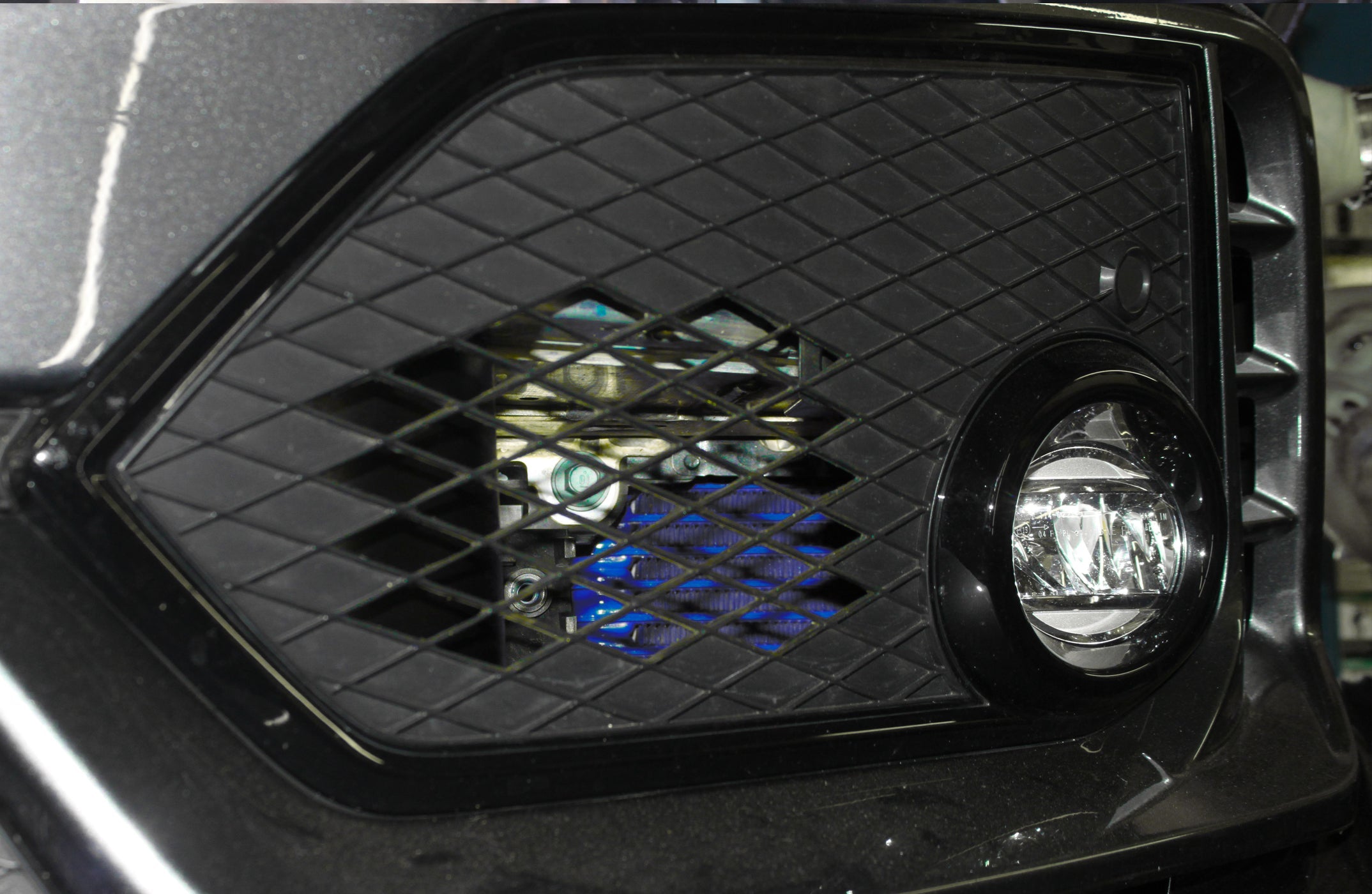

*(NEW GPP replacement OEM driver side front mesh option p/n 17550110)

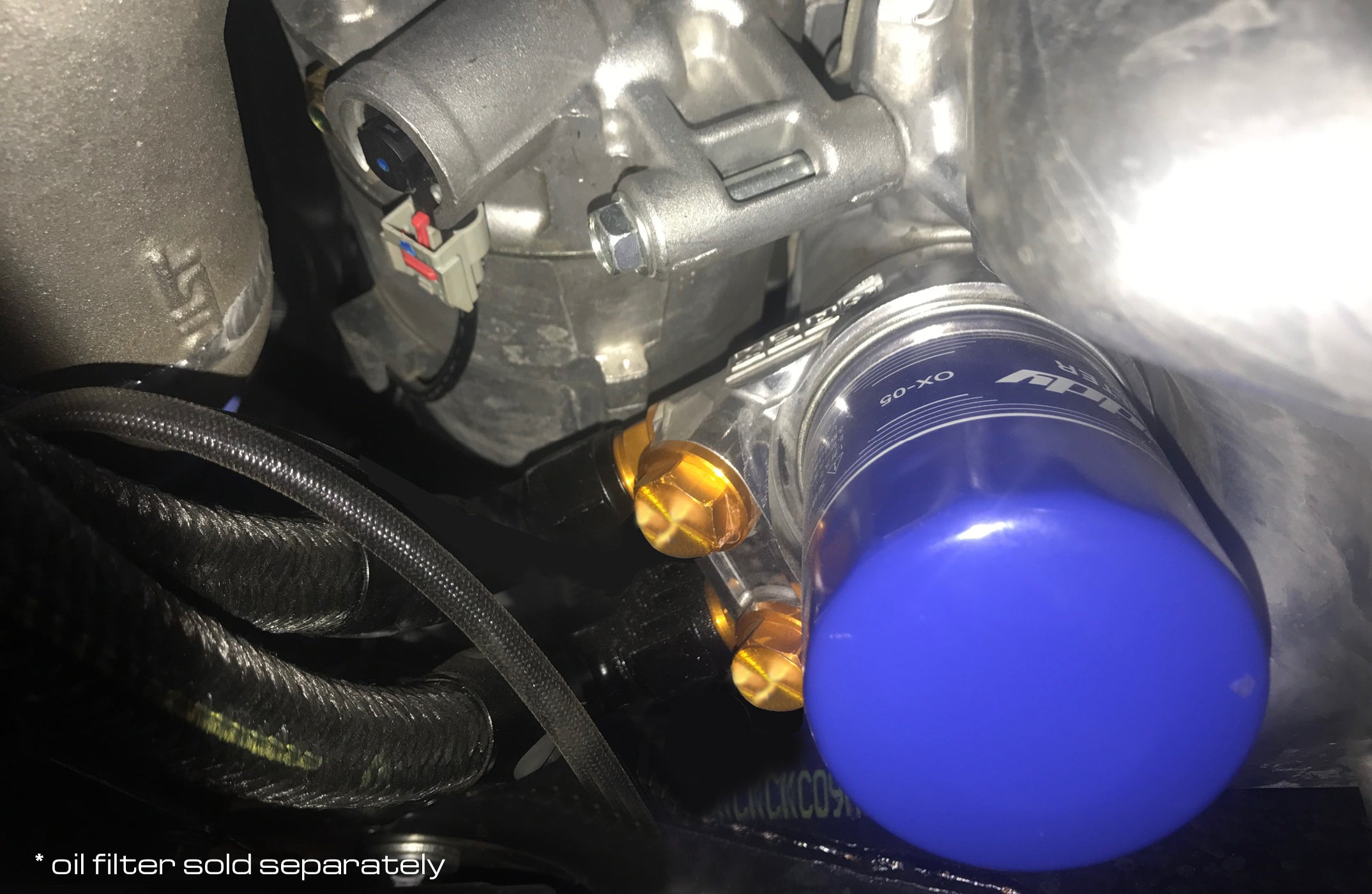

M20xP1.5 GREX Oil Block Adapter with built in thermostat

and ducting plate, brackets, hardware

NS1010G core (+540cc or +0.57 quarts)

* Recommend to use GReddy Oil Filter OX-05 M20-P1.5, Dia. 65mm, H75mm p/n 13901105 or equivalent

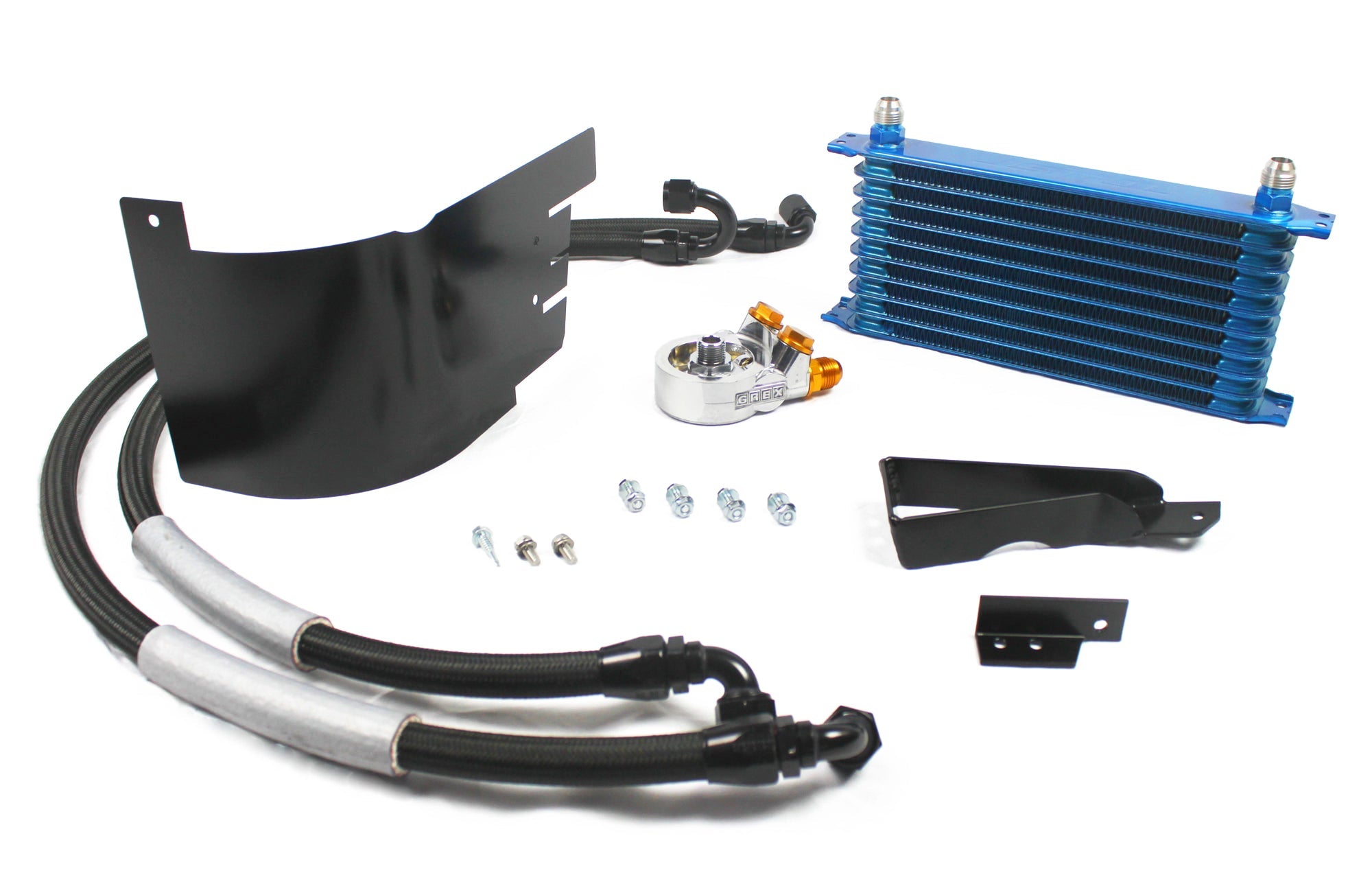

The GReddy Performance Products Civic Type R Oil Cooler Kit addresses the documented cooling demands of the high performance K20C1 engine. By mounting an efficient GReddy inner-fin oil cooler core, in an unused area of the front left bumper, it does not harm airflow to the intercooler or radiator. For constant oil temperatures, the other key component in the kit, is the “tried and true” GREX oil block adapter with integrated thermostat for quick engine oil warm ups. The oil block and 10-row oil cooler is connected by high flow -10 AN fittings and lightweight XRP performance lines. The complete kit also includes bolt-on brackets, necessary hardware and a circuit-spec air-duct, to maximize the cooling effects.
