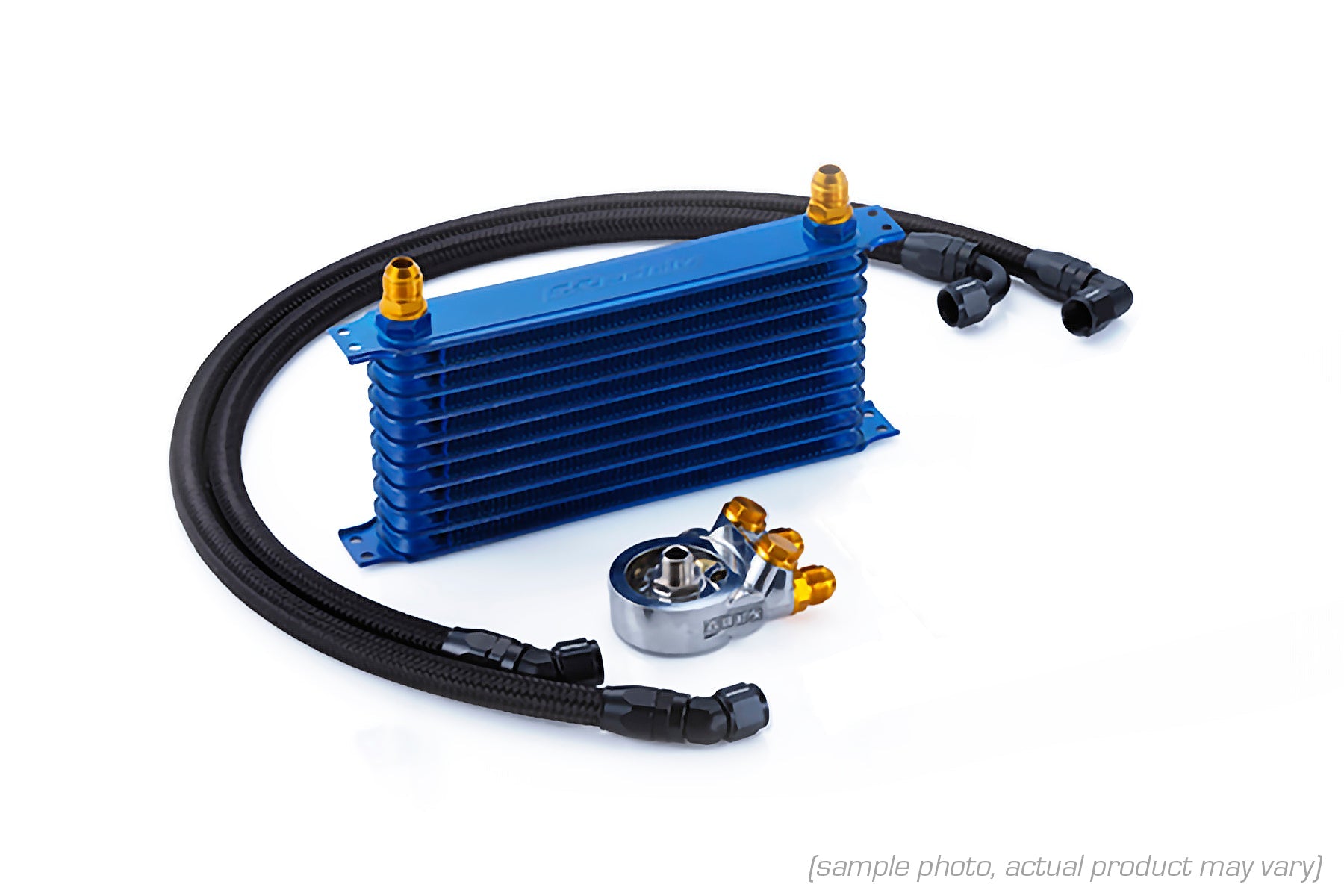

Oil Cooler Kit NS1010G/Std. BNR32 10-Row Fender

SPECIAL ORDER

Part #: 12024615

Product Features

• This is an ideal oil cooler that uses a large capacity core with offset fins inside the core tube to increase heat dissipation and reduce pressure loss.
• A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

• Core type: NS1010G
• Thermostat: Built-in block
• Core installation location: Inside the left fender
• Center bolt size: 3/4-16UNF

Compatible models: NISSAN Skyline GT-R

• Vehicle model: BNR32
• E/G model: RB26DETT
• Year: 89.08~95.01
• CODE:12024615

Remarks

• Meter sensor cannot be installed
• Fender protector, under cover processing required
