OIL COOLER KIT NS1310G/STD S14/S15 - (12024610)

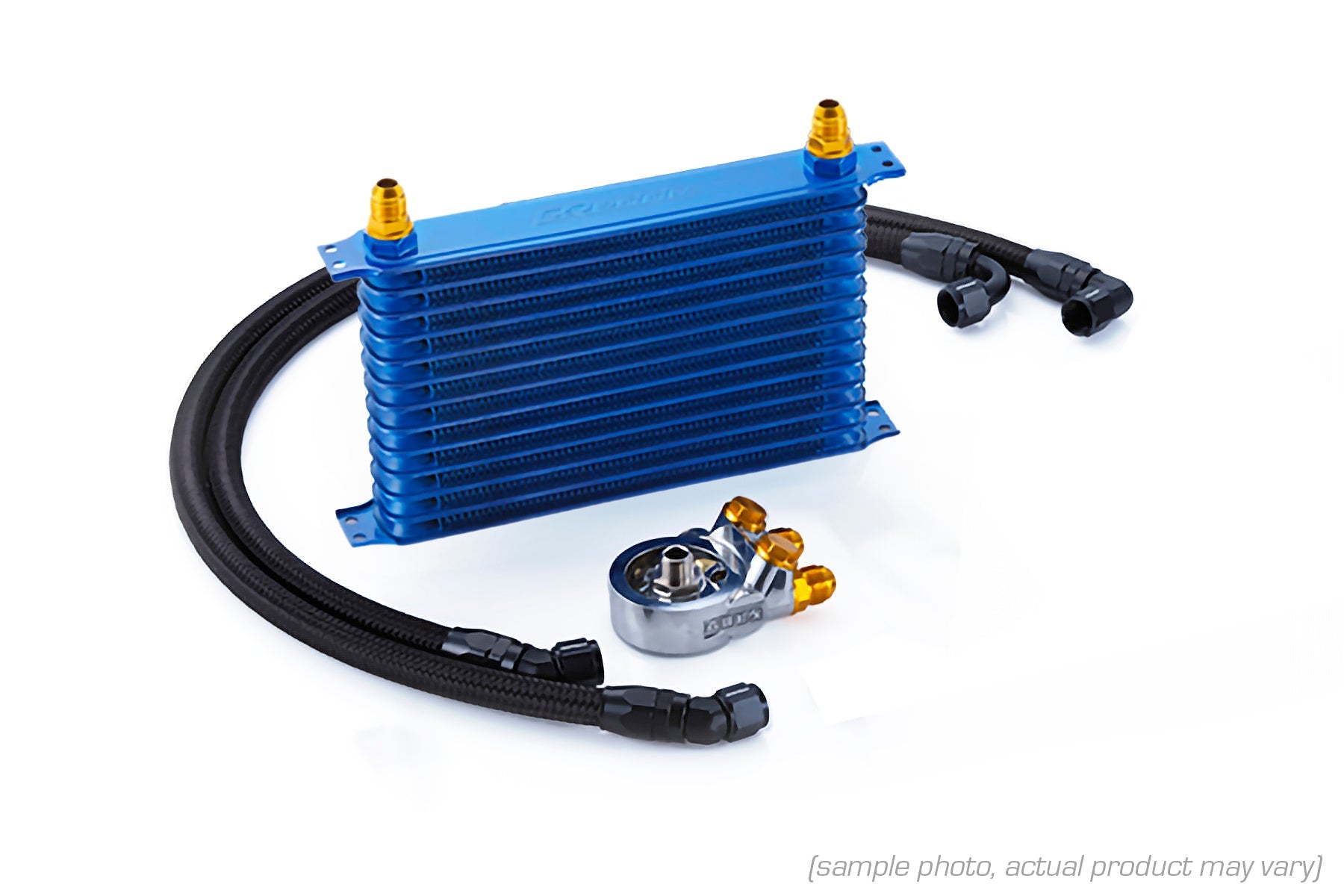

Oil cooler kit STD 13row for S14/S15

Product features

• This is an ideal oil cooler that uses a large capacity core with offset fins in the core tube to increase heat dissipation and reduce pressure loss.
• A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

• Core type: NS1310G
• Thermostat: Built-in block
• Core installation position: In front of radiator
• Center bolt size: M20 x P1.5

Compatible models: NISSAN Silvia

• Vehicle model: S14/S15
• E/G model: SR20DET
• Year: 93.10~02.08
• CODE:12024610

remarks

• AT car not confirmed
• Intake manifold support, alternator bracket processing required
• Center bolt M20 x P1.5 engine requires center bolt size 3/4-16 UNF (GReddy oil filter OX-01 ¥1,650 (tax included), OX-02 ¥1,760 (tax included), OX-03 ¥1,650 (tax included) (applicable) oil filter is required.
