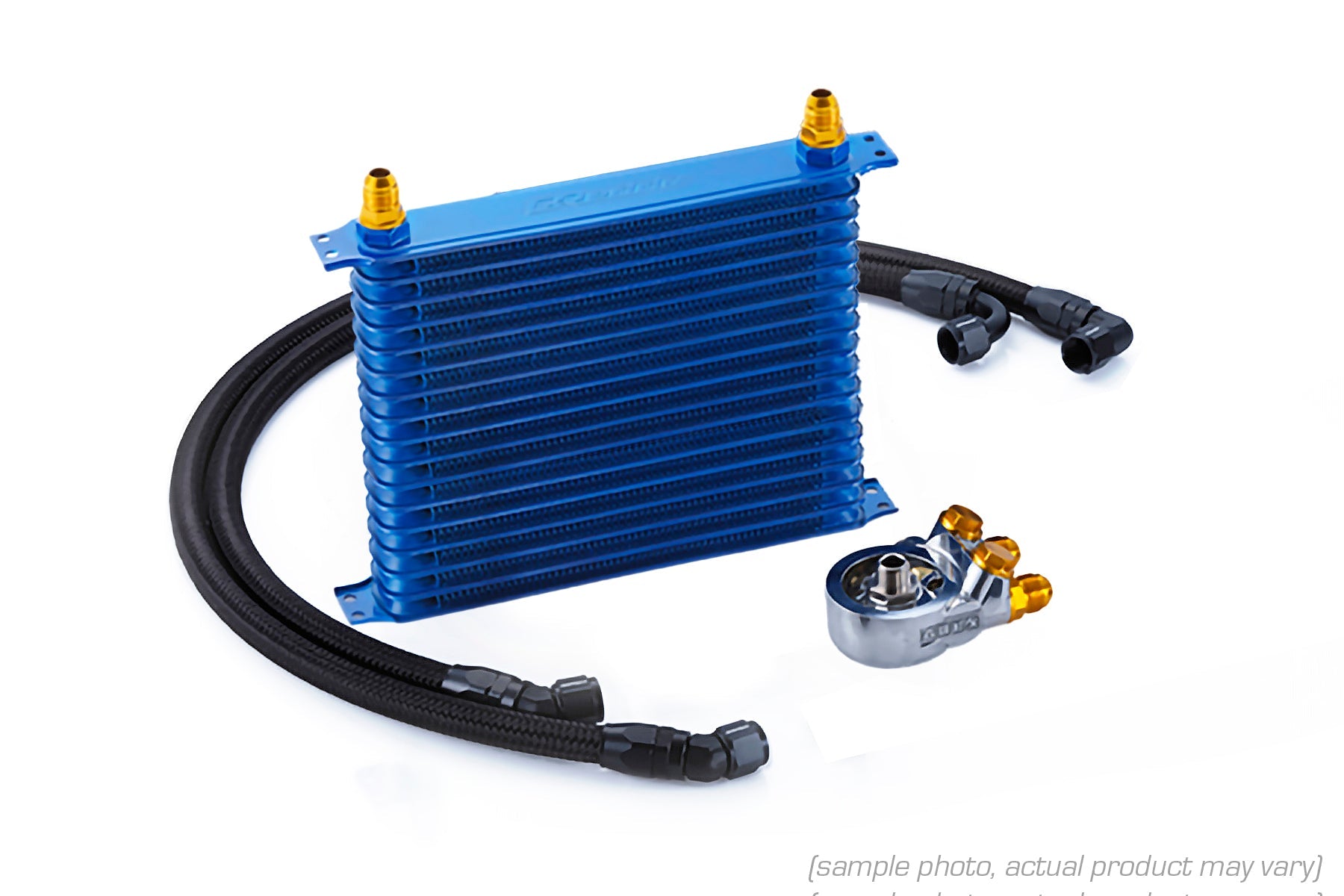

OIL COOLER KIT NS1610G/STD JZA80 - (12014615)

Sale price$780.00

Oil cooler kit STD 16row for JZA80

Product features

  • This is an ideal oil cooler that uses a large capacity core with offset fins in the core tube to increase heat dissipation and reduce pressure loss.
  • A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

  • Core type: NS1610G
  • Thermostat: Built-in block
  • Core installation position: In front of radiator
  • Center bolt size: 3/4-16UNF

Compatible models: TOYOTA Supra

  • Vehicle model: JZA80
  • E/G model: 2JZ-GTE
  • Year: 93.05-02.08
  • CODE:12014615

Remarks

  • Cannot be installed on AT vehicles
  • rear car unconfirmed
  • Under cover, fender splash shield processing required
