OIL COOLER KIT NS1610G/STD S14/S15 - (12024611)

Sale price$780.00

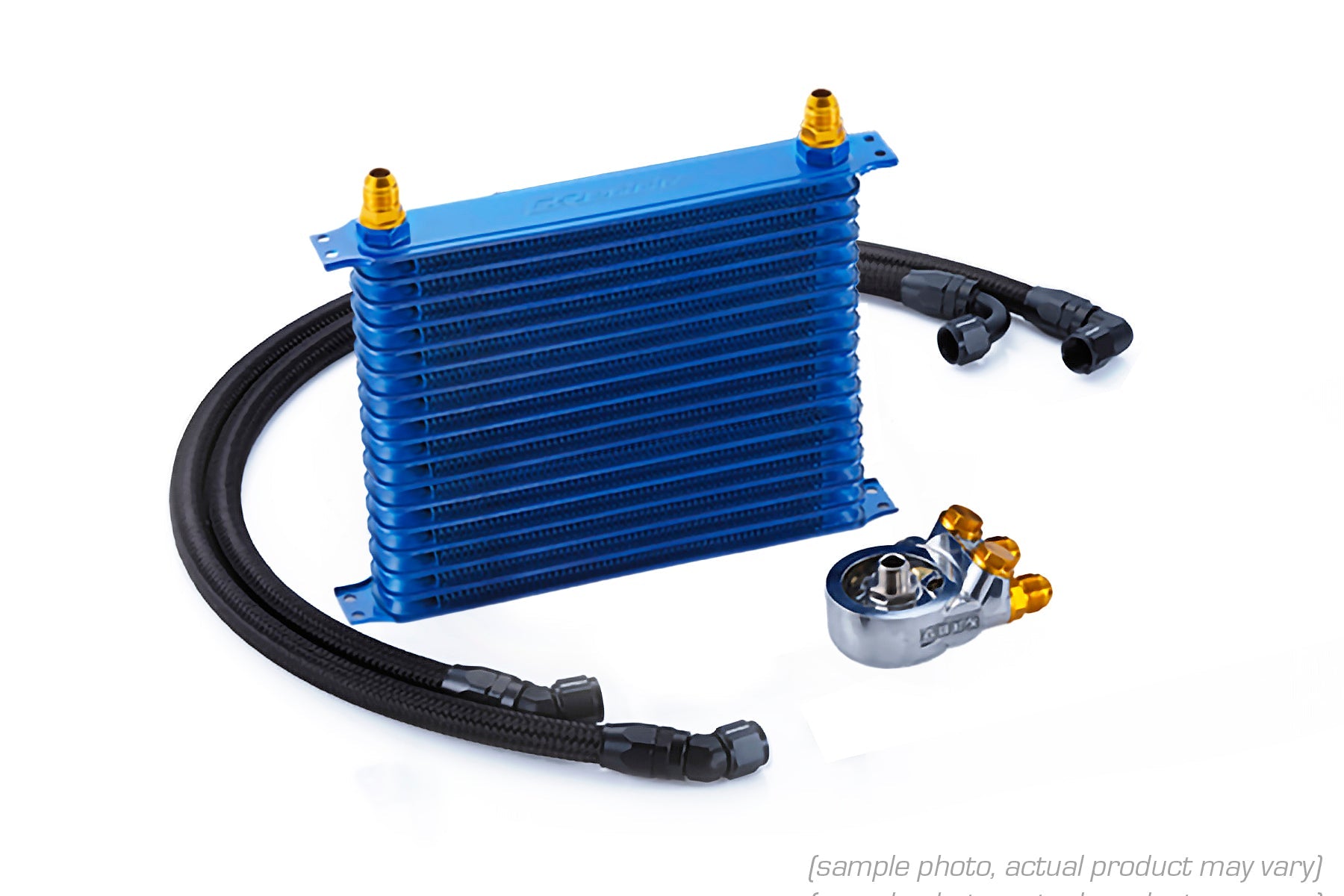

Oil cooler kit STD 16row for S14/S15

Product features

  • This is an ideal oil cooler that uses a large capacity core with offset fins in the core tube to increase heat dissipation and reduce pressure loss.
  • A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

  • Core type: NS1610G
  • Thermostat: Built-in block
  • Core installation position: In front of radiator
  • Center bolt size: M20 x P1.5

Compatible models: NISSAN Silvia

  • Vehicle model: S14/S15
  • E/G model: SR20DET
  • Year: 93.10~02.08
  • CODE:12024611

remarks

  • AT car not confirmed
  • Intake manifold support, alternator bracket processing required
  • Engines with center bolt M20 x P1.5  require an oil filter with center bolt size 3/4-16 UNF (GReddy oil filters OX-01, OX-02, and OX-03 are compatible).
