OIL COOLER KIT Z34 13ROW TWIN - (12024634)

Sale price$1,430.00

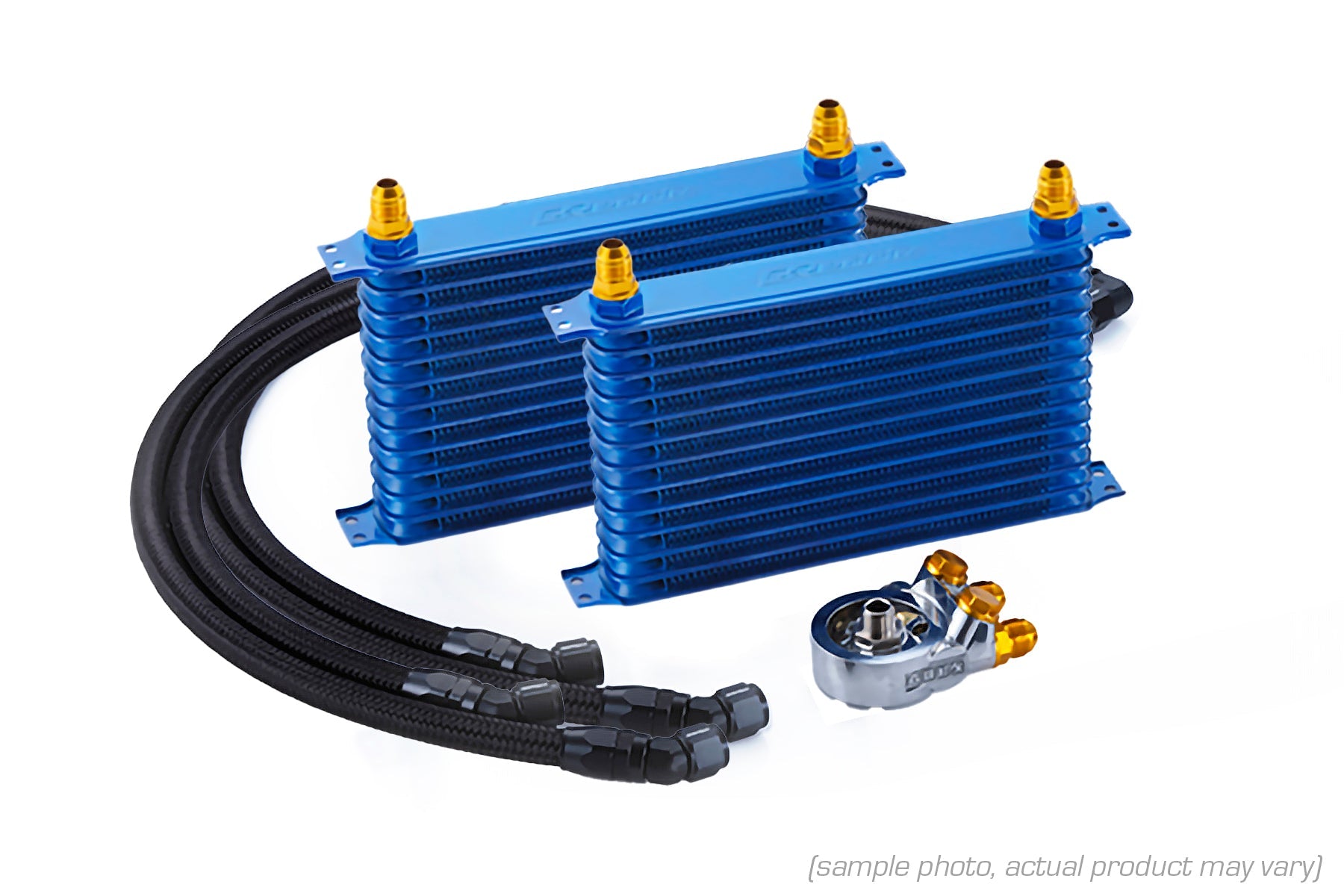

Twin Oil cooler kit STD 13row for Z34

Product features

  • This is an ideal oil cooler that uses a large capacity core with offset fins in the core tube to increase heat dissipation and reduce pressure loss.
  • A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

  • Core type: NS1310G ×2
  • Thermostat: Built-in block

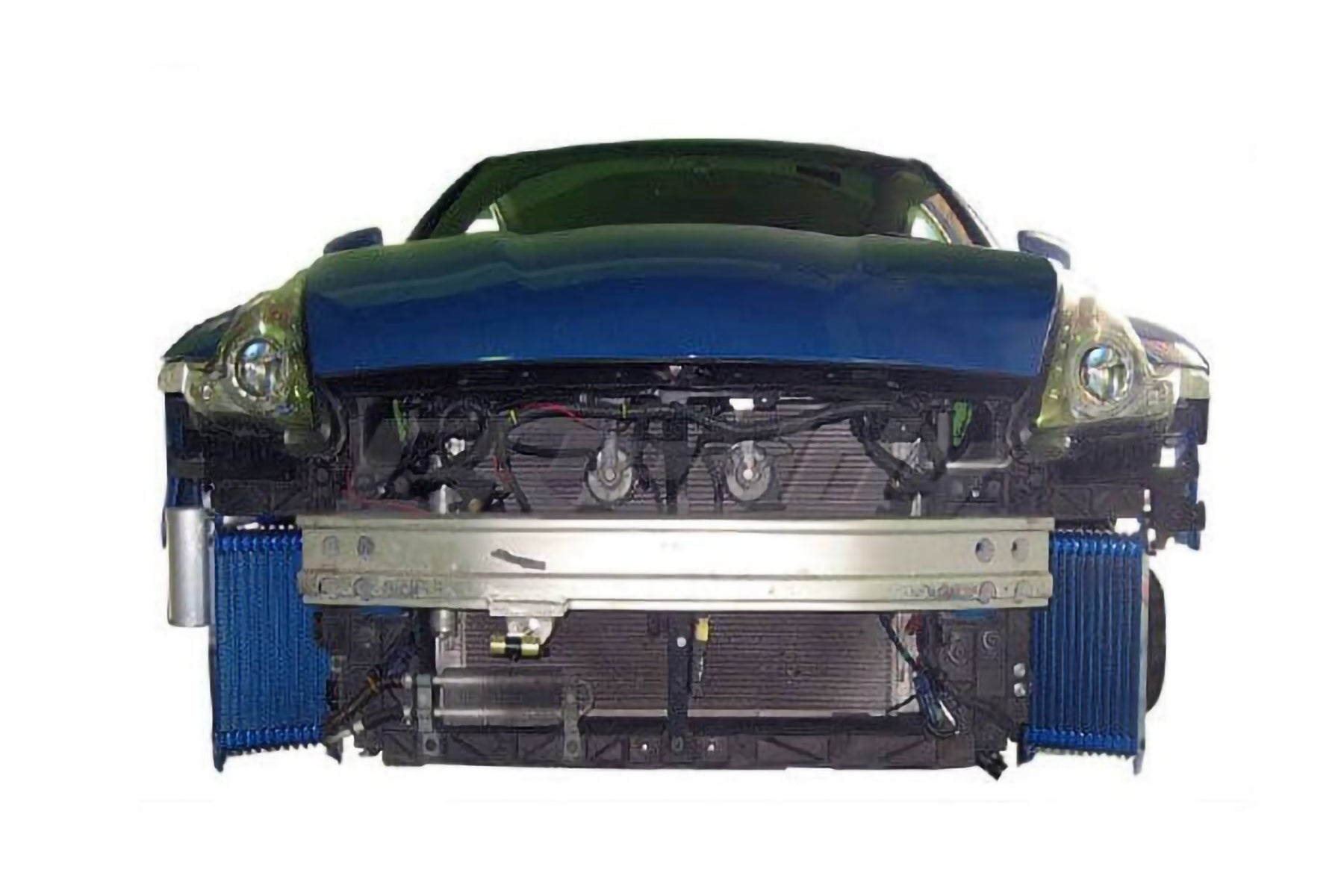

  • Core installation location: Inside the left and right fenders
  • Center bolt size: M20 x P1.5

Compatible models: NISSAN Fairlady Z

  • Vehicle model: Z34
  • E/G model: VQ37VHR
  • Year: 08.12-12.06
  • CODE:12024634

remarks

  • Engines with center bolt M20 x P1.5  require an oil filter with center bolt size 3/4-16 UNF (GReddy oil filters OX-01, OX-02, and OX-03 are compatible).
  • Twin oil cooler NS1310G x 2, washer tank removal required, fender protector processing required, nylon mesh hose
