OIL FILTER RELOCATION KIT PS13 - (12024907)

SPECIAL ORDER

12024907 – Nissan S13 180SX/Silvia Oil Filter Relocation Kit

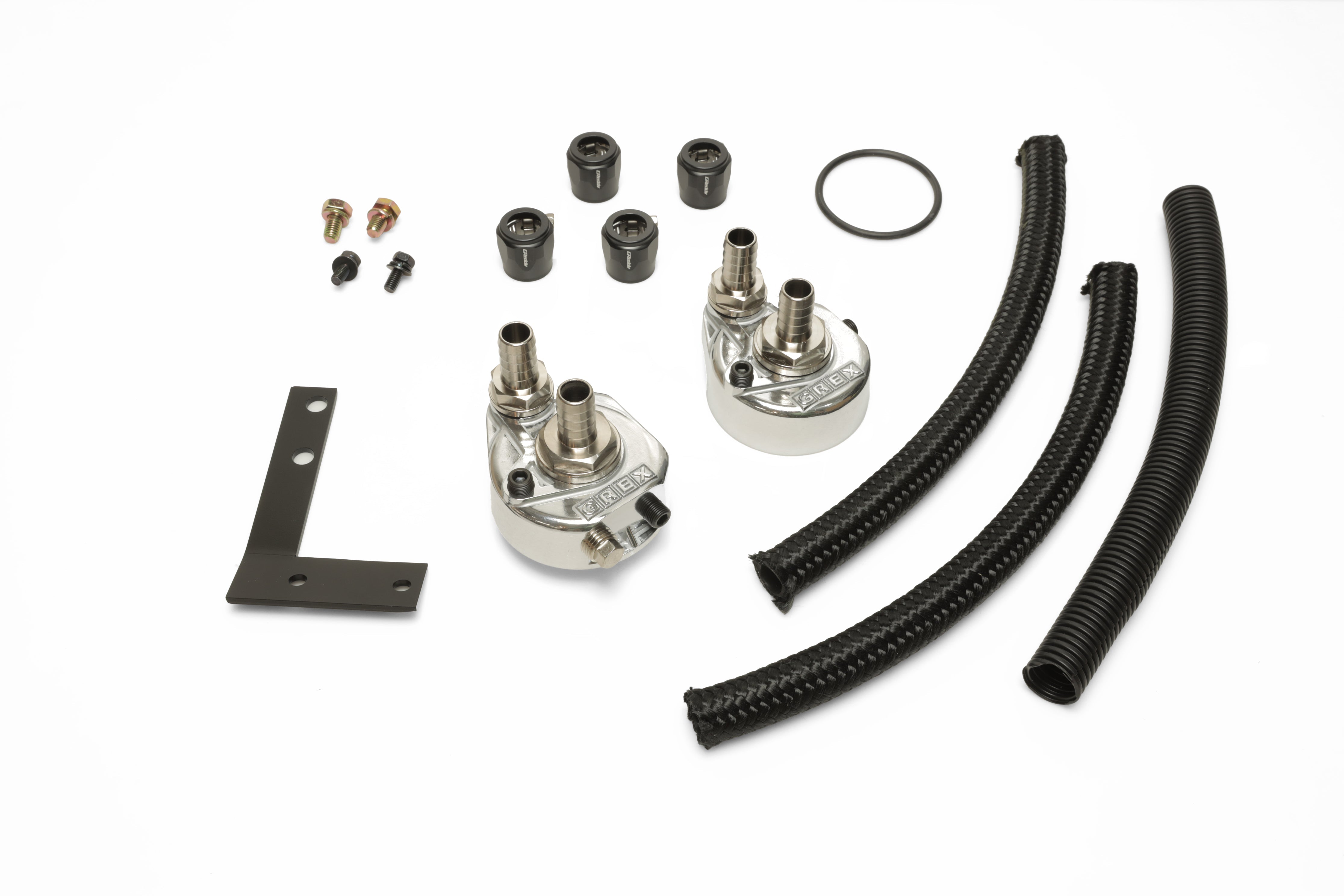

To aid in serviceability of the rear wheel drive S13 SR20DET engine, the installation of a GReddy Oil Filter Relocation kit is a must. This bolt-on kit includes two GReddy Oil Blocks (block-side and filter-side) for high-performance slip-on -10 braided lines, GReddy hose ends and necessary mounting brackets and hardware. By repositioning the engine oil filter to a more accessible location, it allows for easier filter changes, while adding a sporty look to the engine compartment. It also provides a simple way to install various (1/8BSP and/or M12xP1.25) temp or pressure sensors for gauges. (use of GReddy QX-01, QX-03 or 3/4-16UNF Filter req.)

Engine: Center bolt size: 3/4-16UNF
Filter: 3/4-16UNF

Application specific Oil Filter Relocation Kit (with -10 slip-on hoses and clamp fittings)
This kit allows you to economically relocate the factory oil filter for easy maintenance with a sporty look. Billet adapters allow for easy installation of (1/8BSP and/or M12xP1.25) gauge sensors, such as oil pressure and oil temperature. Also included are brackets, GReddy clamp fittings and braided-hoses (use of GReddy QX-01, QX-03 or 3/4-16UNF Filter req.)

Also see Optional AN Fitting for Type G and Type F Remote Oil Blocks to convert slip-on fittings to AN fittings. (must also change Hose Fittings to AN style)

GReddy M18xP1.5 gold -10AN Fitting with O-ring - 12005103
Oil Reloc. Block Center Fitting (Male 3/4x16UNF / -10AN)  -  12401142
Oil Reloc. Block Center Fitting (Female 3/4x16UNF / -10AN)  -  12401145
Oil Reloc. Block Center Fitting (Female M20xP1.5 / -10AN)  -  12401149
