PLUG BOLT UNION NO.2 1/8 HEX- (11900672)

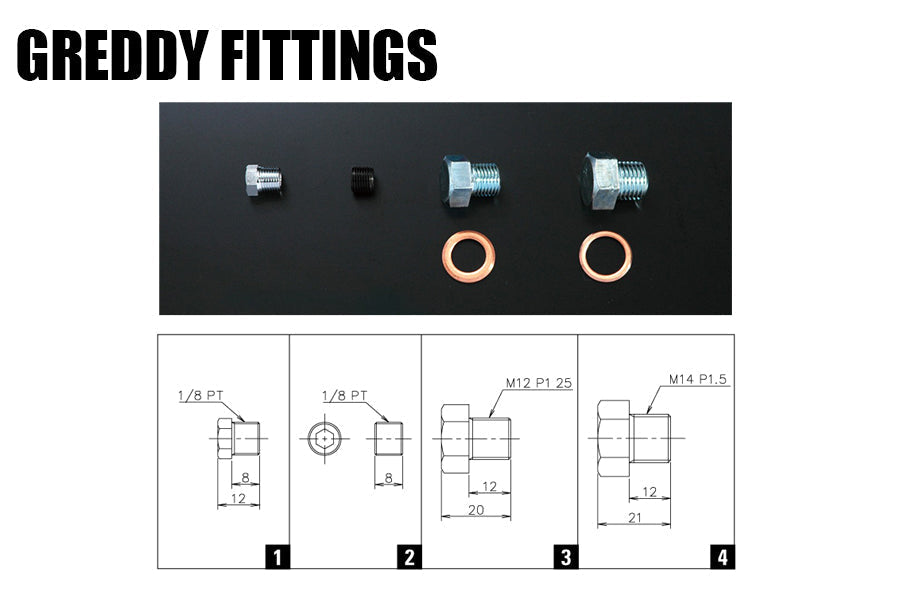

Fig. #2
There are four types of plug bolts available: 1/8PT 10mm hexagon, 1/8PT hexagon socket taper screw, M12P1.25 12mm below the neck, and M14P1.5 12mm below the neck.
| size | shape | specification | CODE | remarks |
|---|---|---|---|---|
| 1/8PT | 1 | 10mm hexagon | 11900670 | Brass Cr plated |
| 1/8PT | 2 | Tapered screw with hexagon socket (floating) | 11900672 | Steel black dyed |
| M12 P1.25 | 3 | 12mm below the neck | 11900673 | Copper washer included, steel unichrome plated |
| M14 P1.5 | Four | 12mm below the neck | 11900671 | Copper washer included, steel unichrome plated |
PLUG BOLT UNION NO.2 1/8 HEX- (11900672)
Sale price$2.00
Regular price$0.00 (/)
