Revolution RS Nissan 370Z 09-16
Part #: 10128101

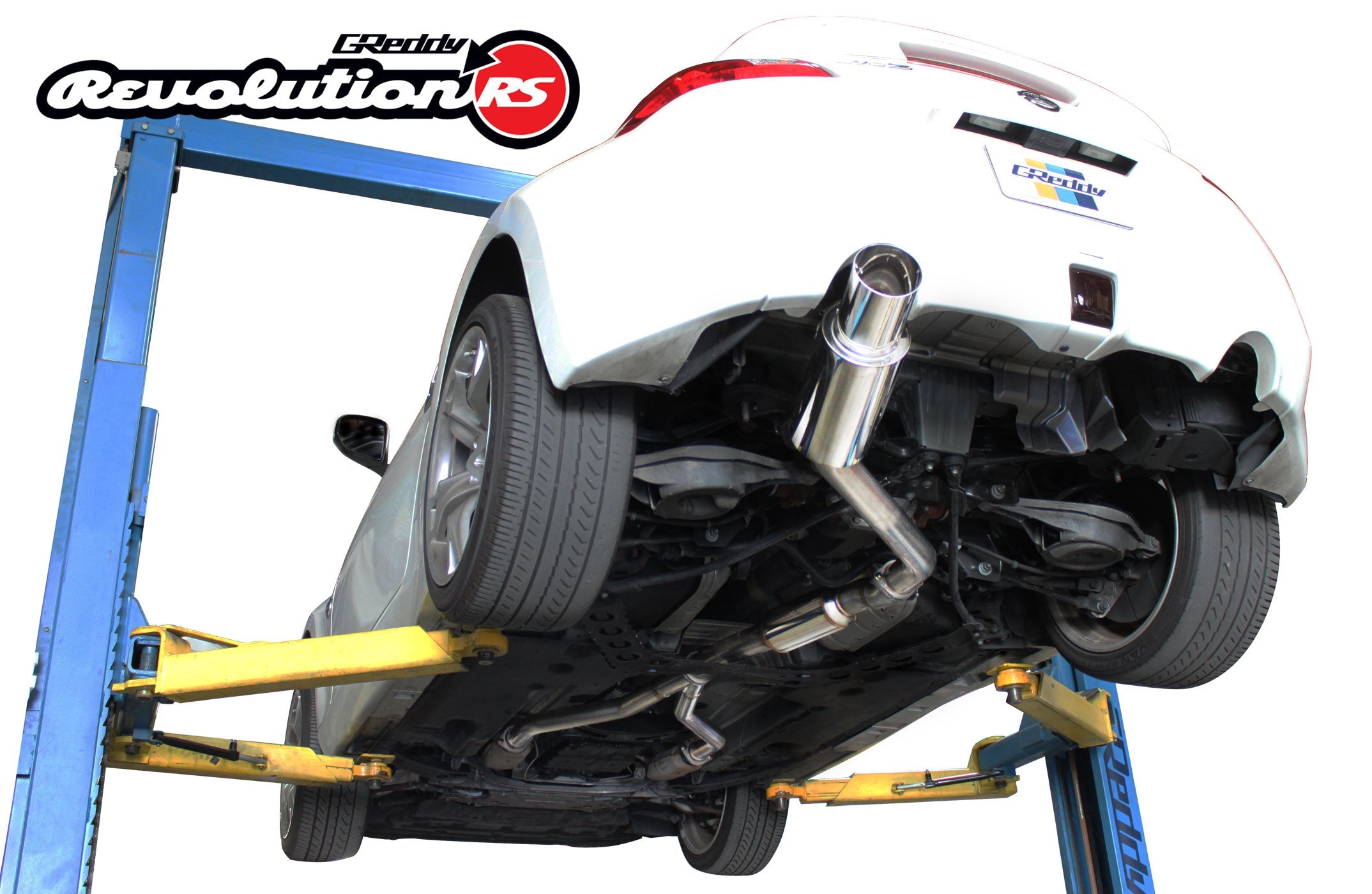

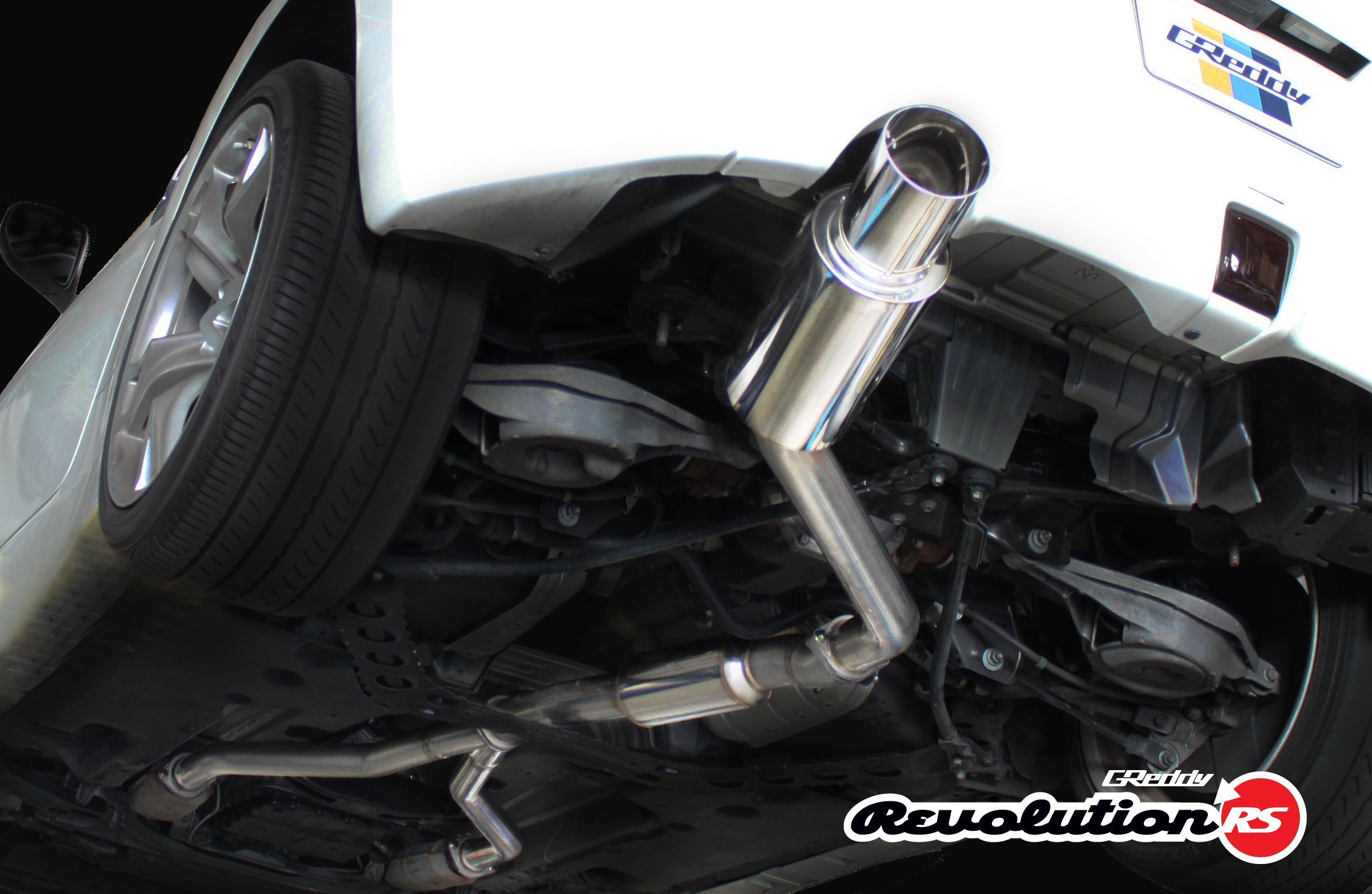

The Revolution RS for the Nissan 370Z is a lightweight Y-back exhaust with large diameter piping and an aggressive growl. The system includes a high flow Y-pipe that connects both engine banks through dual 2.5” (63.5mm) piping that merge smoothly into 3” (76mm) piping and a large resonator on the mid-pipe. The system exits an extra long, high-flow, RS muffler on the driver-side to manage sound output and avoid having to relocate the EVAP system. Dyno tests have shown an 11whp / 16ft-lbs gain on a normally aspirated VQ37HR engine. Even with the large diameter piping, there is a 50% weight savings over the OEM stock system.
Note: The included tip is not compatible with Nismo bumpers. Optional extended tips are sold separately.
Chassis: Z34
Engine: VQ37HR
Type: Cat-back exhaust with single-sided muffler (left exit)
Number of pieces: 3pcs
Piping: 2x 63.5mm (2.5") - 76mm (3.0")

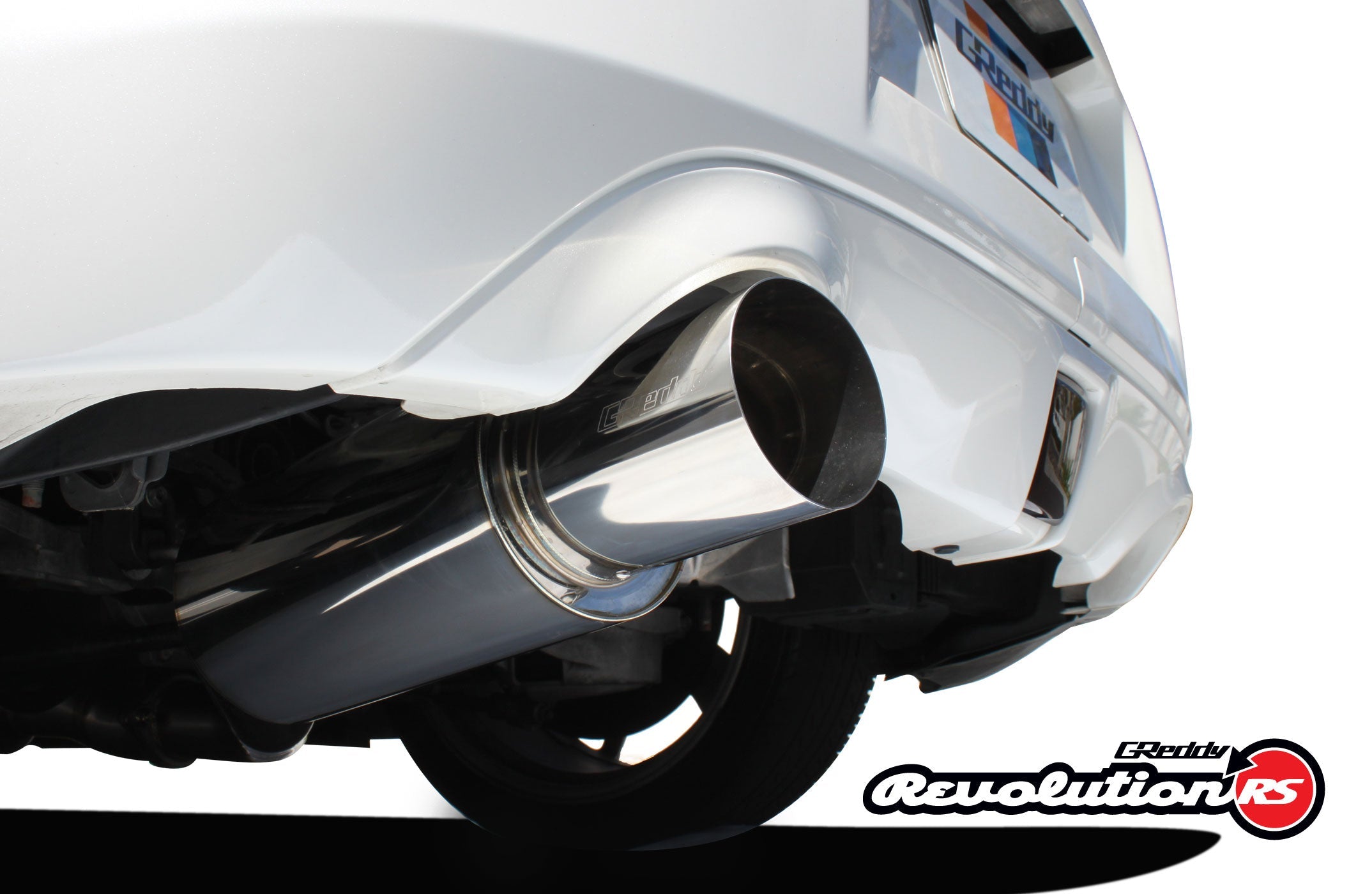

Tip: 115 mm (4.5") x L 170mm (6.7")
Gasket(s): 3.0" oval (qty: 2 included) replacement
Resonator: yes
Weight: 28.8 lbs (Stock weight 57.2 lbs)
Sound level: 102 dB(a)
HP: +11 hp
TRQ: +16 ft-lbs
*Data collected on stock vehicle *Retains catalytic convertor, front pipe
*TBA = To Be Announced
