Revolution RS GR86 / BRZ 21+

Part #: 10118109

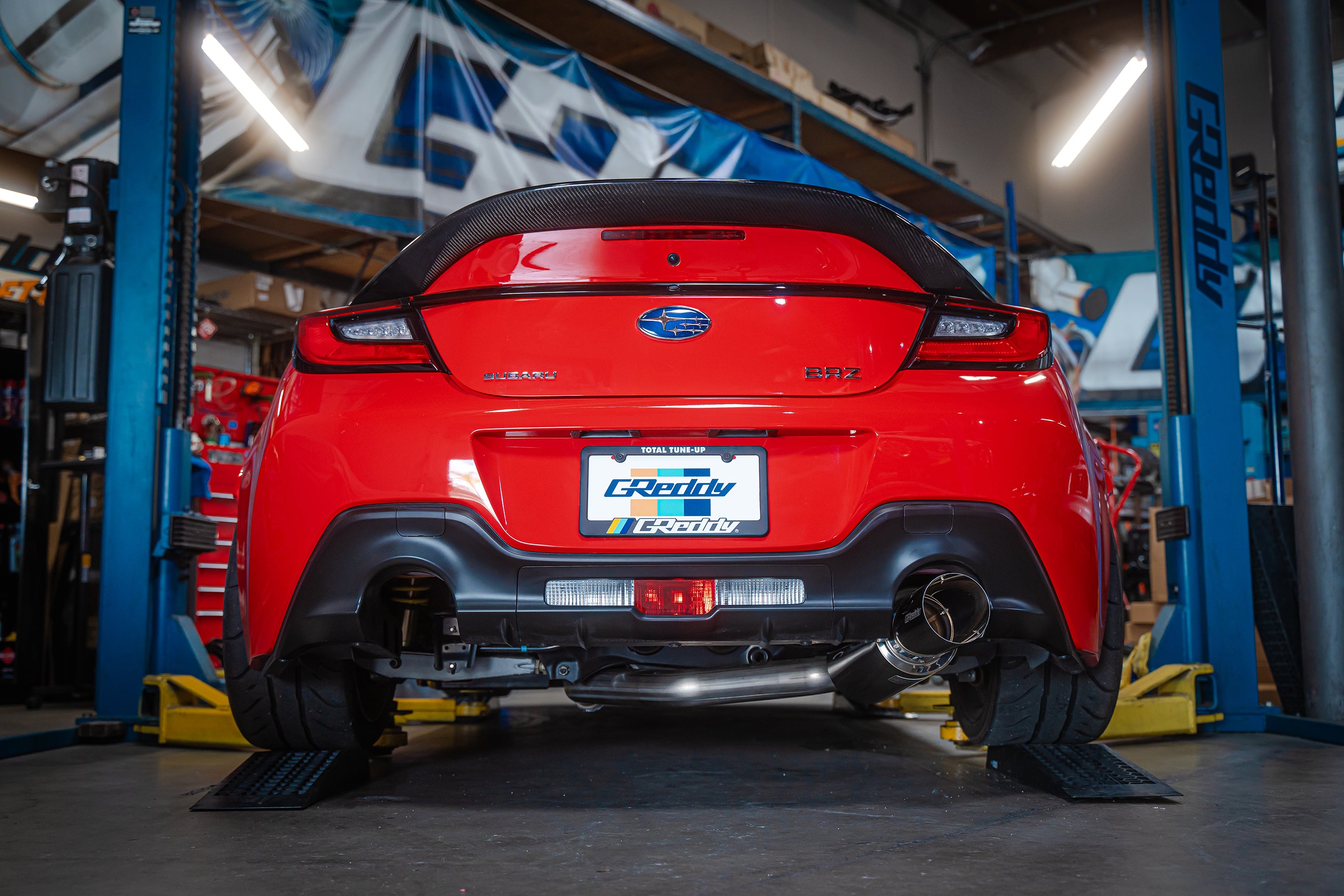

An aggressive but controlled exhaust system for the (ZN8/ZD8) Toyota GR86 & Subaru BRZ is the Revolution RS. It features full 3” diameter piping for superior performance. Perfect for vehicles with forced induction, like turbos, it also includes a large mid-pipe resonator to help remove unwanted drone from the passenger compartment. The purposeful single-sided cat-back layout exits the right side of the vehicle and produces an effective but lightweight system.

Chassis: ZN8/ZD8
Engine: FA24
Type: Cat-back system

Number of pieces:
Piping: 76 mm (3.0 in.)
Tip: 115 mm (4.5") x L185mm (7.2")
Gasket(s): 3.0" oval (qty: 1 included) replacement
Resonator: Yes
Optional Silencer Available: yes

Notes: replace factory doughnut-gasket and spring bolts for mid-pipe, with provided composite gasket and M8 nuts and bolts.

*Data collected on stock vehicle *Retains catalytic convertor, front pipe
*TBA = To Be Announced
