RS-Ti Universal Round Muffler 3.0" - 115mm Tip
Part #: 11002530
GPP Universal RS-Ti Titanium Muffler and Tip sets create new lightweight options for building your own custom full-titanium or hybrid titanium/steel exhaust system. In addition to the titanium RS muffler canister and tip, each kit includes a stainless-steel muffler mounting band (to weld on mounting hangers), a pre-welded titanium inlet pipe and V-band flange, and a matching stainless-steel V-band flange and clamp (to adapt the kit to steel piping). The kits are available in 3.0” (76mm) and 2.5” (63.5mm) piping sizes. Our signature high-quality, straight-through, universal RS Racing Sport muffler design offers exceptional flow with a clean, yet aggressive exhaust note. With the RS Tri-bolt removable tip, optional RS inner tip silencers and tips can be purchased separately for even more customization.
With the included pre-welded titanium V-band flange, additional stainless-steel flange and stainless-steel muffler canister mounting bracket, you do not have to be able to weld titanium to have a custom titanium muffler or exhaust system. Just weld onto the provided flange and canister mounting bracket.
No Titanium Welding Necessary!
3.0" Dia. Universal Titanium Muffler and Tip Set
Muffler Type: 160mm Round RS Titanium
Type: Straight-through
Inlet / Outlet: 76mm (3") V-band flange
Dia.: 160mm (6.3")
Length: 300mm (11.8")

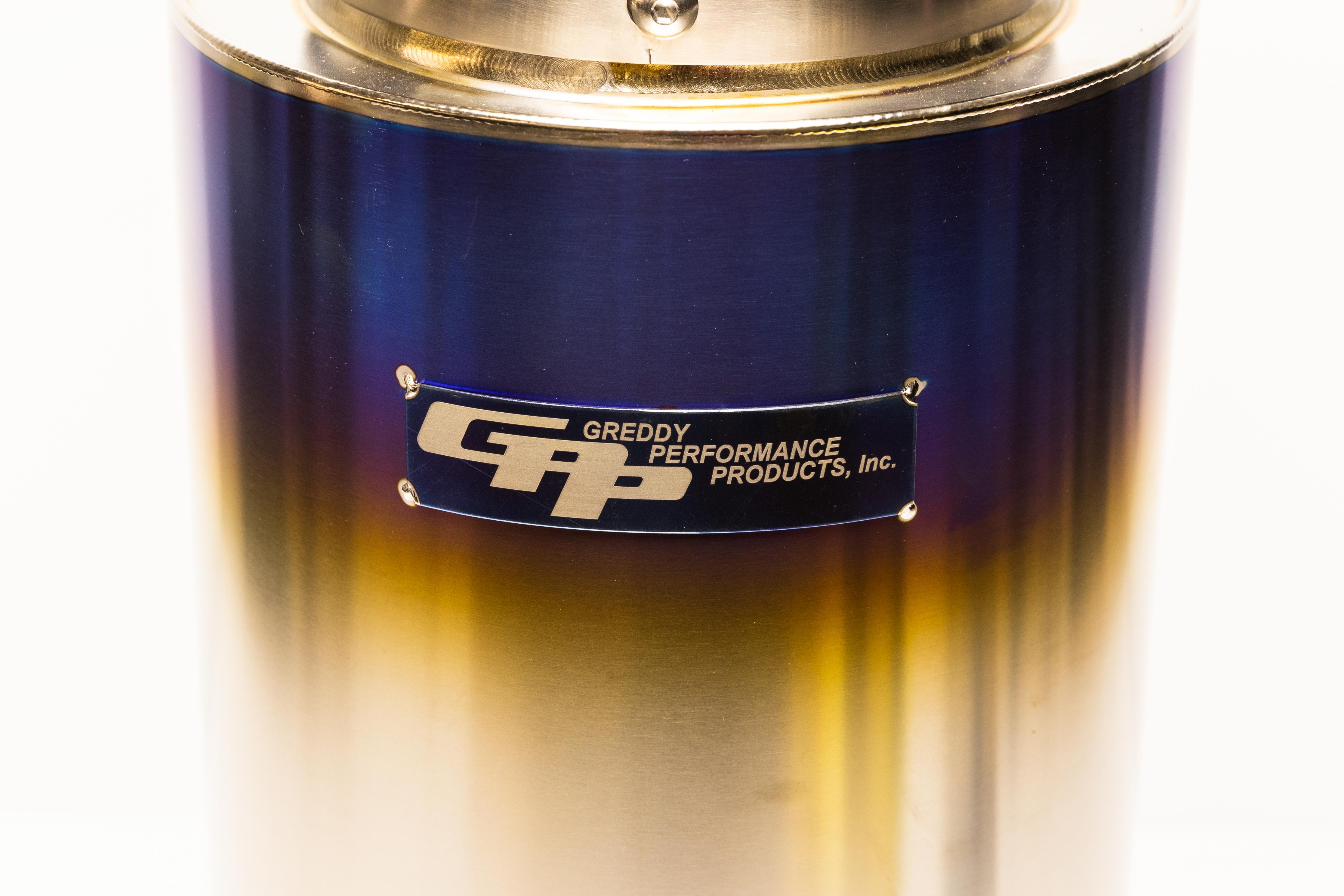

Surface: Burnt-titanium brushed finish, with GPP badge

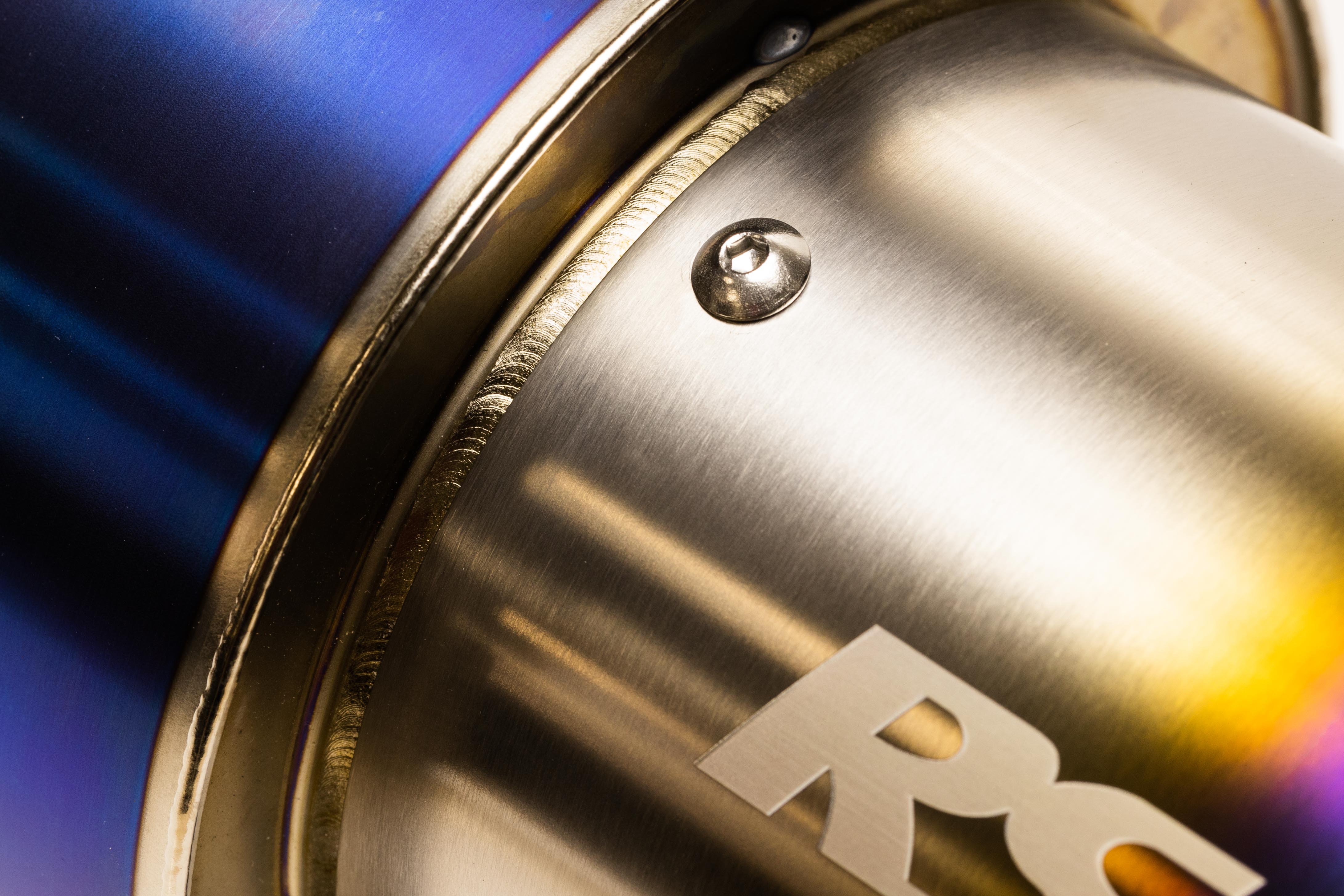

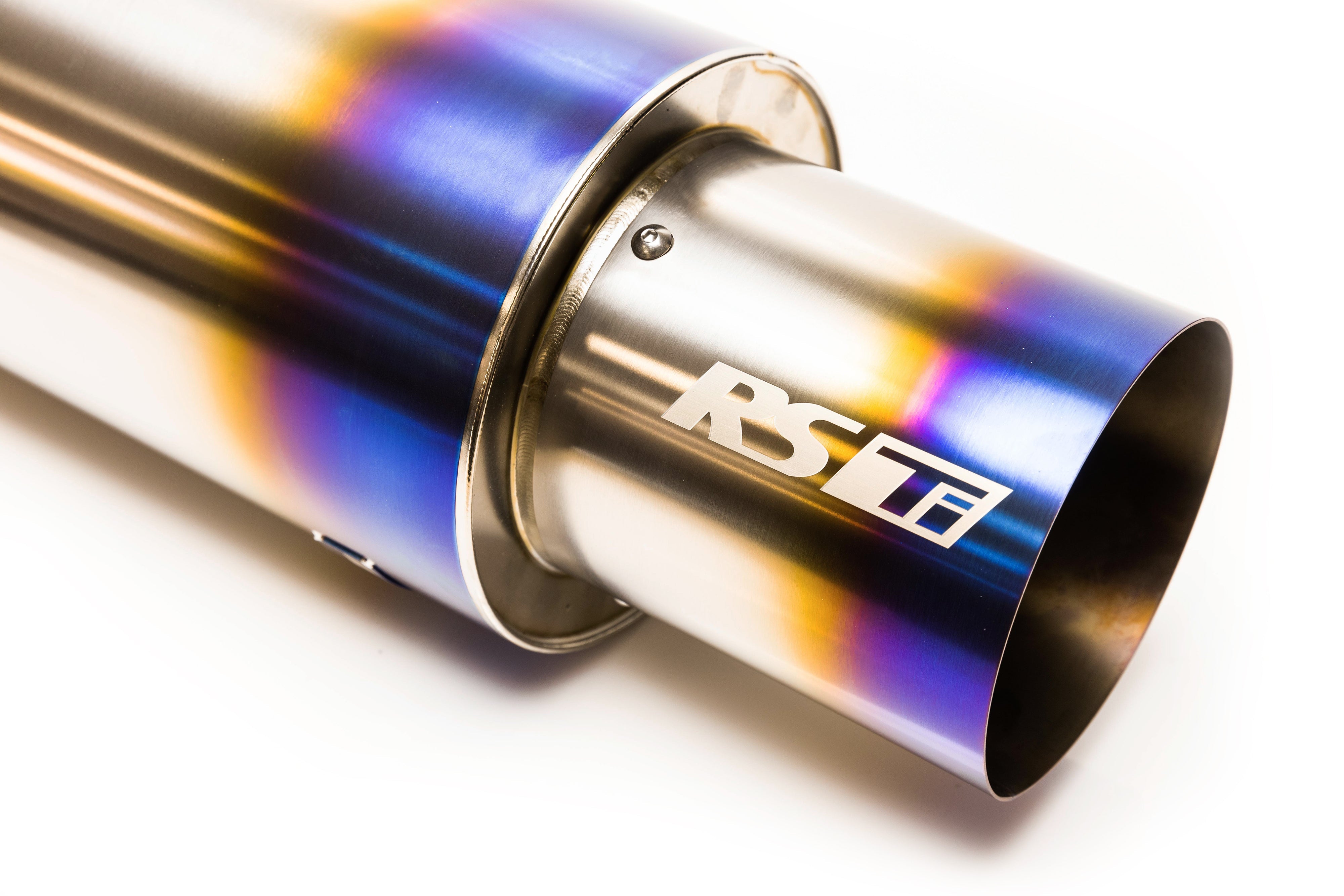

Tip Type: Removable single-wall titanium with RS-Ti logo and Tri-bolt mounting
Dia.: 115mm (4.5")
Length: 120mm (4.7")
Surface: Burnt-titanium brushed finish, with laser-etched RS-Ti logo
Piping Extension: L38mm (1.5")

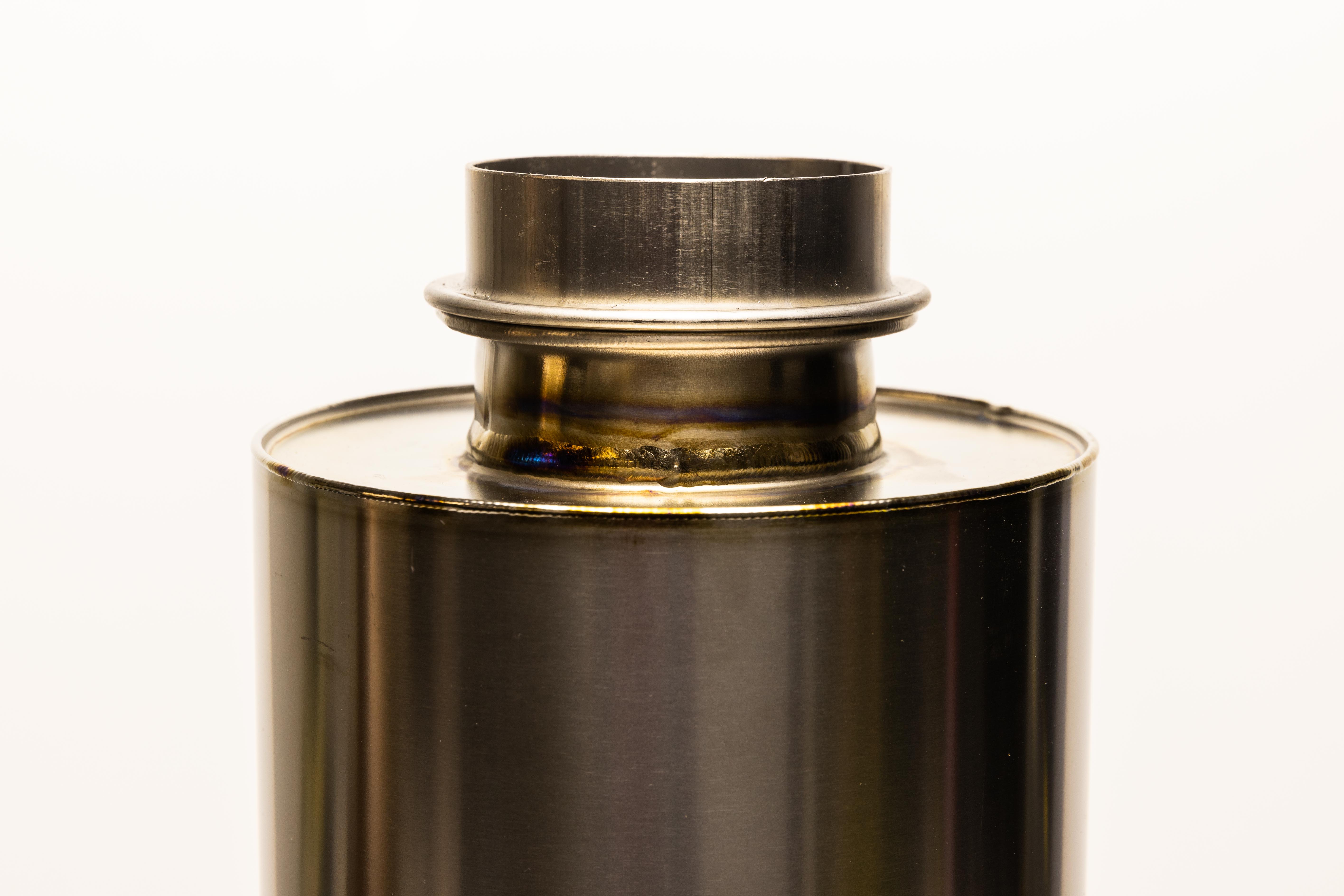

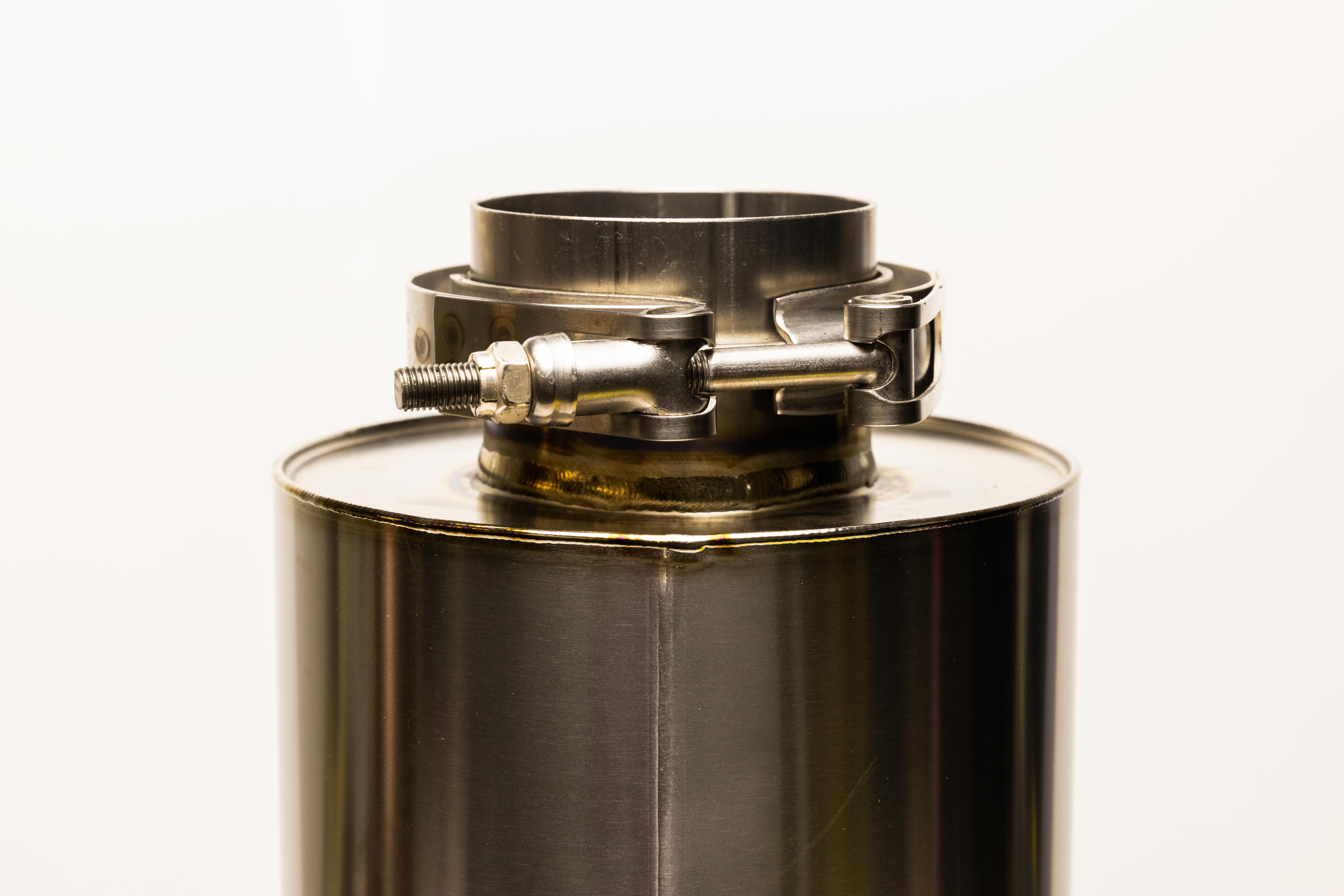

+ 3.0" piping at the back of the muffler, with a pre-welded 3.0" V-band titanium flange

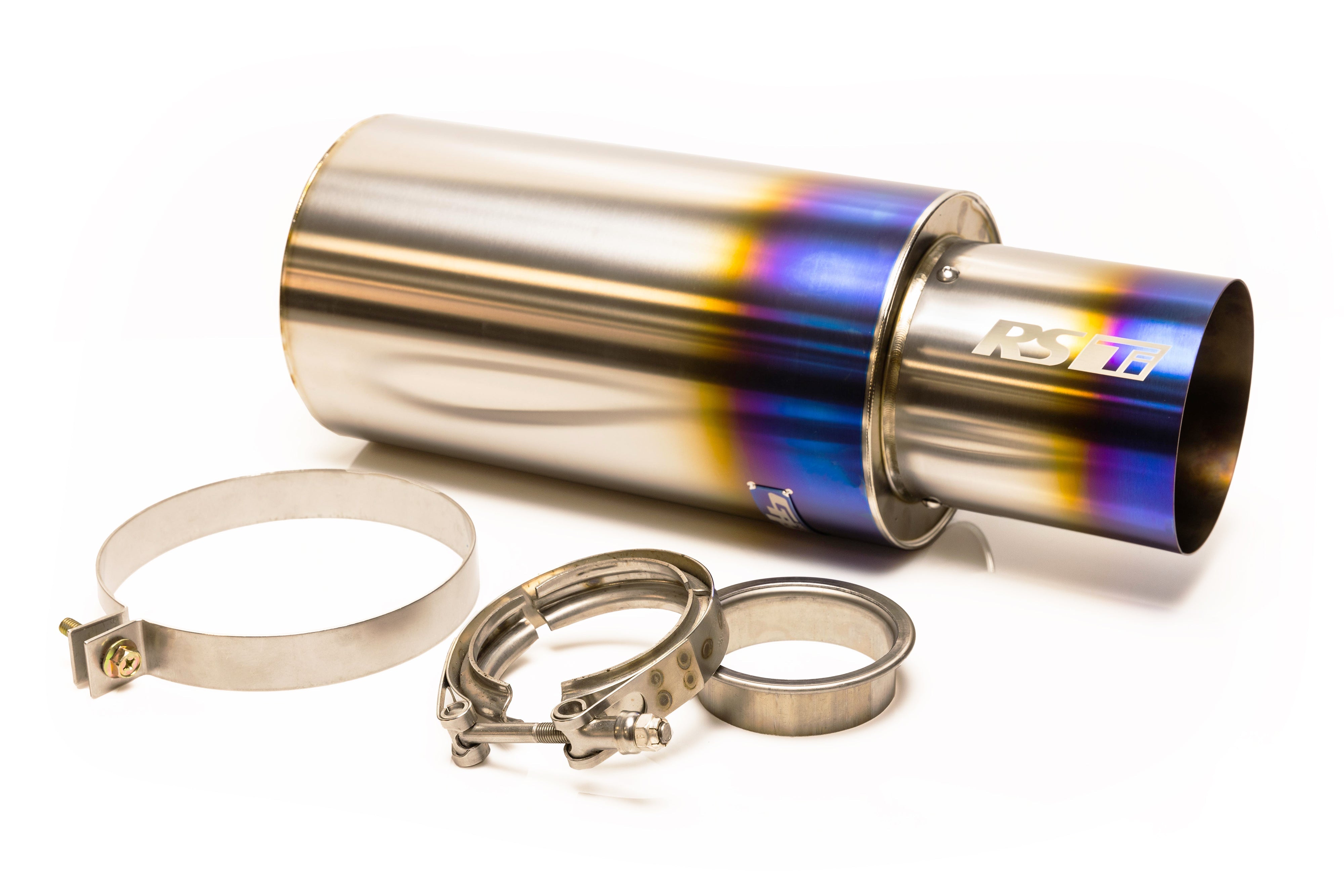

Additional Mounting Hardware Included:

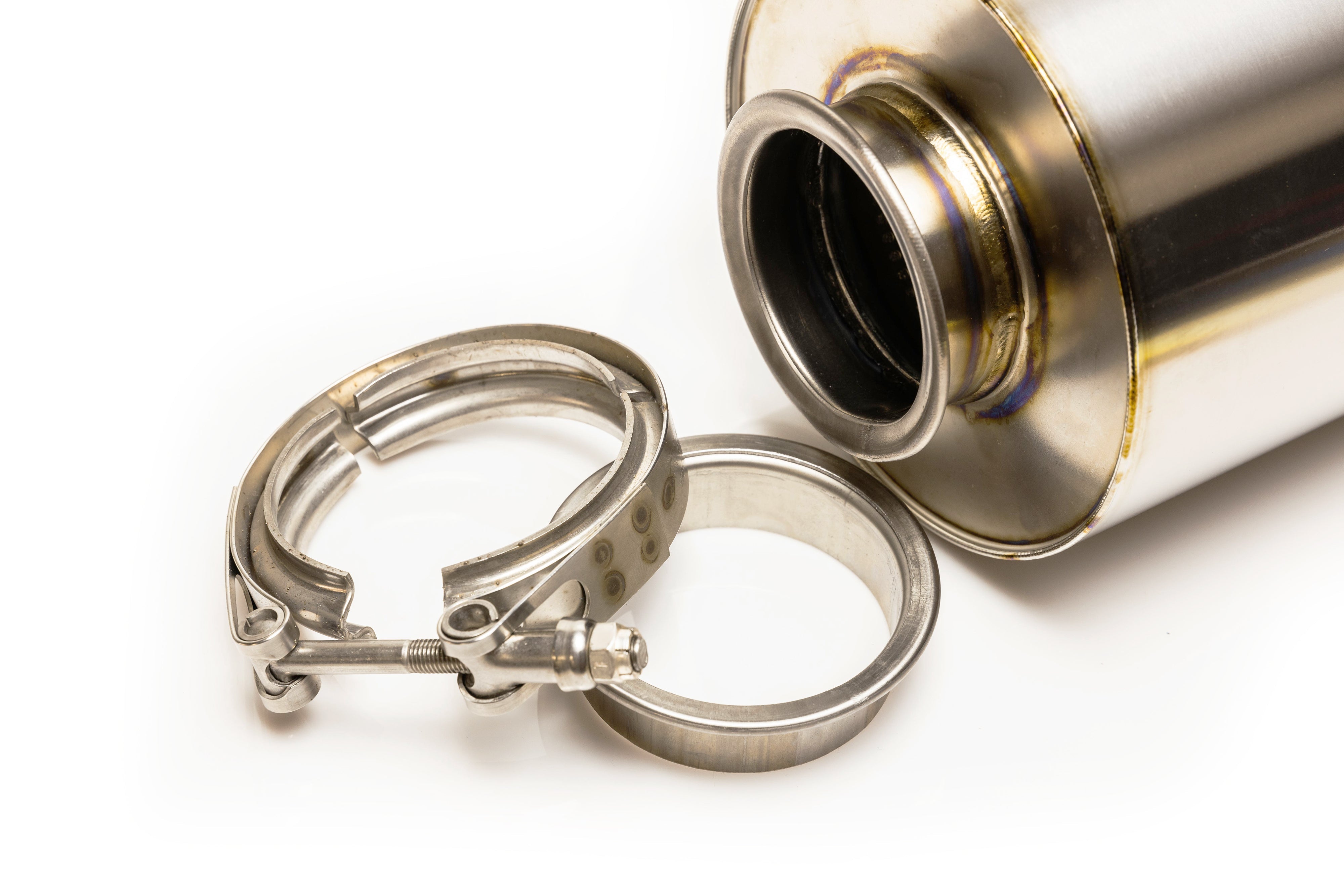

+ additional un-welded stainless-steel 3.0" V-band flange (to adapt to steel or stainless-steel piping)
+ one stainless-steel V-band flange
+ a stainless-steel muffler canister mounting band (to weld on steel or stainless-steel muffler mounting hangers)
Notes:
Requires welding (and cutting) for mounting and attaching piping
** Compatible with optional Revolution RS tips and silencers
