S14/15 INTAKE PLENUM-FACTORY T/B - (13522317)

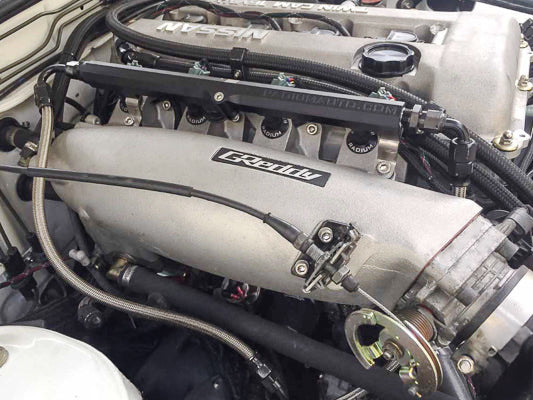

S14 / S15 (SR20DET) GReddy surge tank for factory throttle-body

Product features

This is a large capacity surge tank specially designed to maximize the performance required of the engine by optimizing the collector volume and intake port for the shape and displacement.
The basic design is tailored to turbine replacement, and the shape is designed to allow air to enter each cylinder evenly and smoothly.

specification

For genuine throttle

・Intake manifold Collector tank integrated aluminum casting allows for bolt-on installation.
・Tank volume: Approximately 1.6 times the stock size
・For vehicles equipped with GReddy intercooler kit only.
・Since the mounting position is different from the genuine one, a special piping set sold separately is required. (CODE: 13920412)
- Comes with 1/8PT service holes for air pressure sensor and water temperature sensor.
- Compatible with genuine main injector (side feed type).
*Due to the large tank capacity, it may be difficult to remove and install the transmission.

[Compatible models] Nissan Silvia

Compatible model: S14 / S15
Engine model: SR20DET

For genuine throttle

TRUST CODE: 13522317
