GReddy Intercooler Kit T-23F BNR32/33/34

Part #: 12020208

Make: Nissan
Model: Skyline GT-R (R32 / R33 / R34)
Year: 1989-05

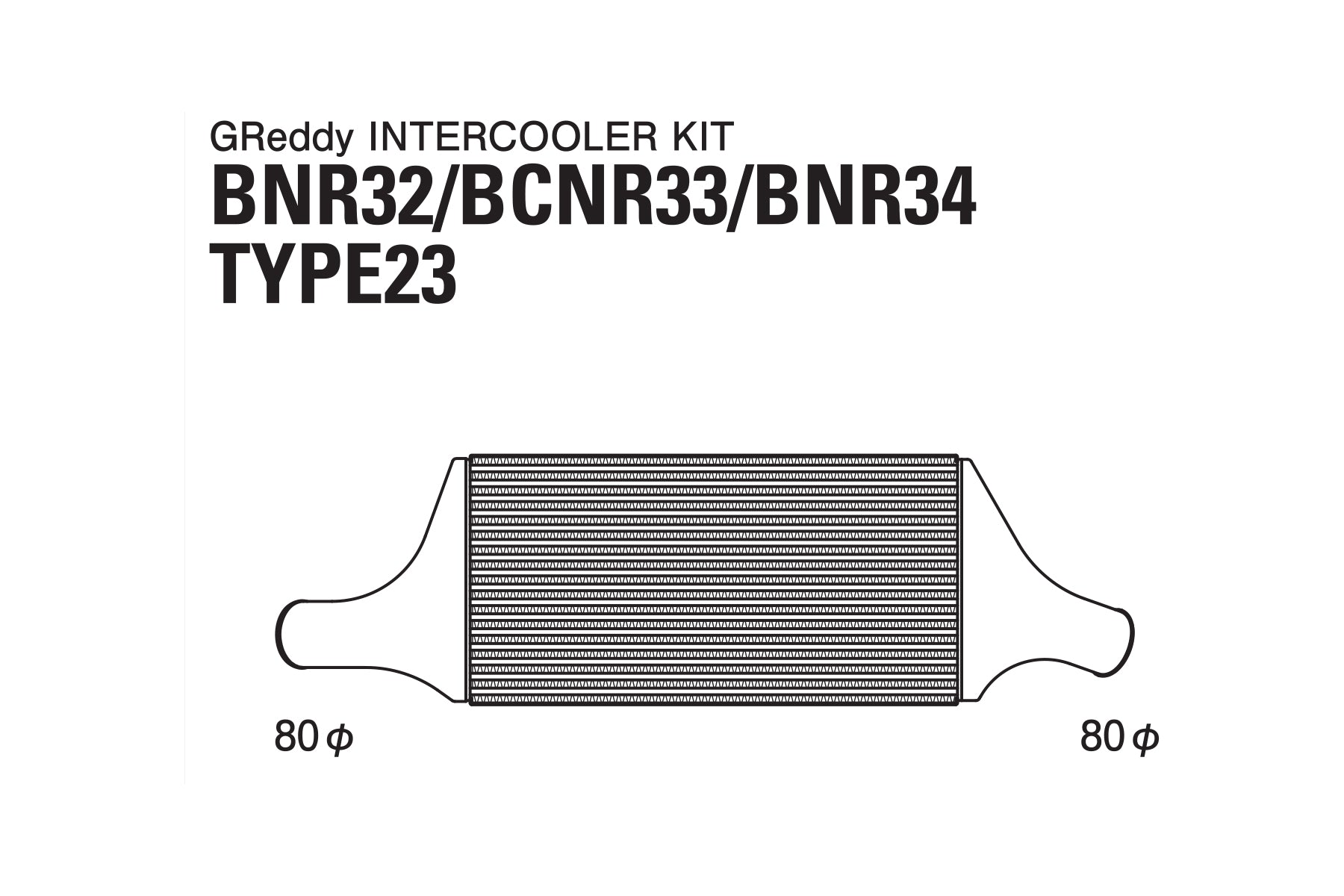

Genuine replacement TYPE23F IC outlet diameter 80Φ

Specification

• Core type: TYPE23F
• Core size: H302/L600/W100
• Installation position: genuine replacement

Remarks

• Compatible with genuine turbine & GReddy turbine kit.
• Common to R32, R33, and R34. For MT only.
• * O/C kit can be installed at the same time
• * Pipe SET can be installed at the same time
• *Reinforce processing required
• *Bumper processing required

Chassis: BNR32 / BCNR33 / BNR34
Engine: RB26DETT

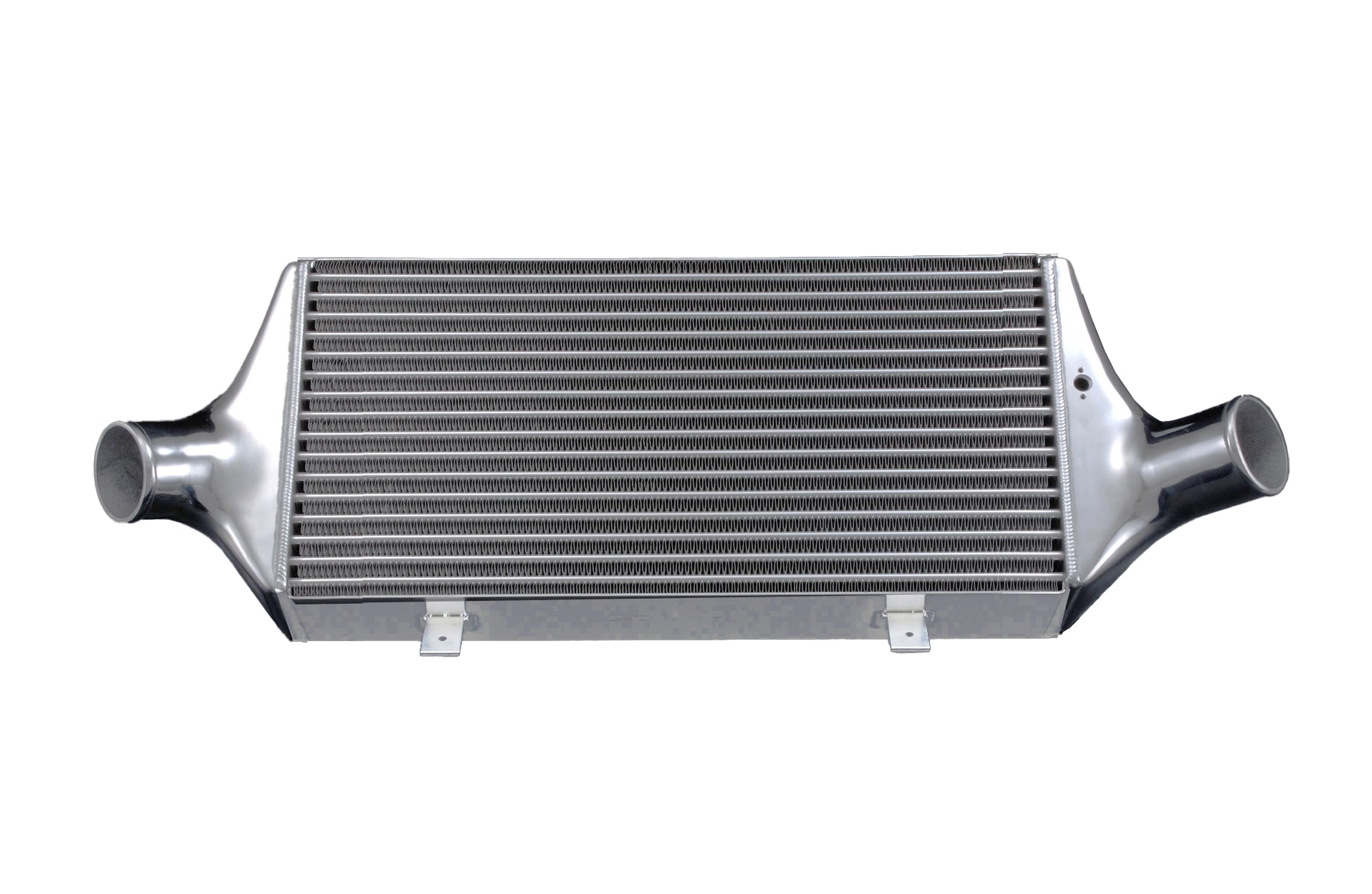

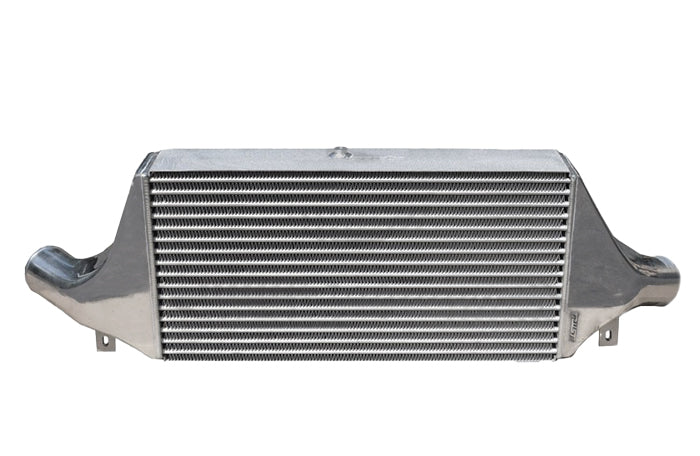

Type: Upgraded Large Type 23 (L600mm X H302mm X W100mm) intercooler core with cast GReddy endtanks, especially designed for the RB26DETT of the BNR32 Skyline GT-R. 80mm inlet and outlet. - for stock intake plenum.

Product features

Larger front mount intercooler for better performance and cooling. Please use GReddy intercooler piping set.

GReddy Type-F cores feature a high heat-dissipating "off-set, inner-fin" technology. They are recommended for medium to high boost levels on higher horsepower or upgraded turbo engines. The larger internal surface area provides a superior cooling efficiency for radiating excessive heat and minimizing heat soak. The GReddy Type-F intercooler is a light-weight tube and fin design.

*For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing.
**This product is illegal to be driven on public roads in the USA.
