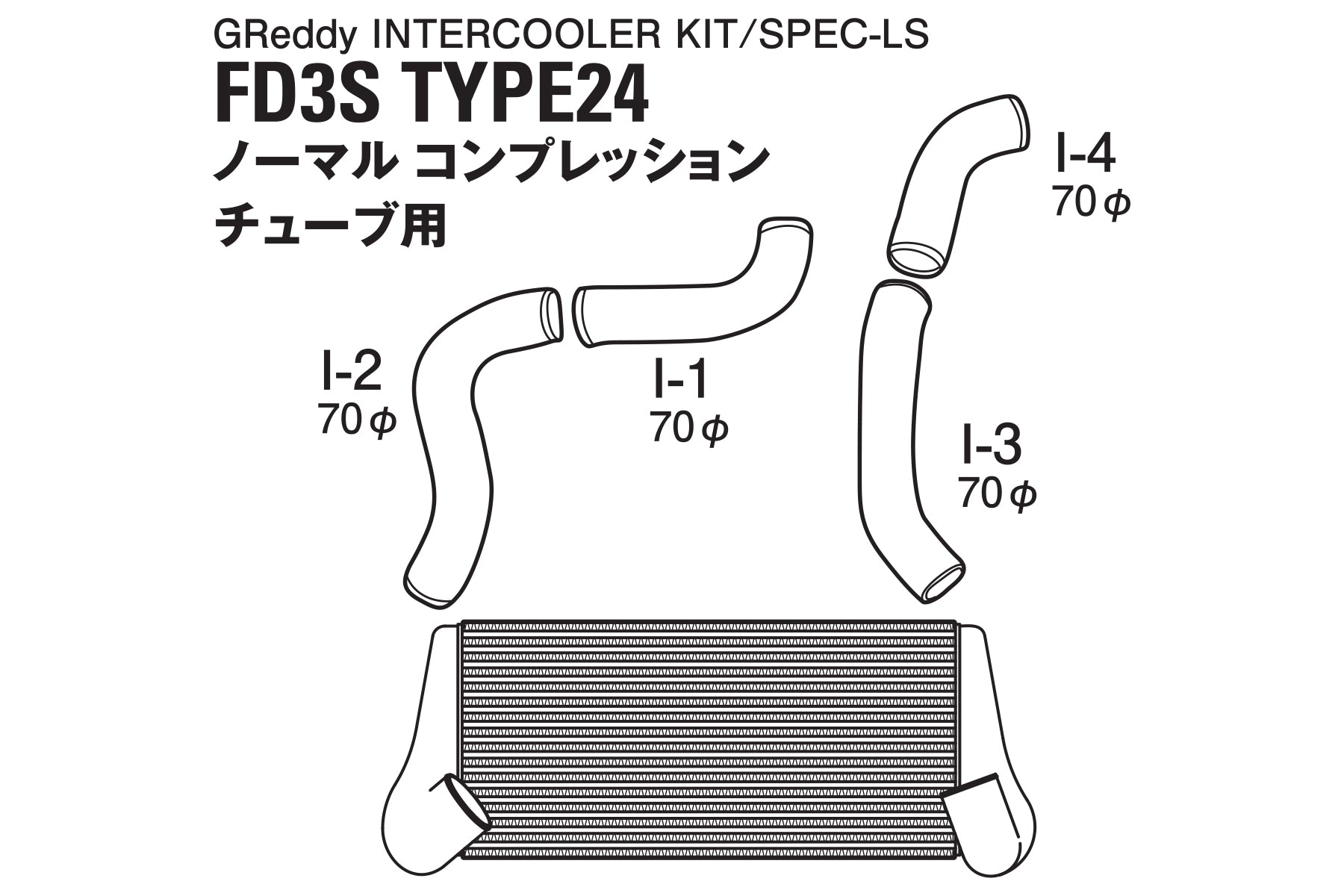

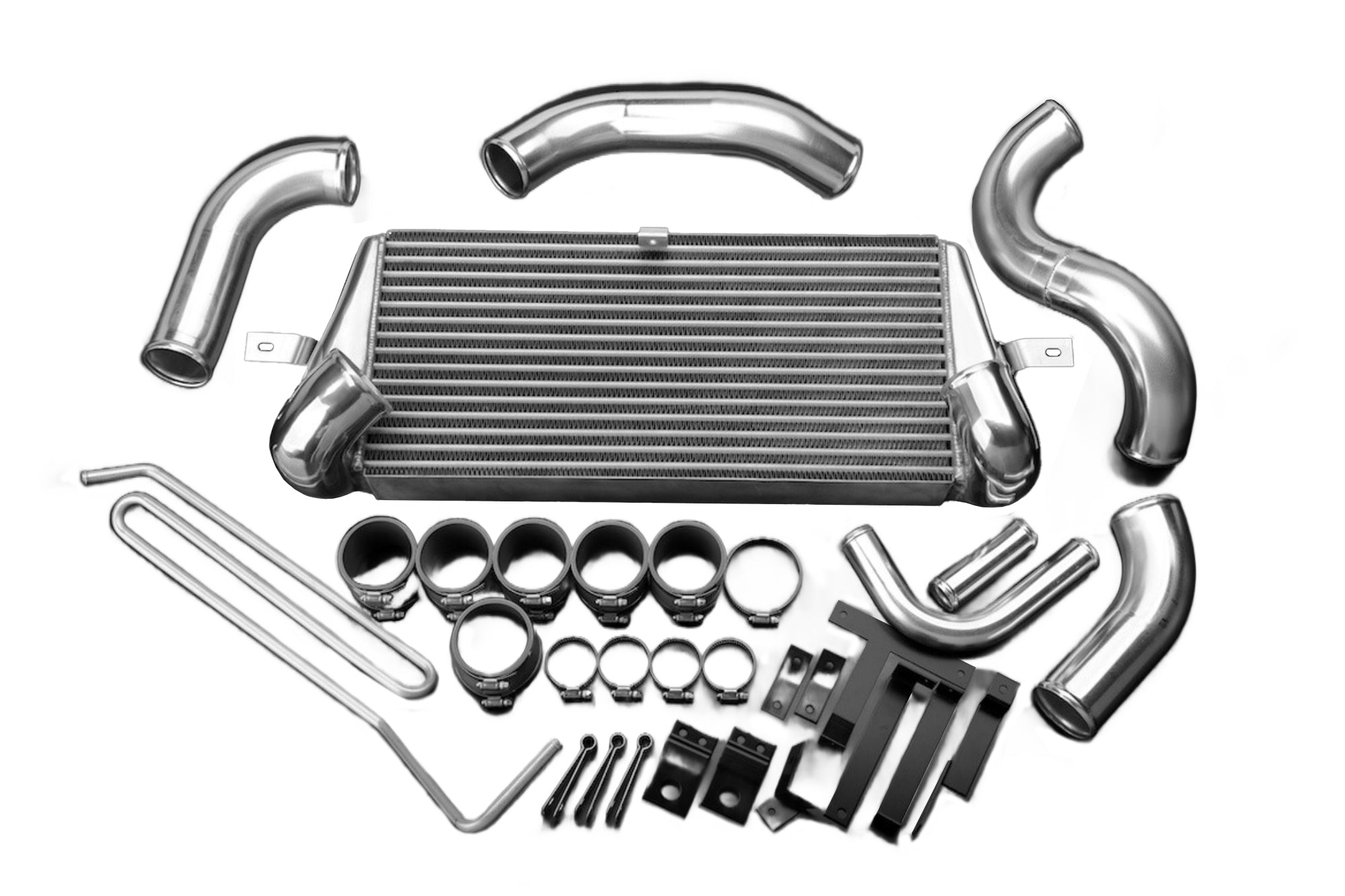

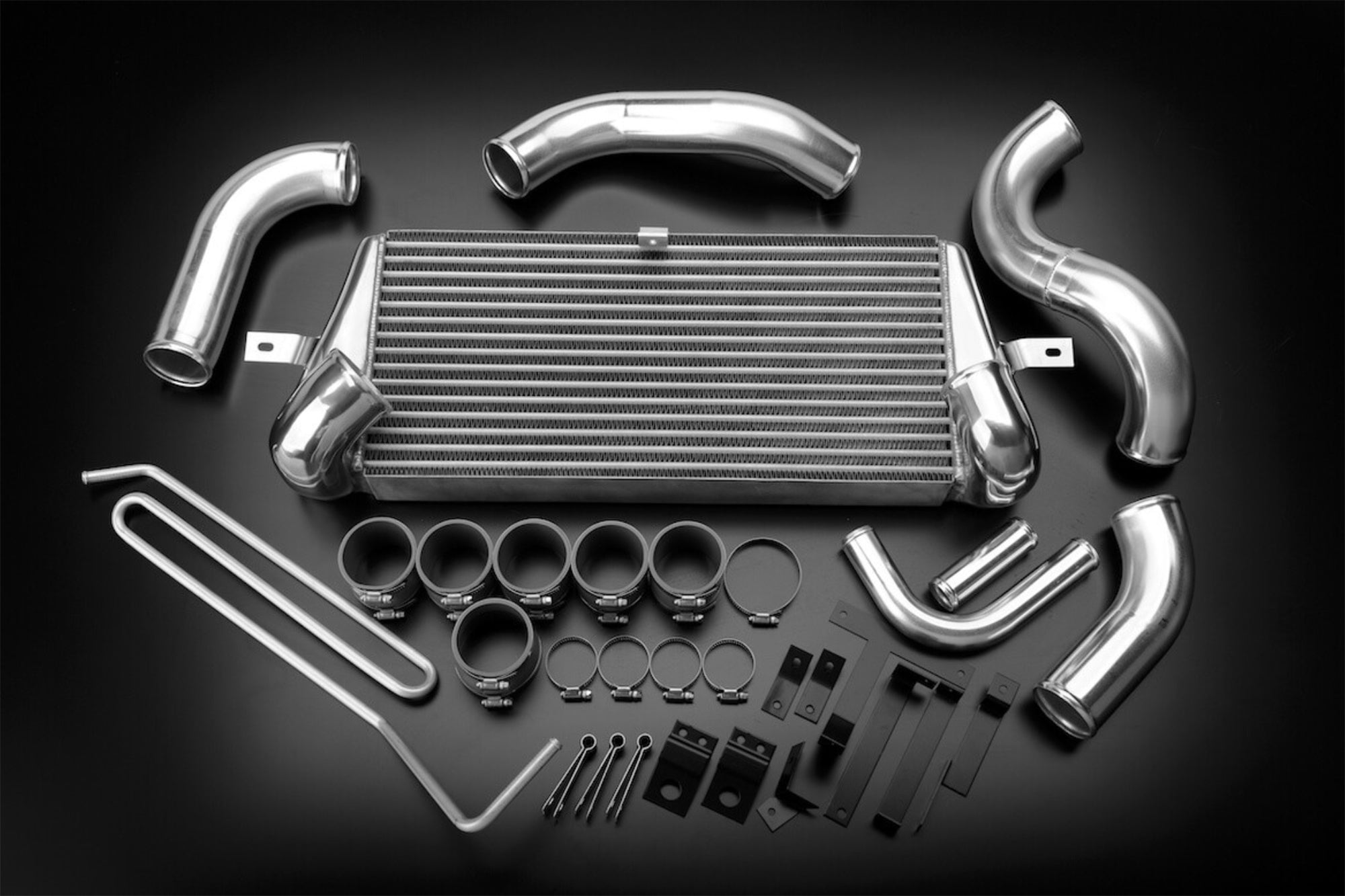

GREDDY INTERCOOLER KIT T-24F FD3S FACTORY COMP - (12040202)

GReddy intercooler kit for FD3S

Compatible model: RX-7

• Compatible model: FD3S (for genuine air funnel)
• Year: 91.12-02.08
• CODE:12040202

Sports turbine ~ Full tune class recommended Intercooler that demonstrates high cooling efficiency

Product features

• Emphasizes cooling efficiency, maximizes charging efficiency, and supports high power and high boost.
• The SPEC-R HG has the side tank and aluminum pipe buffed to a mirror finish, while the SPEC-R has a barrel finish. In addition, the core is CCP treated to improve corrosion resistance.
• The inner fin uses an offset inner fin.The SPEC-R, which aims for high power and high boost, uses an "offset inner fin."
• Optimized pressure loss and cooling effect to support high-level high boost tuning.

GReddy Type-F cores feature a high heat-dissipating "off-set, inner-fin" technology.  They are recommended for medium to high boost levels on higher horsepower or upgraded turbo engines.  The larger internal surface area provides a superior cooling efficiency for radiating excessive heat and minimizing heat soak.  The GReddy Type-F intercooler is a light-weight tube and fin design.

specification

• Core type: TYPE24F
• Core size: h184/L600/W66
• Installation position: In front of the radiator

remarks

• For genuine turbine only.
• Cannot be installed simultaneously with genuine air funnel AIRINX SET (MZ-S001B) and GReddy radiator TWR
