TURBINE UPGRADE ECR33/ER34 T620Z-RB25 - (11520057)
Product features

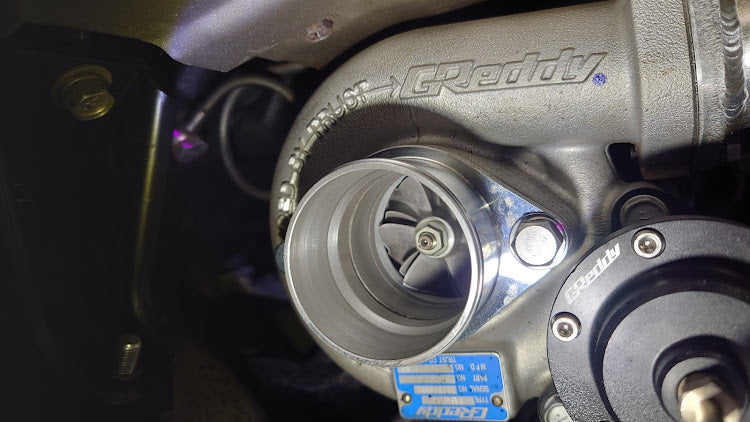

This is a genuine replacement type turbine kit set up according to the characteristics of the RB25DET engine.
Although it is a genuine replacement type, it can generate over 294kw (400ps).
Compatible horsepower 257kw ~ 323kw (350ps ~ 440ps)
specification
・A GReddy reinforced actuator machined from aluminum is included with the T620Z.
- Compatible with genuine piping and genuine EX outlet.
・For MT only.
≪Accessories≫
・Turbine body (aluminum reinforced actuator included)
・Aluminum compression tube 50φ-60φ
・Suction tube
・Other short parts
*When installing this product, the following genuine parts are required.
| Genuine part number | Part name | Number of pieces |
|---|---|---|
| 14495-V5300 |
lock plate |
2 |
| 20691-0P600 |
gasket exhaust |
1 |
| 20692-65J00 |
gasket exhaust |
1 |
*We recommend replacing the following genuine parts at the same time.
| Genuine part number | Part name | Number of pieces |
|---|---|---|
| 15198-59S00 |
oil return hose |
1 |
| 14434-V0301 |
bolt outlet |
Four |
| 14417-P7600 |
nut turbocharger |
Four |
[Compatible models] Nissan Skyline GTS25-t / 25GT Turbo
Compatible model: E-ECR33 / E･GF-ER34
Engine model: RB25DET
Model year: 93.08-98.05 / 98.05-01.06
TRUST CODE: 11520057
