Type-I Oil Cooler Filter Relocation Adapter, Filter: 3/4-16UNF, 10AN
PRE ORDER
Part #: 12401114

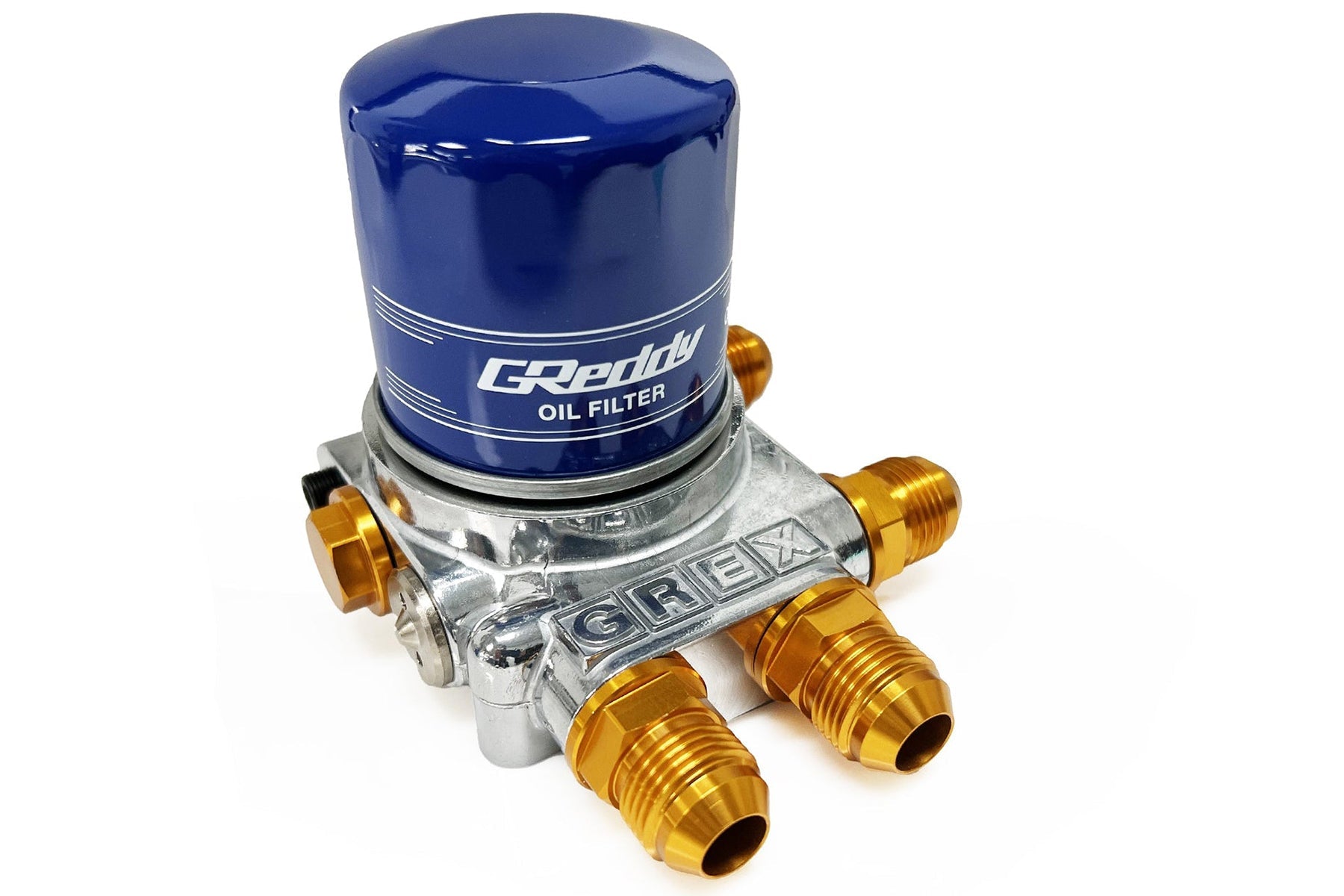

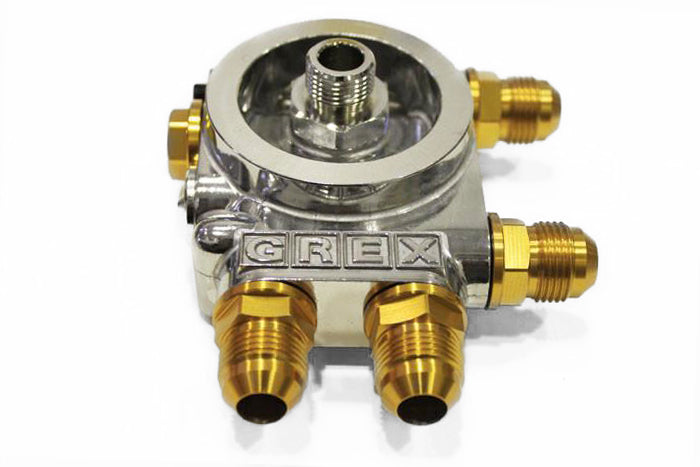

Universal Remote Oil Filter Oil Block (Type I) AN10 for 3/4x16UNF Filter (filter sold separately)
GReddy Universal Remote Oil Filter Oil Block Type I with AN -10 Fittings. With built-in GReddy Thermostat. (70-80 C)
* IMPORTANT! - 12009990 - *optional -10AN bypass tube (if no oil cooler is used)

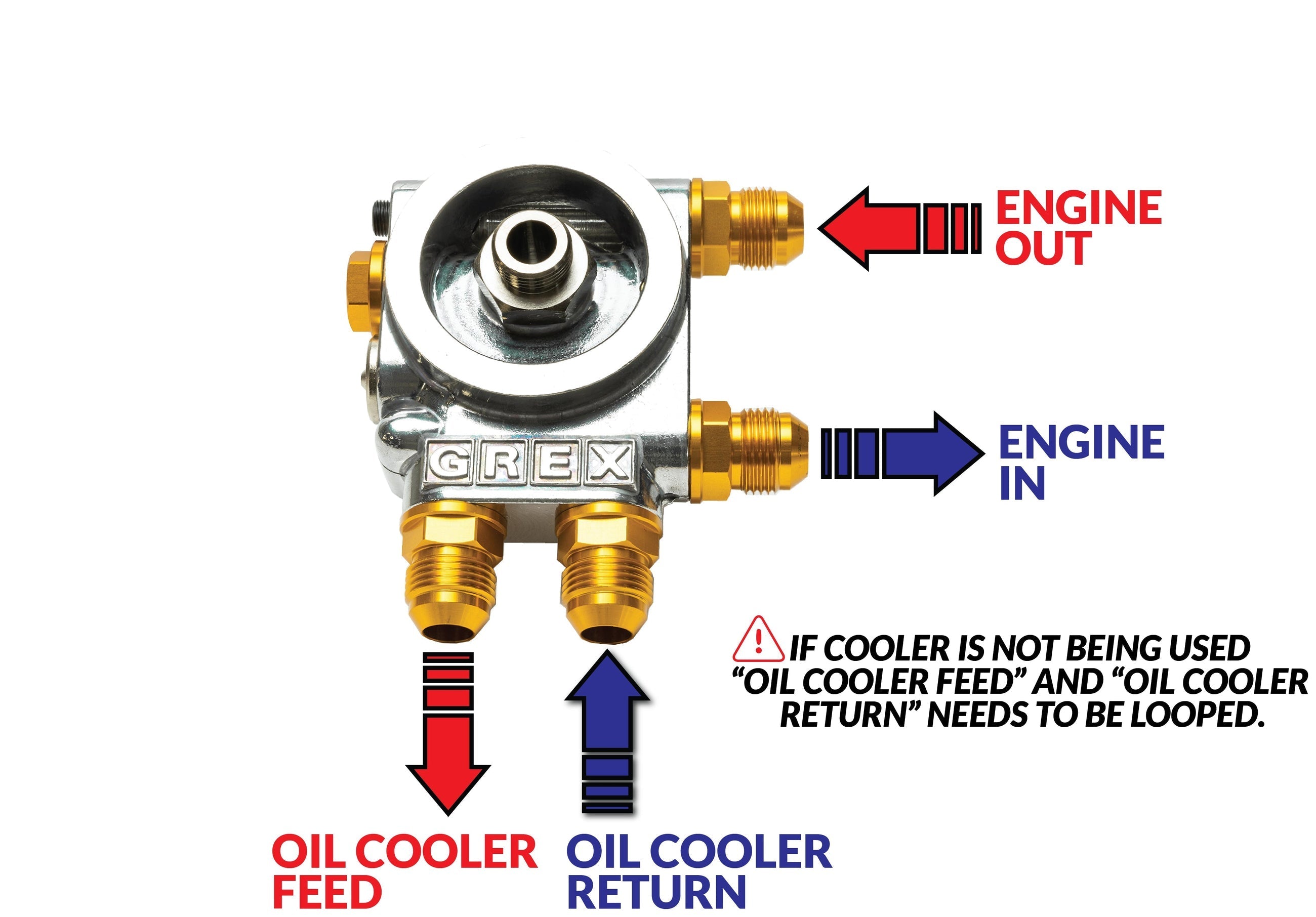

Oil outlet and inlet for the oil cooler must be looped back.
Oil outlet and inlet for the oil cooler must be looped back.

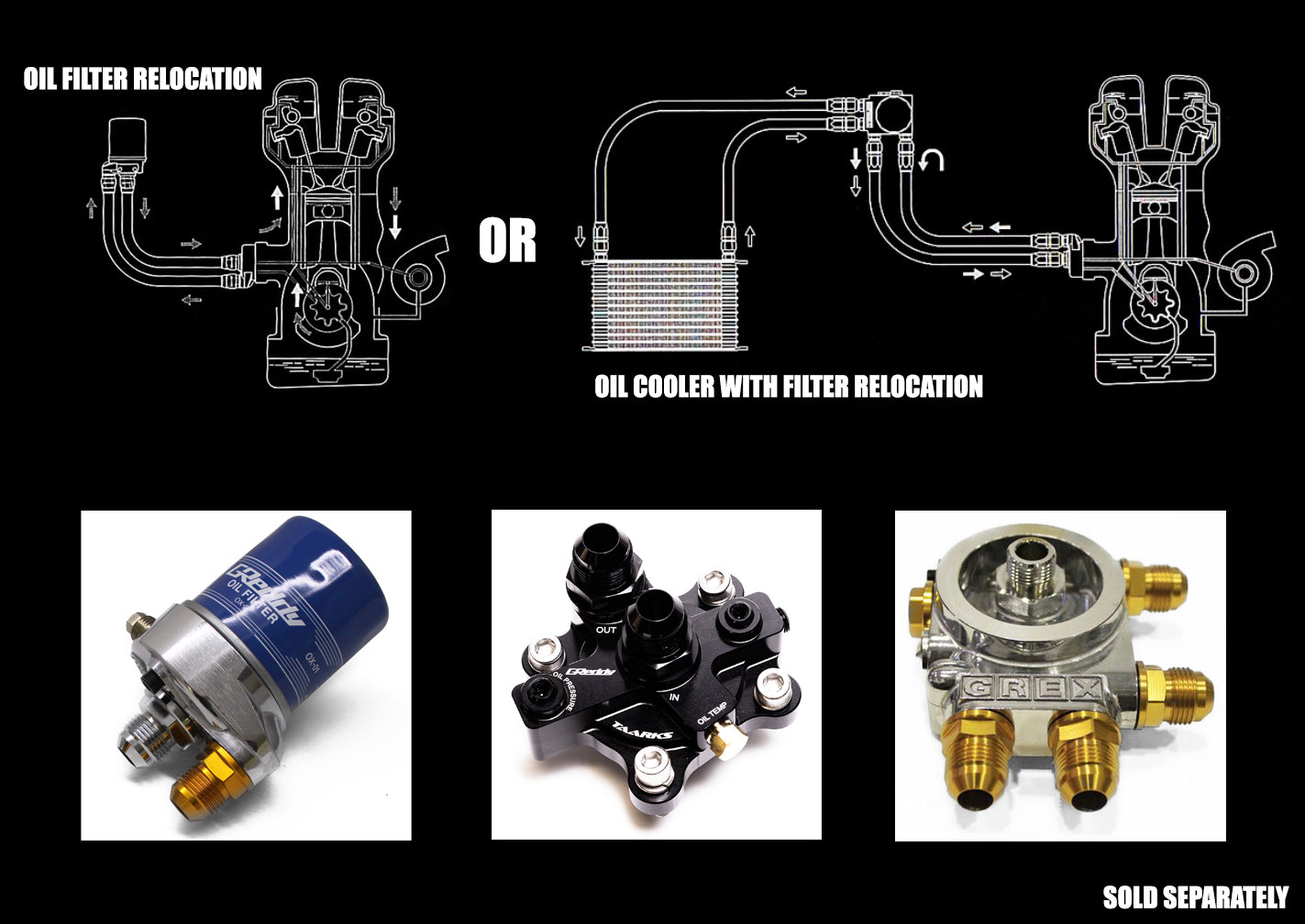

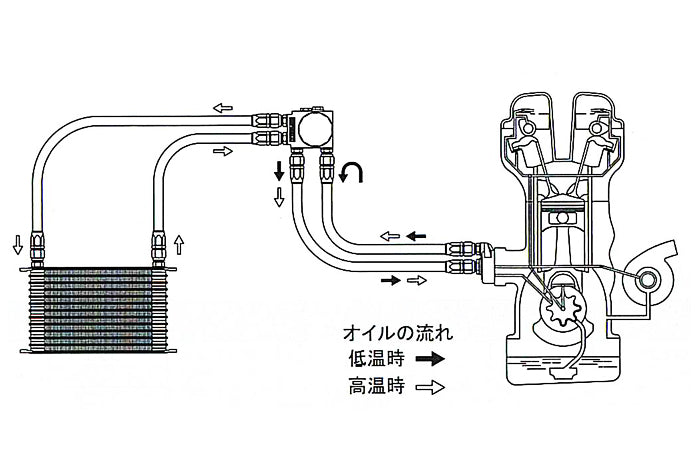

Ideal for custom Oil Cooler Kits with oil filter relocation.
- Ideally used with -10 AN Oil Block Adapter to engine without thermostat :
M20 x P1.5 - P/N 12401129 or 3/4 x 16UNF - P/N 12401111 (sold separately) or
Type-F: M20 x P1.5 - P/N 12401131 or 3/4 x 16UNF - P/N 12401135 (sold separately)
GReddy x Taarks Collab. RB-specific Remote Oil Block - p/n 12428110
Use P/N 16400721 for 1/8PT ports to use with Pressure & Temperature Sensors
** Optional GReddy Direct M18xP1.5 O-ring fittings - 1240215X
Type-I Oil Cooler Filter Relocation Adapter, Filter: 3/4-16UNF, 10AN
