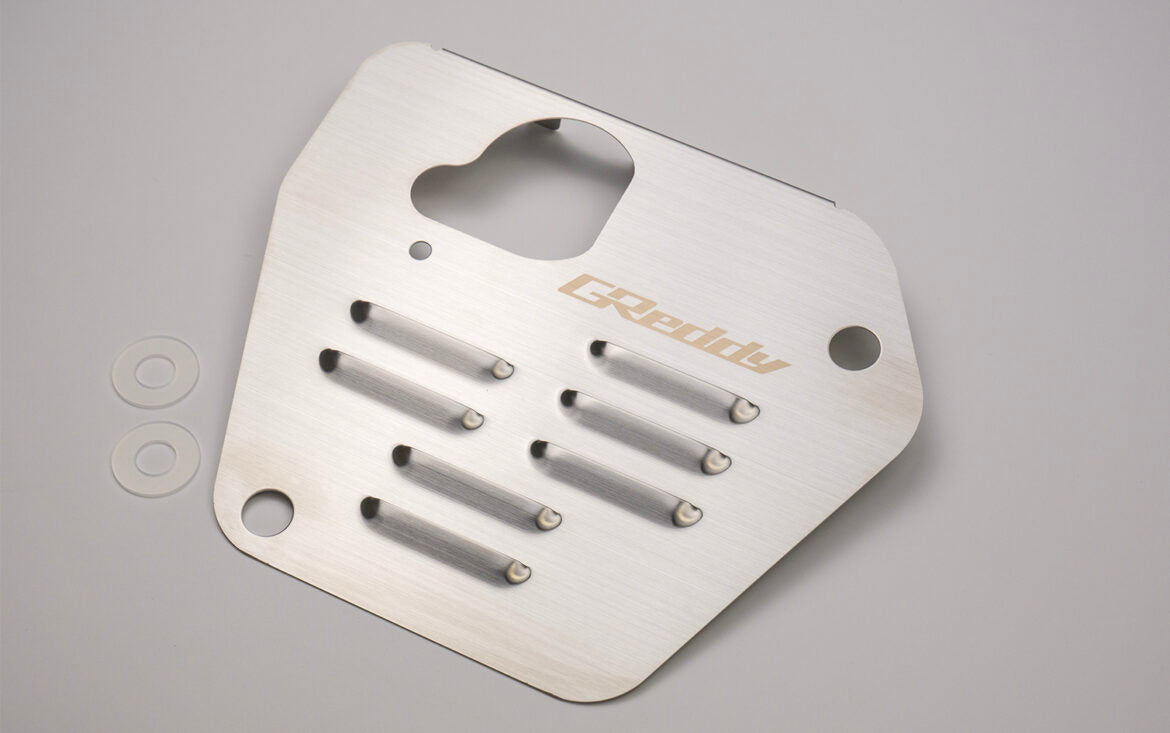

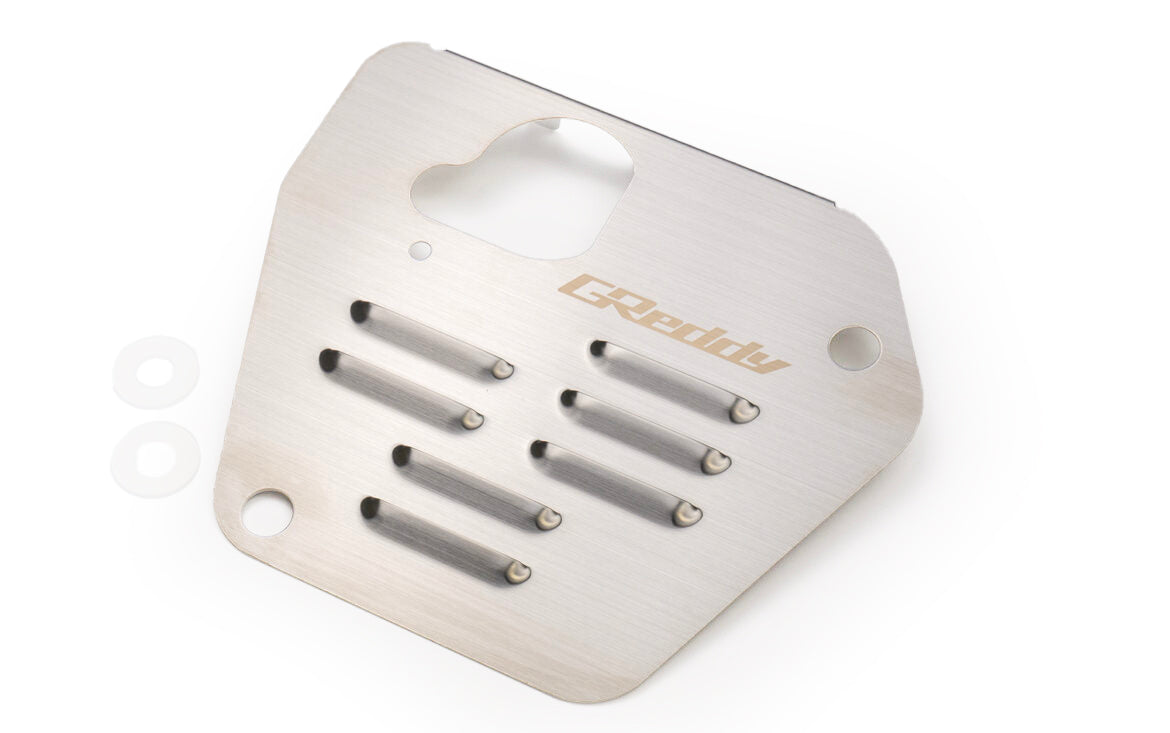

Engine Oil Pan Baffle Plate ZN8/ZD8

Part #: 13515903

Specification Change Information: The material of this ZN8/ZD8 oil pan baffle plate is now stainless steel.

Product Features

• The FA24 engine has a structure in which a large amount of engine oil accumulated in the oil pan flows into the front chain cover due to intense braking G-forces when driving on a circuit. The oil strainer then runs dry and oil pressure decreases. In the worst case, this may cause engine failure.

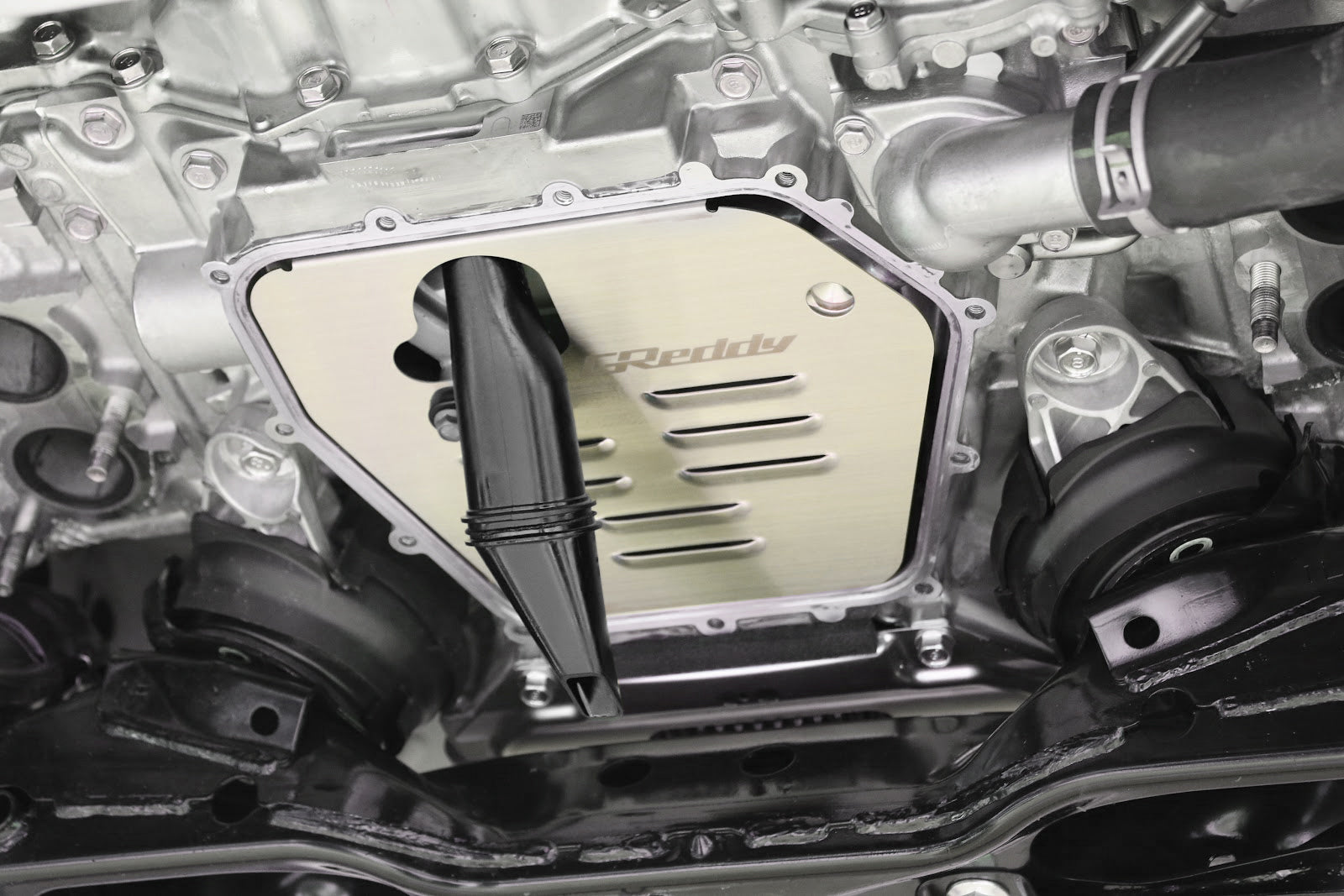

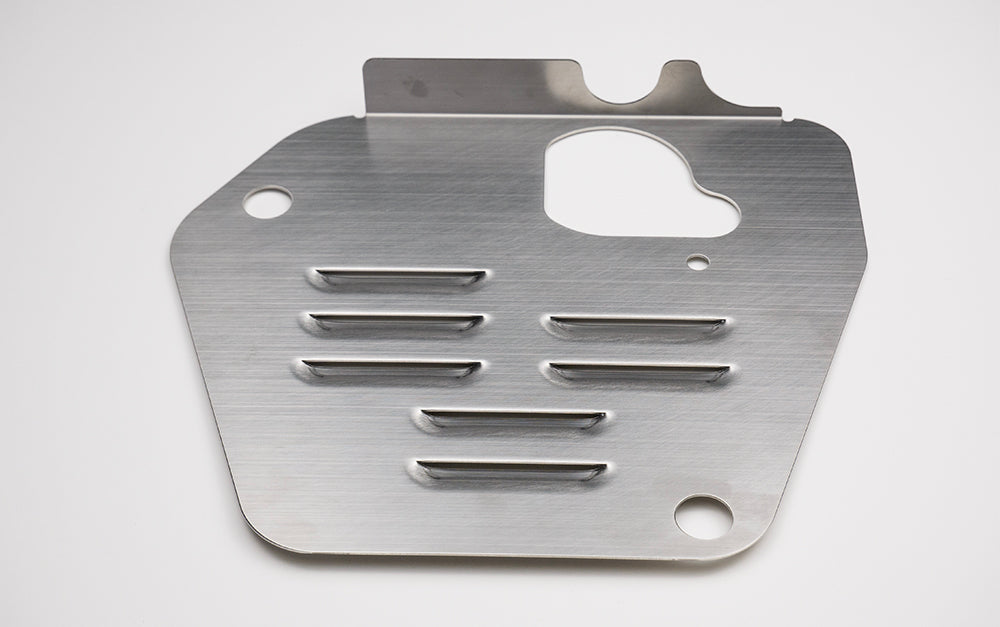

• The GReddy oil pan baffle plate prevents the engine oil from shifting to one side, which tends to occur during acceleration, deceleration, and cornering. Multiple louvers on the plate prevent oil from accumulating on top of it and allow it to return smoothly to the oil pan.

Compatible Models: Toyota GR86 / Subaru BRZ
Model: ZN8 / ZD8
Engine: FA24
Year: 10/2021 ~ / 8/2021 ~

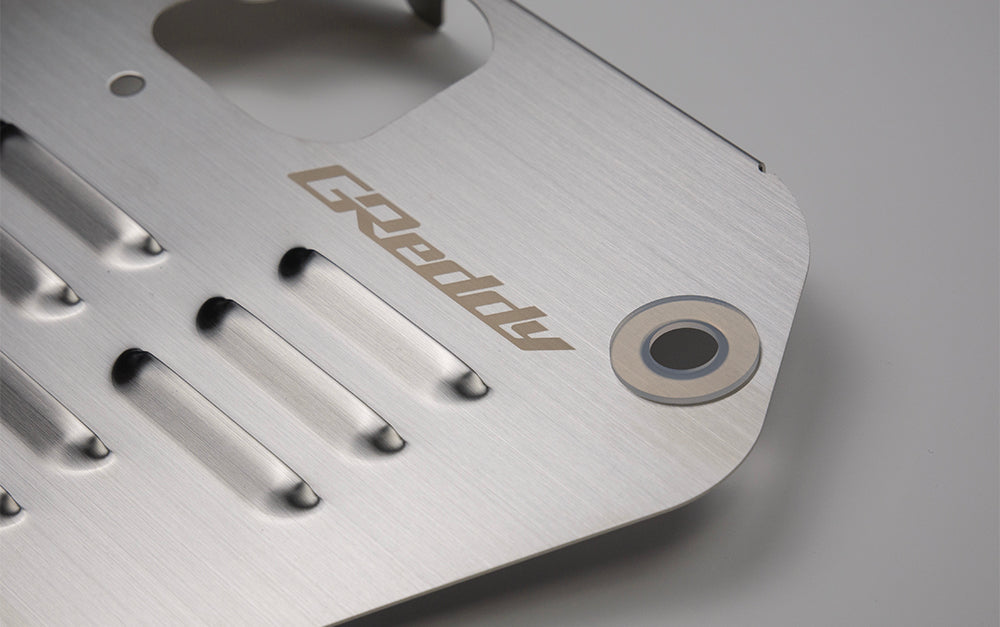

* Replacement silicone washers for GReddy baffle plates - 13515901-WS
