SUPREME SP SCION FRS 12-16/TOYOTA 86 17-ON - (10118206)
Also Compatible with 2017 Toyota 86 and 2017-20 Subaru BRZ!

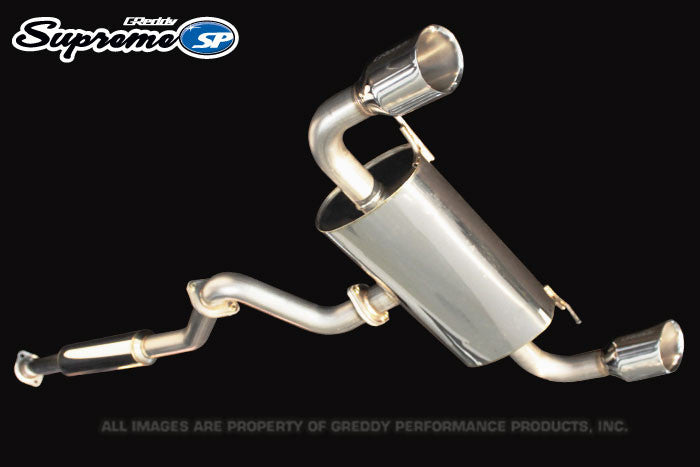

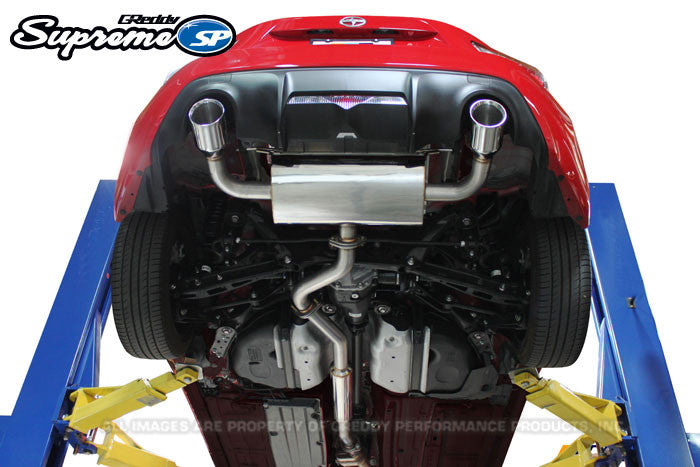

The Supreme SP for the Scion FR-S & Subaru BRZ features a large horizontally mounted, 3-section muffler with a center inlet and an unique, tuned, internal "Y-pipe." This directs exhaust gases through a center chamber to reduce overall sound and improves flow to the outer straight-through sections. These outer sections of the muffler have our updated high-temp, internal sound suppression system. The exhaust is finished-off with dual GReddy slant-cut, double-walled tips in the factory bumper outlets. This cat-back exhaust also uses a simplified exhaust pipe routing with a large straight-through resonator in the mid-pipe, to tune-out any drone.
NOTE: Becuse the Supreme SP for this model uses a factory type "donut gasket" flange to the factory piping, it fits both the 2012-16 FR-S / BRZ and the 2017-on "kouki" 86 / BRZ models (the slight change in the OEM factory over-pipe does not effect fitment on the Supreme SP).
Chassis: ZN6
Engine: 4U-GSE (FA20)
Type: Cat-back system
(horizontally mounted muffler with dual tips)
Number of pieces: 3
Piping: 63.5 mm (2.5")

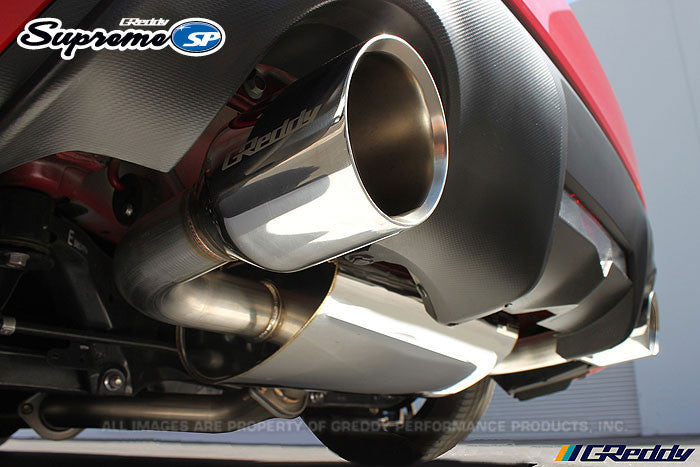

Tip(s): 2x 115mm (4.5")
Gasket(s): 2.5" oval (qty: 2 included) replacement
Resonator: Yes
Notes: reuse factory doughnut-gasket and spring bolts for mid-pipe
Weight: 34.8 lbs (-3.3 lbs)
Sound Comparison (SAE J1169) Test: L82 / R83 dB(a) @4500RPM
Dyno Chart
HP: +6 hp
TRQ: +7.5 ft-lbs
* also fits 2017 Toyota 86 Manual Trans
*Data collected on stock vehicle *Retains catalytic convertor, front pipe
*TBA = To Be Announced. **Test results may vary from car to car
